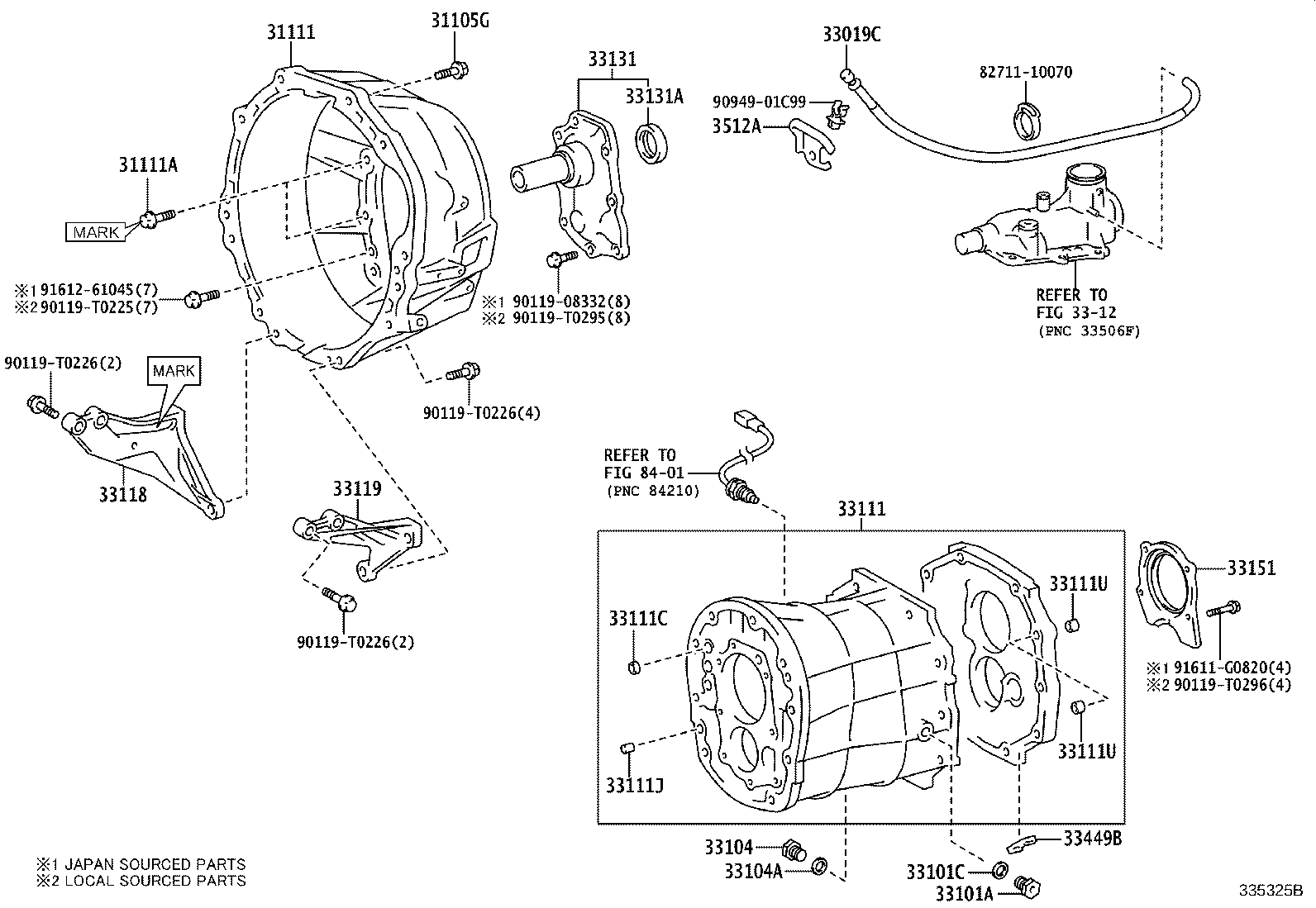

GUN143L-MDMMYV (2017)
Toyota Innova
(1511- )GUN14#..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-T0227 |
GUN14#..IDNP..5F..(IDN,PHL) *12-1.25PX50-30 |
5 | ||
| 90119-T0227 |
GUN143..PHLP..5F..(28E,28G,N);GUN14#..MTM..(GCC,GEN,IND)..DCR;GUN142..5F..(24G,24Z,G)..IND..DCRL *12-1.25PX50-30 |
5 | ||
| 31111 - HOUSING, CLUTCH | ||||
| 31111-0K010 |
GUN14#..IDNP..5F..(IDN,PHL) TYPE A:REFER 33-01 |
1 | ||
| 31111-0K061 |
GUN14#..IDNP..5F..(IDN,PHL) TYPE B:SEE 33-01,(L) |
1 | ||
| 31111-0K090 |
GUN14#..IDNP..5F..(IDN,PHL) TYPE C:REFER 33-01 |
1 | ||
| 31111-35102 |
GUN143..PHLP..5F;GUN14#..5F..(GCC,GEN,IND)..DCR TYPE B:SEE 33-01,(J) |
1 | ||
| 31111-0K061 |
GUN143..PHLP..5F;GUN14#..5F..(GCC,GEN,IND)..DCR TYPE B:SEE 33-01,(L) |
1 | ||
| 31111-35102 |
GUN14#..IDNP..5F..(IDN,PHL) TYPE B:SEE 33-01,(J) |
1 | ||
| 31111-0K010 |
GUN143..PHLP..5F..(28E,28G,N);GUN14#..5F..(GCC,GEN,IND)..DCR TYPE A:REFER 33-01 |
1 | ||
| 31111-0K090 |
GUN143..PHLP..5F..(28E,28G,N);GUN14#..5F..(GCC,GEN,IND)..DCR TYPE C:REFER 33-01 |
1 | ||
| 31111A - BOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING) | ||||
| 91612-61045 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) (J),MARK=6T |
2 | ||
| 91612-61045 |
TGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F..(20E,28E,28G,N);GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC) (J),MARK=6T |
2 | ||
| 90119-T0297 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) (L),MARK=6.8 |
2 | ||
| 90119-T0297 |
TGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F..(20E,28E,28G,N);GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC) (L),MARK=6.8 |
2 | ||
| 33019C - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-0K010 |
GUN14#..IDNP..5F |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) TYPE B:REFER 33-01,TYPE A:REFER 33-01,TYPE C:REFER 33-01 |
1 | ||
| 90341-18006 |
TGN141..5F..27..GCC;GUN14#,TGN14#..5F..(20E,24,24G,24V,24Z,27G,27SR,27V,28,28G,G,N)..(GCC,GEN,IND,LA,MA)..(DCR,HTWC) TYPE B:REFER 33-01 |
1 | ||
| 90341-18006 |
TGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F..(20E,28E,28G,N);GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC) TYPE A:REFER 33-01,TYPE C:REFER 33-01 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
GUN14#,TGN14#..5F TYPE A:REFER 33-01 |
1 | ||
| 90430-T0021 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90430-18008 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) TYPE C:REFER 33-01 |
1 | ||
| 90430-T0011 |
GUN143,TGN141..5F..(GCC,GEN);GUN14#,TGN140..(INDP,MAP,PHLP)..5F..(20E,24G,24V,24Z,28E,28G,G,N)..(DCR,HTWC) TYPE A:REFER 33-01 |
1 | ||
| 90430-18008 |
TGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F..(20E,28E,28G,N);GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC) TYPE C:REFER 33-01 |
1 | ||
| 90430-T0021 |
TGN141..5F..27..GCC;GUN14#,TGN14#..5F..(20E,24,24G,24V,24Z,27G,27SR,27V,28,28G,G,N)..(GCC,GEN,IND,LA,MA)..(DCR,HTWC) TYPE B:REFER 33-01 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
TGN141..5F..27..GCC;GUN14#,TGN14#..5F..(20E,24,24G,24V,24Z,27G,27SR,27V,28,28G,G,N)..(GCC,GEN,IND,LA,MA)..(DCR,HTWC) TYPE B:REFER 33-01 |
1 | ||
| 90341-18006 |
TGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F..(20E,28E,28G,N);GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC) TYPE A:REFER 33-01,TYPE C:REFER 33-01 |
1 | ||
| 90341-18006 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) TYPE B:REFER 33-01,TYPE A:REFER 33-01,TYPE C:REFER 33-01 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) TYPE C:REFER 33-01 |
1 | ||
| 90430-18008 |
GUN14#,TGN14#..5F TYPE A:REFER 33-01 |
1 | ||
| 90430-T0021 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90430-18008 |
TGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F..(20E,28E,28G,N);GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC) TYPE C:REFER 33-01 |
1 | ||
| 90430-T0011 |
GUN143,TGN141..5F..(GCC,GEN);GUN14#,TGN140..(INDP,MAP,PHLP)..5F..(20E,24G,24V,24Z,28E,28G,G,N)..(DCR,HTWC) TYPE A:REFER 33-01 |
1 | ||
| 90430-T0021 |
TGN141..5F..27..GCC;GUN14#,TGN14#..5F..(20E,24,24G,24V,24Z,27G,27SR,27V,28,28G,G,N)..(GCC,GEN,IND,LA,MA)..(DCR,HTWC) TYPE B:REFER 33-01 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-0K040 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33101-0K040 |
TGN141..5F..27..GCC;GUN14#,TGN14#..5F..(20E,24,24G,24V,24Z,27G,27SR,27V,28,28G,G,N)..(GCC,GEN,IND,LA,MA)..(DCR,HTWC) TYPE B:REFER 33-01 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-41800 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) OD=18,TYPE B:REFER 33-01,TYPE A:REFER 33-01,TYPE C:REFER 33-01 |
3 | ||
| 96411-41800 |
TGN141..5F..27..GCC;GUN14#,TGN14#..5F..(20E,24,24G,24V,24Z,27G,27SR,27V,28,28G,G,N)..(GCC,GEN,IND,LA,MA)..(DCR,HTWC) OD=18,TYPE B:REFER 33-01 |
3 | ||
| 96411-41800 |
TGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F..(20E,28E,28G,N);GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC) OD=18,TYPE A:REFER 33-01,TYPE C:REFER 33-01 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) L=16,OD=12,TYPE A:REFER 33-01,TYPE C:REFER 33-01 |
2 | ||
| 90250-T0020 |
TGN141..5F..27..GCC;GUN14#,TGN14#..5F..(20E,24,24G,24V,24Z,27G,27SR,27V,28,28G,G,N)..(GCC,GEN,IND,LA,MA)..(DCR,HTWC) L=16,OD=12,TYPE B:REFER 33-01 |
2 | ||
| 90250-T0020 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) L=16,OD=12,TYPE B:REFER 33-01 |
2 | ||
| 90250-12002 |
TGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F..(20E,28E,28G,N);GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC) L=16,OD=12,TYPE A:REFER 33-01,TYPE C:REFER 33-01 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) L=14,OD=15,TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
4 | ||
| 90253-15001 |
TGN141..5F..27..GCC;GUN14#,TGN14#..5F..(20E,24,24G,24V,24Z,27G,27SR,27V,28,28G,G,N)..(GCC,GEN,IND,LA,MA)..(DCR,HTWC) L=14,OD=15,TYPE B:REFER 33-01 |
4 | ||
| 90253-15001 |
TGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F..(20E,28E,28G,N);GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC) L=14,OD=15,TYPE A:REFER 33-01 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) L=14,OD=15,TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
4 | ||
| 90253-15001 |
TGN141..5F..27..GCC;GUN14#,TGN14#..5F..(20E,24,24G,24V,24Z,27G,27SR,27V,28,28G,G,N)..(GCC,GEN,IND,LA,MA)..(DCR,HTWC) L=14,OD=15,TYPE B:REFER 33-01 |
4 | ||
| 90253-15001 |
TGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F..(20E,28E,28G,N);GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC) L=14,OD=15,TYPE A:REFER 33-01 |
4 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-0K060 |
GUN14#..5F..(GCC,GEN);GUN143..PHLP..5F..(28E,28G,N) MARK=0K060 |
1 | ||
| 33118-0K060 |
GUN14#..IDNP..5F..(IDN,PHL) MARK=0K060 |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-0K030 |
GUN14#..IDNP..5F..(IDN,PHL) |
1 | ||
| 33119-0K030 |
GUN14#..5F..(GCC,GEN);GUN143..PHLP..5F..(28E,28G,N) |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K070 |
GUN14#,TGN14#..5F TYPE C:REFER 33-01 |
1 | ||
| 33018-0K011 |
GUN14#,TGN14#..5F TYPE A:REFER 33-01 |
1 | ||
| 33018-0K040 |
GUN14#,TGN14#..5F TYPE B:REFER 33-01 |
1 | ||
| 33018-0K012 |
GUN143,TGN141..5F..(GCC,GEN);GUN14#,TGN140..(INDP,MAP,PHLP)..5F..(20E,24G,24V,24Z,28E,28G,G,N)..(DCR,HTWC) TYPE A:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0027 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90311-T0027 |
TGN141..5F..27..GCC;GUN14#,TGN14#..5F..(20E,24,24G,24V,24Z,27G,27SR,27V,28,28G,G,N)..(GCC,GEN,IND,LA,MA)..(DCR,HTWC) TYPE B:REFER 33-01 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-0K040 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) TYPE C:REFER 33-01 |
1 | ||
| 33151-0K030 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33151-0K010 |
TGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F..(20E,28E,28G,N);GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC) TYPE A:REFER 33-01 |
1 | ||
| 33151-0K030 |
TGN141..5F..27..GCC;GUN14#,TGN14#..5F..(20E,24,24G,24V,24Z,27G,27SR,27V,28,28G,G,N)..(GCC,GEN,IND,LA,MA)..(DCR,HTWC) TYPE B:REFER 33-01 |
1 | ||
| 33151-0K010 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) TYPE A:REFER 33-01 |
1 | ||
| 33151-0K040 |
TGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F..(20E,28E,28G,N);GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC) TYPE C:REFER 33-01 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35030 |
GUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH) TYPE B:REFER 33-01,TYPE A:REFER 33-01,TYPE C:REFER 33-01 |
1 | ||
| 33449-35030 |
TGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F..(20E,28E,28G,N);GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC) TYPE A:REFER 33-01,TYPE C:REFER 33-01 |
1 | ||
| 33449-35030 |
TGN141..5F..27..GCC;GUN14#,TGN14#..5F..(20E,24,24G,24V,24Z,27G,27SR,27V,28,28G,G,N)..(GCC,GEN,IND,LA,MA)..(DCR,HTWC) TYPE B:REFER 33-01 |
1 | ||
| 3512A - BRACKET, TRANSMISSION BREATHER, NO.1 | ||||
| 3512A-0K100 |
GUN14#..5F..(GCC,GEN);GUN143..PHLP..5F..(28E,28G,N) |
1 | ||
| 3512A-0K100 |
GUN14#..IDNP..5F..(IDN,PHL) |
1 | ||
| Common parts | ||||
| 82711-10070 | ||||
| 90119-08332 | ||||
| 90119-T0225 | ||||
| 90119-T0226 | ||||
| 90119-T0295 | ||||
| 90119-T0296 | ||||
| 90949-01C99 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8401 | ||||
