GUN143L-MDMMYV (2017)

Toyota Innova

Production Aug 2017 - Apr 2019
Engine 1GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1511- )1GDFTV,2GDFTV

Click highlighted areas on diagram

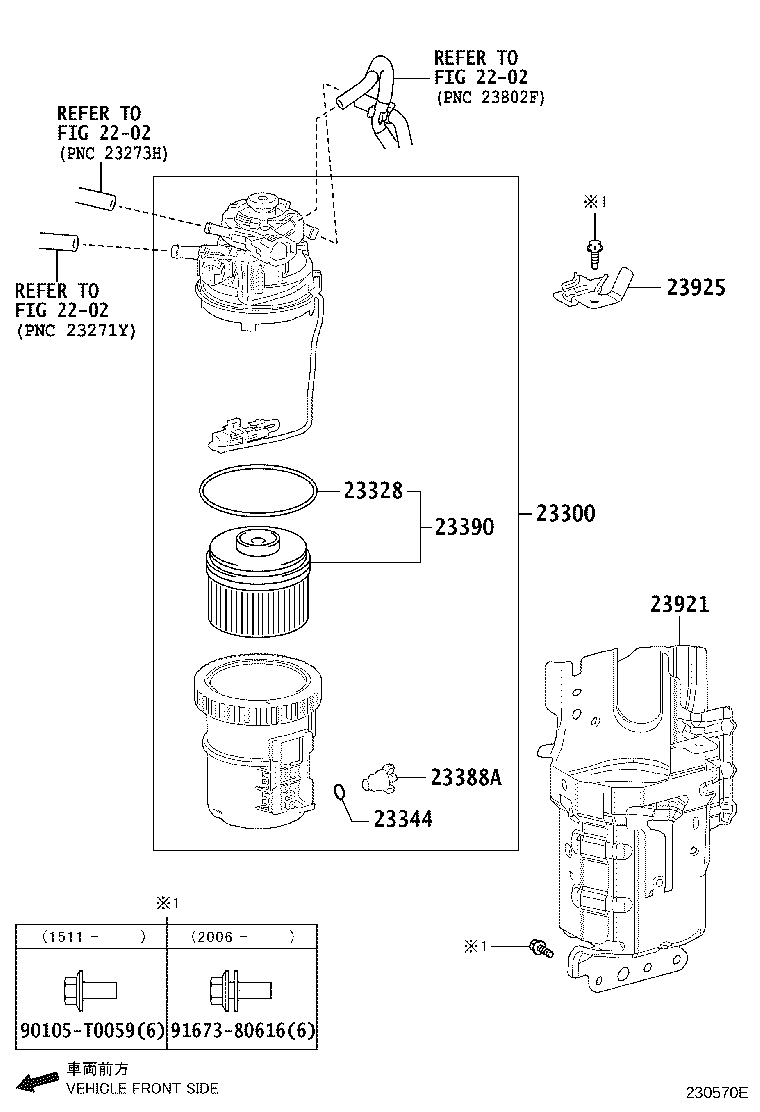

FUEL FILTER

diagram 2202 2202 2202 23300 23328 23344 23388A 23390 23921 23925 90105T0059 9167380616
Part # Description Qty Price
23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER)
23344-0L041

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
23388A - PLUG, FUEL FILTER DRAIN
23388-0L041

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
23390 - ELEMENT ASSY, FUEL FILTER
23390-0L070

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
23925 - STAY, FUEL FILTER SUPPORT
23925-0L010

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
Common parts
90105-T0059
91673-80616
Linked diagrams
2202
