GUN143L-MDMMYV (2017)
Toyota Innova

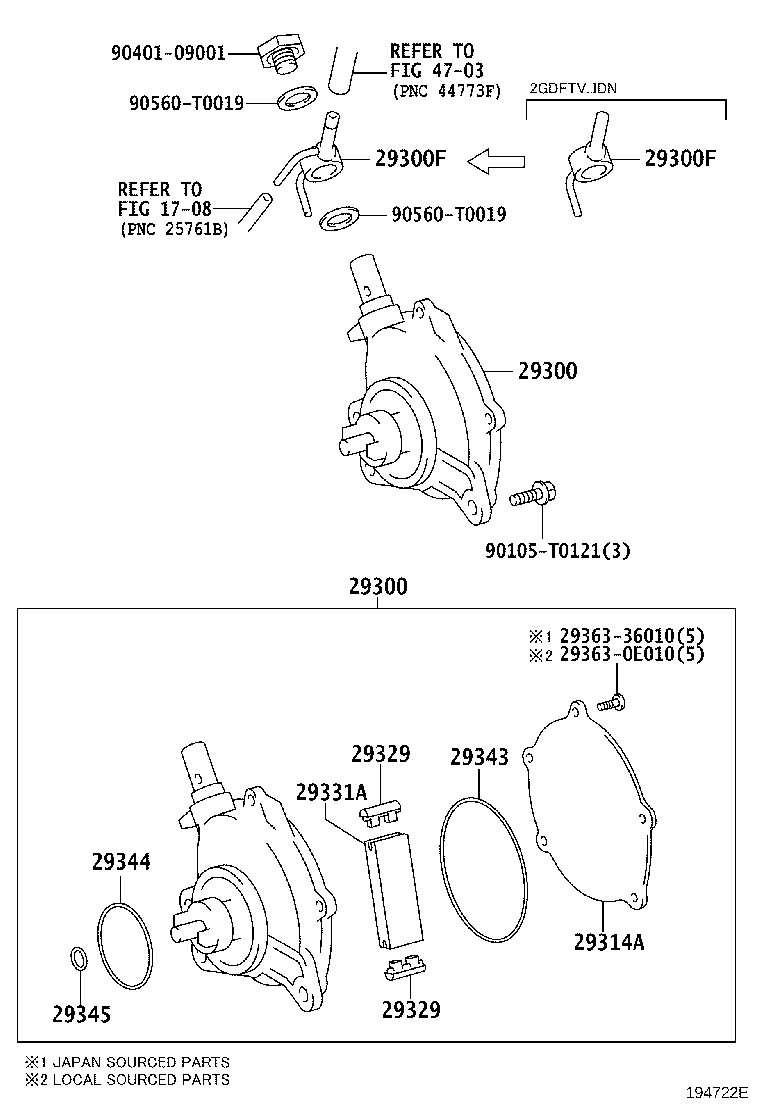

(1511-1803)1GDFTV,2GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-0E011 |
1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (L) |
1 | ||
| 29300-11021 |
1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (J) |
1 | ||
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-0E011 |
1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (L) |
1 | ||
| 29300-11021 |
1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (J) |
1 | ||
| 29300F - UNION | ||||
| 90405-T0001 |
2GDFTV..GUN142..(IND,TH)..DCR;1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 29300F - UNION | ||||
| 90405-T0001 |
2GDFTV..GUN142..(IND,TH)..DCR;1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 29314A - COVER, END | ||||
| 29314-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (L) |
1 | ||
| 29329 - CAP, VACUUM PUMP VANE | ||||
| 29329-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (L) |
2 | ||
| 29329 - CAP, VACUUM PUMP VANE | ||||
| 29329-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (L) |
2 | ||
| 29331A - VANE, VACUUM PUMP | ||||
| 29331-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (L) |
1 | ||
| 29343 - RING, O VACUUM PUMP, NO.1 | ||||
| 29343-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (L) |
1 | ||
| 29344 - RING, O VACUUM PUMP, NO.2 | ||||
| 29344-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (L) |
1 | ||
| 29345 - RING, O VACUUM PUMP, NO.3 | ||||
| 29345-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (L) |
1 | ||
| Common parts | ||||
| 29363-0E010 | ||||
| 29363-36010 | ||||
| 90105-T0121 | ||||
| 90401-09001 | ||||
| 90560-T0019 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 4703 | ||||

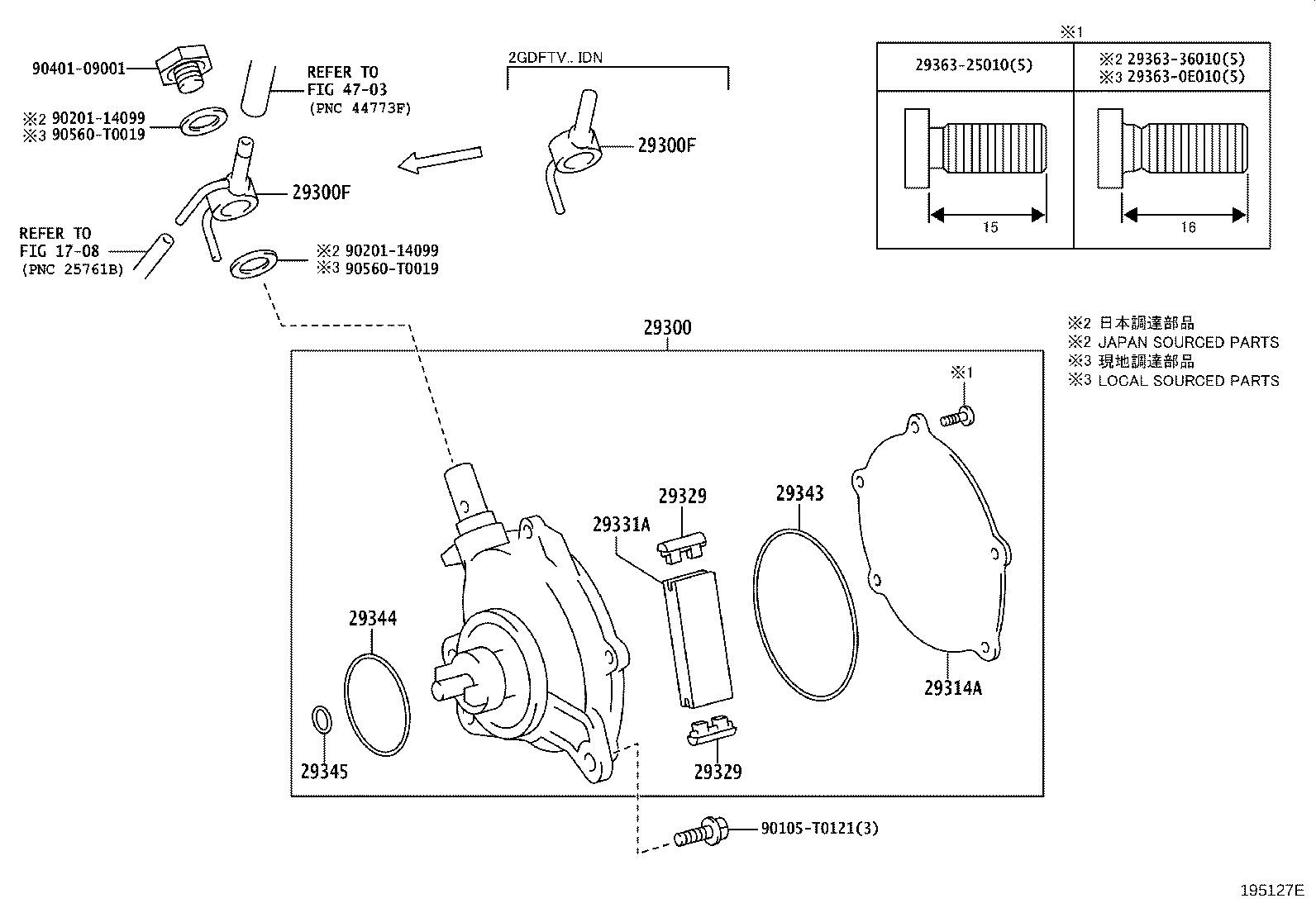

(1803- )1GDFTV,2GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-0E011 |
1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (L) |
1 | ||
| 29300-11021 |
1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (J) |
1 | ||
| 29300F - UNION | ||||
| 90405-T0001 |
2GDFTV..GUN142..(IND,TH)..DCR;1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 29300F - UNION | ||||
| 90405-T0001 |
2GDFTV..GUN142..(IND,TH)..DCR;1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 29314A - COVER, END | ||||
| 29314-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (L) |
1 | ||
| 29329 - CAP, VACUUM PUMP VANE | ||||
| 29329-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (L) |
2 | ||
| 29329 - CAP, VACUUM PUMP VANE | ||||
| 29329-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (L) |
2 | ||
| 29331A - VANE, VACUUM PUMP | ||||
| 29331-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (L) |
1 | ||
| 29343 - RING, O VACUUM PUMP, NO.1 | ||||
| 29343-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (L) |
1 | ||
| 29344 - RING, O VACUUM PUMP, NO.2 | ||||
| 29344-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (L) |
1 | ||
| 29345 - RING, O VACUUM PUMP, NO.3 | ||||
| 29345-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (L) |
1 | ||
| Common parts | ||||
| 29363-0E010 | ||||
| 29363-25010 | ||||
| 29363-36010 | ||||
| 90105-T0121 | ||||
| 90201-14099 | ||||
| 90401-09001 | ||||
| 90560-T0019 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 4703 | ||||
