GUN143L-MDMMYV (2017)

Toyota Innova

Production Aug 2017 - Apr 2019
Engine 1GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

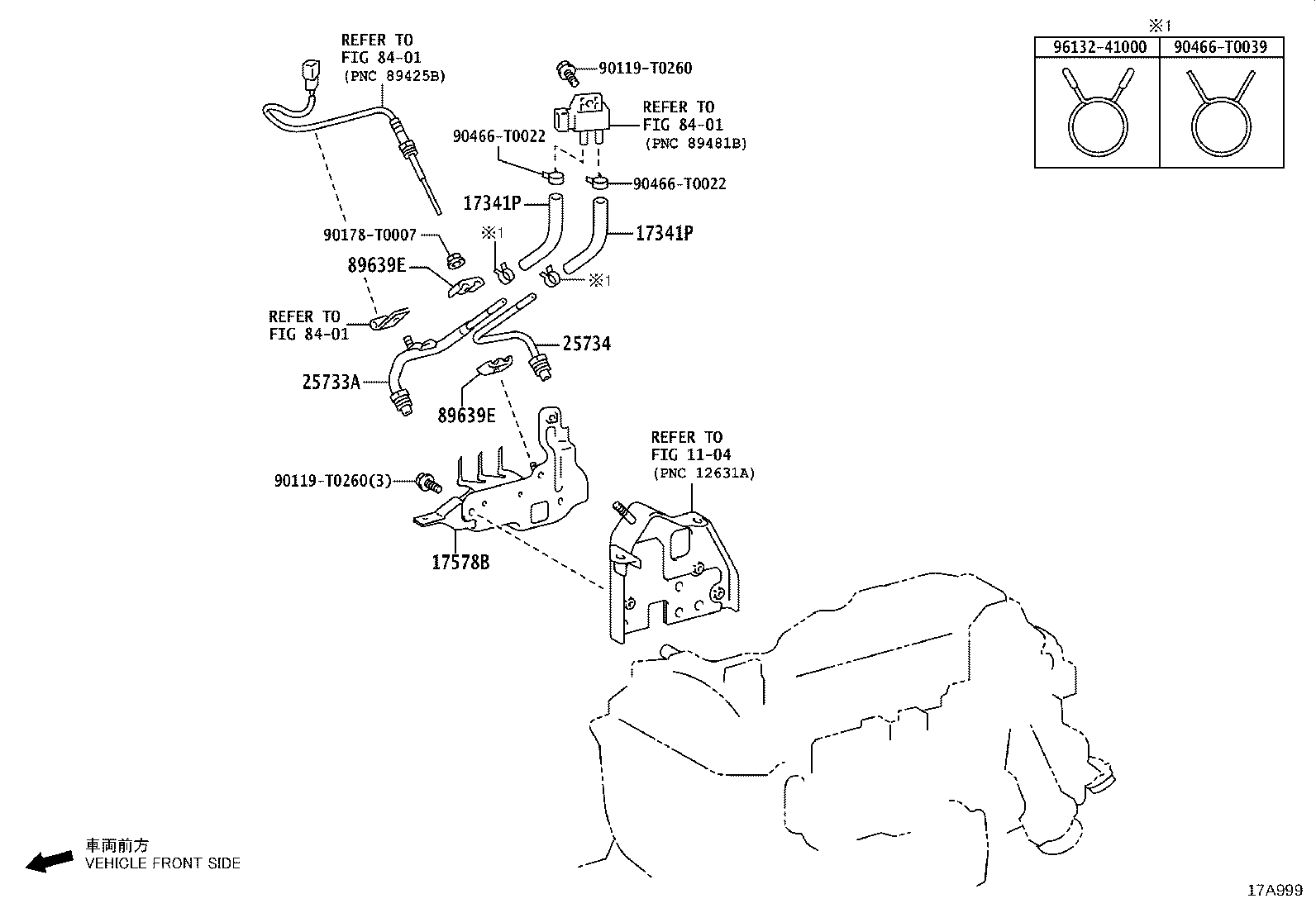

ILLUST NO. 1 OF 2(1511- )1GDFTV ; (1511- )2GDFTV..GCC,IDN..DCR ; (1511- )2GDFTV..24V..GEN..

Click highlighted areas on diagram

diagram 1104 17341P 17341P 17578B 25733A 25734 8401 8401 8401 89639E 89639E 90119T0260 90119T0260 90178T0007 90466T0022 90466T0022 90466T0039 9613241000
Part # Description Qty Price
Common parts
90119-T0260
90178-T0007
90466-T0022
90466-T0039
96132-41000
Linked diagrams
1104
8401

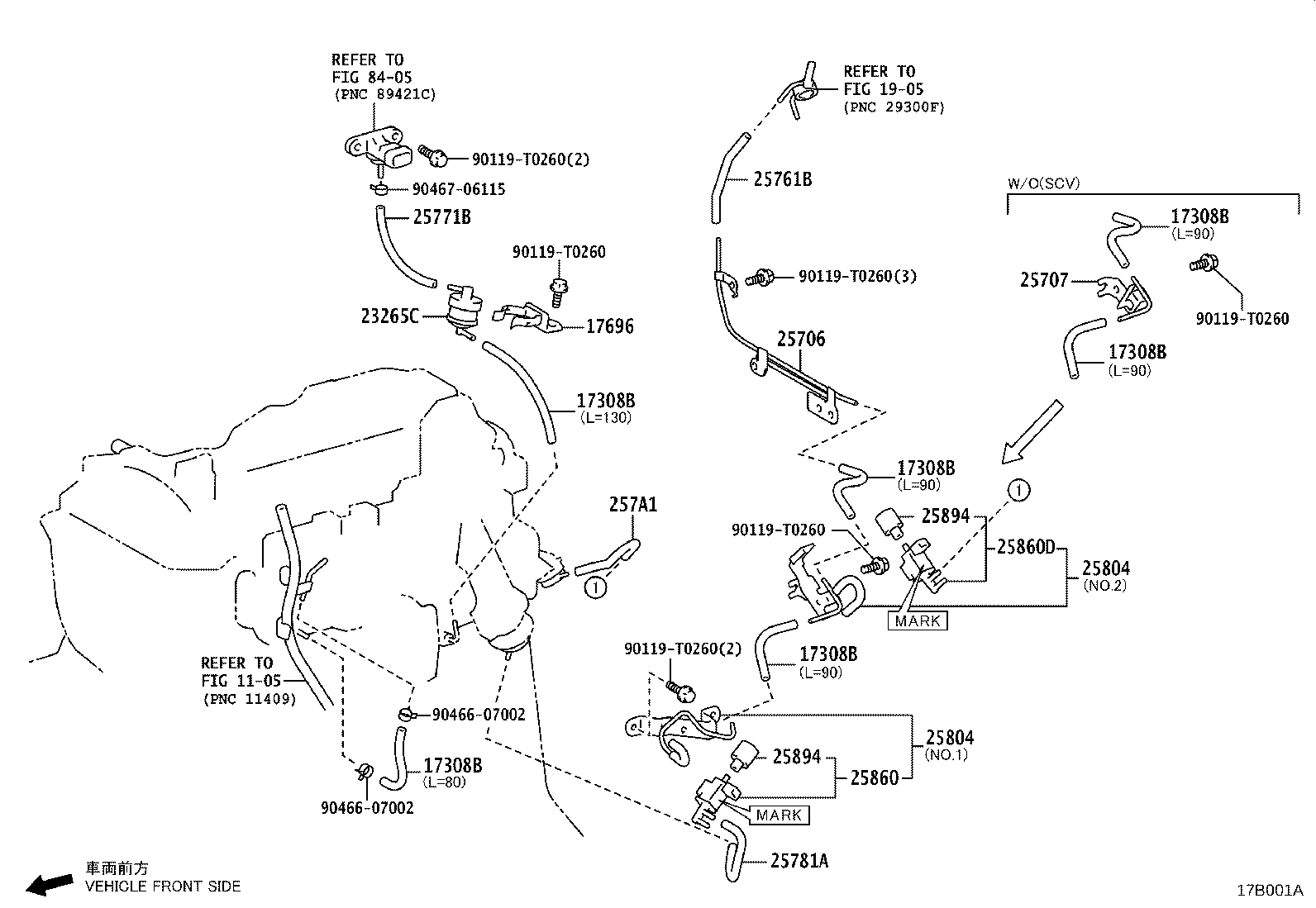

ILLUST NO. 2 OF 2(1511- )1GDFTV ; (1511- )2GDFTV..LHD..DCR; (1511- )2GDFTV..RHD..IDNP,INDP

Click highlighted areas on diagram

diagram 1105 17308B 17308B 17308B 17308B 17308B 17308B 17696 1905 23265C 25706 25707 25761B 25771B 25781A 257A1 25804 25804 25860 25860D 25894 25894 8405 90119T0260 90119T0260 90119T0260 90119T0260 90119T0260 90119T0260 9046607002 9046607002 9046706115
Part # Description Qty Price
17308B - HOSE SUB-ASSY, VACUUM
90999-92002

2GDFTV..GUN142..(IND,TH)..DCR;1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

L=90

 2
90999-92002

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

L=80,L=130

 1
17308B - HOSE SUB-ASSY, VACUUM
90999-92002

2GDFTV..GUN142..(IND,TH)..DCR;1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

L=90

 2
90999-92002

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

L=80,L=130

 1
17308B - HOSE SUB-ASSY, VACUUM
90999-92002

2GDFTV..GUN142..(IND,TH)..DCR;1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

L=90

 2
90999-92002

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

L=80,L=130

 1
17308B - HOSE SUB-ASSY, VACUUM
90999-92002

2GDFTV..GUN142..(IND,TH)..DCR;1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

L=90

 2
90999-92002

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

L=80,L=130

 1
17308B - HOSE SUB-ASSY, VACUUM
90999-92002

2GDFTV..GUN142..(IND,TH)..DCR;1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

L=90

 2
90999-92002

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

L=80,L=130

 1
17308B - HOSE SUB-ASSY, VACUUM
90999-92002

2GDFTV..GUN142..(IND,TH)..DCR;1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

L=90

 2
90999-92002

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

L=80,L=130

 1
17696 - BRACKET, GAS FILTER
17696-0E010

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N)

 1
23265C - FILTER, GAS
90917-11044

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-0E010

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N)

 1
25761B - HOSE, VACCUM TRANSMITTING, NO.1
25761-0E010

2GDFTV..GUN142..TH..DCR;1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..PHLP..(28E,28G,28V,N)

 1
25771B - HOSE, VACCUM TRANSMITTING, NO.2
25771-0E020

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
25781A - HOSE, VACUUM TRANSMITTING, NO.3
25781-0E010

2GDFTV..GUN142..TH..DCR;1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..PHLP..(28E,28G,28V,N)

 1
25804 - VALVE SET, VACUUM CONTROL
25804-11010

2GDFTV..GUN142..(IND,TH)..DCR;1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

NO.1

 1
25804 - VALVE SET, VACUUM CONTROL
25804-11010

2GDFTV..GUN142..(IND,TH)..DCR;1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

NO.1

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-30070

2GDFTV..GUN142..(IND,TH)..DCR;1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

MARK=AISIN

 1
Common parts
90119-T0260
90466-07002
90467-06115
Linked diagrams
1105
1905
8405
