GUN143L-MDMMYV (2017)

Toyota Innova

Production Aug 2017 - Apr 2019
Engine 1GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )1GDFTV,2GDFTV..DCR ; (1511- )2GDFTV..GEN,IDN,MA..DCRL

Click highlighted areas on diagram

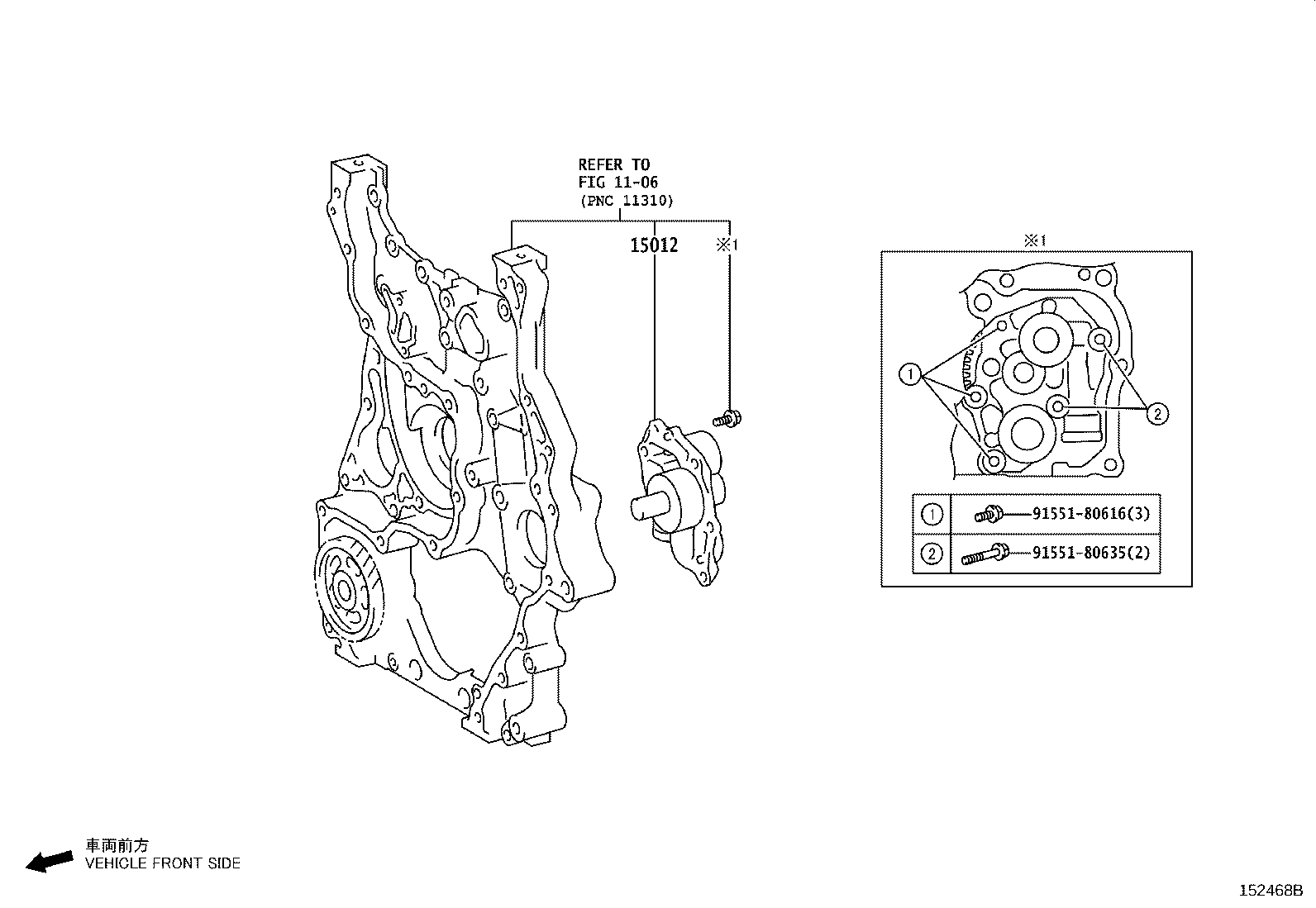

OIL PUMP

diagram 1106 15012 9155180616 9155180635
Part # Description Qty Price
15012 - COVER SUB-ASSY, OIL PUMP
15012-0E010

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
Common parts
91551-80616
91551-80635
Linked diagrams
1106

(1511- )1GDFTV,2GDFTV

Click highlighted areas on diagram

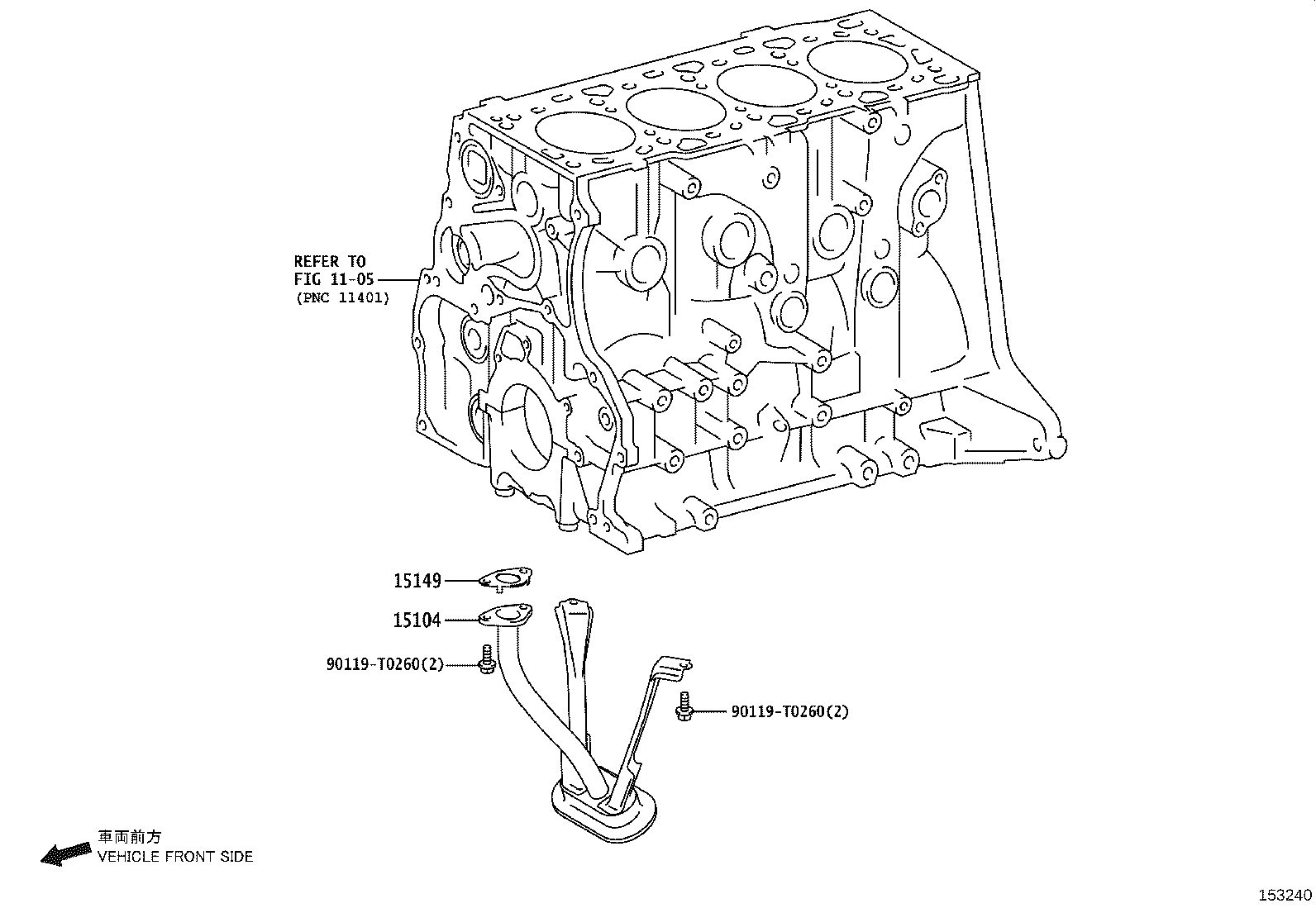

OIL STRAINER

diagram 1105 15104 15149 90119T0260 90119T0260
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-0E010

2GDFTV..GUN142..DCR;1GDFTV..GUN143..INDP,PHLP;1GDFTV..GUN143..GCC,GEN,TH

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-0E010

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N)

 1
Common parts
90119-T0260
Linked diagrams
1105
