GUN143L-MDMMYV (2017)

Toyota Innova

Production Aug 2017 - Apr 2019
Engine 1GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1511- )1GDFTV,2GDFTV

Click highlighted areas on diagram

diagram 9010508056 90105T0116 90105T0121 90105T0130 90105T0159 90105T0168 90105T0285 91551G0865
Part # Description Qty Price
Common parts
90105-08056
90105-T0116
90105-T0121
90105-T0130
90105-T0159
90105-T0168
90105-T0285
91551-G0865

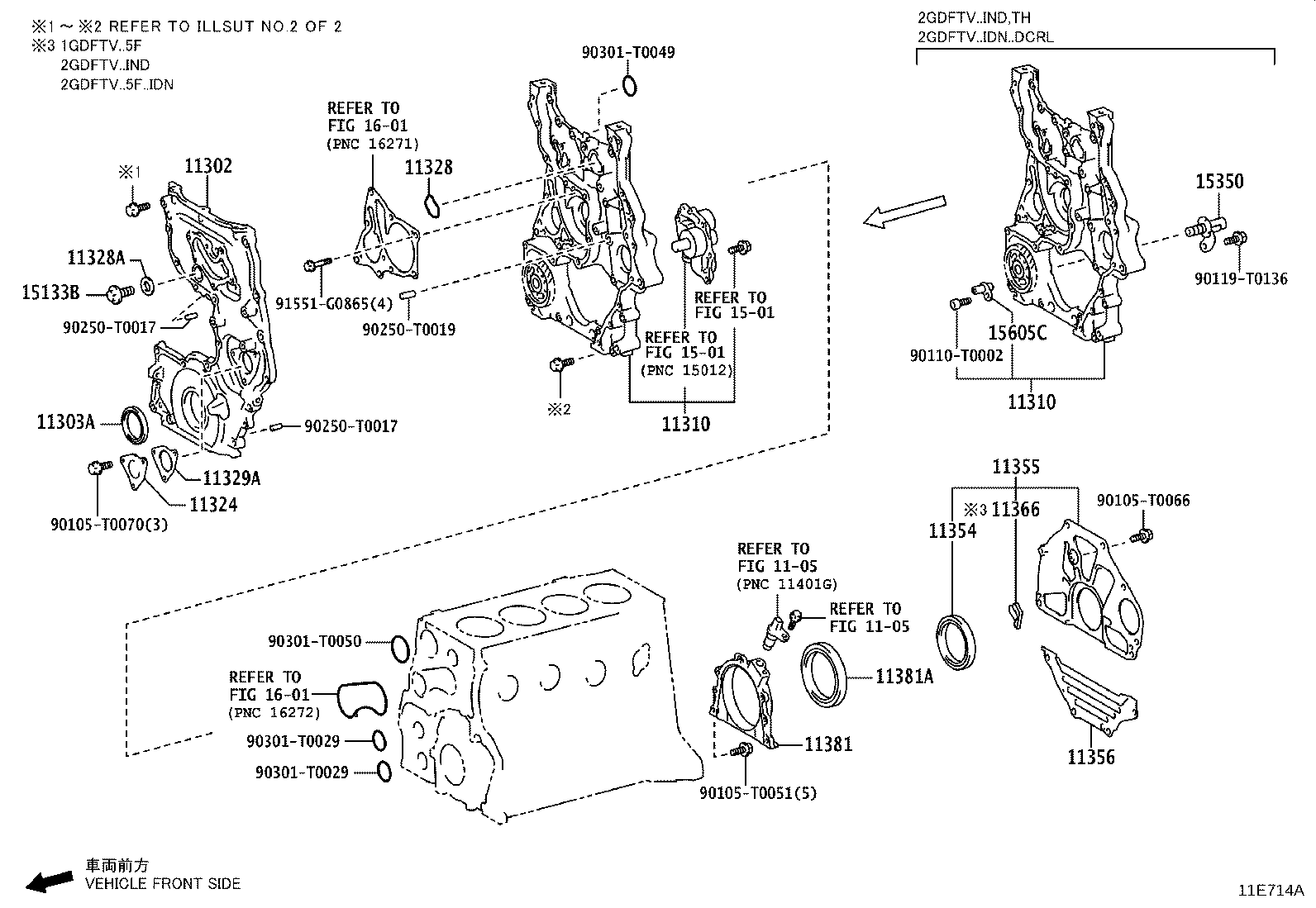

ILLUST NO. 1 OF 2(1511- )1GDFTV,2GDFTV

Click highlighted areas on diagram

diagram 1105 1105 11302 11303A 11310 11310 11324 11328 11328A 11329A 11354 11355 11356 11366 11381 11381A 1501 1501 15133B 15350 15605C 1601 1601 90105T0051 90105T0066 90105T0070 90110T0002 90119T0136 90250T0017 90250T0017 90250T0019 90301T0029 90301T0029 90301T0049 90301T0050 91551G0865
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-0E010

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N)

 1
11303A - SEAL, OIL(FOR CRANKSHAFT FRONT)
90311-T0054

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
11310 - COVER ASSY, TIMING CHAIN
11310-0E010

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
11310 - COVER ASSY, TIMING CHAIN
11310-0E010

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
11324 - PLATE, TIMING CHAIN COVER
11324-0E010

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N)

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-0E010

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N)

 1
11328A - GASKET, TIMING BELT COVER, NO.1
11328-38030

2GDFTV..GUN142;1GDFTV..GUN143..INDP,PHLP;1GDFTV..GUN143..GCC,GEN,TH

 1
11329A - GASKET, TIMING BELT OR CHAIN COVER, NO.2
11329-0E010

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N)

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-0L020

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
11355 - PLATE, REAR END
11355-0E010

2GDFTV..GUN142..5F..IDN;1GDFTV..GUN143..PHLP..5F;1GDFTV..GUN143..5F..(GCC,GEN)

 1
11355-0E040

1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..PHLP..5F..(28E,28G,N)

 1
11356 - PLATE, REAR END, NO.2
11356-0L011

1GDFTV,2GDFTV..GUN14#..IDNP,PHLP

 1
11356-0L012

2GDFTV..GUN142..GCC,SA;1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..PHLP..(28E,28G,28V,N)

 1
11366 - SEAL, FLYWHEEL HOUSING UNDER COVER DUST
11366-0E010

1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..PHLP..5F..(28E,28G,N);2GDFTV..GUN142..5F..(24G,24Z,G)..IND..DCRL

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-0E010

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
11381A - SEAL, ENGINE REAR OIL
90311-T0046

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
15133B - PLUG, OIL PUMP RELIEF VALVE
15133-38071

1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
Common parts
90105-T0051
90105-T0066
90105-T0070
90110-T0002
90119-T0136
90250-T0017
90250-T0019
90301-T0029
90301-T0049
90301-T0050
91551-G0865
Linked diagrams
1105
1501
1601
