GUN143L-MDMMYV (2017)
Toyota Innova

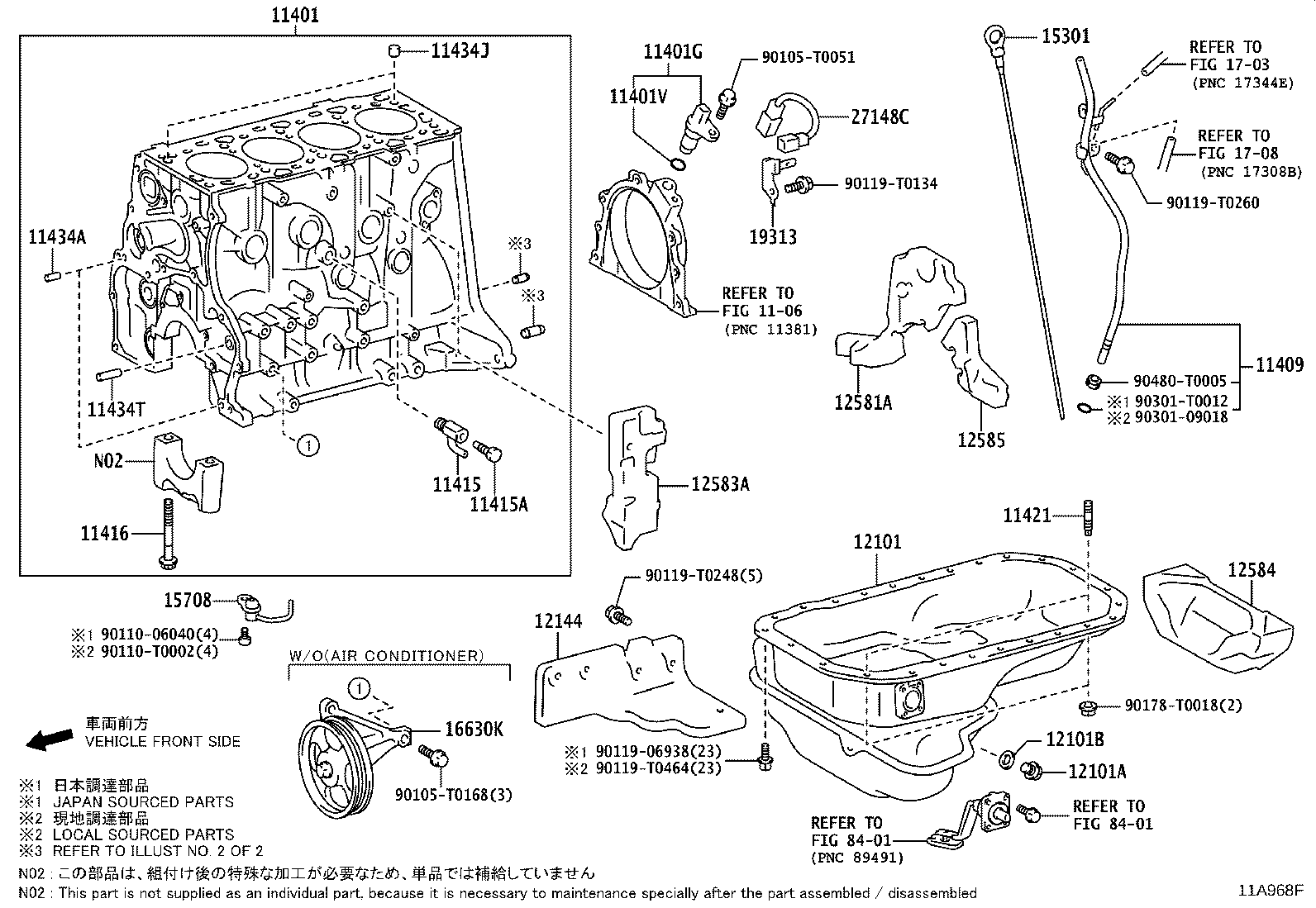

ILLUST NO. 1 OF 2(1511- )1GDFTV,2GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401G - SENSOR, CRANK POSITION | ||||
| 90919-05073 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 11409 - GUIDE SUB-ASSY, OIL LEVEL GAGE | ||||
| 11409-0E010 |
1GDFTV..GUN143..PHLP;2GDFTV..GUN142..GCC,IDN,SA;1GDFTV..GUN143..GCC,GEN,TH |
1 | ||
| 11409-0E011 |
2GDFTV..GUN142..GCC,SA;1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..PHLP..(28E,28G,28V,N) |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09128 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) (J) |
1 | ||
| 90910-09087 |
2GDFTV..GUN142;1GDFTV..GUN143..INDP,PHLP;1GDFTV..GUN143..GCC,GEN,TH |
1 | ||
| 90910-T9001 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) (L) |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-T2009 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90126-06028 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-T0007 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) L=18,OD=8 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-T0002 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
2 | ||
| 11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET) | ||||
| 90250-10030 |
2GDFTV..GUN142..GCC,SA;1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (J) |
1 | ||
| 90250-10030 |
1GDFTV..GUN143..PHLP;1GDFTV,2GDFTV..GUN14#..GCC,GEN,IDN,SA,TH |
1 | ||
| 90250-T0019 |
2GDFTV..GUN142..GCC,SA;1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..PHLP..(28E,28G,28V,N) (L) |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-T0004 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90080-43030 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 12144 - SILENCER, OIL PAN COVER | ||||
| 12144-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) |
1 | ||
| 12581A - INSULATOR, CYLINDER BLOCK, NO.1 | ||||
| 12581-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) |
1 | ||
| 12583A - INSULATOR, CYLINDER BLOCK, NO.3 | ||||
| 12583-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) |
1 | ||
| 12584 - INSULATOR, CYLINDER BROCK, NO.4 | ||||
| 12584-0E010 |
1GDFTV,2GDFTV..GUN14#..IDNP,PHLP |
1 | ||
| 12584-0E011 |
2GDFTV..GUN142..GCC,SA;1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..PHLP..(28E,28G,28V,N) |
1 | ||
| 12585 - INSULATOR, CYLINDER BROCK, NO.5 | ||||
| 12585-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-0E010 |
1GDFTV..GUN143..PHLP;1GDFTV,2GDFTV..GUN14#..GCC,GEN,IDN,SA,TH |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
4 | ||
| 19313 - BRACKET, CRANK POSITION SENSOR HARNESS | ||||
| 19313-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) |
1 | ||
| 27148C - WIRE, CONNECTING | ||||
| 27148-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) |
1 | ||
| Common parts | ||||
| 90105-T0051 | ||||
| 90105-T0168 | ||||
| 90110-06040 | ||||
| 90110-T0002 | ||||
| 90119-06938 | ||||
| 90119-T0134 | ||||
| 90119-T0248 | ||||
| 90119-T0260 | ||||
| 90119-T0464 | ||||
| 90178-T0018 | ||||
| 90301-09018 | ||||
| 90301-T0012 | ||||
| 90480-T0005 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1703 | ||||
| 1708 | ||||
| 8401 | ||||

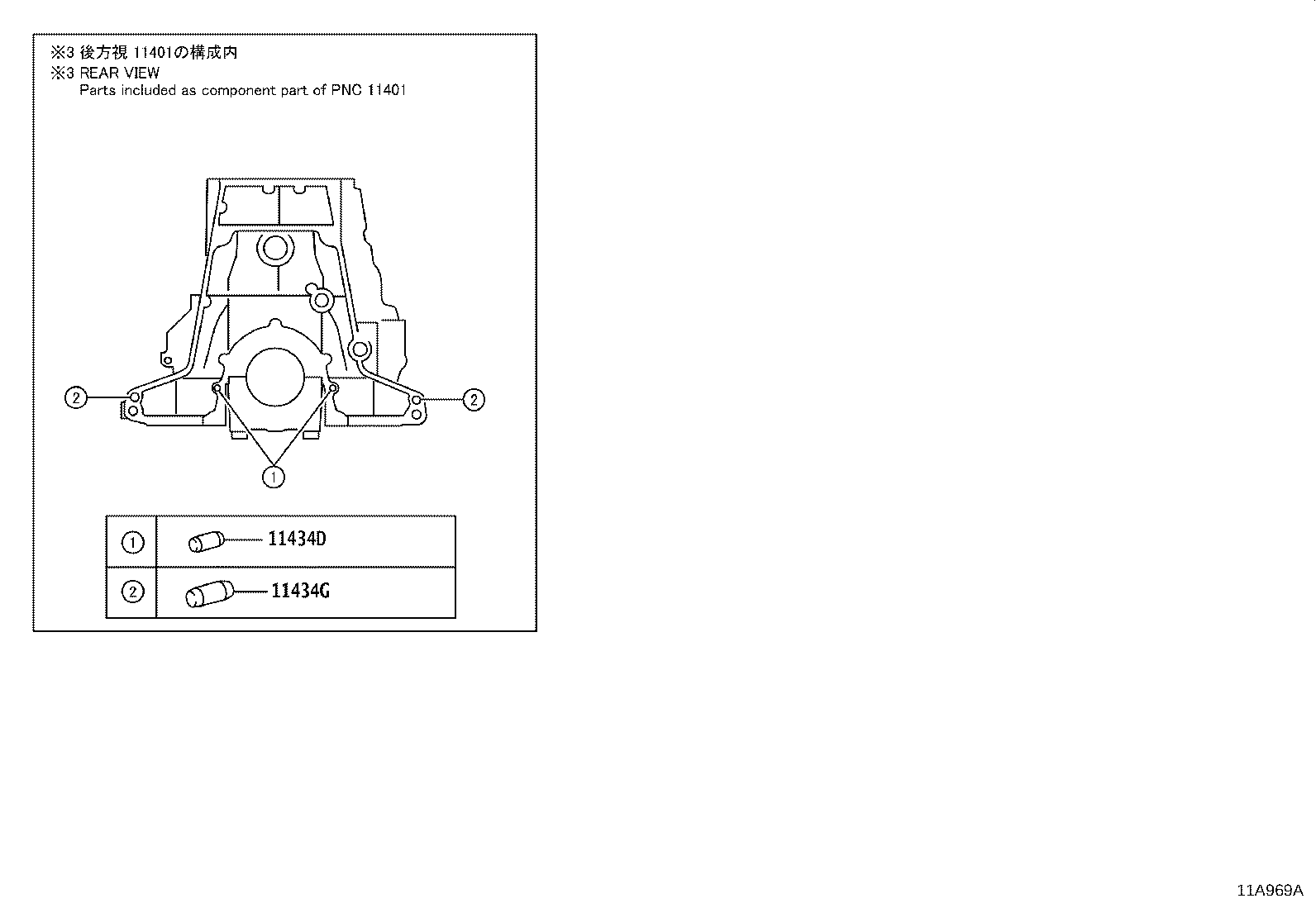

ILLUST NO. 2 OF 2(1511- )1GDFTV,2GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-T0012 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) L=11,OD=6 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-T0008 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
2 | ||
