GUN143L-MDMHYM (2020)
Toyota Innova

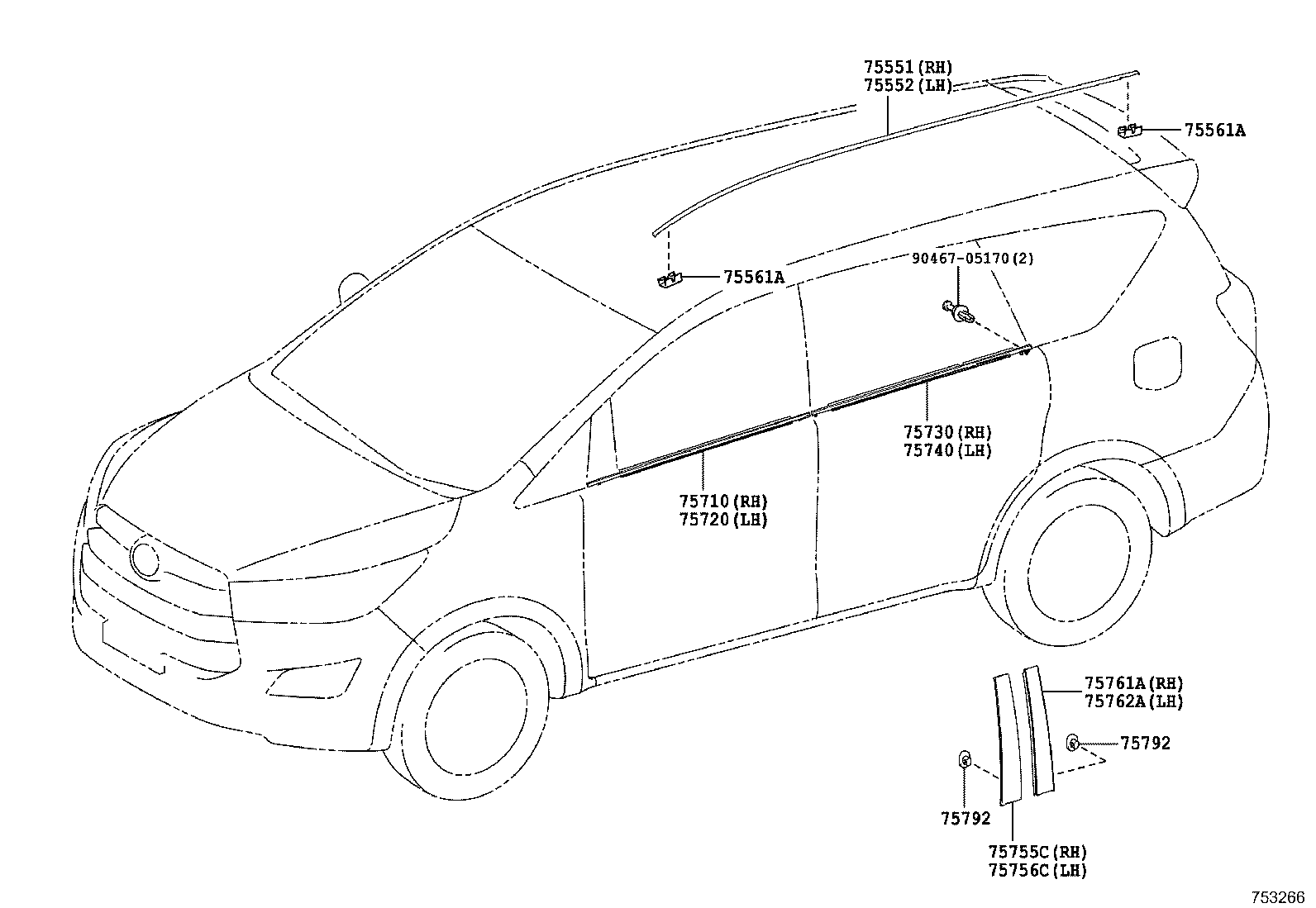

ILLUST NO. 1 OF 3(1511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-0K130 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) NO PAINT REQ. |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-0K140 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) NO PAINT REQ. |
1 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-33030 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
4 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-33030 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
4 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-0K050 |
TGN140..20V..VN;GUN143,TGN140..(20G,28V)..(GCC,GEN);GUN142,TGN141..(24G,24V,N,SRV)..(GEN,LA,MA,TH);GUN14#,TGN140..(20,20Q,20V,24V,28,28V)..(IDN,MA,PHL,TH) |
1 | ||
| 75710-0K030 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN140..(20E,28)..(GCC,MA,VN);TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..(20G,24G,27,28E,G,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-0K030 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN140..(20E,28)..(GCC,MA,VN);TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..(20G,24G,27,28E,G,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 75720-0K050 |
TGN140..20V..VN;GUN143,TGN140..(20G,28V)..(GCC,GEN);GUN142,TGN141..(24G,24V,N,SRV)..(GEN,LA,MA,TH);GUN14#,TGN140..(20,20Q,20V,24V,28,28V)..(IDN,MA,PHL,TH) |
1 | ||
| 75730 - MOULDING ASSY, REAR DOOR BELT, RH | ||||
| 75730-0K030 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN140..(20E,28)..(GCC,MA,VN);TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..(20G,24G,27,28E,G,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 75730-0K050 |
TGN140..20V..VN;GUN143,TGN140..(20G,28V)..(GCC,GEN);GUN142,TGN141..(24G,24V,N,SRV)..(GEN,LA,MA,TH);GUN14#,TGN140..(20,20Q,20V,24V,28,28V)..(IDN,MA,PHL,TH) |
1 | ||
| 75740 - MOULDING ASSY, REAR DOOR BELT, LH | ||||
| 75740-0K030 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN140..(20E,28)..(GCC,MA,VN);TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..(20G,24G,27,28E,G,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 75740-0K050 |
TGN140..20V..VN;GUN143,TGN140..(20G,28V)..(GCC,GEN);GUN142,TGN141..(24G,24V,N,SRV)..(GEN,LA,MA,TH);GUN14#,TGN140..(20,20Q,20V,24V,28,28V)..(IDN,MA,PHL,TH) |
1 | ||
| 75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH | ||||
| 75755-0K010 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) NO PAINT REQ. |
1 | ||
| 75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH | ||||
| 75756-0K010 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) NO PAINT REQ. |
1 | ||
| 75761A - MOULDING, REAR DOOR WINDOW FRAME, FRONT RH | ||||
| 75761-0K010 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) NO PAINT REQ. |
1 | ||
| 75762A - MOULDING, REAR DOOR WINDOW FRAME, FRONT LH | ||||
| 75762-0K010 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) NO PAINT REQ. |
1 | ||
| 75792 - CLIP, DOOR WINDOW FRAME MOULDING | ||||
| 75792-0D040 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
4 | ||
| 75792 - CLIP, DOOR WINDOW FRAME MOULDING | ||||
| 75792-0D040 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
4 | ||
| Common parts | ||||
| 90467-05170 | ||||
