GUN143L-MDMHYM (2020)
Toyota Innova

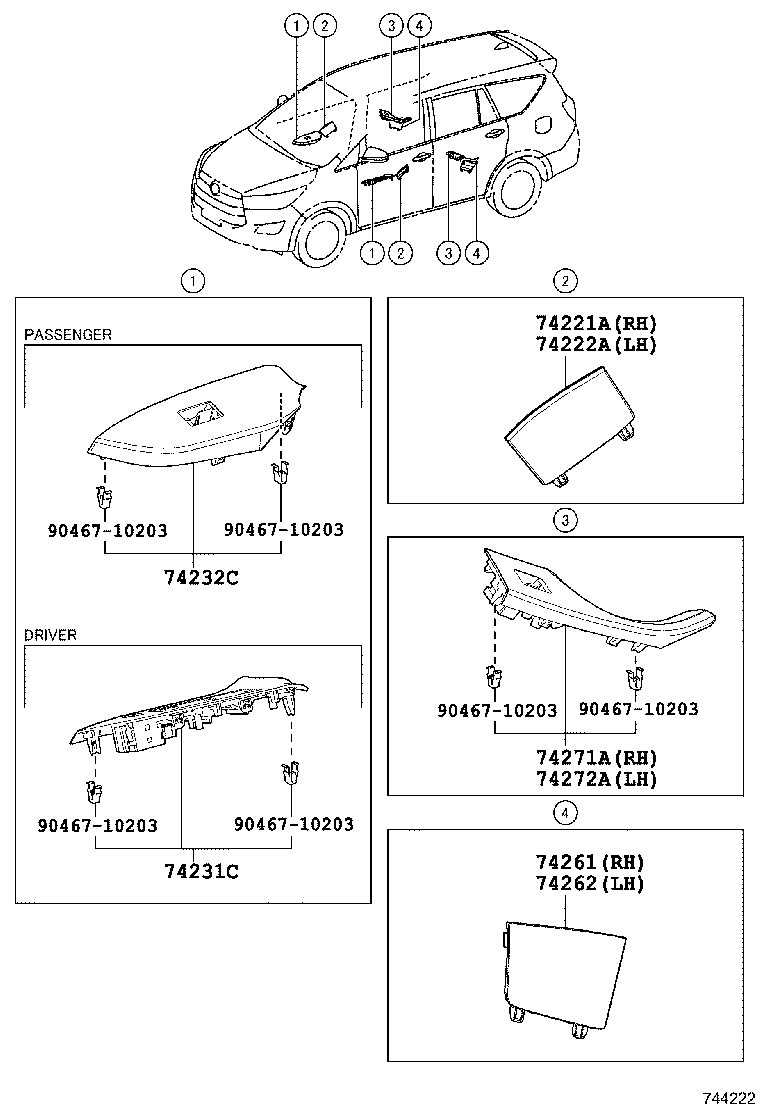

ILLUST NO. 1 OF 2(1511- )LHD
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74221A - COVER, FRONT DOOR ARMREST, RH | ||||
| 74037-0K010C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28V,G,SRV) BLACK,TRIM2#,4# |
1 | ||
| 74037-0K010C0 |
GUN143..28E,N;TGN140..(20E,20V)..MA BLACK,TRIM2# |
1 | ||
| 74222A - COVER, FRONT DOOR ARMREST, LH | ||||
| 74038-0K010C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28V,G,SRV) BLACK,TRIM2#,4# |
1 | ||
| 74038-0K010C0 |
GUN143..28E,N;TGN140..(20E,20V)..MA BLACK,TRIM2# |
1 | ||
| 74231C - PANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE | ||||
| 74232-0K540 |
GUN143,TGN140..(20E,28)..(GCC,VN);GUN143,TGN141..(27,28E,N)..(GCC,PHL) |
1 | ||
| 74232-0K561 |
GUN143,TGN140..(20V,28,28V)..(PHL,VN);GUN14#,TGN14#..LHD..(20G,24V,28V,G)..(GCC,GEN) |
1 | ||
| 74232C - PANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE | ||||
| 74231-0K550 |
GUN143,TGN141..27,28E,N;GUN143,TGN140..(20E,28)..(GCC,VN) |
1 | ||
| 74231-0K561 |
GUN143,TGN140..(20V,28,28V)..(PHL,VN);GUN14#,TGN14#..LHD..(20G,24V,28V,G,SRV)..(GCC,GEN,LA) |
1 | ||
| 74261 - COVER, REAR DOOR ARMREST, RH | ||||
| 74047-0K010C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28V,G,SRV) BLACK,TRIM2#,4# |
1 | ||
| 74047-0K010C0 |
GUN143..28E,N;TGN140..(20E,20V)..MA BLACK,TRIM2# |
1 | ||
| 74262 - COVER, REAR DOOR ARMREST, LH | ||||
| 74048-0K010C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28V,G,SRV) BLACK,TRIM2#,4# |
1 | ||
| 74048-0K010C0 |
GUN143..28E,N;TGN140..(20E,20V)..MA BLACK,TRIM2# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-0K281 |
TGN140..GEN;GUN143..(28,28V)..(PHL,TH);GUN14#,TGN14#..(20Q,20V,24V,28V,G,SRV)..(GCC,GEN,IDN,LA,MA,VN) |
1 | ||
| 74271-0K270 |
TGN140..20E..(MA,VN);GUN143,TGN140..(20G,28,N)..(GCC,IDN,TH);GUN14#,TGN141..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-0K281 |
TGN140..GEN;GUN143..(28,28V)..(PHL,TH);GUN14#,TGN14#..(20Q,20V,24V,28V,G,SRV)..(GCC,GEN,IDN,LA,MA,VN) |
1 | ||
| 74272-0K270 |
TGN140..20E..(MA,VN);GUN143,TGN140..(20G,28,N)..(GCC,IDN,TH);GUN14#,TGN141..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||
ILLUST NO. 2 OF 2(1511- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-0KJ80B0 |
GUN143..N LT.GRAY,TRIM2# |
1 | ||
| 74310-0KN71B0 |
GUN143..(28,28V)..PHL;GUN14#,TGN14#..LHD..(20G,24V,28V,G,SRV)..(GCC,GEN,LA) LT.GRAY,TRIM2#,4# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-0KJ70B0 |
GUN143..N LT.GRAY,TRIM2# |
1 | ||
| 74320-0KL61B0 |
GUN143..(28,28V)..PHL;GUN14#,TGN14#..LHD..(20G,24V,28V,G,SRV)..(GCC,GEN,LA) LT.GRAY,TRIM2#,4# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-0K100B0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28V,G,SRV) LT.GRAY,TRIM2#,4# |
2 | ||
| 74348-0K100B0 |
GUN143..28E,N;TGN140..(20E,20V)..MA LT.GRAY,TRIM2# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-0K020B0 |
TGN140..20G..IDN;TGN141..6FC..(27,G);GUN14#..(IDNP,PHLP)..(20G,24G,28) LT.GRAY,TRIM2#,4# |
1 | ||
| 74610-0K020B0 |
GUN143..28E,N LT.GRAY,TRIM2# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-0K020B0 |
TGN140..20G..IDN;TGN141..6FC..(27,G);GUN14#..(IDNP,PHLP)..(20G,24G,28) LT.GRAY,TRIM2#,4# |
1 | ||
| 74610-0K020B0 |
GUN143..28E,N LT.GRAY,TRIM2# |
1 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74610-0K030B0 |
GUN143..28E,N;TGN140..(20E,20V)..MA LT.GRAY,TRIM2# |
2 | ||
| 74610-0K030B0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28V,G,SRV) LT.GRAY,TRIM2#,4# |
2 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74610-0K030B0 |
GUN143..28E,N;TGN140..(20E,20V)..MA LT.GRAY,TRIM2# |
2 | ||
| 74610-0K030B0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28V,G,SRV) LT.GRAY,TRIM2#,4# |
2 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74610-0K020B0 |
GUN143..28E,N;TGN140..(20E,20V)..MA LT.GRAY,TRIM2# |
2 | ||
| 74610-0K020B0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28V,G,SRV) LT.GRAY,TRIM2#,4# |
2 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74610-0K020B0 |
GUN143..28E,N;TGN140..(20E,20V)..MA LT.GRAY,TRIM2# |
2 | ||
| 74610-0K020B0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28V,G,SRV) LT.GRAY,TRIM2#,4# |
2 | ||
| Common parts | ||||
| 90151-T0002 | ||||
| Linked diagrams | ||||
| 6452 | ||||
