GUN143L-MDMHYM (2020)
Toyota Innova
(1511- )IDN,SA..DCR ; (1511- )24G,28G..TH; (1511- )20G,24V,27V..IND,MA,TH
PASSENGER:W(SEAT BACK TABLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-0K120 |
GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 71014-0K120 |
GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 71014-0K150 |
GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH);GUN14#,TGN141..(24V,27,28,N)..(GCC,IDN,TH) SEAT COVER MATERIAL-FULL HI(FOR MPV) |
1 | ||
| 71014-0K150 |
GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH);GUN14#,TGN141..(24V,27,28,N)..(GCC,IDN,TH) SEAT COVER MATERIAL-FULL HI(FOR MPV) |
1 | ||
| 71014-0K150 |
GUN143,TGN141..(28V,G)..GCC;GUN143,TGN140..IDNP..(20,28,28V)..PHL |
1 | ||
| 71014-0K150 |
GUN143,TGN141..(28V,G)..GCC;GUN143,TGN140..IDNP..(20,28,28V)..PHL |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-0K050 |
GUN14#,TGN14#..IDNP |
1 | ||
| 71051-0K050 |
GUN14#,TGN14#..IDNP |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-0K010 |
GUN14#,TGN14#..IDNP |
1 | ||
| 71053-0K010 |
GUN14#,TGN14#..IDNP |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0KF80C2 |
GUN143,TGN140..IDNP..(20,28)..PHL BLACK,TRIM2# |
1 | ||
| 71072-0KF80C2 |
GUN143,TGN140..IDNP..(20,28)..PHL BLACK,TRIM2# |
1 | ||
| 71072-0KD90C1 |
TGN140..IDNP..(20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,N)..(GEN,IDN,PHL) BLACK,TRIM2# |
1 | ||
| 71072-0KD90C1 |
TGN140..IDNP..(20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,N)..(GEN,IDN,PHL) BLACK,TRIM2# |
1 | ||
| 71072-0KF80E2 |
GUN143,TGN140..IDNP..(20,28)..PHL NOBLE BROWN,TRIM4# |
1 | ||
| 71072-0KF80E2 |
GUN143,TGN140..IDNP..(20,28)..PHL NOBLE BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0K160C2 |
GUN143,TGN140..IDNP..(20,28)..PHL BLACK,TRIM2# |
1 | ||
| 71074-0K160C2 |
GUN143,TGN140..IDNP..(20,28)..PHL BLACK,TRIM2# |
1 | ||
| 71074-0K160E2 |
GUN143,TGN140..IDNP..(20,28)..PHL NOBLE BROWN/BLACK,TRIM4# |
1 | ||
| 71074-0K160E2 |
GUN143,TGN140..IDNP..(20,28)..PHL NOBLE BROWN/BLACK,TRIM4# |
1 | ||
| 71074-0KJ40C2 |
GUN143,TGN141..6FC..(27,28);TGN140..IDNP..(20E,20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,28E,N)..(GEN,IDN,PHL) BLACK,TRIM2# |
1 | ||
| 71074-0KJ40C2 |
GUN143,TGN141..6FC..(27,28);TGN140..IDNP..(20E,20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,28E,N)..(GEN,IDN,PHL) BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0K020 |
GUN143..28..GCC;GUN143,TGN14#..LHD..IDNP..(20E,27,28E,N) |
1 | ||
| 71512-0K020 |
GUN143..28..GCC;GUN143,TGN14#..LHD..IDNP..(20E,27,28E,N) |
1 | ||
| 71512-0K290 |
GUN143,TGN141..(28V,G)..GCC;GUN143,TGN140..IDNP..(20,28,28V)..PHL |
1 | ||
| 71512-0K290 |
GUN143,TGN141..(28V,G)..GCC;GUN143,TGN140..IDNP..(20,28,28V)..PHL |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-0K040C0 |
GUN14#,TGN14#..LHD..IDNP..(20,20G,24V,27,28,28V,G,SRV) BLACK,TRIM2#,4# |
1 | ||
| 71537-0K040C0 |
GUN14#,TGN14#..LHD..IDNP..(20,20G,24V,27,28,28V,G,SRV) BLACK,TRIM2#,4# |
1 | ||
| 71537-0K030C0 |
GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL) BLACK,TRIM2# |
1 | ||
| 71537-0K030C0 |
GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL) BLACK,TRIM2# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-0K020C0 |
GUN14#,TGN14#..LHD..IDNP..(20,20G,24V,27,28,28V,G,SRV) BLACK,TRIM2#,4# |
1 | ||
| 71538-0K020C0 |
GUN14#,TGN14#..LHD..IDNP..(20,20G,24V,27,28,28V,G,SRV) BLACK,TRIM2#,4# |
1 | ||
| 71538-0K010C0 |
GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL) BLACK,TRIM2# |
1 | ||
| 71538-0K010C0 |
GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL) BLACK,TRIM2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0K030 |
TGN14#..IDNP..(20,G);GUN143..IDNP..28..PHL |
1 | ||
| 71552-0K030 |
TGN14#..IDNP..(20,G);GUN143..IDNP..28..PHL |
1 | ||
| 71552-0K020 |
GUN143,TGN141..6FC..(27,28);TGN140..IDNP..(20E,20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 71552-0K020 |
GUN143,TGN141..6FC..(27,28);TGN140..IDNP..(20E,20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0K010 |
GUN14#,TGN14#..IDNP |
4 | ||
| 71587-0K010 |
GUN14#,TGN14#..IDNP |
4 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0K010 |
GUN14#,TGN14#..IDNP |
4 | ||
| 71587-0K010 |
GUN14#,TGN14#..IDNP |
4 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-0K010 |
GUN14#,TGN14#..IDNP |
4 | ||
| 71759-0K010 |
GUN14#,TGN14#..IDNP |
4 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-0K010 |
GUN14#,TGN14#..IDNP |
4 | ||
| 71759-0K010 |
GUN14#,TGN14#..IDNP |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0K340C0 |
GUN143,TGN140..IDNP..N..PHL BLACK,TRIM2# |
1 | ||
| 71812-0K340C0 |
GUN143,TGN140..IDNP..N..PHL BLACK,TRIM2# |
1 | ||
| 71812-0K350C0 |
TGN141..6FC..(27,G);GUN143,TGN140..IDNP..(20,28) BLACK,TRIM2#,4# |
1 | ||
| 71812-0K350C0 |
TGN141..6FC..(27,G);GUN143,TGN140..IDNP..(20,28) BLACK,TRIM2#,4# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-0K010 |
GUN14#,TGN14#..IDNP |
2 | ||
| 71848-0K010 |
GUN14#,TGN14#..IDNP |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0K080C0 |
GUN14#,TGN14#..LHD..IDNP..(20,20G,24V,27,28,28V,G,SRV) BLACK,TRIM2#,4# |
1 | ||
| 71862-0K080C0 |
GUN14#,TGN14#..LHD..IDNP..(20,20G,24V,27,28,28V,G,SRV) BLACK,TRIM2#,4# |
1 | ||
| 71862-0K070C0 |
GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL) BLACK,TRIM2# |
1 | ||
| 71862-0K070C0 |
GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL) BLACK,TRIM2# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-0K180C0 |
GUN14#,TGN140..IDNP..(20E,20Q,24V,28E,N)..(IDN,PHL) BLACK,TRIM2# |
1 | ||
| 71875-0K180C0 |
GUN14#,TGN140..IDNP..(20E,20Q,24V,28E,N)..(IDN,PHL) BLACK,TRIM2# |
1 | ||
| 71875-0K180C0 |
TGN140..RHD..IDNP..(20G,N);GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN141..IDNP..(20G,24G,27,G,N) BLACK,TRIM2#,4# |
1 | ||
| 71875-0K180C0 |
TGN140..RHD..IDNP..(20G,N);GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN141..IDNP..(20G,24G,27,G,N) BLACK,TRIM2#,4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-0K180C0 |
TGN140..RHD..IDNP..(20G,N);GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN141..IDNP..(20G,24G,27,G,N) BLACK,TRIM2#,4# |
1 | ||
| 71876-0K180C0 |
TGN140..RHD..IDNP..(20G,N);GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN141..IDNP..(20G,24G,27,G,N) BLACK,TRIM2#,4# |
1 | ||
| 71876-0K180C0 |
GUN14#,TGN140..IDNP..(20E,20Q,24V,28E,N)..(IDN,PHL) BLACK,TRIM2# |
1 | ||
| 71876-0K180C0 |
GUN14#,TGN140..IDNP..(20E,20Q,24V,28E,N)..(IDN,PHL) BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0K540C0 |
GUN14#,TGN140..IDNP..(20E,20G,24G,28E,N)..(IDN,PHL) BLACK,TRIM2# |
2 | ||
| 71910-0K540C0 |
GUN14#,TGN140..IDNP..(20E,20G,24G,28E,N)..(IDN,PHL) BLACK,TRIM2# |
2 | ||
| 71910-0K750C1 |
GUN143,TGN140..IDNP..(20,28)..PHL BLACK,TRIM2# |
2 | ||
| 71910-0K750C1 |
GUN143,TGN140..IDNP..(20,28)..PHL BLACK,TRIM2# |
2 | ||
| 71910-0K750E3 |
GUN143,TGN140..IDNP..(20,28,28V)..PHL NOBLE BROWN,TRIM4# |
2 | ||
| 71910-0K750E3 |
GUN143,TGN140..IDNP..(20,28,28V)..PHL NOBLE BROWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C0 |
GUN143,TGN140..IDNP..(20,28,28V)..PHL W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71930-0K050C0 |
GUN143,TGN140..IDNP..(20,28,28V)..PHL W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-0K040C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH) W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-0K040C0 |
GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH) W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-0K040C0 |
GUN143,TGN140..IDNP..(20,28,28V)..PHL W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-0K040C0 |
GUN143,TGN140..IDNP..(20,28,28V)..PHL W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71930-0K050C0 |
GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH) W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71930-0K050C0 |
GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH) W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C0 |
GUN143,TGN140..IDNP..(20,28,28V)..PHL W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71930-0K050C0 |
GUN143,TGN140..IDNP..(20,28,28V)..PHL W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-0K040C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K050C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K040C0 |
GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH) W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-0K040C0 |
GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH) W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-0K040C0 |
GUN143,TGN140..IDNP..(20,28,28V)..PHL W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-0K040C0 |
GUN143,TGN140..IDNP..(20,28,28V)..PHL W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71930-0K050C0 |
GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH) W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71930-0K050C0 |
GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH) W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-0K010 |
TGN140..IDNP..(20G,N)..(IDN,PHL,TH);GUN14#..IDNP..(20G,24G,N)..(GEN,IDN,PHL) |
1 | ||
| 72020-0K010 |
TGN140..IDNP..(20G,N)..(IDN,PHL,TH);GUN14#..IDNP..(20G,24G,N)..(GEN,IDN,PHL) |
1 | ||
| 72020-0K020 |
GUN143,TGN14#..LHD..IDNP..(20,20E,27,28,28E,28V,G) |
1 | ||
| 72020-0K020 |
GUN143,TGN14#..LHD..IDNP..(20,20E,27,28,28E,28V,G) |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-0K070C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 72137-0K070C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 72137-0K070C0 |
TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH BLACK,TRIM2#,4# |
1 | ||
| 72137-0K070C0 |
TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH BLACK,TRIM2#,4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-0K050C0 |
TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH BLACK,TRIM2#,4# |
1 | ||
| 72158-0K050C0 |
TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH BLACK,TRIM2#,4# |
1 | ||
| 72158-0K050C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 72158-0K050C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72211-0D210 |
GUN142..RHD..IDNP;GUN143,TGN14#..IDNP..(20,20E,20G,20Q,27,28,28E,28V,G,N)..(GCC,IDN,LA,PHL,TH) |
1 | ||
| 72211-0D210 |
GUN142..RHD..IDNP;GUN143,TGN14#..IDNP..(20,20E,20G,20Q,27,28,28E,28V,G,N)..(GCC,IDN,LA,PHL,TH) |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0D300C0 |
GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL) BLACK,TRIM2# |
1 | ||
| 72526-0D300C0 |
GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL) BLACK,TRIM2# |
1 | ||
| 72526-0D310C0 |
GUN143,TGN14#..LHD..IDNP..(20,27,28,28V,G) BLACK,TRIM2#,4# |
1 | ||
| 72526-0D310C0 |
GUN143,TGN14#..LHD..IDNP..(20,27,28,28V,G) BLACK,TRIM2#,4# |
1 | ||
| 72994B - COVER, FRONT SEAT BACK, LH | ||||
| 72993-0K010C0 |
GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH);GUN14#,TGN141..(24V,27,28,N)..(GCC,IDN,TH) SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#,4# |
1 | ||
| 72993-0K010C0 |
GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH);GUN14#,TGN141..(24V,27,28,N)..(GCC,IDN,TH) SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#,4# |
1 | ||
| 72993-0K010C0 |
GUN143,TGN141..(28V,G)..GCC;GUN143,TGN140..(20,28)..PHL BLACK,TRIM2#,4# |
1 | ||
| 72993-0K010C0 |
GUN143,TGN141..(28V,G)..GCC;GUN143,TGN140..(20,28)..PHL BLACK,TRIM2#,4# |
1 | ||
| 78060B - TABLE ASSY, FRONT SEAT BACK, LH | ||||
| 78060-0K010C0 |
GUN143..28V..GCC;TGN140..PHLP..20;TGN140..LHD..IDNP..(20,20G);GUN14#..(24,24Z,28,28V)..(IND,PHL,TH);GUN142,TGN141..6FC..(24V,27Z,G,N,SRV)..(GCC,GEN,IND,LA,TH) BLACK,TRIM2#,4# |
1 | ||
| 78060-0K010C0 |
GUN143..28V..GCC;TGN140..PHLP..20;TGN140..LHD..IDNP..(20,20G);GUN14#..(24,24Z,28,28V)..(IND,PHL,TH);GUN142,TGN141..6FC..(24V,27Z,G,N,SRV)..(GCC,GEN,IND,LA,TH) BLACK,TRIM2#,4# |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-T0001 | ||||
| 90980-12373 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
(1511- )

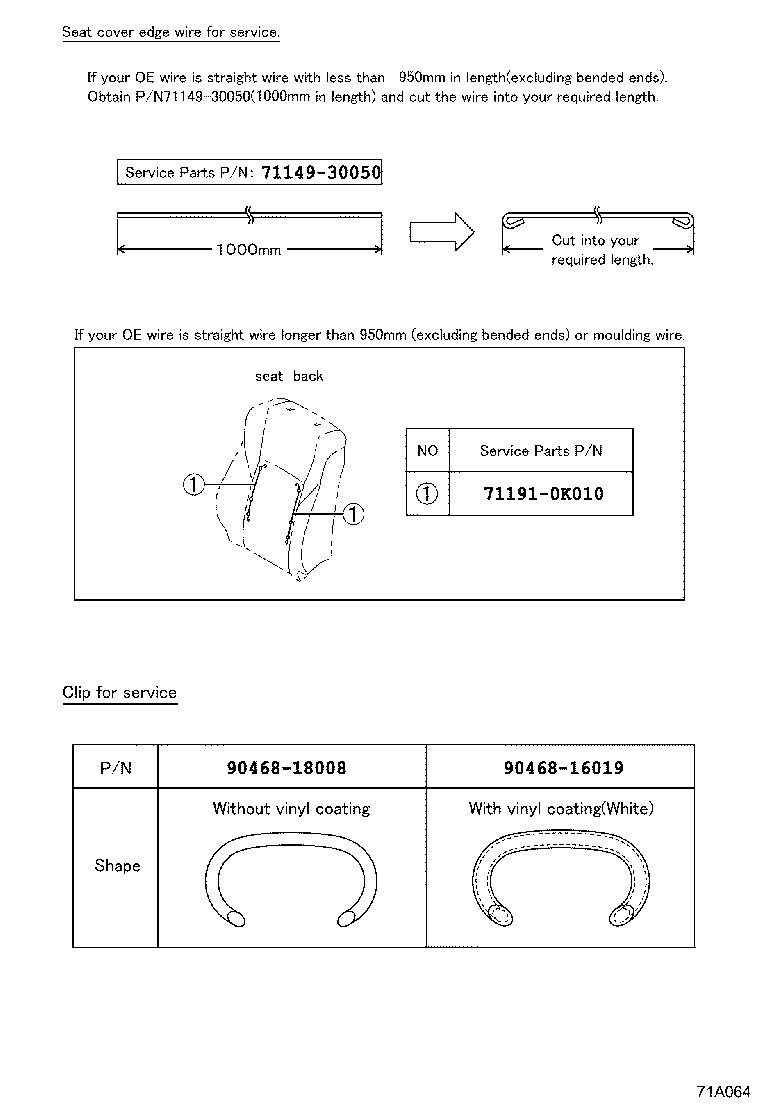

SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 71191-0K010 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(1511- )

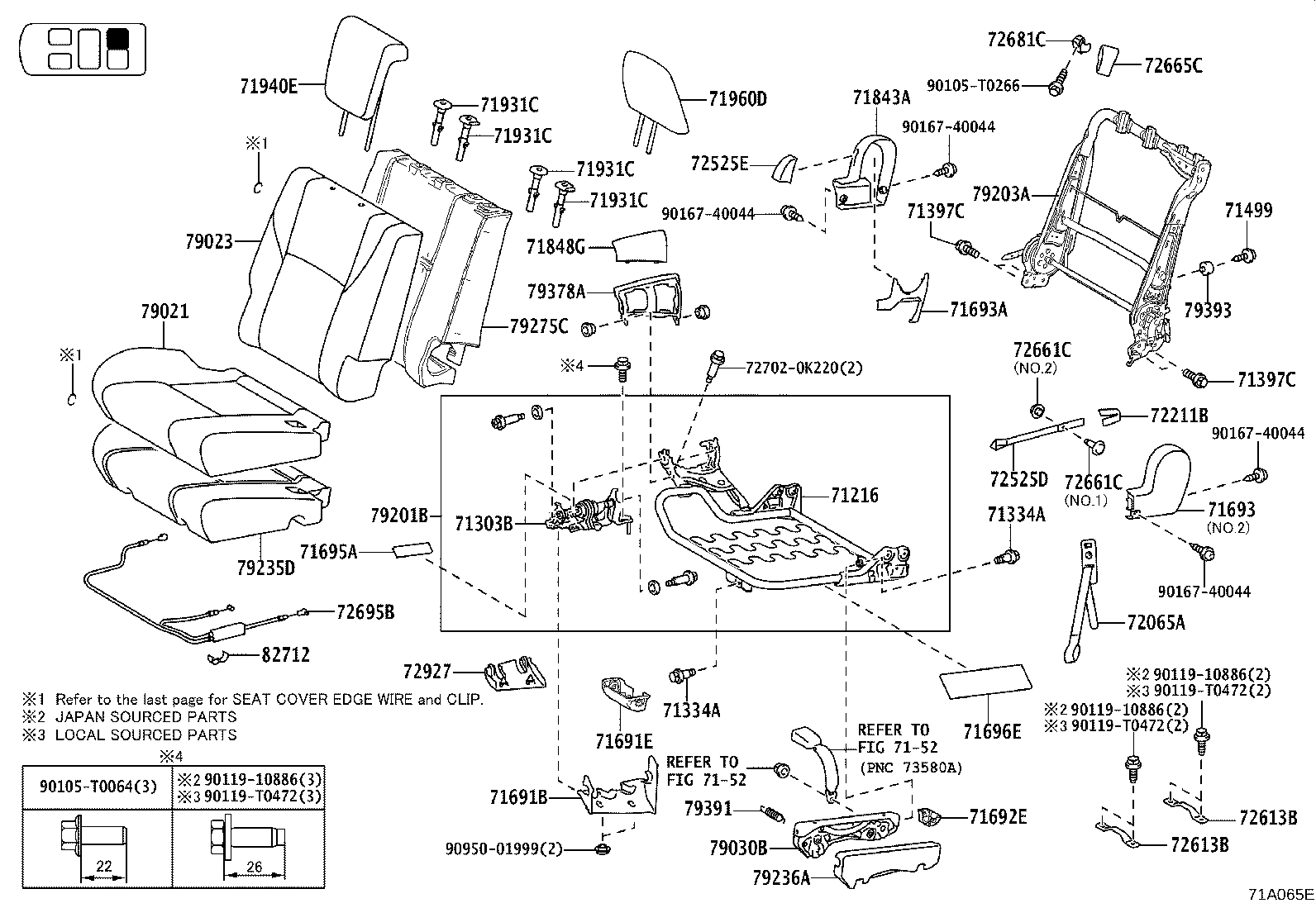

REAR NO.2 SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71216 - FRAME, REAR SEAT CUSHION, REAR RH | ||||
| 79201-0K070 |
GUN14#,TGN14#..IDNP..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 71303B - HINGE SUB-ASSY, REAR NO.2 SEAT, RH | ||||
| 71303-0K010 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
1 | ||
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-0K010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
4 | ||
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-0K010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
4 | ||
| 71397C - STOPPER, REAR SEAT | ||||
| 71397-0K010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
4 | ||
| 71397C - STOPPER, REAR SEAT | ||||
| 71397-0K010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
4 | ||
| 71499 - STOPPER, REAR SEAT BACK | ||||
| 71499-0K010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
2 | ||
| 71691B - COVER, REAR SEAT LOCK, OUTER RH | ||||
| 71691-0K020C0 |
GUN142,TGN14#..GCC,GEN,IDN,TH;GUN143,TGN140..IDNP..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 71691-0K020C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-0K010C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) BLACK,TRIM2# |
1 | ||
| 71691-0K010C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) BLACK,TRIM2#,4# |
1 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-0K090C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 71692-0K090C0 |
TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH BLACK,TRIM2#,4# |
1 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-0K030C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 71693-0K030C0 |
GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71693-0K090C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 71693-0K090C0 |
GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-0K030C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 71843-0K030C0 |
GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 71848G - CAP, SEAT ADJUSTER COVER, NO.2 | ||||
| 71848-0K030C0 |
GUN143..28E,N;TGN140..PHLP..N;TGN140..PHLP..6FC..20E;TGN140..IDNP..(20E,N)..PHL BLACK,TRIM2# |
1 | ||
| 71848-0K030C0 |
GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-02130C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) W(LOCK)&W(BUTTON),BLACK,TRIM2#,4# |
3 | ||
| 71931-02130C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) W/O(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-02130C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) W(LOCK)&W(BUTTON),BLACK,TRIM2#,4# |
3 | ||
| 71931-02130C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) W/O(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-02130C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) W(LOCK)&W(BUTTON),BLACK,TRIM2#,4# |
3 | ||
| 71931-02130C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) W/O(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-02130C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) W(LOCK)&W(BUTTON),BLACK,TRIM2#,4# |
3 | ||
| 71931-02130C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) W/O(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71940E - HEADREST ASSY, NO.2 SEAT | ||||
| 71940-0K820C1 |
GUN143,TGN141..(28V,G)..GCC;GUN143,TGN140..IDNP..(20,28,28V)..PHL BLACK,TRIM2# |
2 | ||
| 71940-0K820C1 |
TGN141..SRV;GUN14#,TGN14#..(20Q,24V,27,28)..(GCC,IDN) SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2# |
2 | ||
| 71940-0K810C0 |
GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL) BLACK,TRIM2# |
2 | ||
| 71940-0KB30C2 |
TGN140..20Q;TGN140..GEN;GUN14#,TGN141..(24V,28V,N,SRV)..(GEN,IDN,LA,TH) BLACK,TRIM2# |
2 | ||
| 71940-0K820E4 |
GUN143,TGN140..IDNP..(20,28,28V)..PHL NOBLE BROWN,TRIM4# |
2 | ||
| 71960D - HEADREST ASSY, REAR NO.2 SEAT, CENTER | ||||
| 71960-0K090C0 |
GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL) BLACK,TRIM2# |
1 | ||
| 71960-0K100C1 |
GUN143,TGN141..(28V,G)..GCC;GUN143,TGN140..IDNP..(20,28,28V)..PHL BLACK,TRIM2# |
1 | ||
| 71960-0K100C1 |
TGN141..SRV;GUN14#,TGN14#..(20Q,24V,27,28)..(GCC,IDN) SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2# |
1 | ||
| 71960-0K100E4 |
GUN143,TGN140..IDNP..(20,28,28V)..PHL NOBLE BROWN,TRIM4# |
1 | ||
| 71960-0K110C2 |
TGN140..20Q;TGN140..GEN;GUN14#,TGN141..(24V,28V,N,SRV)..(GEN,IDN,LA,TH) BLACK,TRIM2# |
1 | ||
| 72065A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH | ||||
| 72065-0K070B0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) LT.GRAY,TRIM2# |
1 | ||
| 72065-0K070B0 |
TGN140..20E..VN;GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V) LT.GRAY,TRIM2#,4# |
1 | ||
| 72211B - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0K190C1 |
GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 72211-0K190C1 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72507-0K040C1 |
GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 72507-0K040C1 |
GUN143..28E,N;TGN140..PHLP..N;TGN140..PHLP..6FC..20E;TGN140..IDNP..(20E,N)..PHL BLACK,TRIM2# |
1 | ||
| 72525E - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH | ||||
| 72525-0K230C0 |
GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 72525-0K230C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-0K030 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
4 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-0K030 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
4 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-0K030C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) BLACK,TRIM2#,NO.1:REFER ILLUST. |
2 | ||
| 72661-0K030C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) BLACK,TRIM2#,4#,NO.1:REFER ILLUST. |
2 | ||
| 72661-0K040C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) BLACK,TRIM2#,NO.2:REFER ILLUST. |
2 | ||
| 72661-0K040C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) BLACK,TRIM2#,4#,NO.2:REFER ILLUST. |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-0K030C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) BLACK,TRIM2#,NO.1:REFER ILLUST. |
2 | ||
| 72661-0K030C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) BLACK,TRIM2#,4#,NO.1:REFER ILLUST. |
2 | ||
| 72661-0K040C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) BLACK,TRIM2#,NO.2:REFER ILLUST. |
2 | ||
| 72661-0K040C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) BLACK,TRIM2#,4#,NO.2:REFER ILLUST. |
2 | ||
| 72665C - COVER, REAR SEAT LOCK, RH | ||||
| 72665-0K310B0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) LT.GRAY,TRIM2# |
1 | ||
| 72665-0K310B0 |
TGN140..20E..VN;GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V) LT.GRAY,TRIM2#,4# |
1 | ||
| 72681C - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-0K050B0 |
TGN140..20E..VN;GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V) LT.GRAY,TRIM2#,4#,LH |
1 | ||
| 72681-0K030B0 |
TGN140..20E..VN;GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V) LT.GRAY,TRIM2#,4#,RH |
1 | ||
| 72681-0K050B0 |
GUN143..28E,N;TGN140..PHLP..N;TGN140..PHLP..6FC..20E;TGN140..IDNP..(20E,N)..PHL LT.GRAY,TRIM2#,LH |
1 | ||
| 72681-0K030B0 |
GUN143..28E,N;TGN140..PHLP..N;TGN140..PHLP..6FC..20E;TGN140..IDNP..(20E,N)..PHL LT.GRAY,TRIM2#,RH |
1 | ||
| 72695B - CABLE, REAR SEAT LOCK CONTROL, RH | ||||
| 72695-0K040 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 71693-0K180C0 |
GUN142,TGN14#..GCC,GEN,IDN,TH;GUN143,TGN140..IDNP..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 71693-0K180C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-0K571C6 |
GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL) BLACK,TRIM2# |
1 | ||
| 79021-0K581E7 |
GUN143,TGN140..IDNP..(20,28,28V)..PHL NOBLE BROWN,TRIM4# |
1 | ||
| 79021-0K581C6 |
GUN143,TGN141..(28V,G)..GCC;GUN143,TGN140..IDNP..(20,28,28V)..PHL BLACK,TRIM2# |
1 | ||
| 79021-0K581C6 |
TGN141..SRV;GUN14#,TGN14#..(20Q,24V,27,28)..(GCC,IDN) SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2# |
1 | ||
| 79021-0K591C7 |
TGN140..20Q;TGN140..GEN;GUN14#,TGN141..(24V,28V,N,SRV)..(GEN,IDN,LA,TH) BLACK,TRIM2# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-0K401C5 |
GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL) BLACK,TRIM2# |
1 | ||
| 79023-0K521E7 |
GUN143,TGN140..IDNP..(20,28,28V)..PHL NOBLE BROWN,TRIM4# |
1 | ||
| 79023-0K521C6 |
GUN143,TGN141..(28V,G)..GCC;GUN143,TGN140..IDNP..(20,28,28V)..PHL BLACK,TRIM2# |
1 | ||
| 79023-0K521C6 |
TGN141..SRV;GUN14#,TGN14#..(20Q,24V,27,28)..(GCC,IDN) SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2# |
1 | ||
| 79023-0K541C6 |
TGN140..20Q;TGN140..GEN;GUN14#,TGN141..(24V,28V,N,SRV)..(GEN,IDN,LA,TH) BLACK,TRIM2# |
1 | ||
| 79030B - LEG ASSY, REAR NO.2 SEAT, RH | ||||
| 79030-0K020 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
1 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79201-0K040 |
GUN14#,TGN14#..IDNP..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79203-0K030 |
GUN14#,TGN14#..IDNP |
1 | ||
| 79235D - PAD, NO.2 SEAT CUSHION, RH | ||||
| 79235-0K110 |
GUN14#,TGN14#..IDNP |
1 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-0K080C0 |
GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 79236-0K080C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 79275C - PAD, NO.2 SEAT BACK, RH | ||||
| 79275-0K040 |
GUN14#,TGN14#..IDNP |
1 | ||
| 79378A - COVER, NO.3 SEAT CUSHION HINGE, RH | ||||
| 79378-0K070C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 79378-0K070C0 |
GUN142,TGN14#..GCC,GEN,IDN,TH;GUN143,TGN140..IDNP..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 79391 - SPRING, REAR SEAT CUSHION | ||||
| 79391-0K010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
2 | ||
| 79393 - CUSHION, REAR NO.2 SEAT BACK | ||||
| 79393-0K070 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
2 | ||
| 82712 - CLAMP, WIRING HARNESS | ||||
| 82711-0K150 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN14#,TGN141..(20G,24G,24V,27,28,28E,28V,G,N)..(GCC,GEN,IDN,PHL,TH) |
6 | ||
| Common parts | ||||
| 72702-0K220 | ||||
| 90105-T0064 | ||||
| 90105-T0266 | ||||
| 90119-10886 | ||||
| 90119-T0472 | ||||
| 90167-40044 | ||||
| 90950-01999 | ||||
| Linked diagrams | ||||
| 7152 | ||||

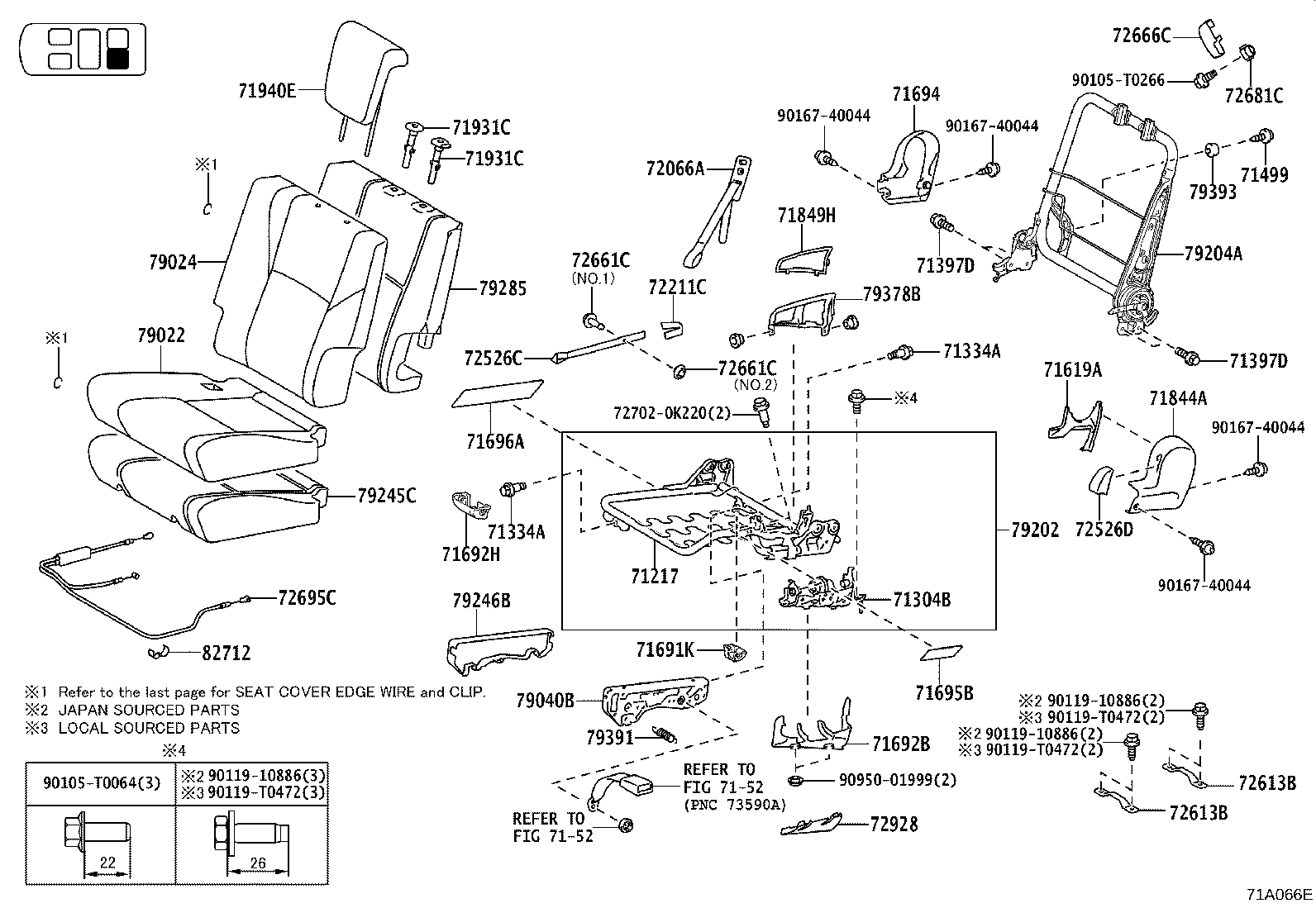

(1511- )
REAR NO.2 SEAT(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71217 - FRAME, REAR SEAT CUSHION, REAR LH | ||||
| 79202-0K070 |
GUN14#,TGN14#..IDNP..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 71304B - HINGE SUB-ASSY, REAR NO.2 SEAT, LH | ||||
| 71304-0K010 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
1 | ||
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-0K010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
4 | ||
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-0K010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
4 | ||
| 71397D - STOPPER, REAR SEAT | ||||
| 71397-0K010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
4 | ||
| 71397D - STOPPER, REAR SEAT | ||||
| 71397-0K010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
4 | ||
| 71499 - STOPPER, REAR SEAT BACK | ||||
| 71499-0K010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
2 | ||
| 71619A - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71694-0K030C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 71694-0K030C0 |
GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 71691K - COVER, REAR SEAT CUSHION HINGE, NO.4 | ||||
| 71691-0K090C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 71691-0K090C0 |
TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH BLACK,TRIM2#,4# |
1 | ||
| 71692B - COVER, REAR SEAT LOCK, OUTER LH | ||||
| 71692-0K020C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 71692-0K020C0 |
GUN142,TGN14#..GCC,GEN,IDN,TH;GUN143,TGN140..IDNP..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 71692H - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71692-0K010C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) BLACK,TRIM2#,4# |
1 | ||
| 71692-0K010C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) BLACK,TRIM2# |
1 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71694-0K090C0 |
GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 71694-0K090C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-0K030C0 |
GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 71844-0K030C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 71849H - CAP, REAR NO.2 SEAT ADJUSTER COVER, LH | ||||
| 71848-0K040C0 |
GUN143..28E,N;TGN140..PHLP..N;TGN140..PHLP..6FC..20E;TGN140..IDNP..(20E,N)..PHL BLACK,TRIM2# |
1 | ||
| 71848-0K040C0 |
GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-02130C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) W(LOCK)&W(BUTTON),BLACK,TRIM2#,4# |
3 | ||
| 71931-02130C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) W/O(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-02130C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) W(LOCK)&W(BUTTON),BLACK,TRIM2# |
3 | ||
| 71930-02370C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) W(LOCK)&W(BUTTON),BLACK,TRIM2#,4# |
3 | ||
| 71931-02130C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) W/O(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71940E - HEADREST ASSY, NO.2 SEAT | ||||
| 71940-0K820C1 |
GUN143,TGN141..(28V,G)..GCC;GUN143,TGN140..IDNP..(20,28,28V)..PHL BLACK,TRIM2# |
2 | ||
| 71940-0K820C1 |
TGN141..SRV;GUN14#,TGN14#..(20Q,24V,27,28)..(GCC,IDN) SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2# |
2 | ||
| 71940-0K810C0 |
GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL) BLACK,TRIM2# |
2 | ||
| 71940-0KB30C2 |
TGN140..20Q;TGN140..GEN;GUN14#,TGN141..(24V,28V,N,SRV)..(GEN,IDN,LA,TH) BLACK,TRIM2# |
2 | ||
| 71940-0K820E4 |
GUN143,TGN140..IDNP..(20,28,28V)..PHL NOBLE BROWN,TRIM4# |
2 | ||
| 72066A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH | ||||
| 72065-0K070B0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) LT.GRAY,TRIM2# |
1 | ||
| 72065-0K070B0 |
TGN140..20E..VN;GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V) LT.GRAY,TRIM2#,4# |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0K190C1 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 72211-0K190C1 |
GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH | ||||
| 72507-0K040C1 |
GUN143..28E,N;TGN140..PHLP..N;TGN140..PHLP..6FC..20E;TGN140..IDNP..(20E,N)..PHL BLACK,TRIM2# |
1 | ||
| 72507-0K040C1 |
GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 72526D - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH | ||||
| 72526-0K260C0 |
GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 72526-0K260C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-0K030 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
4 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-0K030 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
4 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-0K030C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) BLACK,TRIM2#,NO.1:REFER ILLUST. |
2 | ||
| 72661-0K030C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) BLACK,TRIM2#,4#,NO.1:REFER ILLUST. |
2 | ||
| 72661-0K040C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) BLACK,TRIM2#,NO.2:REFER ILLUST. |
2 | ||
| 72661-0K040C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) BLACK,TRIM2#,4#,NO.2:REFER ILLUST. |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-0K030C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) BLACK,TRIM2#,NO.1:REFER ILLUST. |
2 | ||
| 72661-0K030C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) BLACK,TRIM2#,4#,NO.1:REFER ILLUST. |
2 | ||
| 72661-0K040C0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN143,TGN141..27G,28E,N;GUN142..(24G,G)..(IND,MA);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) BLACK,TRIM2#,NO.2:REFER ILLUST. |
2 | ||
| 72661-0K040C0 |
TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV) BLACK,TRIM2#,4#,NO.2:REFER ILLUST. |
2 | ||
| 72666C - COVER, REAR SEAT LOCK, NO.2 LH | ||||
| 72665-0K330B0 |
TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL) LT.GRAY,TRIM2# |
1 | ||
| 72665-0K330B0 |
TGN140..20E..VN;GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V) LT.GRAY,TRIM2#,4# |
1 | ||
| 72681C - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-0K050B0 |
TGN140..20E..VN;GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V) LT.GRAY,TRIM2#,4#,LH |
1 | ||
| 72681-0K030B0 |
TGN140..20E..VN;GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V) LT.GRAY,TRIM2#,4#,RH |
1 | ||
| 72681-0K050B0 |
GUN143..28E,N;TGN140..PHLP..N;TGN140..PHLP..6FC..20E;TGN140..IDNP..(20E,N)..PHL LT.GRAY,TRIM2#,LH |
1 | ||
| 72681-0K030B0 |
GUN143..28E,N;TGN140..PHLP..N;TGN140..PHLP..6FC..20E;TGN140..IDNP..(20E,N)..PHL LT.GRAY,TRIM2#,RH |
1 | ||
| 72695C - CABLE, REAR SEAT LOCK CONTROL, LH | ||||
| 72695-0K040 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 71694-0K180C0 |
GUN142,TGN14#..GCC,GEN,IDN,TH;GUN143,TGN140..IDNP..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 71694-0K180C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-0K581C6 |
GUN143,TGN141..(28V,G)..GCC;GUN143,TGN140..IDNP..(20,28,28V)..PHL BLACK,TRIM2# |
1 | ||
| 79022-0K571C6 |
GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL) BLACK,TRIM2# |
1 | ||
| 79022-0K581C6 |
TGN141..SRV;GUN14#,TGN14#..(20Q,24V,27,28)..(GCC,IDN) SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2# |
1 | ||
| 79022-0K581E7 |
GUN143,TGN140..IDNP..(20,28,28V)..PHL NOBLE BROWN,TRIM4# |
1 | ||
| 79022-0K591C7 |
TGN140..20Q;TGN140..GEN;GUN14#,TGN141..(24V,28V,N,SRV)..(GEN,IDN,LA,TH) BLACK,TRIM2# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-0K401C5 |
GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL) BLACK,TRIM2# |
1 | ||
| 79024-0K511C6 |
GUN143,TGN141..(28V,G)..GCC;GUN143,TGN140..IDNP..(20,28,28V)..PHL BLACK,TRIM2# |
1 | ||
| 79024-0K511C6 |
TGN141..SRV;GUN14#,TGN14#..(20Q,24V,27,28)..(GCC,IDN) SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2# |
1 | ||
| 79024-0K521C6 |
TGN140..20Q;TGN140..GEN;GUN14#,TGN141..(24V,28V,N,SRV)..(GEN,IDN,LA,TH) BLACK,TRIM2# |
1 | ||
| 79024-0K511E7 |
GUN143,TGN140..IDNP..(20,28,28V)..PHL NOBLE BROWN,TRIM4# |
1 | ||
| 79040B - LEG ASSY, REAR NO.2 SEAT, LH | ||||
| 79040-0K020 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79202-0K040 |
GUN14#,TGN14#..IDNP..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79204-0K020 |
GUN14#,TGN14#..IDNP |
1 | ||
| 79245C - PAD, NO.2 SEAT CUSHION, LH | ||||
| 79245-0K040 |
GUN14#,TGN14#..IDNP |
1 | ||
| 79246B - COVER, NO.2 SEAT LEG, B | ||||
| 79246-0K080C0 |
GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 79246-0K080C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 79285 - PAD, NO.2 SEAT BACK, LH | ||||
| 79285-0K030 |
GUN14#,TGN14#..IDNP |
1 | ||
| 79378B - COVER, NO.3 SEAT CUSHION HINGE, LH | ||||
| 79378-0K100C0 |
GUN142,TGN14#..GCC,GEN,IDN,TH;GUN143,TGN140..IDNP..(20,28,28V) BLACK,TRIM2#,4# |
1 | ||
| 79378-0K100C0 |
GUN143,TGN140..IDNP..(20E,28E,N)..PHL BLACK,TRIM2# |
1 | ||
| 79391 - SPRING, REAR SEAT CUSHION | ||||
| 79391-0K010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
2 | ||
| 79393 - CUSHION, REAR NO.2 SEAT BACK | ||||
| 79393-0K070 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
2 | ||
| 82712 - CLAMP, WIRING HARNESS | ||||
| 82711-0K150 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN14#,TGN141..(20G,24G,24V,27,28,28E,28V,G,N)..(GCC,GEN,IDN,PHL,TH) |
6 | ||
| Common parts | ||||
| 72702-0K220 | ||||
| 90105-T0064 | ||||
| 90105-T0266 | ||||
| 90119-10886 | ||||
| 90119-T0472 | ||||
| 90167-40044 | ||||
| 90950-01999 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
