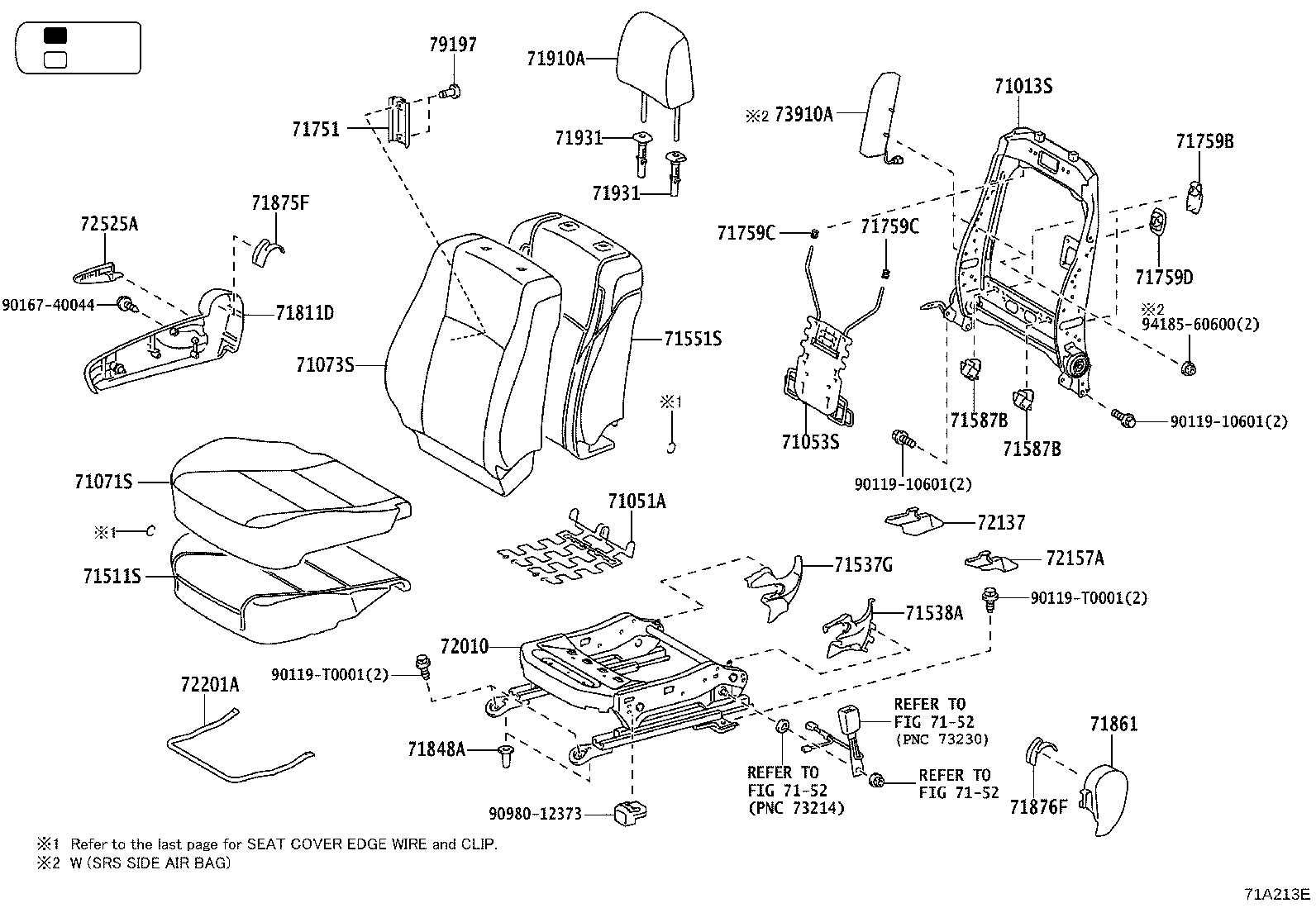

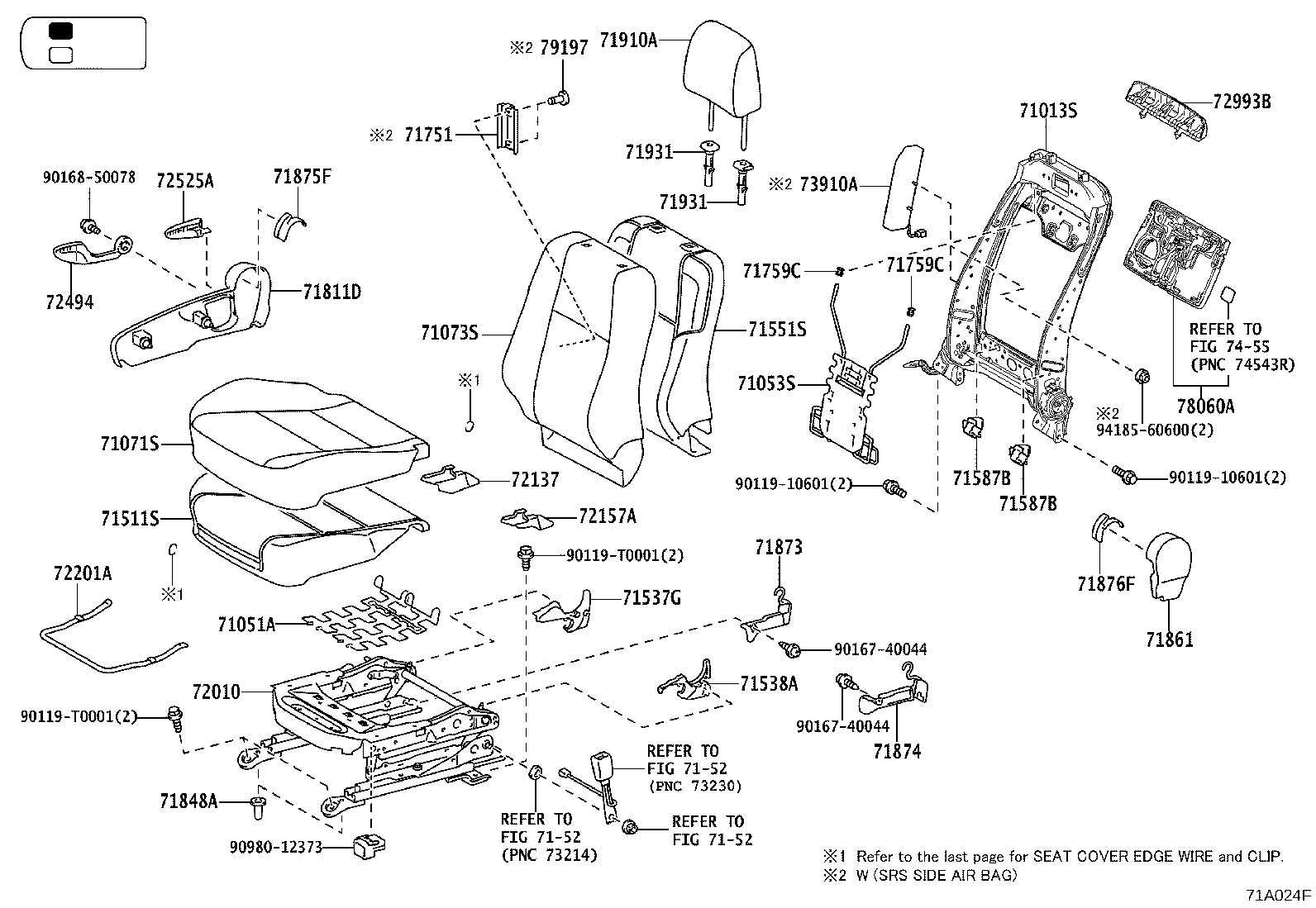

GUN142R-MXMSYX (2016)
Toyota Innova
(1604- )20G,24V,27V..IND,MA ; (2009- )GUN14#..TH ; (2010- )5F..24Z,27G ; (
DRIVER:W(SEAT BACK TABLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0KJ90C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71071-0KJ90C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71071-0KJ90C1 |
GUN142..N BLACK,TRIM2# |
1 | ||
| 71071-0KJ90C1 |
GUN142..N BLACK,TRIM2# |
1 | ||
| 71071-0KJ90C1 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71071-0KJ90C1 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-02270C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71537-02270C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71537-02270C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71537-02270C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-02200C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71538-02200C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71538-02200C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71538-02200C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-0K070 |
GUN142..TH;GUN14#,TGN141..RHD..(24,24Z,27Z,28Z) |
4 | ||
| 71751-0K070 |
GUN142..TH;GUN14#,TGN141..RHD..(24,24Z,27Z,28Z) |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0K220C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71811-0K220C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71811-0K220C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71811-0K220C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71811-0K220C0 |
GUN142..N BLACK,TRIM2# |
1 | ||
| 71811-0K220C0 |
GUN142..N BLACK,TRIM2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47010 |
TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN14#..(INDP,PHLP)..(24G,24V,24Z,28E,28G,28V,28Z,G,N)..DCR |
2 | ||
| 71848-47010 |
TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN14#..(INDP,PHLP)..(24G,24V,24Z,28E,28G,28V,28Z,G,N)..DCR |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0K260C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71861-0K260C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71861-0K260C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71861-0K260C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-0K040 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 72010-0K040 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 72010-0K040 |
GUN142..G |
1 | ||
| 72010-0K040 |
GUN142..G |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0K360C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 72525-0K360C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 72525-0K360C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 72525-0K360C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0K050 |
GUN142..TH..DCR;GUN142..RHD..(24,24Z)..DCR;GUN143..(INDP,PHLP)..(28V,28Z) |
1 | ||
| 73910-0K050 |
GUN142..TH..DCR;GUN142..RHD..(24,24Z)..DCR;GUN143..(INDP,PHLP)..(28V,28Z) |
1 | ||
| 78060A - TABLE ASSY, FRONT SEAT BACK, RH | ||||
| 78060-0K010C0 |
GUN142..TH..DCR;GUN14#..RHD..(24,24Z,28Z)..DCR BLACK,TRIM2#,4# |
1 | ||
| 78060-0K010C0 |
GUN142..TH..DCR;GUN14#..RHD..(24,24Z,28Z)..DCR BLACK,TRIM2#,4# |
1 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-0K010 |
GUN142..TH;GUN14#,TGN141..RHD..(24,24Z,27Z,28Z) |
4 | ||
| 79197-0K010 |
GUN142..TH;GUN14#,TGN141..RHD..(24,24Z,27Z,28Z) |
4 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90980-12373 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||

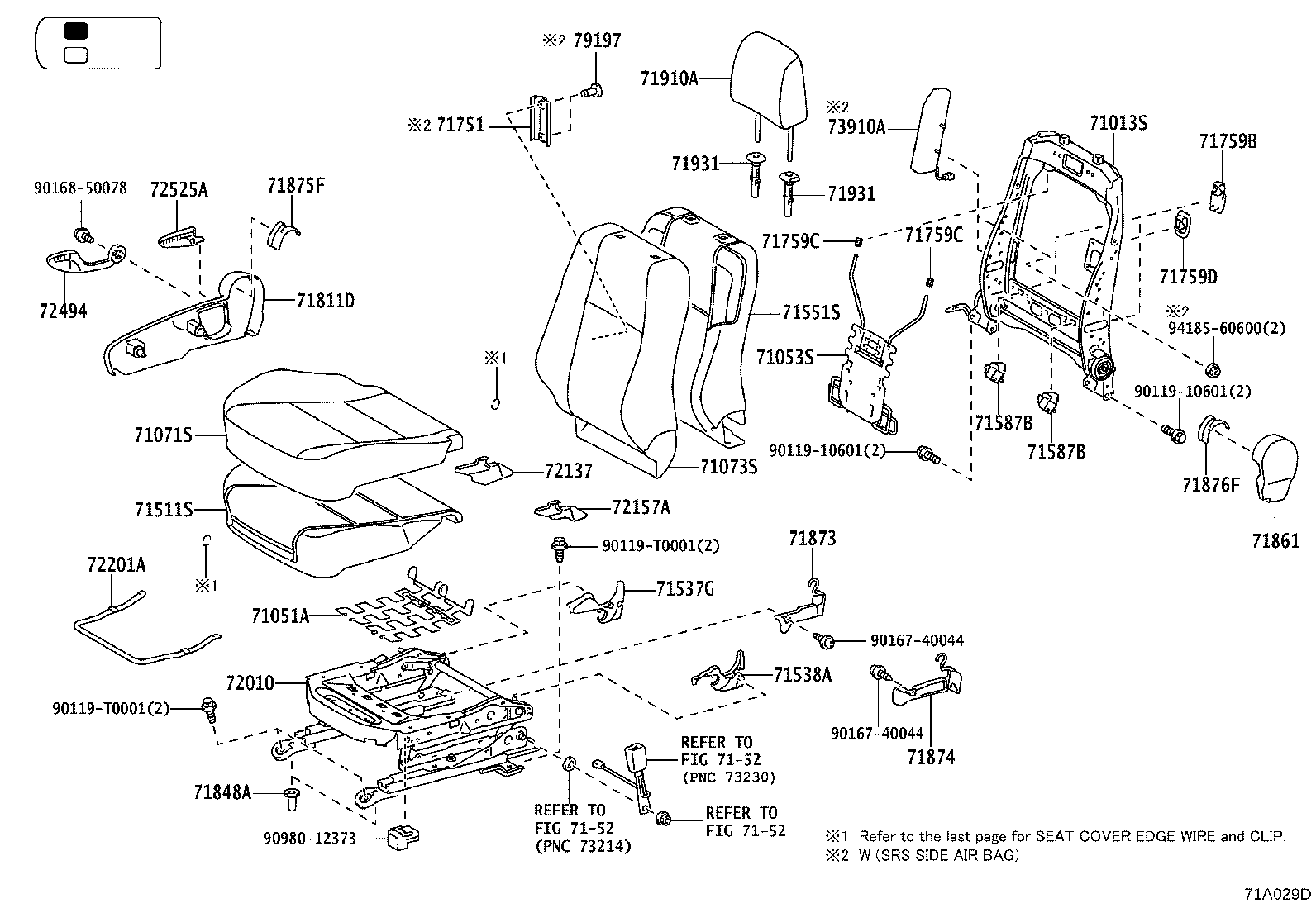

(1511-2008)RHD..IDNP..20,20E,20Q,20V,24,24G,24Q,24V ; (1611- )20E..MA ; (1709-20
DRIVER:MANUAL 6-WAY SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0KJ90C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71071-0KJ90C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71071-0KJ90C1 |
GUN142..N BLACK,TRIM2# |
1 | ||
| 71071-0KJ90C1 |
GUN142..N BLACK,TRIM2# |
1 | ||
| 71071-0KJ90C1 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71071-0KJ90C1 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-02270C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71537-02270C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71537-02270C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71537-02270C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-02200C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71538-02200C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71538-02200C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71538-02200C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-0K070 |
GUN142..TH;GUN14#,TGN141..RHD..(24,24Z,27Z,28Z) |
4 | ||
| 71751-0K070 |
GUN142..TH;GUN14#,TGN141..RHD..(24,24Z,27Z,28Z) |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0K220C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71811-0K220C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71811-0K220C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71811-0K220C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71811-0K220C0 |
GUN142..N BLACK,TRIM2# |
1 | ||
| 71811-0K220C0 |
GUN142..N BLACK,TRIM2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47010 |
TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN14#..(INDP,PHLP)..(24G,24V,24Z,28E,28G,28V,28Z,G,N)..DCR |
2 | ||
| 71848-47010 |
TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN14#..(INDP,PHLP)..(24G,24V,24Z,28E,28G,28V,28Z,G,N)..DCR |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0K260C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71861-0K260C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71861-0K260C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71861-0K260C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-0K040 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 72010-0K040 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 72010-0K040 |
GUN142..G |
1 | ||
| 72010-0K040 |
GUN142..G |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0K360C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 72525-0K360C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 72525-0K360C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 72525-0K360C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0K050 |
GUN142..TH..DCR;GUN142..RHD..(24,24Z)..DCR;GUN143..(INDP,PHLP)..(28V,28Z) |
1 | ||
| 73910-0K050 |
GUN142..TH..DCR;GUN142..RHD..(24,24Z)..DCR;GUN143..(INDP,PHLP)..(28V,28Z) |
1 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-0K010 |
GUN142..TH;GUN14#,TGN141..RHD..(24,24Z,27Z,28Z) |
4 | ||
| 79197-0K010 |
GUN142..TH;GUN14#,TGN141..RHD..(24,24Z,27Z,28Z) |
4 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90980-12373 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1809-2001)G ; (2009- )GUN142..IDNP..20G,24G; (2009- )TGN140..RHD..IDNP..20G
DRIVER:MANUAL 6-WAY SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0KJ90C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71071-0KJ90C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71071-0KJ90C1 |
GUN142..N BLACK,TRIM2# |
1 | ||
| 71071-0KJ90C1 |
GUN142..N BLACK,TRIM2# |
1 | ||
| 71071-0KJ90C1 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71071-0KJ90C1 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-02270C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71537-02270C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71537-02270C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71537-02270C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-02200C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71538-02200C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71538-02200C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71538-02200C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-0K070 |
GUN142..TH;GUN14#,TGN141..RHD..(24,24Z,27Z,28Z) |
4 | ||
| 71751-0K070 |
GUN142..TH;GUN14#,TGN141..RHD..(24,24Z,27Z,28Z) |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0K220C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71811-0K220C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71811-0K220C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71811-0K220C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71811-0K220C0 |
GUN142..N BLACK,TRIM2# |
1 | ||
| 71811-0K220C0 |
GUN142..N BLACK,TRIM2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47010 |
TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN14#..(INDP,PHLP)..(24G,24V,24Z,28E,28G,28V,28Z,G,N)..DCR |
2 | ||
| 71848-47010 |
TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN14#..(INDP,PHLP)..(24G,24V,24Z,28E,28G,28V,28Z,G,N)..DCR |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0K260C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71861-0K260C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71861-0K260C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71861-0K260C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-0K040 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 72010-0K040 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 72010-0K040 |
GUN142..G |
1 | ||
| 72010-0K040 |
GUN142..G |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0K360C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 72525-0K360C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 72525-0K360C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 72525-0K360C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0K050 |
GUN142..TH..DCR;GUN142..RHD..(24,24Z)..DCR;GUN143..(INDP,PHLP)..(28V,28Z) |
1 | ||
| 73910-0K050 |
GUN142..TH..DCR;GUN142..RHD..(24,24Z)..DCR;GUN143..(INDP,PHLP)..(28V,28Z) |
1 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-0K010 |
GUN142..TH;GUN14#,TGN141..RHD..(24,24Z,27Z,28Z) |
4 | ||
| 79197-0K010 |
GUN142..TH;GUN14#,TGN141..RHD..(24,24Z,27Z,28Z) |
4 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90980-12373 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1511-2102)20E,20G,20Q,20V,24,24G,24Q,24V..IDN,PHL,SA,TH,VN..DCR,HTWC ; (1511-2102)

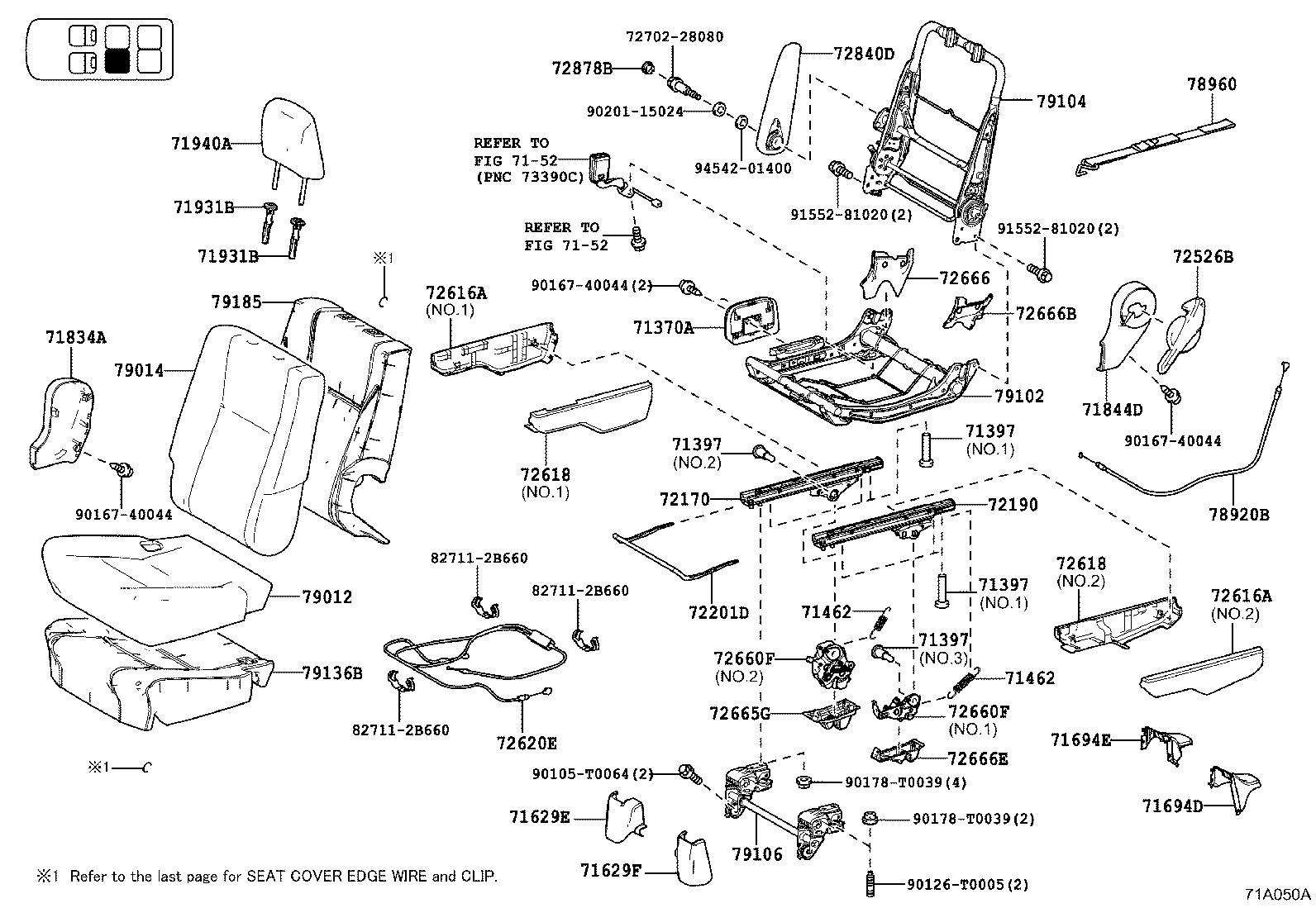

REAR NO.1 SEAT(LH), CAPTAIN SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-0K010 |
GUN142..(24G,24V,G,N)..(GCC,IND);GUN143,TGN141..(27G,27V,28G)..IND;GUN143,TGN141..5F..(27G,28G)..GCC REAR SEAT-TUMBLE SEAT |
1 | ||
| 71370-0K010 |
GUN142..(24G,24V,G,N)..(GCC,IND);GUN143,TGN141..(27G,27V,28G)..IND;GUN143,TGN141..5F..(27G,28G)..GCC REAR SEAT-TUMBLE SEAT |
1 | ||
| 71370-0K010 |
GUN142..(24G,24V,G,N)..(GCC,IND);GUN143,TGN141..(27G,27V,28G)..IND;GUN143,TGN141..5F..(27G,28G)..GCC REAR SEAT-TUMBLE SEAT |
1 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71629E - COVER, REAR SEAT CUSHION HINGE, INNER LH | ||||
| 71629-0K230C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K230C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K230C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629F - COVER, REAR SEAT CUSHION HINGE, OUTER LH | ||||
| 71629-0K240C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K240C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K240C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694D - COVER, REAR SEAT CUSHION HINGE, OUTER LH | ||||
| 71694-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694E - COVER, REAR SEAT CUSHION HINGE, INNER LH | ||||
| 71694-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71802-0K030C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71802-0K030C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71802-0K030C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71834-0K140C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 71834-0K140C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 71834-0K140C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72201D - HANDLE SUB-ASSY, SEAT TRACK, LH | ||||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-0K220C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND REAR SEAT-TUMBLE SEAT,BLACK,TRIM2# |
1 | ||
| 72666-0K220C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND REAR SEAT-TUMBLE SEAT,BLACK,TRIM2# |
1 | ||
| 72666-0K220C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND REAR SEAT-TUMBLE SEAT,BLACK,TRIM2# |
1 | ||
| 72666-0K360C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72666-0K360C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72666-0K360C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72666B - COVER, REAR SEAT LOCK, LH | ||||
| 72666-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72666-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72666-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-0K800E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79012-0K800E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79012-0K800E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79012-0K800C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79012-0K800C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79012-0K800C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-0K620C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 79014-0K620C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 79014-0K620C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 79014-0K670C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79014-0K670C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79014-0K670C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79014-0K670E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79014-0K670E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79014-0K670E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79104-0K070 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79104-0K070 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79104-0K070 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79136-0K190 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79136-0K190 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79136-0K190 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-0K090 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79185-0K090 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79185-0K090 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79185-0K120 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79185-0K120 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79185-0K120 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| Common parts | ||||
| 72702-28080 | ||||
| 82711-2B660 | ||||
| 90105-T0064 | ||||
| 90126-T0005 | ||||
| 90167-40044 | ||||
| 90178-T0039 | ||||
| 90201-15024 | ||||
| 91552-81020 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1511-2102)GUN142,TGN140..24G,24V,24Z,28V,G,N..GCC,IND,PHL ; (1511-2102)GUN142,TGN1

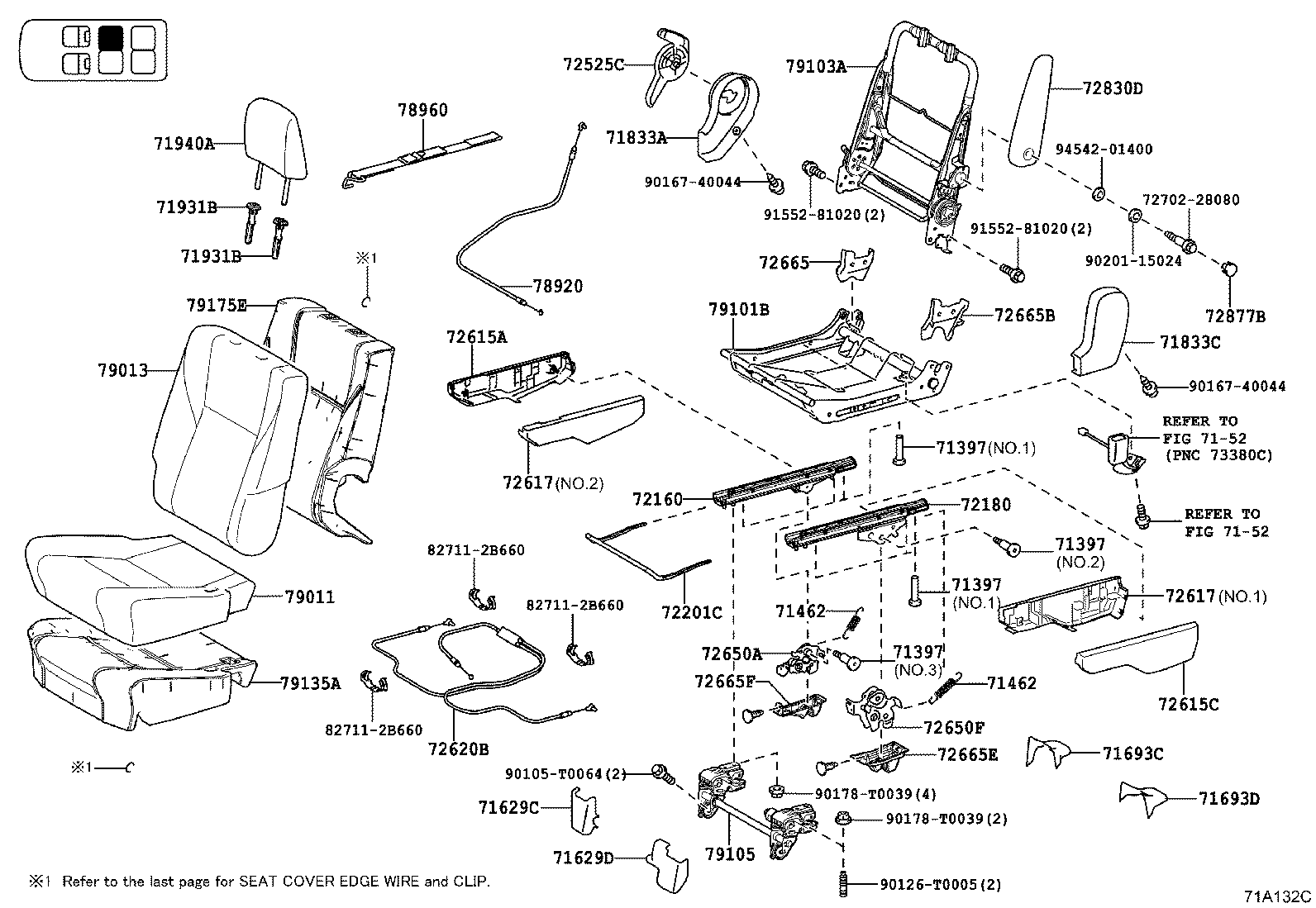

REAR NO.1 SEAT(LH), CAPTAIN SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-0K010 |
GUN142..(24G,24V,G,N)..(GCC,IND);GUN143,TGN141..(27G,27V,28G)..IND;GUN143,TGN141..5F..(27G,28G)..GCC REAR SEAT-TUMBLE SEAT |
1 | ||
| 71370-0K010 |
GUN142..(24G,24V,G,N)..(GCC,IND);GUN143,TGN141..(27G,27V,28G)..IND;GUN143,TGN141..5F..(27G,28G)..GCC REAR SEAT-TUMBLE SEAT |
1 | ||
| 71370-0K010 |
GUN142..(24G,24V,G,N)..(GCC,IND);GUN143,TGN141..(27G,27V,28G)..IND;GUN143,TGN141..5F..(27G,28G)..GCC REAR SEAT-TUMBLE SEAT |
1 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71629E - COVER, REAR SEAT CUSHION HINGE, INNER LH | ||||
| 71629-0K230C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K230C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K230C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629F - COVER, REAR SEAT CUSHION HINGE, OUTER LH | ||||
| 71629-0K240C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K240C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K240C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694D - COVER, REAR SEAT CUSHION HINGE, OUTER LH | ||||
| 71694-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694E - COVER, REAR SEAT CUSHION HINGE, INNER LH | ||||
| 71694-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71802-0K030C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71802-0K030C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71802-0K030C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71834-0K140C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 71834-0K140C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 71834-0K140C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72201D - HANDLE SUB-ASSY, SEAT TRACK, LH | ||||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-0K220C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND REAR SEAT-TUMBLE SEAT,BLACK,TRIM2# |
1 | ||
| 72666-0K220C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND REAR SEAT-TUMBLE SEAT,BLACK,TRIM2# |
1 | ||
| 72666-0K220C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND REAR SEAT-TUMBLE SEAT,BLACK,TRIM2# |
1 | ||
| 72666-0K360C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72666-0K360C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72666-0K360C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72666B - COVER, REAR SEAT LOCK, LH | ||||
| 72666-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72666-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72666-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-0K800E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79012-0K800E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79012-0K800E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79012-0K800C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79012-0K800C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79012-0K800C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-0K620C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 79014-0K620C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 79014-0K620C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 79014-0K670C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79014-0K670C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79014-0K670C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79014-0K670E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79014-0K670E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79014-0K670E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||

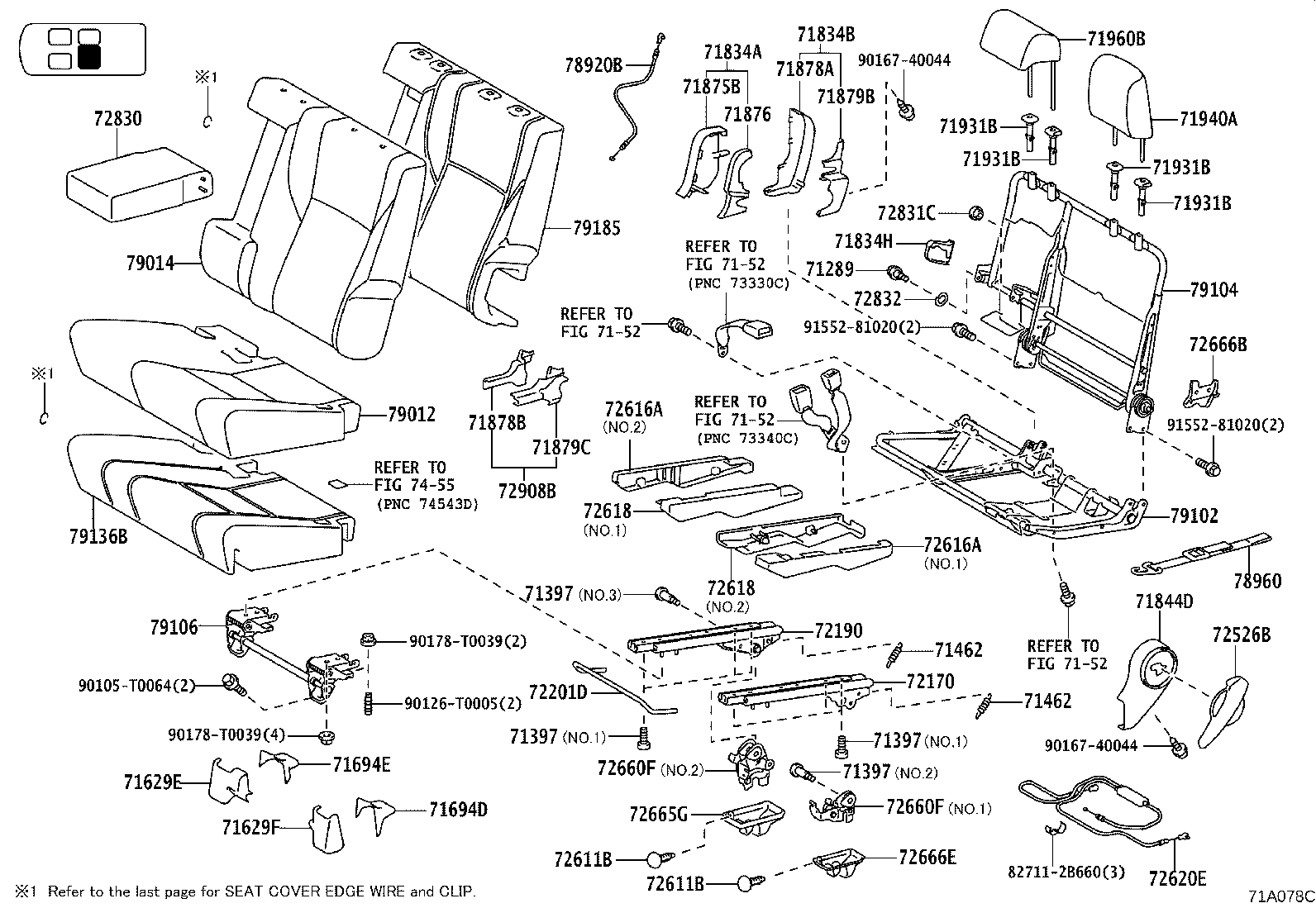

| 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79104-0K070 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79104-0K070 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79104-0K070 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79136-0K190 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79136-0K190 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79136-0K190 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-0K090 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79185-0K090 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79185-0K090 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79185-0K120 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79185-0K120 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79185-0K120 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| Common parts | ||||
| 72702-28080 | ||||
| 82711-2B660 | ||||
| 90105-T0064 | ||||
| 90126-T0005 | ||||
| 90167-40044 | ||||
| 90178-T0039 | ||||
| 90201-15024 | ||||
| 91552-81020 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1511-2102)20E,20G,20Q,20V,24,24Q,24Z,27,27G,27SR,27SRV,27V..GCC,IDN,IND,LA,PHL,SA,

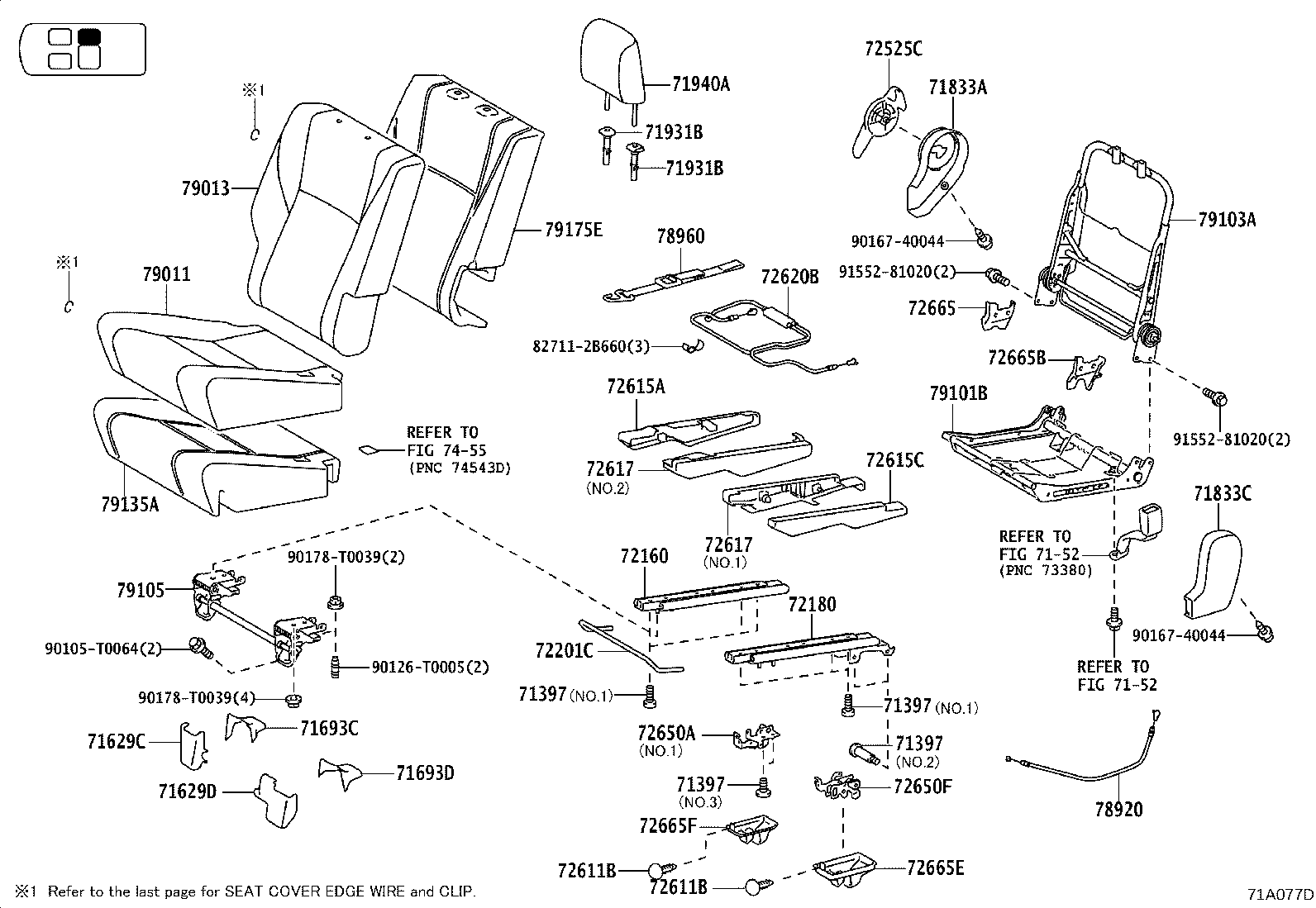

REAR NO.1 SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71629C - COVER, REAR SEAT CUSHION HINGE, OUTER RH | ||||
| 71629-0K210C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K210C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K210C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629D - COVER, REAR SEAT CUSHION HINGE, INNER RH | ||||
| 71629-0K220C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K220C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K220C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693C - COVER, REAR SEAT CUSHION HINGE, OUTER RH | ||||
| 71693-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693D - COVER, REAR SEAT CUSHION HINGE, INNER RH | ||||
| 71693-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71833-0K330C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 71833-0K330C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 71833-0K330C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72201C - HANDLE SUB-ASSY, SEAT TRACK, RH | ||||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665B - COVER, REAR SEAT BACK LOCK | ||||
| 72665-0K300C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K300C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K300C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K590C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND REAR SEAT-TUMBLE SEAT,BLACK,TRIM2# |
1 | ||
| 72665-0K590C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND REAR SEAT-TUMBLE SEAT,BLACK,TRIM2# |
1 | ||
| 72665-0K590C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND REAR SEAT-TUMBLE SEAT,BLACK,TRIM2# |
1 | ||
| 72665-0K600C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72665-0K600C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72665-0K600C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-0KB00C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79011-0KB00C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79011-0KB00C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79011-0KB00E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79011-0KB00E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79011-0KB00E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-0KB60C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79013-0KB60C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79013-0KB60C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79013-0KB60E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79013-0KB60E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79013-0KB60E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-0K170 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79135-0K170 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79135-0K170 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-0K160 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79175-0K160 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79175-0K160 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90105-T0064 | ||||
| 90126-T0005 | ||||
| 90167-40044 | ||||
| 90178-T0039 | ||||
| 91552-81020 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
(1511-2102)TGN140..5F..20,N ; (1511-2102)24V,28,28G..GCC,GEN..DCR ; (1511-2102)24G,
REAR NO.1 SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71629C - COVER, REAR SEAT CUSHION HINGE, OUTER RH | ||||
| 71629-0K210C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K210C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K210C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629D - COVER, REAR SEAT CUSHION HINGE, INNER RH | ||||
| 71629-0K220C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K220C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K220C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693C - COVER, REAR SEAT CUSHION HINGE, OUTER RH | ||||
| 71693-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693D - COVER, REAR SEAT CUSHION HINGE, INNER RH | ||||
| 71693-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71833-0K330C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 71833-0K330C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 71833-0K330C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72201C - HANDLE SUB-ASSY, SEAT TRACK, RH | ||||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665B - COVER, REAR SEAT BACK LOCK | ||||
| 72665-0K300C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K300C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K300C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K590C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND REAR SEAT-TUMBLE SEAT,BLACK,TRIM2# |
1 | ||
| 72665-0K590C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND REAR SEAT-TUMBLE SEAT,BLACK,TRIM2# |
1 | ||
| 72665-0K590C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND REAR SEAT-TUMBLE SEAT,BLACK,TRIM2# |
1 | ||
| 72665-0K600C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72665-0K600C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72665-0K600C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-0KB00C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79011-0KB00C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79011-0KB00C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79011-0KB00E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79011-0KB00E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79011-0KB00E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-0KB60C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79013-0KB60C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79013-0KB60C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79013-0KB60E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79013-0KB60E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79013-0KB60E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-0K170 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79135-0K170 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79135-0K170 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-0K160 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79175-0K160 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79175-0K160 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90105-T0064 | ||||
| 90126-T0005 | ||||
| 90167-40044 | ||||
| 90178-T0039 | ||||
| 91552-81020 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
(1511-2102)20E,20G,20Q,20V,24,24Q,24Z,27,27G,27SR,27SRV,27V..GCC,IDN,IND,LA,PHL,SA,
REAR NO.1 SEAT(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71629E - COVER, REAR SEAT CUSHION HINGE, INNER LH | ||||
| 71629-0K230C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K230C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K230C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629F - COVER, REAR SEAT CUSHION HINGE, OUTER LH | ||||
| 71629-0K240C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K240C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K240C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694D - COVER, REAR SEAT CUSHION HINGE, OUTER LH | ||||
| 71694-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694E - COVER, REAR SEAT CUSHION HINGE, INNER LH | ||||
| 71694-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71802-0K030C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71802-0K030C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71802-0K030C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71834-0K140C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 71834-0K140C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 71834-0K140C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 71834B - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71802-0K040C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71802-0K040C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71802-0K040C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0K040C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71876-0K040C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71876-0K040C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71879B - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-0K040C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71879-0K040C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71879-0K040C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72201D - HANDLE SUB-ASSY, SEAT TRACK, LH | ||||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72666B - COVER, REAR SEAT LOCK, LH | ||||
| 72666-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72666-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72666-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72832 - PLATE, REAR SEAT ARMREST | ||||
| 72831-52010 |
GUN14#..(24G,28G)..IND..DCR |
1 | ||
| 72831-52010 |
GUN14#..(24G,28G)..IND..DCR |
1 | ||
| 72831-52010 |
GUN14#..(24G,28G)..IND..DCR |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-0K800E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79012-0K800E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79012-0K800E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79012-0K800C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79012-0K800C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79012-0K800C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-0K620C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 79014-0K620C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 79014-0K620C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 79014-0K670C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79014-0K670C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79014-0K670C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79014-0K670E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79014-0K670E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79014-0K670E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79104-0K070 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79104-0K070 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79104-0K070 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79136-0K190 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79136-0K190 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79136-0K190 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-0K090 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79185-0K090 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79185-0K090 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79185-0K120 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79185-0K120 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79185-0K120 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90105-T0064 | ||||
| 90126-T0005 | ||||
| 90167-40044 | ||||
| 90178-T0039 | ||||
| 91552-81020 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
(1511-2102)TGN140..5F..20,N ; (1511-2102)24V,28,28G..GCC,GEN..DCR ; (1511-2102)24G,
REAR NO.1 SEAT(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71629E - COVER, REAR SEAT CUSHION HINGE, INNER LH | ||||
| 71629-0K230C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K230C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K230C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629F - COVER, REAR SEAT CUSHION HINGE, OUTER LH | ||||
| 71629-0K240C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K240C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K240C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694D - COVER, REAR SEAT CUSHION HINGE, OUTER LH | ||||
| 71694-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694E - COVER, REAR SEAT CUSHION HINGE, INNER LH | ||||
| 71694-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71694-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71802-0K030C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71802-0K030C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71802-0K030C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71834-0K140C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 71834-0K140C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 71834-0K140C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 71834B - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71802-0K040C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71802-0K040C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71802-0K040C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0K040C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71876-0K040C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71876-0K040C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71879B - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-0K040C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71879-0K040C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71879-0K040C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72201D - HANDLE SUB-ASSY, SEAT TRACK, LH | ||||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72666B - COVER, REAR SEAT LOCK, LH | ||||
| 72666-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72666-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72666-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72832 - PLATE, REAR SEAT ARMREST | ||||
| 72831-52010 |
GUN14#..(24G,28G)..IND..DCR |
1 | ||
| 72831-52010 |
GUN14#..(24G,28G)..IND..DCR |
1 | ||
| 72831-52010 |
GUN14#..(24G,28G)..IND..DCR |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-0K800E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79012-0K800E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79012-0K800E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79012-0K800C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79012-0K800C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79012-0K800C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-0K620C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 79014-0K620C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 79014-0K620C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 79014-0K670C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79014-0K670C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79014-0K670C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79014-0K670E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79014-0K670E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79014-0K670E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79104-0K070 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79104-0K070 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79104-0K070 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79136-0K190 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79136-0K190 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79136-0K190 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-0K090 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79185-0K090 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79185-0K090 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 79185-0K120 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79185-0K120 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79185-0K120 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90105-T0064 | ||||
| 90126-T0005 | ||||
| 90167-40044 | ||||
| 90178-T0039 | ||||
| 91552-81020 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
(1511-2102)20E,20G,20Q,20V,24,24G,24Q,24V..IDN,PHL,SA,TH,VN..DCR,HTWC ; (1511-2102)
REAR NO.1 SEAT(RH), CAPTAIN SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71629C - COVER, REAR SEAT CUSHION HINGE, OUTER RH | ||||
| 71629-0K210C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K210C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K210C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629D - COVER, REAR SEAT CUSHION HINGE, INNER RH | ||||
| 71629-0K220C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K220C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K220C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693C - COVER, REAR SEAT CUSHION HINGE, OUTER RH | ||||
| 71693-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693D - COVER, REAR SEAT CUSHION HINGE, INNER RH | ||||
| 71693-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71833-0K330C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 71833-0K330C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 71833-0K330C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72201C - HANDLE SUB-ASSY, SEAT TRACK, RH | ||||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665B - COVER, REAR SEAT BACK LOCK | ||||
| 72665-0K300C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K300C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K300C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K590C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND REAR SEAT-TUMBLE SEAT,BLACK,TRIM2# |
1 | ||
| 72665-0K590C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND REAR SEAT-TUMBLE SEAT,BLACK,TRIM2# |
1 | ||
| 72665-0K590C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND REAR SEAT-TUMBLE SEAT,BLACK,TRIM2# |
1 | ||
| 72665-0K600C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72665-0K600C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72665-0K600C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-0KB00C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79011-0KB00C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79011-0KB00C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79011-0KB00E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79011-0KB00E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79011-0KB00E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-0KB60C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79013-0KB60C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79013-0KB60C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79013-0KB60E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79013-0KB60E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79013-0KB60E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-0K170 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79135-0K170 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79135-0K170 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-0K160 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79175-0K160 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79175-0K160 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| Common parts | ||||
| 72702-28080 | ||||
| 82711-2B660 | ||||
| 90105-T0064 | ||||
| 90126-T0005 | ||||
| 90167-40044 | ||||
| 90178-T0039 | ||||
| 90201-15024 | ||||
| 91552-81020 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1511-2102)GUN142,TGN140..24G,24V,24Z,28V,G,N..GCC,IND,PHL ; (1511-2102)GUN142,TGN1
REAR NO.1 SEAT(RH), CAPTAIN SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397 - STOPPER, REAR SEAT | ||||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K100 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.3:REFER ILLUST. |
2 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K050 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.1:REFER ILLUST. |
12 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71397-0K060 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) NO.2:REFER ILLUST. |
2 | ||
| 71629C - COVER, REAR SEAT CUSHION HINGE, OUTER RH | ||||
| 71629-0K210C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K210C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K210C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629D - COVER, REAR SEAT CUSHION HINGE, INNER RH | ||||
| 71629-0K220C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K220C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71629-0K220C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693C - COVER, REAR SEAT CUSHION HINGE, OUTER RH | ||||
| 71693-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693-0K130C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693D - COVER, REAR SEAT CUSHION HINGE, INNER RH | ||||
| 71693-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71693-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71833-0K330C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 71833-0K330C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 71833-0K330C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72201C - HANDLE SUB-ASSY, SEAT TRACK, RH | ||||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72211-0K040 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K140C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665B - COVER, REAR SEAT BACK LOCK | ||||
| 72665-0K300C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K300C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K300C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 72665-0K590C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND REAR SEAT-TUMBLE SEAT,BLACK,TRIM2# |
1 | ||
| 72665-0K590C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND REAR SEAT-TUMBLE SEAT,BLACK,TRIM2# |
1 | ||
| 72665-0K590C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND REAR SEAT-TUMBLE SEAT,BLACK,TRIM2# |
1 | ||
| 72665-0K600C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72665-0K600C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 72665-0K600C0 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) BLACK,TRIM2#,4# |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-0KB00C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79011-0KB00C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79011-0KB00C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79011-0KB00E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79011-0KB00E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79011-0KB00E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-0KB60C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79013-0KB60C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79013-0KB60C2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) BLACK,TRIM2# |
1 | ||
| 79013-0KB60E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79013-0KB60E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79013-0KB60E2 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..LHD..IDNP..(24V,28V) HAZEL BROWN,TRIM4# |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-0K170 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79135-0K170 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79135-0K170 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-0K160 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79175-0K160 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| 79175-0K160 |
GUN142,TGN140..RHD..(20Q,24);GUN14#..IDNP..(24V,28V)..(GCC,GEN,PHL,TH) |
1 | ||
| Common parts | ||||
| 72702-28080 | ||||
| 82711-2B660 | ||||
| 90105-T0064 | ||||
| 90126-T0005 | ||||
| 90167-40044 | ||||
| 90178-T0039 | ||||
| 90201-15024 | ||||
| 91552-81020 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1604-1709)24G,27G,28G..IND ; (1604-1809)G ; (1604-2009)GUN142..N ; (2010- )GUN1
DRIVER:MANUAL 4-WAY SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0KJ90C1 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71071-0KJ90C1 |
GUN142..N BLACK,TRIM2# |
1 | ||
| 71071-0KJ90C1 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-02270C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71537-02270C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-02200C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71538-02200C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-0K070 |
GUN142..TH;GUN14#,TGN141..RHD..(24,24Z,27Z,28Z) |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0K220C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71811-0K220C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71811-0K220C0 |
GUN142..N BLACK,TRIM2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47010 |
TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN14#..(INDP,PHLP)..(24G,24V,24Z,28E,28G,28V,28Z,G,N)..DCR |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0K260C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 71861-0K260C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-0K040 |
GUN14#,TGN141..(24G,27G,28G)..IND |
1 | ||
| 72010-0K040 |
GUN142..G |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0K360C0 |
GUN142..G BLACK,TRIM2# |
1 | ||
| 72525-0K360C0 |
GUN14#,TGN141..(24G,27G,28G)..IND BLACK,TRIM2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0K050 |
GUN142..TH..DCR;GUN142..RHD..(24,24Z)..DCR;GUN143..(INDP,PHLP)..(28V,28Z) |
1 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-0K010 |
GUN142..TH;GUN14#,TGN141..RHD..(24,24Z,27Z,28Z) |
4 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90980-12373 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1607- )20V..VN ; (1808- )IDNP..24V,28V..GEN,PHL ; (1809-1906)PHLP..28V ; (20
DRIVER:W(POWER SEAT & TABLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71751 - HANGER, SEAT COVER | ||||
| 71751-0K070 |
GUN142..TH;GUN14#,TGN141..RHD..(24,24Z,27Z,28Z) |
4 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-47010 |
TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN14#..(INDP,PHLP)..(24G,24V,24Z,28E,28G,28V,28Z,G,N)..DCR |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0K280C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0K020C0 |
GUN14#,TGN141..(24G,24V,27G,27V,28G,G,N)..IND W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0K050 |
GUN142..TH..DCR;GUN142..RHD..(24,24Z)..DCR;GUN143..(INDP,PHLP)..(28V,28Z) |
1 | ||
| 78060B - TABLE ASSY, FRONT SEAT BACK, LH | ||||
| 78060-0K010C0 |
GUN142..24G..TH;GUN142..IDNP..24V;GUN14#,TGN140..RHD..(20Q,20V,24,24Q,24Z,28Z) BLACK,TRIM2#,4# |
1 | ||
| 78060-0K060C0 |
GUN142..24G..TH;GUN14#..RHD..IDNP..(24V,28G,28V);GUN14#,TGN14#..RHD..(IDNP,INDP)..(20Q,20V,24,24Q,24Z,27Z,28Z) BLACK,TRIM2#,4# |
1 | ||
| 78060-0K010C0 |
GUN14#..RHD..(24,24Z,28Z)..DCR BLACK,TRIM2#,4# |
1 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-0K010 |
GUN142..TH;GUN14#,TGN141..RHD..(24,24Z,27Z,28Z) |
4 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
