GUN142R-MXMMYX (2016)

Toyota Innova

Production Apr 2016 - Jan 2020
Engine 2GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

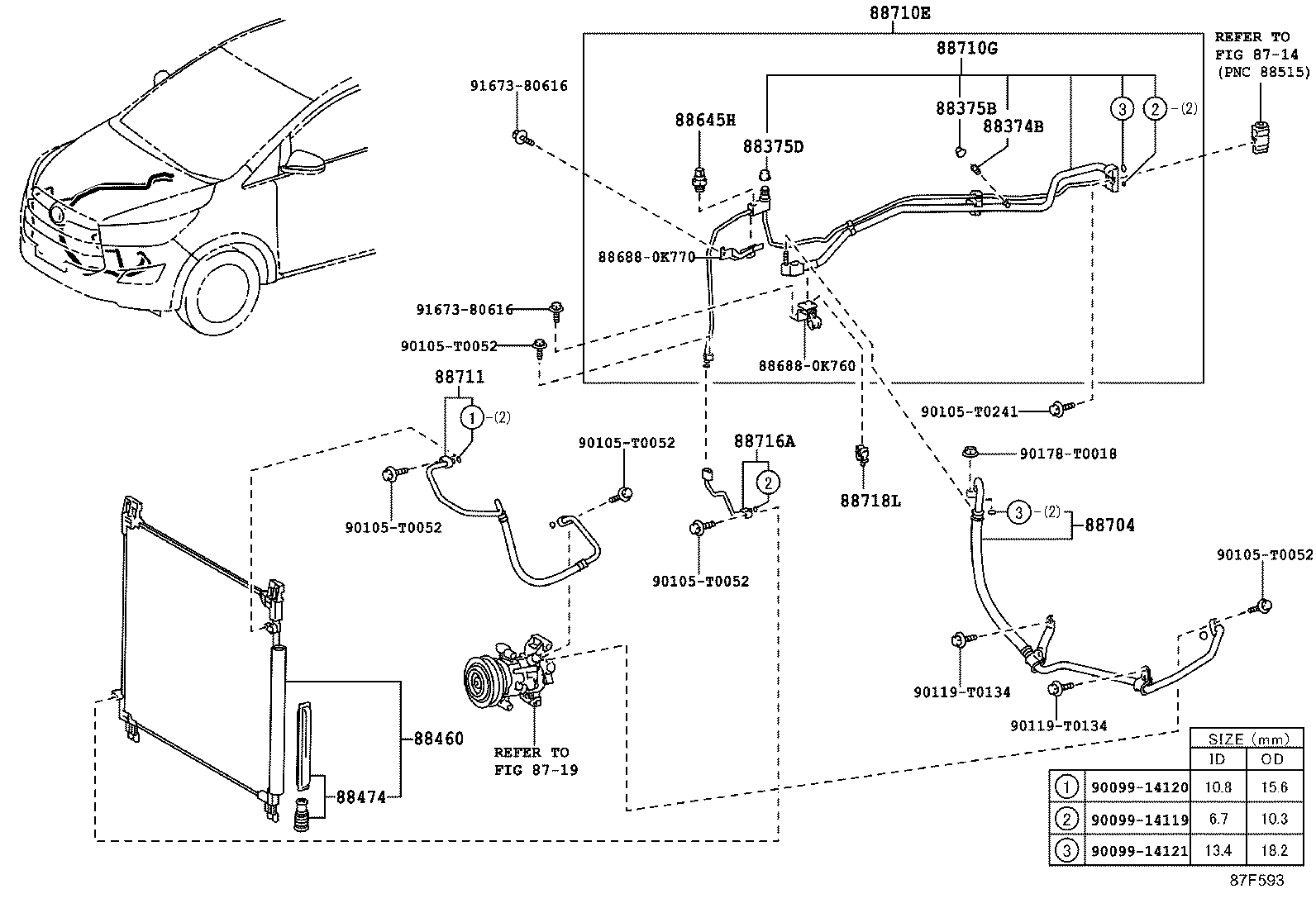

ILLUST NO. 2 OF 3(1511-1905)GUN142..IDN,SA ; (1604- )5F,6FC..24G,24V,24Z,28G,28Z,G..IND..DCR ; (1

Click highlighted areas on diagram

FRONT

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88645H 88704 88710E 88711 88716A 88716B 88718L 9009914119 9009914120 9009914121 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90119T0134 90119T0134 90178T0018 90178T0018 9167380616 9167380616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GUN14#..(5F,6FC)..(24G,24V,24Z,28G,28Z)..IND

 1
88374-30010

GUN14#..(5F,6FC)..(24G,24V,24Z,28G,28Z)..IND

 1
88374-30010

GUN142..G

REAR AIR CONDITIONER-MANUAL(COOLER ONLY)

 1
88374-30010

GUN142..G

REAR AIR CONDITIONER-MANUAL(COOLER ONLY)

 1
88374-30010

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..5F..(24G,27,27G)..GCC;GUN142..(6F,6FC)..(GCC,IND,SA,TH)..DCR;GUN14#,TGN141..5F..(24,27SR,28,28G,G)..(GCC,GEN,IND,LA)..(DCR,HTWC)

 1
88374-30010

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..5F..(24G,27,27G)..GCC;GUN142..(6F,6FC)..(GCC,IND,SA,TH)..DCR;GUN14#,TGN141..5F..(24,27SR,28,28G,G)..(GCC,GEN,IND,LA)..(DCR,HTWC)

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GUN142..G

REAR AIR CONDITIONER-MANUAL(COOLER ONLY)

 1
88374-30010

GUN142..G

REAR AIR CONDITIONER-MANUAL(COOLER ONLY)

 1
88374-30010

GUN14#..(5F,6FC)..(24G,24V,24Z,28G,28Z)..IND

 1
88374-30010

GUN14#..(5F,6FC)..(24G,24V,24Z,28G,28Z)..IND

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

GUN142..G

REAR AIR CONDITIONER-MANUAL(COOLER ONLY)

 1
88375-30290

GUN142..G

REAR AIR CONDITIONER-MANUAL(COOLER ONLY)

 1
88375-30290

GUN14#..(5F,6FC)..(24G,24V,24Z,28G,28Z)..IND

 1
88375-30290

GUN14#..(5F,6FC)..(24G,24V,24Z,28G,28Z)..IND

 1
88375-30290

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..5F..(24G,27,27G)..GCC;GUN142..(6F,6FC)..(GCC,IND,SA,TH)..DCR;GUN14#,TGN141..5F..(24,27SR,28,28G,G)..(GCC,GEN,IND,LA)..(DCR,HTWC)

 1
88375-30290

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..5F..(24G,27,27G)..GCC;GUN142..(6F,6FC)..(GCC,IND,SA,TH)..DCR;GUN14#,TGN141..5F..(24,27SR,28,28G,G)..(GCC,GEN,IND,LA)..(DCR,HTWC)

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

GUN14#..(5F,6FC)..(24G,24V,24Z,28G,28Z)..IND

 1
88375-30280

GUN14#..(5F,6FC)..(24G,24V,24Z,28G,28Z)..IND

 1
88375-30280

GUN142..G

REAR AIR CONDITIONER-MANUAL(COOLER ONLY)

 1
88375-30280

GUN142..G

REAR AIR CONDITIONER-MANUAL(COOLER ONLY)

 1
88375-30280

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN142..(6F,6FC)..(GCC,IND,SA)..DCR;GUN142,TGN141..5F..(24G,27,27G)..GCC;GUN143,TGN140..PHLP..6FC..(20E,20G,28E,28G,28V);GUN14#,TGN141..5F..(24,27SR,28,28G,G)..(GCC,GEN,IND,LA)..(DCR,HTWC)

 1
88375-30280

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN142..(6F,6FC)..(GCC,IND,SA)..DCR;GUN142,TGN141..5F..(24G,27,27G)..GCC;GUN143,TGN140..PHLP..6FC..(20E,20G,28E,28G,28V);GUN14#,TGN141..5F..(24,27SR,28,28G,G)..(GCC,GEN,IND,LA)..(DCR,HTWC)

 1
88474 - DRYER, COOLER
88474-12010

TGN140..RHD..(GEN,MA);GUN143,TGN141..5F..GCC;GUN143,TGN141..(24,27SR,28G,28Z)..(GEN,IND,LA);GUN142..(24,24G,24V,24Z,28V,G)..(GCC,IND,SA)..DCR

 1
88474-12010

TGN140..RHD..(GEN,MA);GUN143,TGN141..5F..GCC;GUN143,TGN141..(24,27SR,28G,28Z)..(GEN,IND,LA);GUN142..(24,24G,24V,24Z,28V,G)..(GCC,IND,SA)..DCR

 1
88645H - SWITCH, PRESSURE NO.1
88645-0K030

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(24,27SR,28,28G)..(GCC,GEN,LA);GUN142..(24,24G,24V,24Z,28V,G)..(GCC,IND,SA)..DCR;GUN143,TGN140..(INDP,PHLP)..6FC..(20E,20G,28E,28G,28V,28Z)

 1
88645-0K030

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(24,27SR,28,28G)..(GCC,GEN,LA);GUN142..(24,24G,24V,24Z,28V,G)..(GCC,IND,SA)..DCR;GUN143,TGN140..(INDP,PHLP)..6FC..(20E,20G,28E,28G,28V,28Z)

 1
Common parts
90099-14119
90099-14120
90099-14121
90105-T0052
90105-T0241
90119-T0134
90178-T0018
91673-80616
Linked diagrams
8714
8719

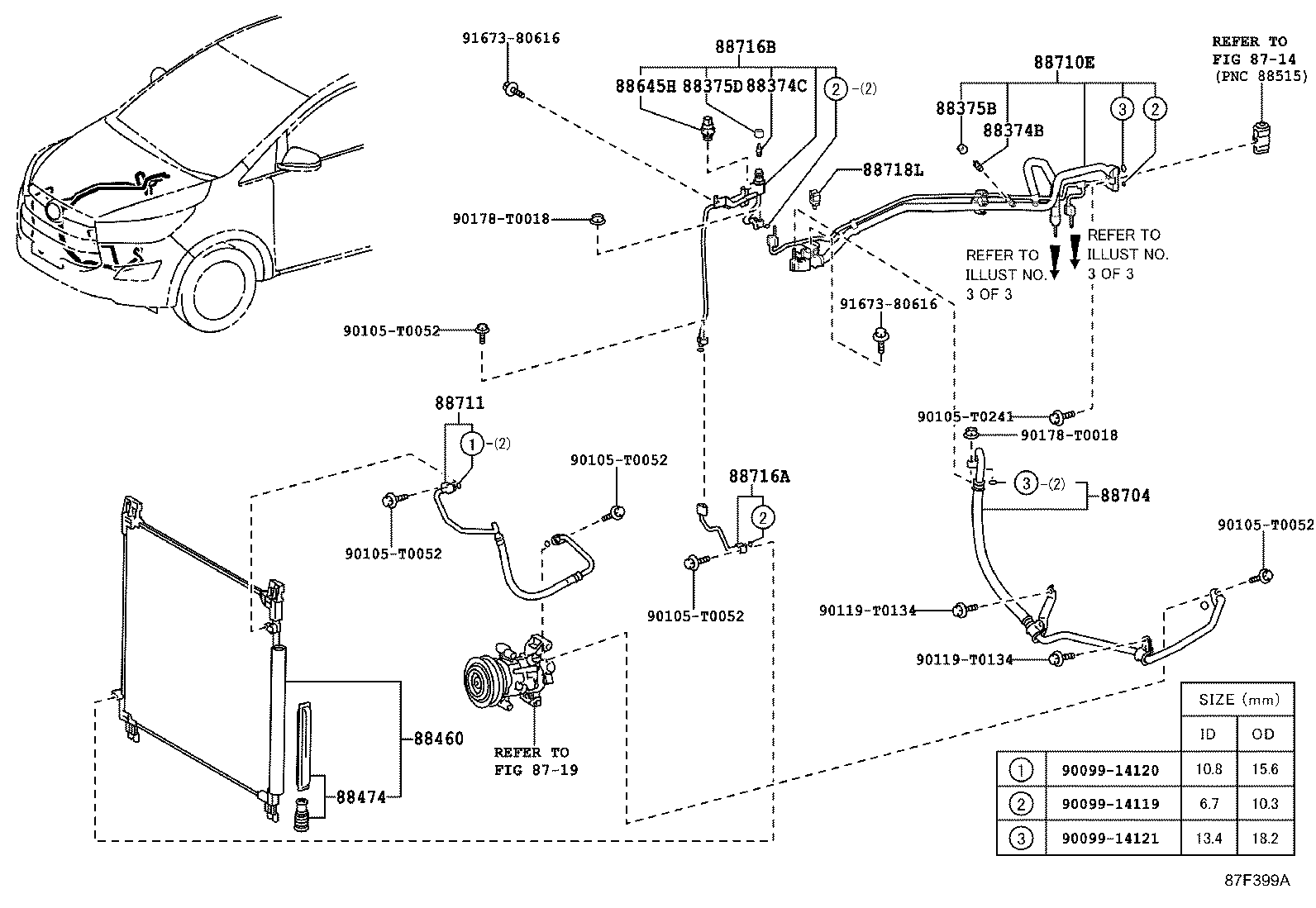

ILLUST NO. 2 OF 3(1604- )GUN142..G ; (2010- )GUN142..G

Click highlighted areas on diagram

FRONT

diagram 8714 8719 88374B 88375B 88375D 88460 88474 88645H 886880K760 886880K770 88704 88710E 88710G 88711 88716A 88718L 9009914119 9009914120 9009914121 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90119T0134 90119T0134 90178T0018 9167380616 9167380616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GUN14#..(5F,6FC)..(24G,24V,24Z,28G,28Z)..IND

 1
88374-30010

GUN142..G

REAR AIR CONDITIONER-MANUAL(COOLER ONLY)

 1
88374-30010

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..5F..(24G,27,27G)..GCC;GUN142..(6F,6FC)..(GCC,IND,SA,TH)..DCR;GUN14#,TGN141..5F..(24,27SR,28,28G,G)..(GCC,GEN,IND,LA)..(DCR,HTWC)

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

GUN142..G

REAR AIR CONDITIONER-MANUAL(COOLER ONLY)

 1
88375-30290

GUN14#..(5F,6FC)..(24G,24V,24Z,28G,28Z)..IND

 1
88375-30290

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..5F..(24G,27,27G)..GCC;GUN142..(6F,6FC)..(GCC,IND,SA,TH)..DCR;GUN14#,TGN141..5F..(24,27SR,28,28G,G)..(GCC,GEN,IND,LA)..(DCR,HTWC)

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

GUN14#..(5F,6FC)..(24G,24V,24Z,28G,28Z)..IND

 1
88375-30280

GUN142..G

REAR AIR CONDITIONER-MANUAL(COOLER ONLY)

 1
88375-30280

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN142..(6F,6FC)..(GCC,IND,SA)..DCR;GUN142,TGN141..5F..(24G,27,27G)..GCC;GUN143,TGN140..PHLP..6FC..(20E,20G,28E,28G,28V);GUN14#,TGN141..5F..(24,27SR,28,28G,G)..(GCC,GEN,IND,LA)..(DCR,HTWC)

 1
88474 - DRYER, COOLER
88474-12010

TGN140..RHD..(GEN,MA);GUN143,TGN141..5F..GCC;GUN143,TGN141..(24,27SR,28G,28Z)..(GEN,IND,LA);GUN142..(24,24G,24V,24Z,28V,G)..(GCC,IND,SA)..DCR

 1
88645H - SWITCH, PRESSURE NO.1
88645-0K030

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(24,27SR,28,28G)..(GCC,GEN,LA);GUN142..(24,24G,24V,24Z,28V,G)..(GCC,IND,SA)..DCR;GUN143,TGN140..(INDP,PHLP)..6FC..(20E,20G,28E,28G,28V,28Z)

 1
Common parts
88688-0K760
88688-0K770
90099-14119
90099-14120
90099-14121
90105-T0052
90105-T0241
90119-T0134
90178-T0018
91673-80616
Linked diagrams
8714
8719

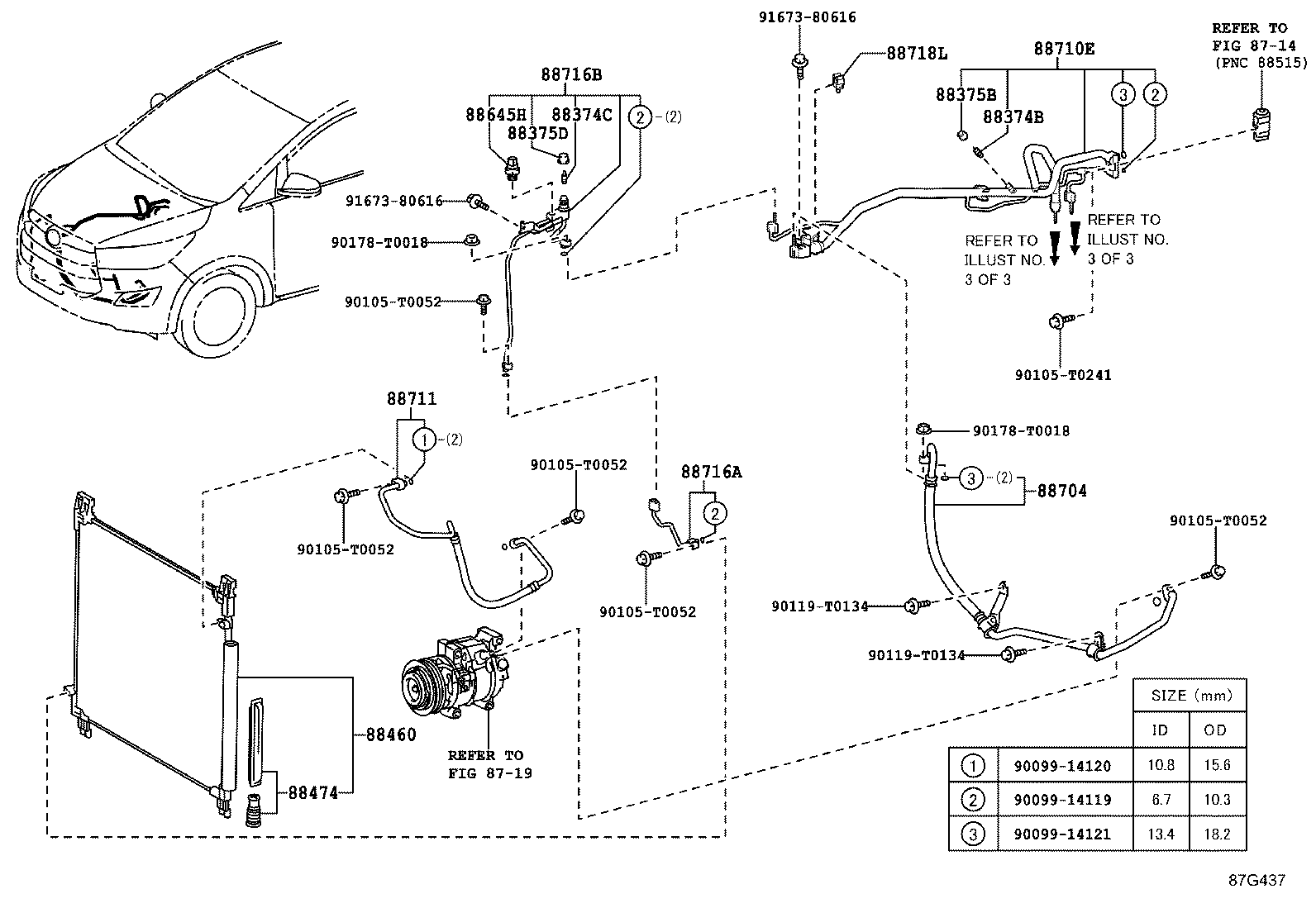

ILLUST NO. 2 OF 3(1608-1707)6FC..24G,24V,28Z..IND,TH ; (1709-)6F,6FC..24V,24Z,28Z..IND ; (2010-

Click highlighted areas on diagram

FRONT

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88645H 88704 88710E 88711 88716A 88716B 88718L 9009914119 9009914120 9009914121 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90119T0134 90119T0134 90178T0018 90178T0018 9167380616 9167380616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GUN14#..(5F,6FC)..(24G,24V,24Z,28G,28Z)..IND

 1
88374-30010

GUN142..G

REAR AIR CONDITIONER-MANUAL(COOLER ONLY)

 1
88374-30010

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..5F..(24G,27,27G)..GCC;GUN142..(6F,6FC)..(GCC,IND,SA,TH)..DCR;GUN14#,TGN141..5F..(24,27SR,28,28G,G)..(GCC,GEN,IND,LA)..(DCR,HTWC)

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GUN142..G

REAR AIR CONDITIONER-MANUAL(COOLER ONLY)

 1
88374-30010

GUN14#..(5F,6FC)..(24G,24V,24Z,28G,28Z)..IND

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

GUN142..G

REAR AIR CONDITIONER-MANUAL(COOLER ONLY)

 1
88375-30290

GUN14#..(5F,6FC)..(24G,24V,24Z,28G,28Z)..IND

 1
88375-30290

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..5F..(24G,27,27G)..GCC;GUN142..(6F,6FC)..(GCC,IND,SA,TH)..DCR;GUN14#,TGN141..5F..(24,27SR,28,28G,G)..(GCC,GEN,IND,LA)..(DCR,HTWC)

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

GUN14#..(5F,6FC)..(24G,24V,24Z,28G,28Z)..IND

 1
88375-30280

GUN142..G

REAR AIR CONDITIONER-MANUAL(COOLER ONLY)

 1
88375-30280

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN142..(6F,6FC)..(GCC,IND,SA)..DCR;GUN142,TGN141..5F..(24G,27,27G)..GCC;GUN143,TGN140..PHLP..6FC..(20E,20G,28E,28G,28V);GUN14#,TGN141..5F..(24,27SR,28,28G,G)..(GCC,GEN,IND,LA)..(DCR,HTWC)

 1
88474 - DRYER, COOLER
88474-12010

TGN140..RHD..(GEN,MA);GUN143,TGN141..5F..GCC;GUN143,TGN141..(24,27SR,28G,28Z)..(GEN,IND,LA);GUN142..(24,24G,24V,24Z,28V,G)..(GCC,IND,SA)..DCR

 1
88645H - SWITCH, PRESSURE NO.1
88645-0K030

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(24,27SR,28,28G)..(GCC,GEN,LA);GUN142..(24,24G,24V,24Z,28V,G)..(GCC,IND,SA)..DCR;GUN143,TGN140..(INDP,PHLP)..6FC..(20E,20G,28E,28G,28V,28Z)

 1
Common parts
90099-14119
90099-14120
90099-14121
90105-T0052
90105-T0241
90119-T0134
90178-T0018
91673-80616
Linked diagrams
8714
8719
