GUN142R-MXMMYX (2016)

Toyota Innova

Production Apr 2016 - Jan 2020
Engine 2GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1511-2009)RHD ; (2009- )RHD

Click highlighted areas on diagram

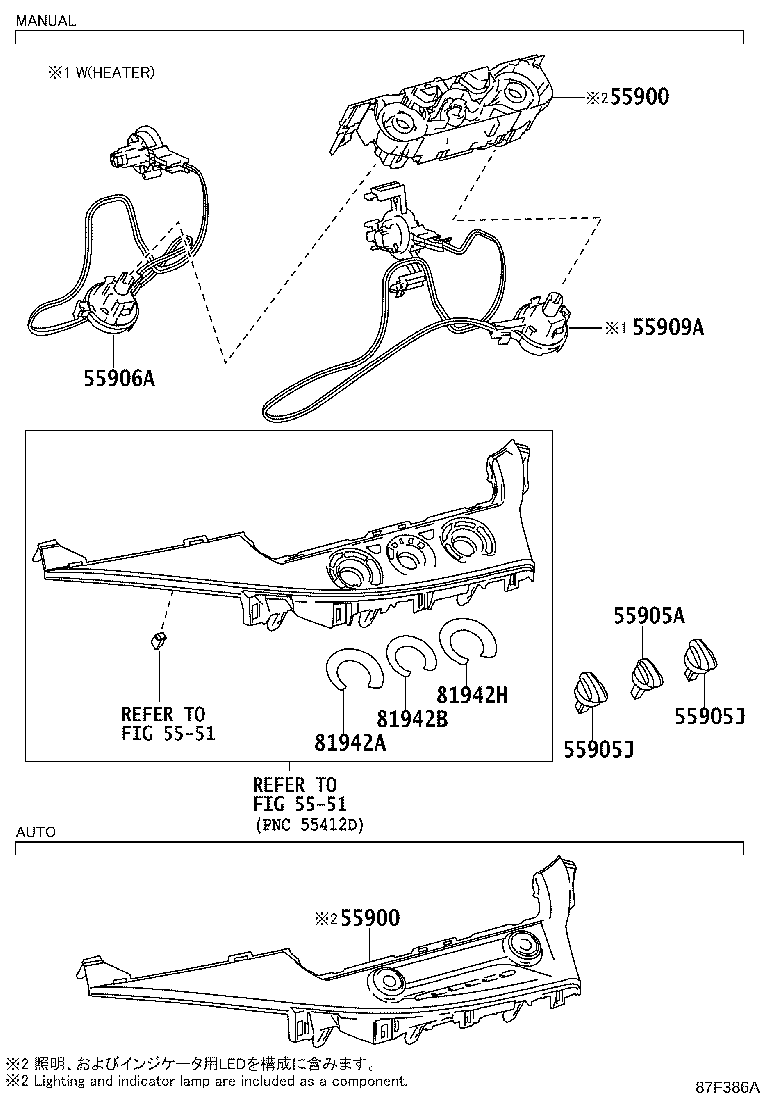

FRONT HEATER CONTROL

diagram 5551 5551 55900 55900 55905A 55905J 55905J 55906A 55909A 81942A 81942B 81942H
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-0K720

GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND

 1
55900-0K721

GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND

 1
55900 - CONTROL ASSY, AIR CONDITIONER
55900-0K720

GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND

 1
55900-0K721

GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0K060

TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..20E;GUN143..(24,28G)..(GEN,IND);GUN143,TGN141..5F..(27,28)..GCC;GUN14#..(INDP,PHLP)..(24G,28E,G,N)..DCR;GUN142,TGN14#..(20,24,27SR)..(GCC,GEN,LA)

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0K060

GUN143..(24,28G)..(GEN,IND);GUN143,TGN141..5F..(27,28)..GCC;GUN142,TGN140..(20,24)..(GCC,GEN);GUN142,TGN141..(24G,27G,27SR,G,N)..(IND,LA)

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81941-0K080

TGN140..20..GEN;GUN14#,TGN141..(24G,27G,28G,G,N)..IND

 1
81942B - SHEET, HEATER CONTROL NAME, NO.2
81942-0K590

GUN143..(24,28G)..(GEN,IND);GUN143,TGN141..5F..(27,28)..GCC;GUN142,TGN140..(20,24)..(GCC,GEN);GUN142,TGN141..(24G,27G,27SR,G,N)..(IND,LA)

 1
81942H - SHEET, HEATER CONTROL NAME, NO.3
81943-0K140

TGN140..20..GEN;GUN14#,TGN141..(24G,27G,28G,G,N)..IND

 1
Linked diagrams
5551

(1511-2009)RHD ; (2009- )RHD

Click highlighted areas on diagram

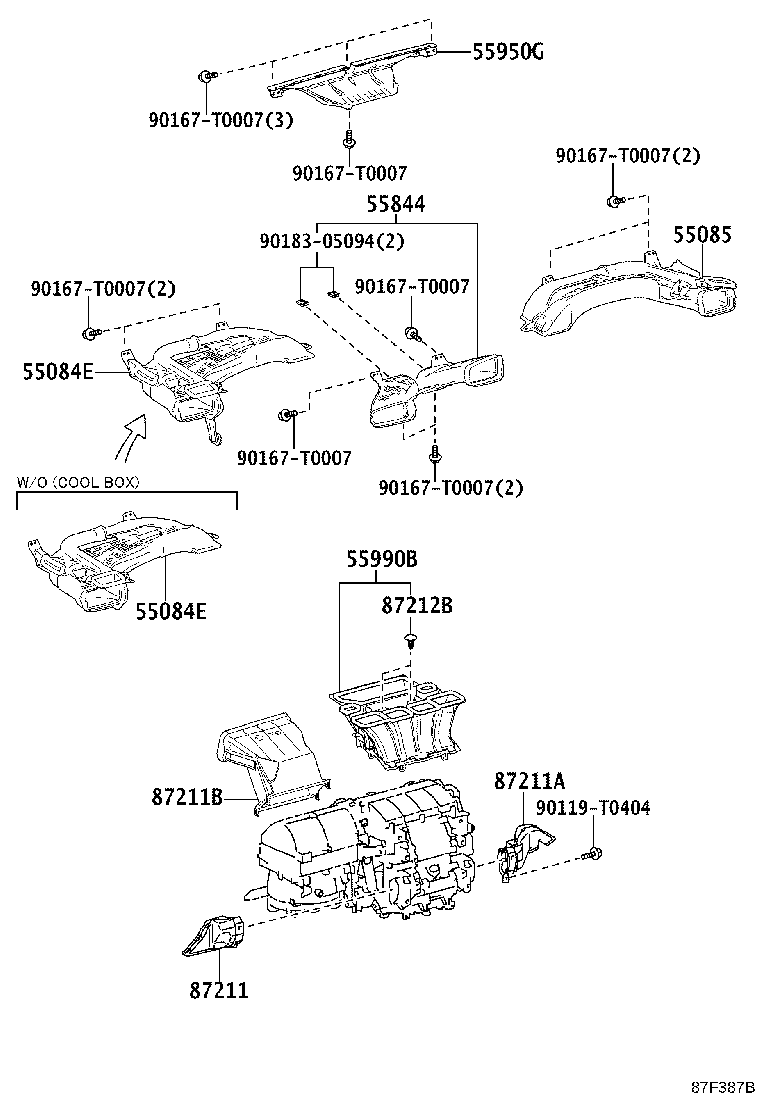

FRONT AIR DUCT

diagram 55084E 55084E 55085 55844 55950G 55990B 87211 87211A 87211B 87212B 90119T0404 90167T0007 90167T0007 90167T0007 90167T0007 90167T0007 90167T0007 90167T0007 9018305094
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55085-KK010

GUN143,TGN140..RHD..(GEN,IND,MA);GUN142..(24,24G,24V,24Z,G)..(IND,SA,TH)..DCR

 1
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55085-KK010

GUN143,TGN140..RHD..(GEN,IND,MA);GUN142..(24,24G,24V,24Z,G)..(IND,SA,TH)..DCR

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55084-KK050

GUN142..(IND,SA,TH)..DCR;GUN143,TGN140..RHD..(GEN,IND,MA)

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55835-KK010

GUN142..(IND,SA,TH)..DCR;GUN143,TGN140..RHD..(GEN,IND,MA)

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-KK010

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-KK010

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
87212B - CLIP, AIR DUCT
90467-0504522

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

BLACK

 2
Common parts
90119-T0404
90167-T0007
90183-05094

(1511-2009)RHD ; (2009- )RHD

Click highlighted areas on diagram

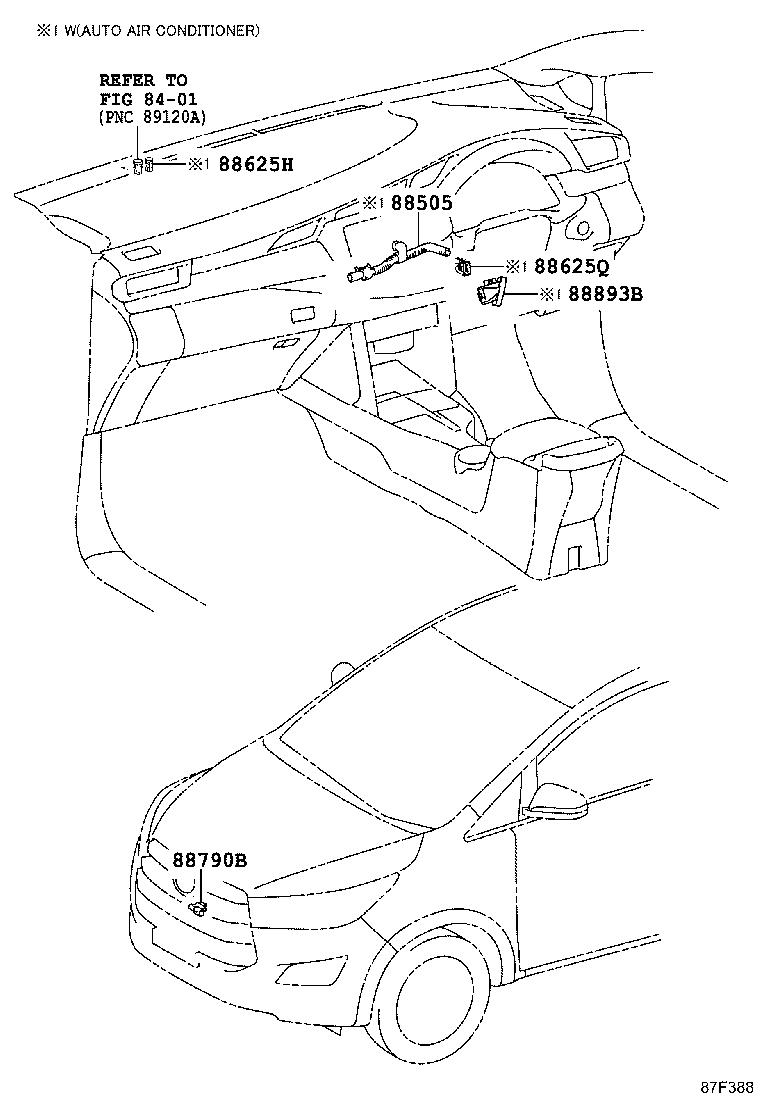

SENSOR

diagram 8401 88505 88625H 88625Q 88790B 88893B
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-0K010

GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-0K020

GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND

 1
88790B - THERMISTOR ASSY
88790-0K010

TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN14#..5F..(GCC,GEN,MA);GUN143,TGN140..(INDP,PHLP)..(20G,28G,28V,28Z)

 1
Linked diagrams
8401

(1511-2009) ; (2009- )

Click highlighted areas on diagram

REAR HEATER CONTROL

diagram 6452 84010A 84660H 84661A 84732H
Part # Description Qty Price
84010A - CONTROL & PANEL ASSY, INTEGRATION
84010-0K020

GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND

 1
Linked diagrams
6452

(1511-2009) ; (2009- )

Click highlighted areas on diagram

REAR AIR DUCT

diagram 6452 87213 87218C 88566A
Part # Description Qty Price
Linked diagrams
6452
