Toyota Innova GUN142 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
INNOVA
GUN142R-MXMMYX (2016)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

GUN142R-MXMMYX (2016)

Toyota Innova

Production Apr 2016 - Jan 2020

Engine 2GDFTV

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1511-2005)20G,28G,28V..MA,TH ; (1511-2005)5F,6FC..20Q,20V,24,24Q,24V,24Z,27V,27Z,2

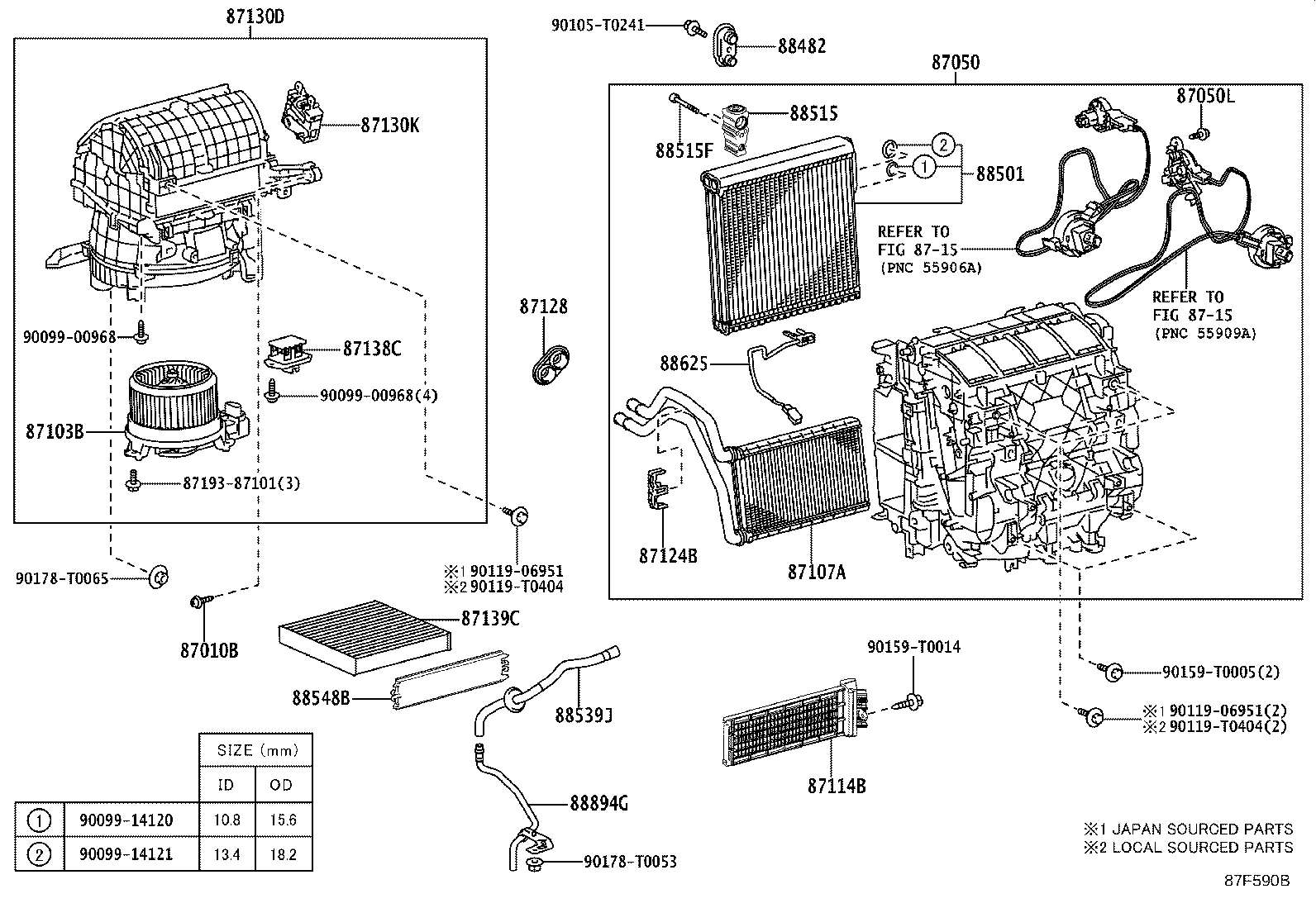

Click highlighted areas on diagram

FRONT AUTO AIR CONDITIONER

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-0K050	GUN142..24G..TH;GUN14#,TGN140..(20G,20V,24,24V,24Z,28Z)..(IND,MA,SA,TH)..(DCR,HTWC)	11/2015 - 12/2020	1
82212-0K050	GUN142..24G..TH;GUN14#,TGN140..(20G,20V,24,24V,24Z,28Z)..(IND,MA,SA,TH)..(DCR,HTWC)	11/2015 - 12/2020	1
82212-0K050	GUN142..24G..TH;GUN14#,TGN140..(20G,20V,24,24V,24Z,28Z)..(IND,MA,SA,TH)..(DCR,HTWC)	11/2015 - 12/2020	1
87010B - SCREW(FOR AIR CONDITIONER UNIT)
90099-00968	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	2
90099-00968	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	2
90099-00968	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	2
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-0K210	GUN142..24G..(GCC,TH);GUN14#..RHD..(24,28Z)..DCR;GUN143,TGN141..5F..(27G,28G)..GCC;GUN143,TGN140..PHLP..(20G,28G,28V);GUN142..(24V,24Z,28V)..(GCC,IND,TH)..DCR	11/2015 - 12/2999	1
87106-0K210	GUN142..24G..(GCC,TH);GUN14#..RHD..(24,28Z)..DCR;GUN143,TGN141..5F..(27G,28G)..GCC;GUN143,TGN140..PHLP..(20G,28G,28V);GUN142..(24V,24Z,28V)..(GCC,IND,TH)..DCR	11/2015 - 12/2999	1
87106-0K210	GUN142..24G..(GCC,TH);GUN14#..RHD..(24,28Z)..DCR;GUN143,TGN141..5F..(27G,28G)..GCC;GUN143,TGN140..PHLP..(20G,28G,28V);GUN142..(24V,24Z,28V)..(GCC,IND,TH)..DCR	11/2015 - 12/2999	1
87050L - SCREW(FOR AIR CONDITIONER RADIATOR)
90099-00968	TGN140..20..GEN;GUN14#,TGN141..(24G,27G,28G,G,N)..IND	11/2015 - 10/2020	9
90099-00968	TGN140..20..GEN;GUN14#,TGN141..(24G,27G,28G,G,N)..IND	11/2015 - 10/2020	9
90099-00968	TGN140..20..GEN;GUN14#,TGN141..(24G,27G,28G,G,N)..IND	11/2015 - 10/2020	9
90099-00968	GUN143..24,28Z;GUN143,TGN141..5F..(27,28)..GCC;GUN142,TGN14#..(5F,6FC)..(20G,20V,24,24V,24Z,27SR)..(GCC,IND,LA,MA,SA)..(DCR,HTWC)	11/2015 - 12/2020	11
90099-00968	GUN143..24,28Z;GUN143,TGN141..5F..(27,28)..GCC;GUN142,TGN14#..(5F,6FC)..(20G,20V,24,24V,24Z,27SR)..(GCC,IND,LA,MA,SA)..(DCR,HTWC)	11/2015 - 12/2020	11
90099-00968	GUN143..24,28Z;GUN143,TGN141..5F..(27,28)..GCC;GUN142,TGN14#..(5F,6FC)..(20G,20V,24,24V,24Z,27SR)..(GCC,IND,LA,MA,SA)..(DCR,HTWC)	11/2015 - 12/2020	11
87124B - CLAMP, HEATER
87124-06140	TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN140..(INDP,PHLP)..(20G,28G,28V,28Z)	11/2015 - 12/2999	1
87124-06140	TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN140..(INDP,PHLP)..(20G,28G,28V,28Z)	11/2015 - 12/2999	1
87124-06140	TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN140..(INDP,PHLP)..(20G,28G,28V,28Z)	11/2015 - 12/2999	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-0K220	TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..20E;GUN143..(24,28G)..(GEN,IND);GUN143,TGN141..5F..(27,28)..GCC;GUN14#..(INDP,PHLP)..(24G,28E,G,N)..DCR;GUN142,TGN14#..(20,24,27SR)..(GCC,GEN,LA)	11/2015 - 12/2999	1
87106-0K220	TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..20E;GUN143..(24,28G)..(GEN,IND);GUN143,TGN141..5F..(27,28)..GCC;GUN14#..(INDP,PHLP)..(24G,28E,G,N)..DCR;GUN142,TGN14#..(20,24,27SR)..(GCC,GEN,LA)	11/2015 - 12/2999	1
87106-0K220	TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..20E;GUN143..(24,28G)..(GEN,IND);GUN143,TGN141..5F..(27,28)..GCC;GUN14#..(INDP,PHLP)..(24G,28E,G,N)..DCR;GUN142,TGN14#..(20,24,27SR)..(GCC,GEN,LA)	11/2015 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-58010	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) DEODORANT FILTER	11/2015 - 12/2999	1
87139-58010	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) DEODORANT FILTER	11/2015 - 12/2999	1
87139-58010	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) DEODORANT FILTER	11/2015 - 12/2999	1
87165C - CONTROL, BLOWER MOTOR
87165-0K060	GUN142..24G..(GCC,TH);GUN14#..RHD..(24,28Z)..DCR;GUN143,TGN141..5F..(27G,28G)..GCC;GUN143,TGN140..PHLP..(20G,28G,28V);GUN142..(24V,24Z,28V)..(GCC,IND,TH)..DCR	11/2015 - 12/2999	1
87165-0K060	GUN142..24G..(GCC,TH);GUN14#..RHD..(24,28Z)..DCR;GUN143,TGN141..5F..(27G,28G)..GCC;GUN143,TGN140..PHLP..(20G,28G,28V);GUN142..(24V,24Z,28V)..(GCC,IND,TH)..DCR	11/2015 - 12/2999	1
87165-0K060	GUN142..24G..(GCC,TH);GUN14#..RHD..(24,28Z)..DCR;GUN143,TGN141..5F..(27G,28G)..GCC;GUN143,TGN140..PHLP..(20G,28G,28V);GUN142..(24V,24Z,28V)..(GCC,IND,TH)..DCR	11/2015 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-0K580	TGN140..(MAP,PHLP)..5F;GUN143,TGN140..(20,24)..GEN;GUN143,TGN140..(INDP,PHLP)..6FC..(20E,20G,28E,28G,28V,28Z);GUN142,TGN141..(5F,6FC)..(24,24G,24V,24Z,27SR,G,N)..(IND,LA,SA)..(DCR,HTWC)	11/2015 - 12/2999	1
88515-0K580	TGN140..(MAP,PHLP)..5F;GUN143,TGN140..(20,24)..GEN;GUN143,TGN140..(INDP,PHLP)..6FC..(20E,20G,28E,28G,28V,28Z);GUN142,TGN141..(5F,6FC)..(24,24G,24V,24Z,27SR,G,N)..(IND,LA,SA)..(DCR,HTWC)	11/2015 - 12/2999	1
88515-0K580	TGN140..(MAP,PHLP)..5F;GUN143,TGN140..(20,24)..GEN;GUN143,TGN140..(INDP,PHLP)..6FC..(20E,20G,28E,28G,28V,28Z);GUN142,TGN141..(5F,6FC)..(24,24G,24V,24Z,27SR,G,N)..(IND,LA,SA)..(DCR,HTWC)	11/2015 - 12/2999	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	2
90099-04542	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	2
90099-04542	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	2
88548B - CASE, AIR FILTER
88548-0K100	GUN14#,TGN141..IND	04/2016 - 10/2019	1
88548-0K100	GUN14#,TGN141..IND	04/2016 - 10/2019	1
88548-0K100	GUN14#,TGN141..IND	04/2016 - 10/2019	1
88625 - THERMISTOR, COOLER, NO.1
88620-0K010	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN142..(5F,6FC)..(GCC,IND,SA)..DCR;GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	1
88620-0K010	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN142..(5F,6FC)..(GCC,IND,SA)..DCR;GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	1
88620-0K010	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN142..(5F,6FC)..(GCC,IND,SA)..DCR;GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	1
Common parts
87193-87101
90099-00968
90099-14120
90099-14121
90119-06951
90119-T0404
90159-T0005
90159-T0014
90178-T0053
90178-T0065
90179-06323
90185-T0001
91673-80616

(1604- )N..IND ; (2010- )GUN142..G

Click highlighted areas on diagram

FRONT MANUAL HEATER

Part #	Description	Period	Qty
87010B - SCREW(FOR AIR CONDITIONER UNIT)
90099-00968	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	2
87050L - SCREW(FOR AIR CONDITIONER RADIATOR)
90099-00968	TGN140..20..GEN;GUN14#,TGN141..(24G,27G,28G,G,N)..IND	11/2015 - 10/2020	9
90099-00968	GUN143..24,28Z;GUN143,TGN141..5F..(27,28)..GCC;GUN142,TGN14#..(5F,6FC)..(20G,20V,24,24V,24Z,27SR)..(GCC,IND,LA,MA,SA)..(DCR,HTWC)	11/2015 - 12/2020	11
87124B - CLAMP, HEATER
87124-06140	TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN140..(INDP,PHLP)..(20G,28G,28V,28Z)	11/2015 - 12/2999	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-0K220	TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..20E;GUN143..(24,28G)..(GEN,IND);GUN143,TGN141..5F..(27,28)..GCC;GUN14#..(INDP,PHLP)..(24G,28E,G,N)..DCR;GUN142,TGN14#..(20,24,27SR)..(GCC,GEN,LA)	11/2015 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-0K360	TGN140..(20,20E)..(GEN,MA);GUN14#..(24G,28G,G,N)..IND..DCR	11/2015 - 12/2020	1
87139C - FILTER, CLEAN AIR
87139-58010	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) DEODORANT FILTER	11/2015 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-0K580	TGN140..(MAP,PHLP)..5F;GUN143,TGN140..(20,24)..GEN;GUN143,TGN140..(INDP,PHLP)..6FC..(20E,20G,28E,28G,28V,28Z);GUN142,TGN141..(5F,6FC)..(24,24G,24V,24Z,27SR,G,N)..(IND,LA,SA)..(DCR,HTWC)	11/2015 - 12/2999	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	2
88548B - CASE, AIR FILTER
88548-0K100	GUN14#,TGN141..IND	04/2016 - 10/2019	1
88625 - THERMISTOR, COOLER, NO.1
88620-0K010	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN142..(5F,6FC)..(GCC,IND,SA)..DCR;GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	1
Common parts
87193-87101
90099-00968
90099-14120
90099-14121
90105-T0241
90119-06951
90119-T0404
90159-T0005
90159-T0014
90178-T0053
90178-T0065
Linked diagrams
8715

GUN142R-MXMMYX (2016)

(1511-2005)20G,28G,28V..MA,TH ; (1511-2005)5F,6FC..20Q,20V,24,24Q,24V,24Z,27V,27Z,2

(1604- )N..IND ; (2010- )GUN142..G
