GUN142R-MXMMYX (2016)

Toyota Innova

Production Apr 2016 - Jan 2020
Engine 2GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1511-2009)RHD ; (1511- )RHD..IDNP..20E,20V,28G ; (2009- )RHD

Click highlighted areas on diagram

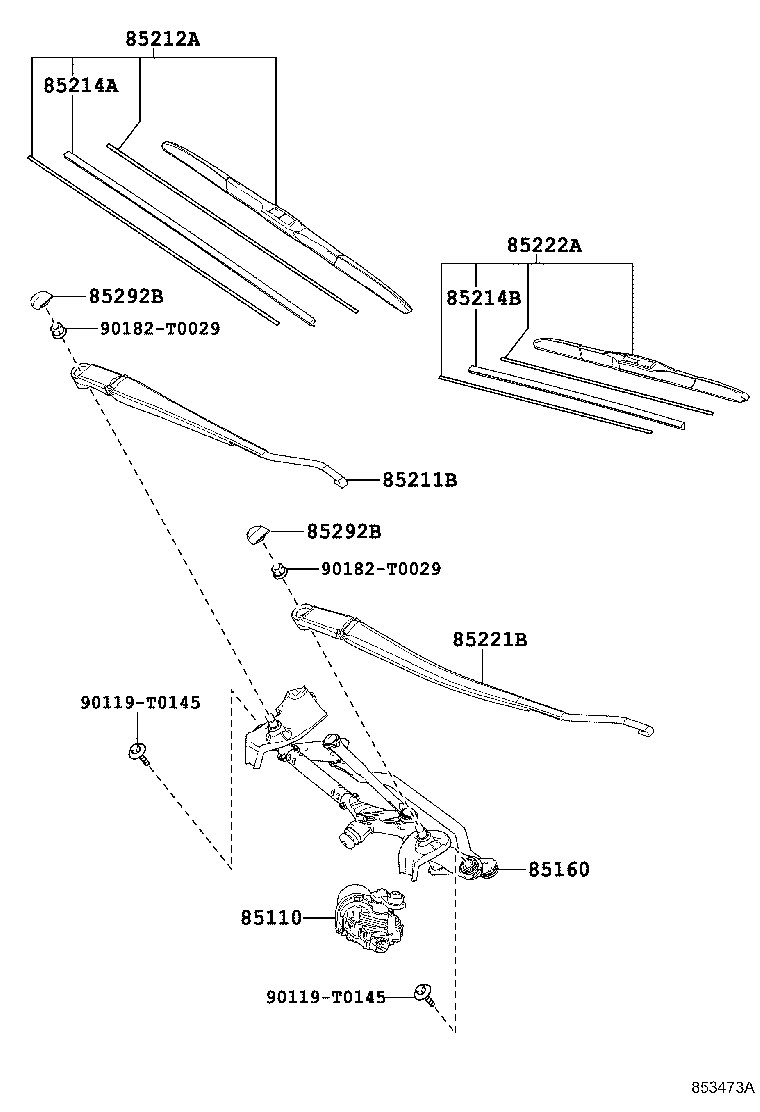

diagram 85110 85160 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 90119T0145 90119T0145 90182T0029 90182T0029
Part # Description Qty Price
85211B - ARM, FRONT WIPER, RH
85211-0K080

GUN14#,TGN141..IND

 1
85212A - BLADE, FR WIPER, RH
85212-52250

GUN142..(IND,SA,TH)..DCR;GUN143,TGN140..RHD..(GEN,IND,MA)

 1
85214A - RUBBER, WIPER, RH
85214-52110

GUN142..(IND,SA,TH)..DCR;GUN143,TGN140..RHD..(GEN,IND,MA)

 1
85214B - RUBBER, WIPER, LH
85214-28090

GUN142..(IND,SA,TH)..DCR;GUN143,TGN140..RHD..(GEN,IND,MA)

 1
85221B - ARM, FRONT WIPER, LH
85221-0K070

GUN14#,TGN141..IND

 1
85222A - BLADE, FR WIPER, LH
85222-71050

GUN142..(IND,SA,TH)..DCR;GUN143,TGN140..RHD..(GEN,IND,MA)

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-0D030

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-0D030

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 2
Common parts
90119-T0145
90182-T0029

(1511-2009)LHD ; (1511- )20G..PHL,VN ; (1511-)24V,28G..GEN,PHL..DCR ; (2009-

Click highlighted areas on diagram

diagram 85110 85160 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 90119T0145 90119T0145 90182T0029 90182T0029
Part # Description Qty Price
85211B - ARM, FRONT WIPER, RH
85211-0K080

GUN14#,TGN141..IND

 1
85212A - BLADE, FR WIPER, RH
85212-52250

GUN142..(IND,SA,TH)..DCR;GUN143,TGN140..RHD..(GEN,IND,MA)

 1
85214A - RUBBER, WIPER, RH
85214-52110

GUN142..(IND,SA,TH)..DCR;GUN143,TGN140..RHD..(GEN,IND,MA)

 1
85214B - RUBBER, WIPER, LH
85214-28090

GUN142..(IND,SA,TH)..DCR;GUN143,TGN140..RHD..(GEN,IND,MA)

 1
85221B - ARM, FRONT WIPER, LH
85221-0K070

GUN14#,TGN141..IND

 1
85222A - BLADE, FR WIPER, LH
85222-71050

GUN142..(IND,SA,TH)..DCR;GUN143,TGN140..RHD..(GEN,IND,MA)

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-0D030

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-0D030

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 2
Common parts
90119-T0145
90182-T0029
