GUN142R-MXMMYX (2016)
Toyota Innova

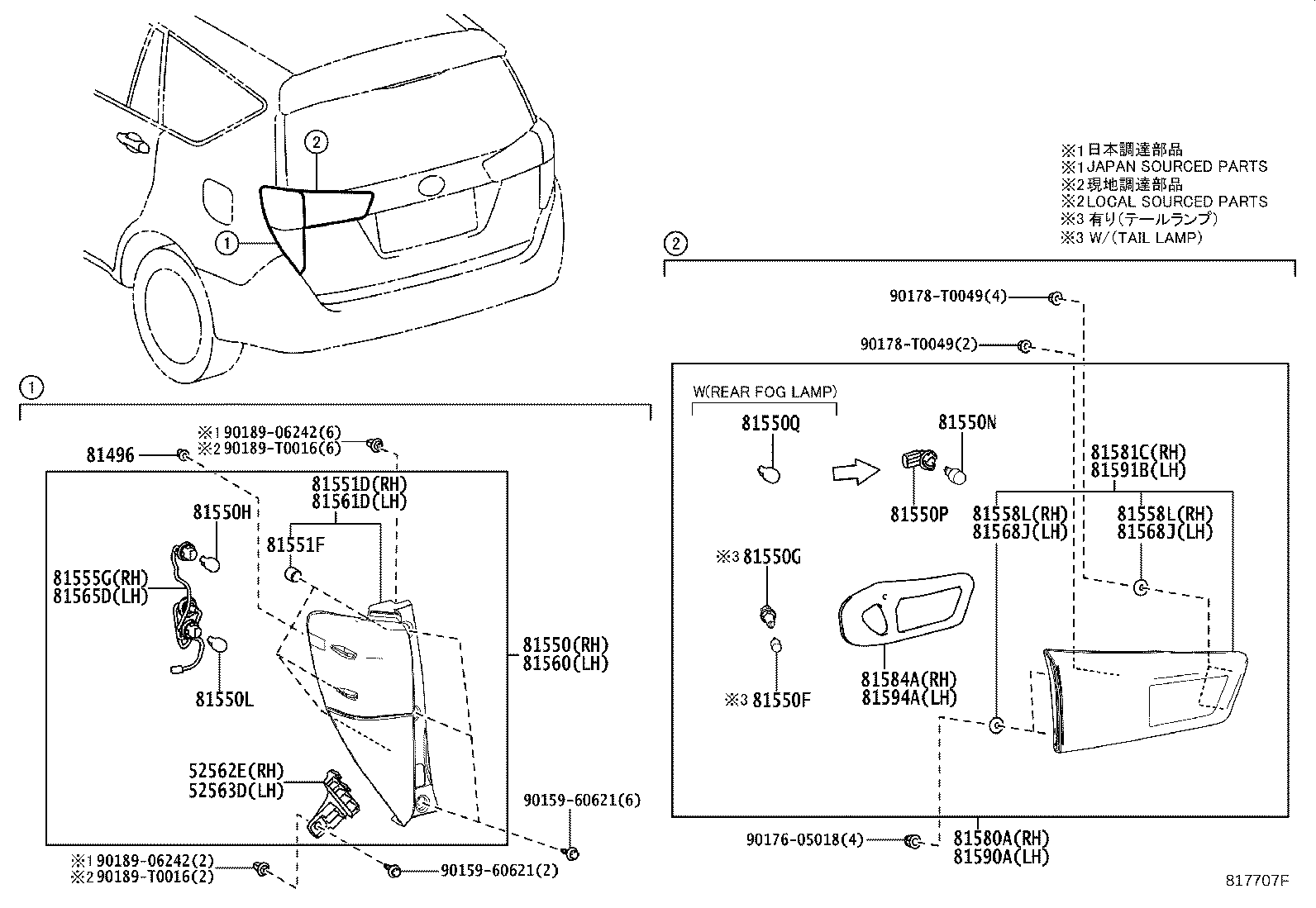

(1604-1809)24V,24Z,27V,27Z,28Z..IND ; (1604-)24G,27G,28G,G,N..IND ; (2005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
GUN14#,TGN14# |
2 | ||
| 81496-0D040 |
TGN140..(MAP,PHLP)..5F;GUN142..(GCC,IND,SA)..DCR;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) (L) |
2 | ||
| 81496-52020 |
TGN140..(MAP,PHLP)..5F;GUN142..(GCC,IND,SA)..DCR;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) (J) |
2 | ||
| 81550F - BULB, TAIL LAMP | ||||
| 90981-11069 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND 12V 5W |
2 | ||
| 90981-11067 |
GUN14#..(24V,24Z,28Z)..IND..DCR 12V 5W |
2 | ||
| 81550G - SOCKET, TAIL LAMP | ||||
| 90075-60077 |
GUN142..24G..(GCC,TH);GUN143,TGN141..5F..GCC;TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN143,TGN140..(20,24,28Z)..(GEN,IND);GUN142,TGN141..(24,24V,24Z,27SR,28V)..(GCC,IND,LA,SA,TH)..(DCR,HTWC) |
2 | ||
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 90981-13044 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) 12V 21/5W |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND 12V 16W |
2 | ||
| 90981-11059 |
TGN140..20..GEN;GUN143,TGN140..(INDP,PHLP)..(20E,20G,28E,28G,28V,N);GUN142,TGN141..(24,24G,27SR,G,N)..(IND,LA,SA)..(DCR,HTWC) 12V 16W |
2 | ||
| 81550P - SOCKET, BACK UP LAMP | ||||
| 90075-99005 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND |
2 | ||
| 81558L - PROTECTOR, REAR COMBINATION LAMP, RH | ||||
| 81558-24040 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND |
4 | ||
| 81558L - PROTECTOR, REAR COMBINATION LAMP, RH | ||||
| 81558-24040 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND |
4 | ||
| 81568J - PROTECTOR, REAR COMBINATION LAMP, LH | ||||
| 81558-24040 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND |
4 | ||
| 81568J - PROTECTOR, REAR COMBINATION LAMP, LH | ||||
| 81558-24040 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND |
4 | ||
| 81580A - LAMP ASSY, REAR | ||||
| 81580-0K070 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-0K070 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-0K070 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND |
1 | ||
| 81584-0K050 |
GUN14#..(24V,24Z,28Z)..IND..DCR |
1 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-0K070 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND |
1 | ||
| 81590-0K050 |
GUN14#..(24V,24Z,28Z)..IND..DCR |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-0K070 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND |
1 | ||
| 81591-0K050 |
GUN14#..(24V,24Z,28Z)..IND..DCR |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81584-0K070 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND |
1 | ||
| 81594-0K050 |
GUN14#..(24V,24Z,28Z)..IND..DCR |
1 | ||
| Common parts | ||||
| 90159-60621 | ||||
| 90176-05018 | ||||
| 90178-T0049 | ||||
| 90189-06242 | ||||
| 90189-T0016 | ||||

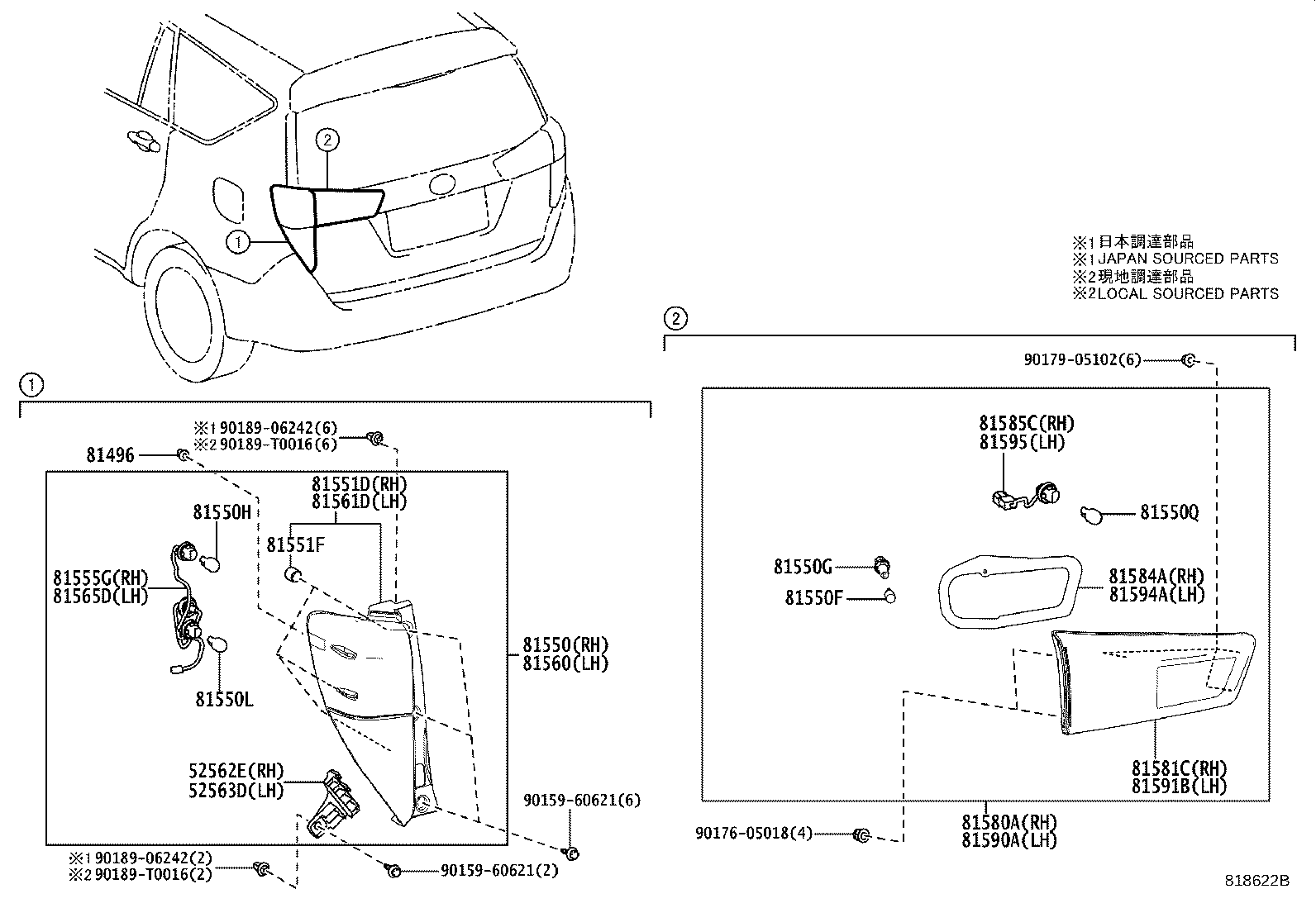

(1809- )24V,24Z,27V,27Z,28Z..IND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
GUN14#,TGN14# |
2 | ||
| 81496-0D040 |
TGN140..(MAP,PHLP)..5F;GUN142..(GCC,IND,SA)..DCR;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) (L) |
2 | ||
| 81496-52020 |
TGN140..(MAP,PHLP)..5F;GUN142..(GCC,IND,SA)..DCR;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) (J) |
2 | ||
| 81550F - BULB, TAIL LAMP | ||||
| 90981-11069 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND 12V 5W |
2 | ||
| 90981-11067 |
GUN14#..(24V,24Z,28Z)..IND..DCR 12V 5W |
2 | ||
| 81550G - SOCKET, TAIL LAMP | ||||
| 90075-60077 |
GUN142..24G..(GCC,TH);GUN143,TGN141..5F..GCC;TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN143,TGN140..(20,24,28Z)..(GEN,IND);GUN142,TGN141..(24,24V,24Z,27SR,28V)..(GCC,IND,LA,SA,TH)..(DCR,HTWC) |
2 | ||
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 90981-13044 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) 12V 21/5W |
2 | ||
| 81580A - LAMP ASSY, REAR | ||||
| 81580-0K070 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-0K070 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-0K070 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND |
1 | ||
| 81584-0K050 |
GUN14#..(24V,24Z,28Z)..IND..DCR |
1 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-0K070 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND |
1 | ||
| 81590-0K050 |
GUN14#..(24V,24Z,28Z)..IND..DCR |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-0K070 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND |
1 | ||
| 81591-0K050 |
GUN14#..(24V,24Z,28Z)..IND..DCR |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81584-0K070 |
GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND |
1 | ||
| 81594-0K050 |
GUN14#..(24V,24Z,28Z)..IND..DCR |
1 | ||
| 81595 - SOCKET & WIRE, REAR LAMP, LH | ||||
| 81275-12501 |
GUN14#..(24V,24Z,28Z)..IND..DCR |
1 | ||
| Common parts | ||||
| 90159-60621 | ||||
| 90176-05018 | ||||
| 90179-05102 | ||||
| 90189-06242 | ||||
| 90189-T0016 | ||||
