GUN142R-MXMMYX (2016)

Toyota Innova

Production Apr 2016 - Jan 2020
Engine 2GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

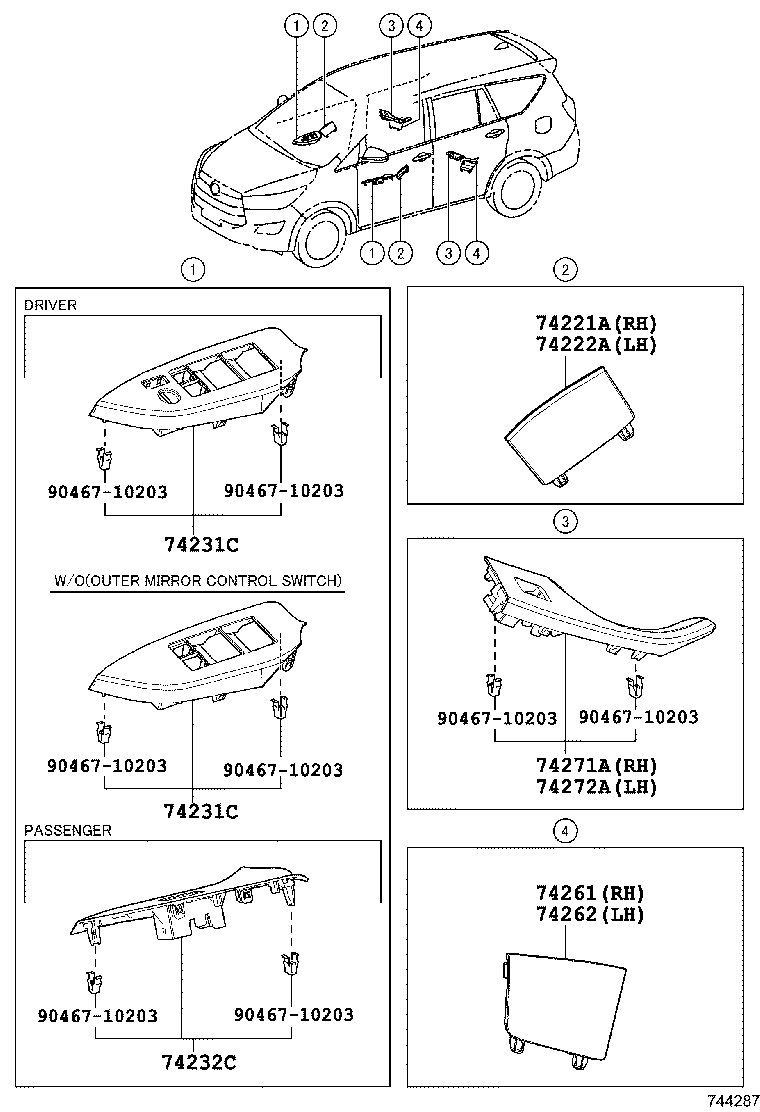

ILLUST NO. 1 OF 2(1604- )IND

Click highlighted areas on diagram

ARMREST

diagram 74221A 74222A 74231C 74231C 74232C 74261 74262 74271A 74272A 9046710203 9046710203 9046710203 9046710203 9046710203 9046710203 9046710203 9046710203
Part # Description Qty Price
74221A - COVER, FRONT DOOR ARMREST, RH
74037-0K020C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
74222A - COVER, FRONT DOOR ARMREST, LH
74038-0K020C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
74231C - PANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE
74231-0KA60

GUN142,TGN141..(24V,27V)..IND

 1
74231-0KA70

GUN142,TGN141..(24V,27V)..IND

 1
74231-0KA50

GUN142..G

 1
74231-0K570

GUN142..N

 1
74231-0KA71

GUN14#..(24V,24Z,28Z)..IND

 1
74231C - PANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE
74231-0KA60

GUN142,TGN141..(24V,27V)..IND

 1
74231-0KA70

GUN142,TGN141..(24V,27V)..IND

 1
74231-0KA50

GUN142..G

 1
74231-0K570

GUN142..N

 1
74231-0KA71

GUN14#..(24V,24Z,28Z)..IND

 1
74232C - PANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE
74232-0K570

GUN14#..(24G,28G,G,N)..IND

 1
74232-0KA20

GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND

 1
74232-0KA21

GUN14#..(24V,24Z,28Z)..IND

 1
74261 - COVER, REAR DOOR ARMREST, RH
74047-0K020C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
74262 - COVER, REAR DOOR ARMREST, LH
74048-0K020C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-0K301

GUN14#..(24V,24Z,28Z)..IND

 1
74271-0K300

GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND

 1
74271-0K290

GUN14#..(24G,28G,G,N)..IND

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-0K301

GUN14#..(24V,24Z,28Z)..IND

 1
74272-0K300

GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND

 1
74272-0K290

GUN14#..(24G,28G,G,N)..IND

 1
Common parts
90467-10203
