GUN142R-MXMMYX (2016)

Toyota Innova

Production Apr 2016 - Jan 2020
Engine 2GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1604-2001)GUN142..N ; (2002- )N..IND ; (2010- )GUN142..G

Click highlighted areas on diagram

W/O(SMART ENTRY & *WDL)

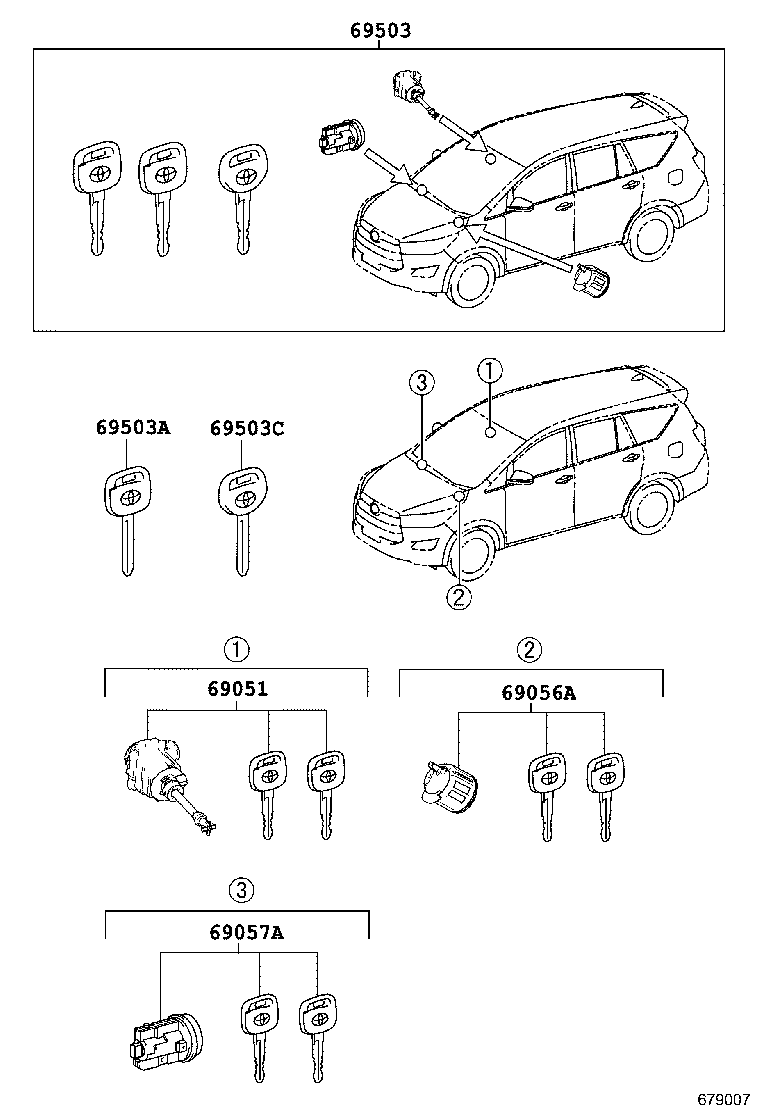

diagram 69051 69056A 69057A 69503 69503A 69503C
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
89704-0KG90

GUN14#,TGN141..(24G,27G,28G,G)..IND

 1
69503A - KEY, BLANK
69515-33120

GUN143..(INDP,PHLP)..(28V,28Z);GUN142..(24V,24Z,28V)..(GCC,IND,TH)..DCR

MASTER KEY,W(*68)

 1
