GUN142R-MXMMYX (2016)

Toyota Innova

Production Apr 2016 - Jan 2020
Engine 2GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

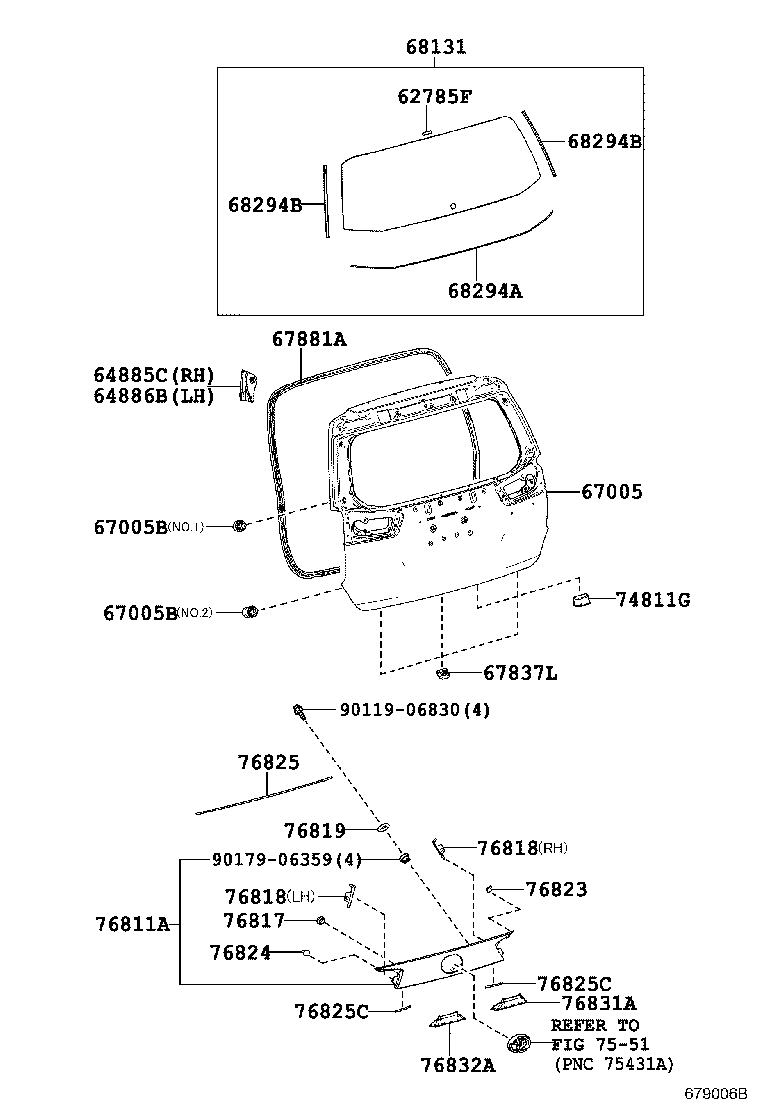

ILLUST NO. 1 OF 2(1604- )INDP,MAP,PHLP,VNP

Click highlighted areas on diagram

DOOR PANEL

diagram 62785F 64885C 64886B 67005 67005B 67005B 67837L 67881A 68131 68294A 68294B 68294B 74811G 7551 76811A 76817 76818 76818 76819 76823 76824 76825 76825C 76825C 76831A 76832A 9011906830 9017906359
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
62785-16030

GUN14#,TGN14#

 1
68294-26030

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-T0002

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

NO.1:REFER ILLUST.

 2
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-T0002

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

NO.1:REFER ILLUST.

 2
68131 - GLASS, BACK DOOR
68105-0K380

GUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND

 1
74811G - HANDLE, DOOR PULL
74811-0K040C0

GUN143..24,28Z;GUN143,TGN141..5F..GCC;GUN143..PHLP..(28G,28V);TGN140..PHLP..(20E,20G,N);GUN142..(24G,24V)..(GCC,TH);GUN142,TGN14#..(20,24,24Z,27SR,28V)..(GCC,GEN,IND,LA,SA)..(DCR,HTWC)

BLACK,TRIM2#,4#

 1
76824 - PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76824-0K040

GUN14#,TGN141..IND

 1
Common parts
90119-06830
90179-06359
Linked diagrams
7551
