GUN142R-MXMMYX (2016)

Toyota Innova

Production Apr 2016 - Jan 2020
Engine 2GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )IND

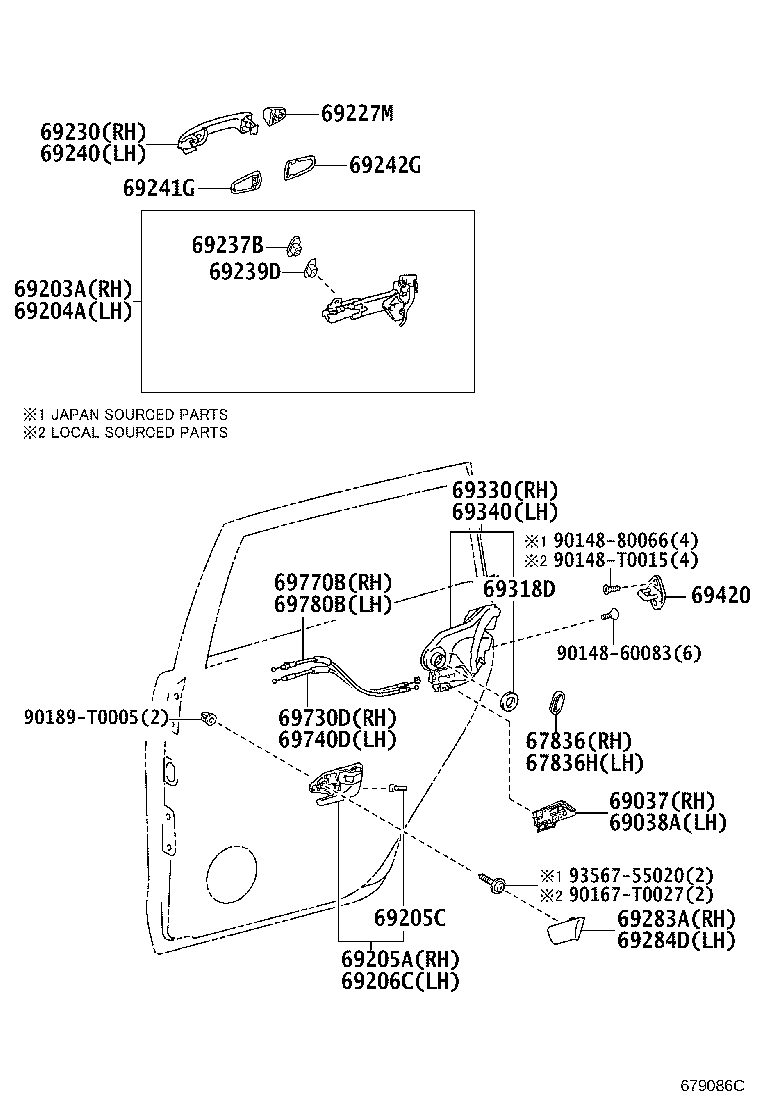

Click highlighted areas on diagram

diagram 67836 67836H 69037 69038A 69203A 69204A 69205A 69205C 69206C 69227M 69230 69237B 69239D 69240 69241G 69242G 69283A 69284D 69318D 69330 69340 69420 69730D 69740D 69770B 69780B 9014860083 9014880066 90148T0015 90167T0027 90189T0005 9356755020
Part # Description Qty Price
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04027

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 2
69237B - NUT, REAR DOOR HANDLE
69237-0E010

GUN142..TH..DCR;GUN142..GCC,IND,SA;GUN143,TGN14#..5F..(GCC,MA);GUN143,TGN14#..(20,24,27G,27SR,27V,27Z,28G,28Z)..(GEN,IND,LA)

 2
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 2
Common parts
90148-60083
90148-80066
90148-T0015
90167-T0027
90189-T0005
93567-55020
