GUN142R-MXMMYX (2016)

Toyota Innova

Production Apr 2016 - Jan 2020
Engine 2GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

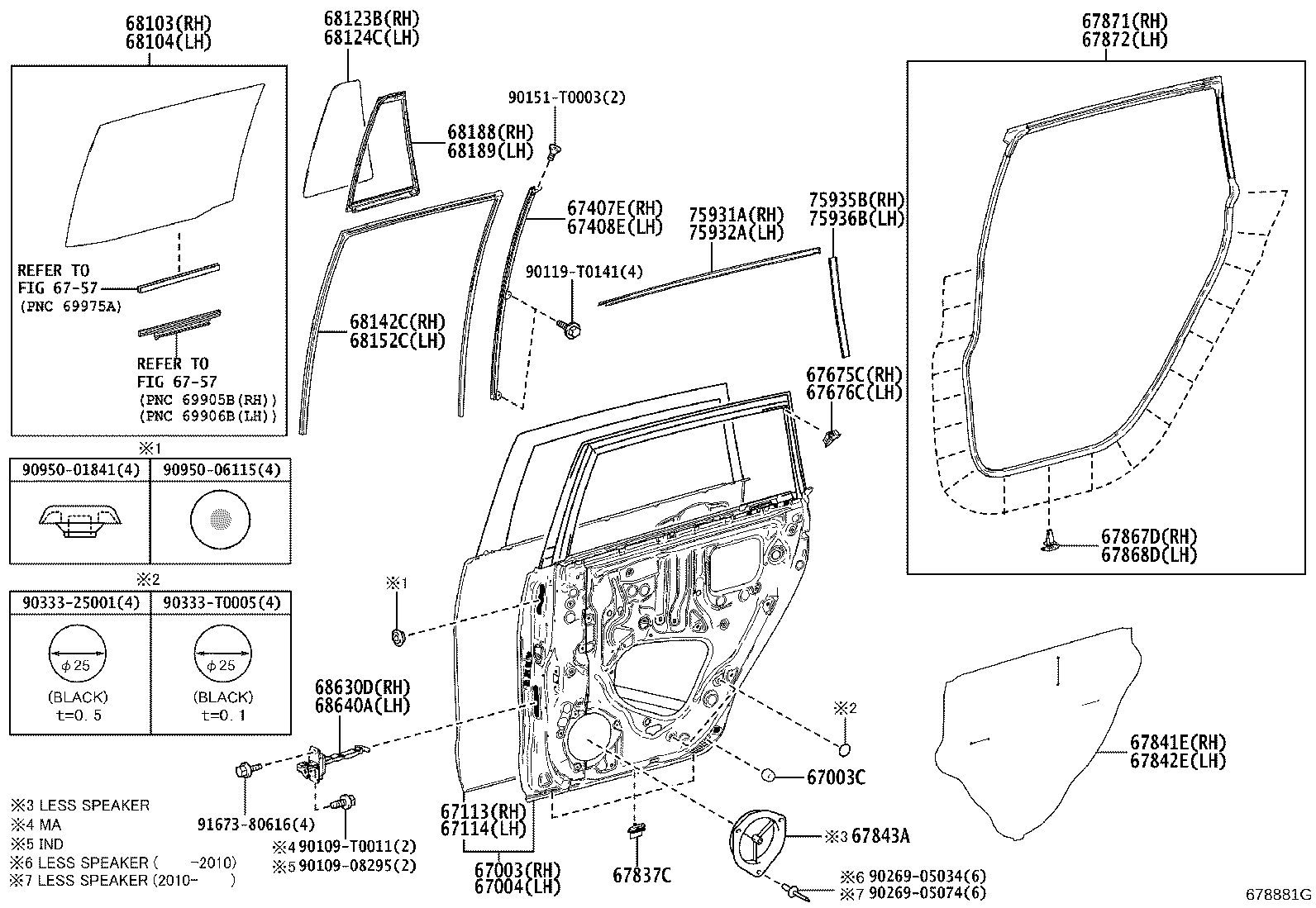

ILLUST NO. 1 OF 2(1511-1708)IDNP,PHLP,VNP ; (1511- )IND,MA ; (1805- )VN

Click highlighted areas on diagram

DOOR PANEL

diagram 67003 67003C 67004 67113 67114 67407E 67408E 6757 6757 67675C 67676C 67837C 67841E 67842E 67843A 67867D 67868D 67871 67872 68103 68104 68123B 68124C 68142C 68152C 68188 68189 68630D 68640A 75931A 75932A 75935B 75936B 9010908295 90109T0011 90119T0141 90151T0003 9026905034 9026905074 9033325001 90333T0005 9095001841 9095006115 9167380616
Part # Description Qty Price
67003C - CUSHION, REAR DOOR PANEL
90541-09131

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 2
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-0K050

GUN14#,TGN141..IND

 1
67407-0K040

GUN14#..IND..DCR

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-0K050

GUN14#,TGN141..IND

 1
67408-0K040

GUN14#..IND..DCR

 1
67675C - GARNISH, REAR DOOR FRAME, NO.2 RH
67675-0K020

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
67676C - GARNISH, REAR DOOR FRAME, NO.2 LH
67676-0K010

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
67837C - SEAL, REAR DOOR DUST PROOF
67837-0K090

GUN14#,TGN141..IND

 6
67837-0K091

GUN14#,TGN14#..IND,MA

 6
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 19
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 19
Common parts
90109-08295
90109-T0011
90119-T0141
90151-T0003
90269-05034
90269-05074
90333-25001
90333-T0005
90950-01841
90950-06115
91673-80616
Linked diagrams
6757
