GUN142R-MXMMYX (2016)

Toyota Innova

Production Apr 2016 - Jan 2020
Engine 2GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )IND

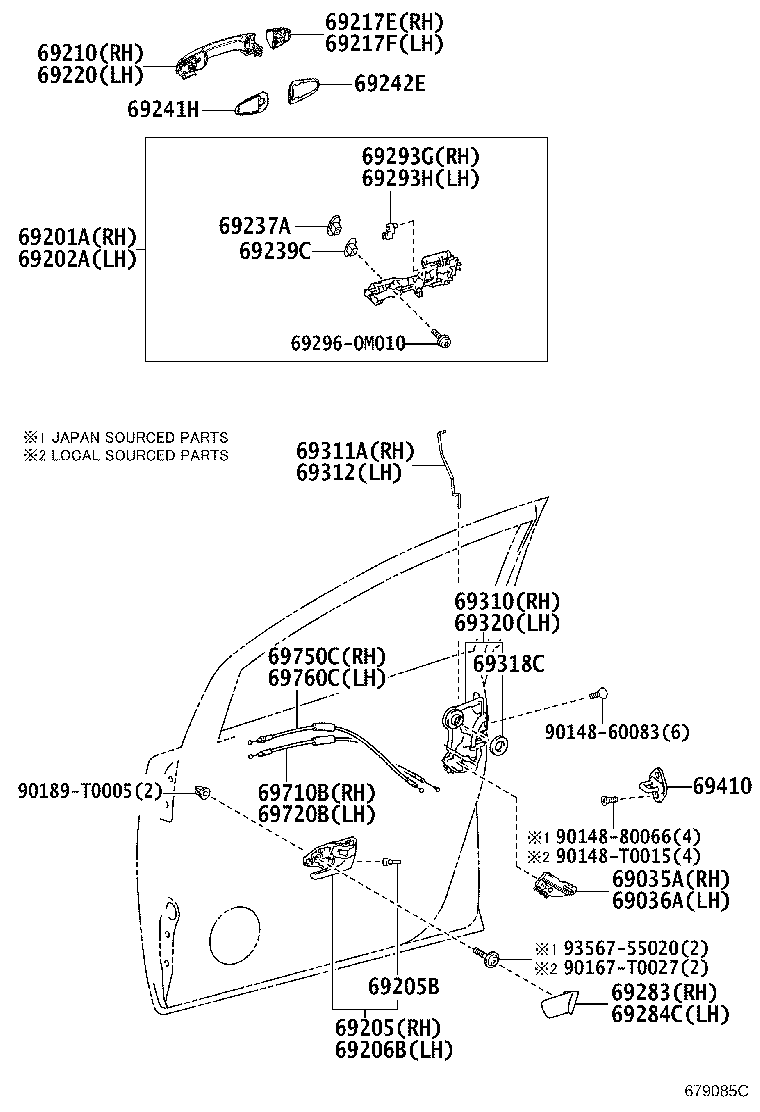

Click highlighted areas on diagram

diagram 69035A 69036A 69201A 69202A 69205 69205B 69206B 69210 69217E 69217F 69220 69237A 69239C 69241H 69242E 69283 69284C 69293G 69293H 692960M010 69310 69311A 69312 69318C 69320 69410 69710B 69720B 69750C 69760C 9014860083 9014880066 90148T0015 90167T0027 90189T0005 9356755020
Part # Description Qty Price
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04027

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 2
69237A - NUT, FRONT DOOR HANDLE
69237-0E010

GUN142..TH..DCR;GUN142..GCC,IND,SA;GUN143,TGN14#..5F..(GCC,MA);GUN143,TGN14#..(20,24,27G,27SR,27V,27Z,28G,28Z)..(GEN,IND,LA)

 2
69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-12030

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-12040

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 2
Common parts
69296-0M010
90148-60083
90148-80066
90148-T0015
90167-T0027
90189-T0005
93567-55020
