GUN142R-MXMMYX (2016)

Toyota Innova

Production Apr 2016 - Jan 2020
Engine 2GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

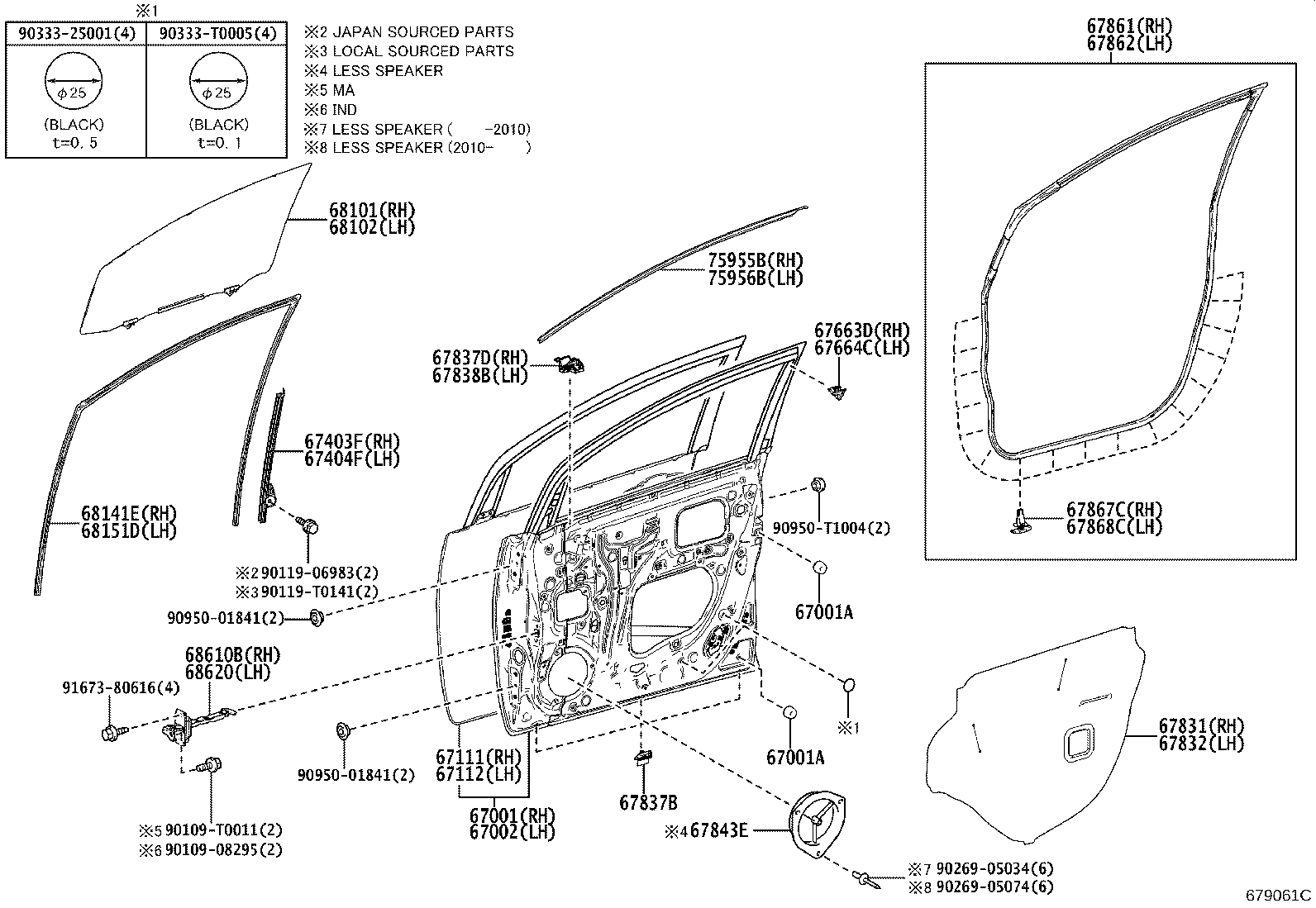

ILLUST NO. 1 OF 2(1604- )IND,MA

Click highlighted areas on diagram

DOOR PANEL

diagram 67001 67001A 67001A 67002 67111 67112 67403F 67404F 67663D 67664C 67831 67832 67837B 67837D 67838B 67843E 67861 67862 67867C 67868C 68101 68102 68141E 68151D 68610B 68620 75955B 75956B 9010908295 90109T0011 9011906983 90119T0141 9026905034 9026905074 9033325001 90333T0005 9095001841 9095001841 90950T1004 9167380616
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-0K140

GUN14#,TGN141..IND

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09131

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
67001A - CUSHION, FRONT DOOR PANEL
90541-09131

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-0K140

GUN14#,TGN141..IND

 1
67663D - GARNISH, DOOR FRAME, RH
67663-0K010

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
67664C - GARNISH, DOOR FRAME, LH
67664-0K010

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
67837B - SEAL, FRONT DOOR DUST PROOF
67837-0K090

GUN14#,TGN141..IND

 6
67837-0K091

GUN14#,TGN14#..IND,MA

 6
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 17
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 17
Common parts
90109-08295
90109-T0011
90119-06983
90119-T0141
90269-05034
90269-05074
90333-25001
90333-T0005
90950-01841
90950-T1004
91673-80616
