GUN142R-MXMMYX (2016)
Toyota Innova

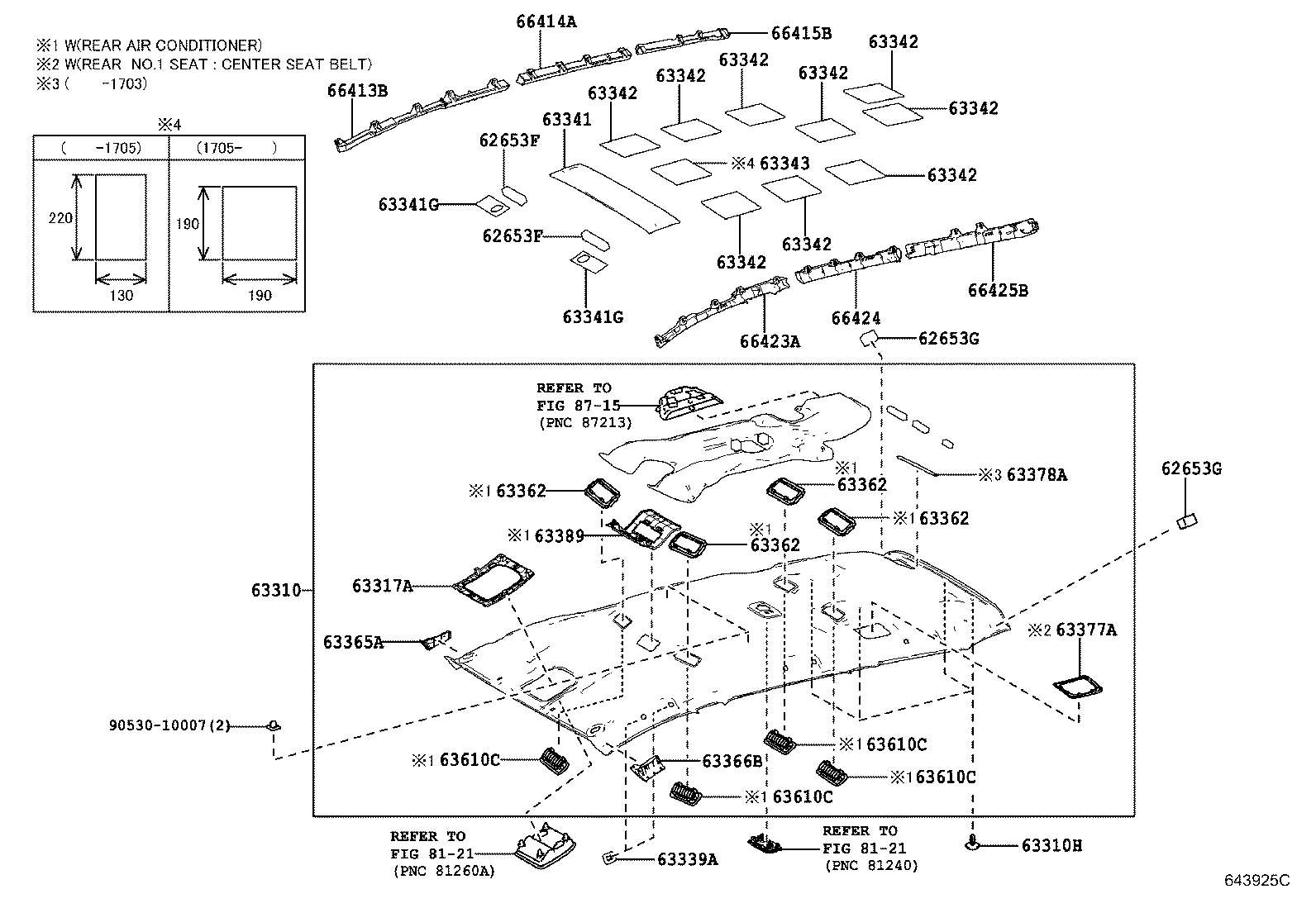

(1604- )24G,28G,G,N..IND..DCR ; (1604- )24,24G,24V,24Z,27G,27Z,G,N..IND..DCRL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62653F - PACKING (FOR ROOF HEADLINING) | ||||
| 62653-0K380 |
GUN14#..IND |
2 | ||
| 62653F - PACKING (FOR ROOF HEADLINING) | ||||
| 62653-0K380 |
GUN14#..IND |
2 | ||
| 62653G - PACKING,(FOR ROOF HEADLINING) | ||||
| 62653-0K390 |
GUN14#..IND |
2 | ||
| 62653G - PACKING,(FOR ROOF HEADLINING) | ||||
| 62653-0K390 |
GUN14#..IND |
2 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0K820B1 |
GUN142..24V..IND REAR SEAT-TUMBLE SEAT,LT.GRAY,TRIM2# |
1 | ||
| 63310-0KK60B0 |
GUN142..24V..IND LT. GRAY,TRIM2# |
1 | ||
| 63310-0KK80B0 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY),LT. GRAY,TRIM2# |
1 | ||
| 63310-0KK70B0 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY)&REAR SEAT-TUMBLE SEAT,LT. GRAY,TRIM2# |
1 | ||
| 63310-0KL00B0 |
GUN142..G,N LT. GRAY,TRIM2# |
1 | ||
| 63310-0KK90B0 |
GUN142..G,N REAR SEAT-TUMBLE SEAT,LT. GRAY,TRIM2# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-T0004B0 |
GUN14#..(24G,24V,28G,G,N)..IND LT.GRAY,TRIM2# |
4 | ||
| 63317A - RETAINER, ROOF HEADLINING | ||||
| 63317-0K190 |
GUN14#..(24V,24Z,28Z)..IND |
1 | ||
| 63317-0K110 |
GUN14#..(24G,28G,G,N)..IND |
1 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 63339-0D100B1 |
GUN14#..(24G,24V,28G,G,N)..IND LT.GRAY,TRIM2# |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-0K080 |
GUN14#..IND |
1 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-0K100 |
GUN14#..IND |
2 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-0K100 |
GUN14#..IND |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K220 |
GUN14#..IND |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K220 |
GUN14#..IND |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K220 |
GUN14#..IND |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K220 |
GUN14#..IND |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K220 |
GUN14#..IND |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K220 |
GUN14#..IND |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K220 |
GUN14#..IND |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K220 |
GUN14#..IND |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K220 |
GUN14#..IND |
9 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-0K070 |
GUN14#,TGN141..IND |
1 | ||
| 63342-0K220 |
GUN14#..IND |
1 | ||
| 63362 - SUPPORT, ROOF HEADLINING, NO.2 | ||||
| 63612-0K100 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY)&REAR SEAT-TUMBLE SEAT |
4 | ||
| 63612-0K100 |
GUN14#..(24V,24Z,28Z)..IND |
2 | ||
| 63612-0K100 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY) |
4 | ||
| 63362 - SUPPORT, ROOF HEADLINING, NO.2 | ||||
| 63612-0K100 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY)&REAR SEAT-TUMBLE SEAT |
4 | ||
| 63612-0K100 |
GUN14#..(24V,24Z,28Z)..IND |
2 | ||
| 63612-0K100 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY) |
4 | ||
| 63362 - SUPPORT, ROOF HEADLINING, NO.2 | ||||
| 63612-0K100 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY)&REAR SEAT-TUMBLE SEAT |
4 | ||
| 63612-0K100 |
GUN14#..(24V,24Z,28Z)..IND |
2 | ||
| 63612-0K100 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY) |
4 | ||
| 63362 - SUPPORT, ROOF HEADLINING, NO.2 | ||||
| 63612-0K100 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY)&REAR SEAT-TUMBLE SEAT |
4 | ||
| 63612-0K100 |
GUN14#..(24V,24Z,28Z)..IND |
2 | ||
| 63612-0K100 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY) |
4 | ||
| 63365A - PLATE, ROOF HEADLINING SET | ||||
| 63365-0K020 |
GUN14#..IND |
1 | ||
| 63366B - PLATE, ROOF HEADLINING SET, LH | ||||
| 63366-0K020 |
GUN14#..IND |
1 | ||
| 63377A - RETAINER, ROOF HEADLINING SUPPORT, NO.1 | ||||
| 63377-0K020 |
GUN14#..(24G,24V,28G,G,N)..IND |
1 | ||
| 63378A - RETAINER, ROOF HEADLINING SUPPORT, NO.2 | ||||
| 63378-0K020 |
GUN14#,TGN141..IND |
1 | ||
| 63389 - RETAINER, ROOF HEADLINING TRIM, CENTER | ||||
| 63389-0K040 |
GUN14#..(24V,24Z,28Z)..IND |
1 | ||
| 63389-0K020 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY)&REAR SEAT-TUMBLE SEAT |
1 | ||
| 63389-0K020 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY) |
1 | ||
| 63610C - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-0K050B0 |
GUN142..24V..IND LT.GRAY,TRIM2# |
2 | ||
| 63610-0K050B0 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY),LT.GRAY,TRIM2# |
4 | ||
| 63610-0K050B0 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY)&REAR SEAT-TUMBLE SEAT,LT.GRAY,TRIM2# |
4 | ||
| 63610C - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-0K050B0 |
GUN142..24V..IND LT.GRAY,TRIM2# |
2 | ||
| 63610-0K050B0 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY),LT.GRAY,TRIM2# |
4 | ||
| 63610-0K050B0 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY)&REAR SEAT-TUMBLE SEAT,LT.GRAY,TRIM2# |
4 | ||
| 63610C - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-0K050B0 |
GUN142..24V..IND LT.GRAY,TRIM2# |
2 | ||
| 63610-0K050B0 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY),LT.GRAY,TRIM2# |
4 | ||
| 63610-0K050B0 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY)&REAR SEAT-TUMBLE SEAT,LT.GRAY,TRIM2# |
4 | ||
| 63610C - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-0K050B0 |
GUN142..24V..IND LT.GRAY,TRIM2# |
2 | ||
| 63610-0K050B0 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY),LT.GRAY,TRIM2# |
4 | ||
| 63610-0K050B0 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY)&REAR SEAT-TUMBLE SEAT,LT.GRAY,TRIM2# |
4 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-0K070 |
GUN14#..(24G,24V,28G,G,N)..IND |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-0K060 |
GUN14#..(24G,24V,28G,G,N)..IND |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-0K110 |
GUN14#..(24G,24V,28G,G,N)..IND |
1 | ||
| 66423A - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-0K070 |
GUN14#..(24G,24V,28G,G,N)..IND |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-0K220 |
GUN14#..(24G,24V,28G,G,N)..IND |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-0K270 |
GUN14#..(24G,24V,28G,G,N)..IND |
1 | ||
| Common parts | ||||
| 90530-10007 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8715 | ||||

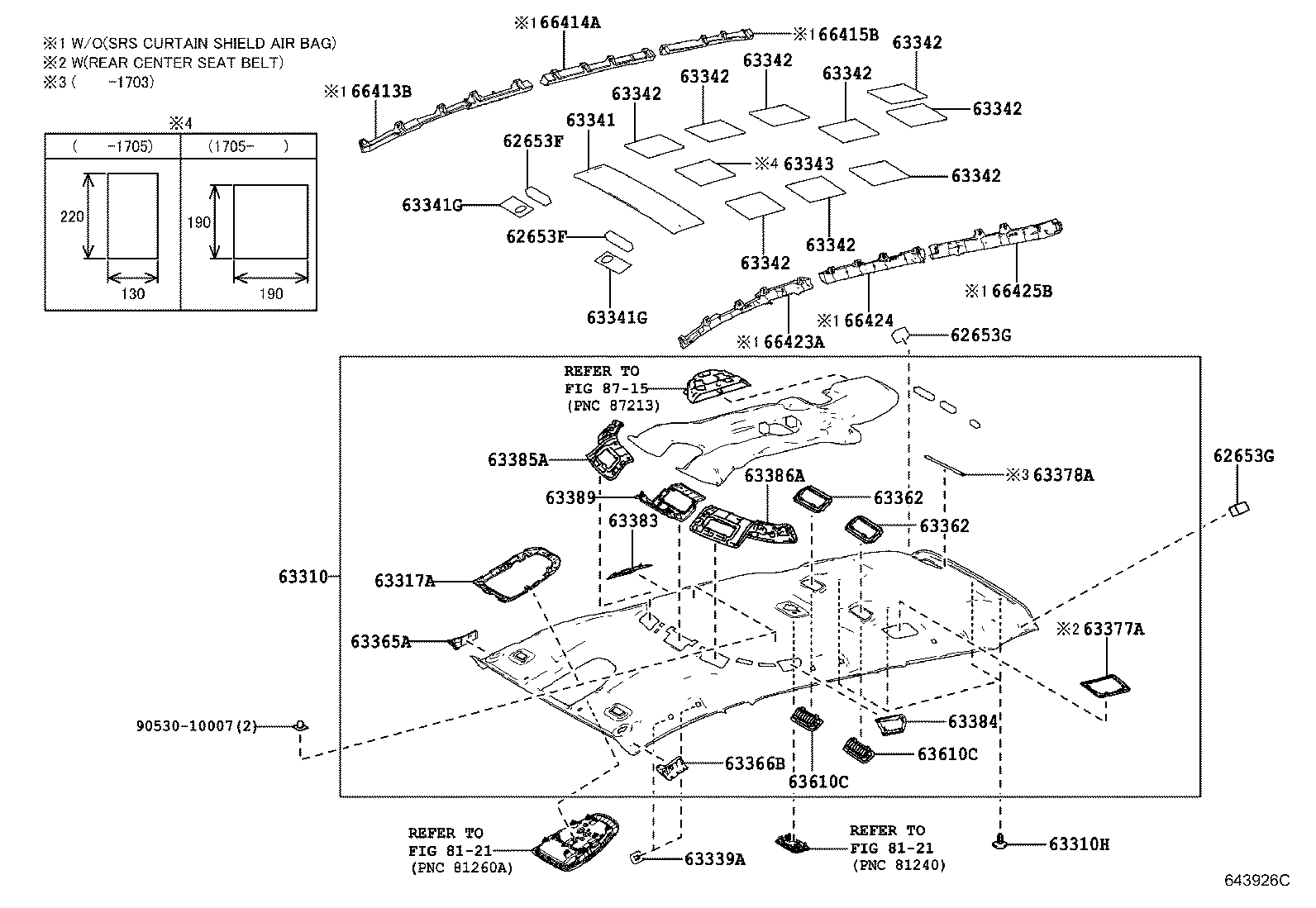

(1604- )5F..27G..IND ; (1604- )24G,G,N..IND..DCRL ; (1604- )24,24V,24Z,27V
W(REAR ILLUMINATION LAMP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62653F - PACKING (FOR ROOF HEADLINING) | ||||
| 62653-0K380 |
GUN14#..IND |
2 | ||
| 62653F - PACKING (FOR ROOF HEADLINING) | ||||
| 62653-0K380 |
GUN14#..IND |
2 | ||
| 62653G - PACKING,(FOR ROOF HEADLINING) | ||||
| 62653-0K390 |
GUN14#..IND |
2 | ||
| 62653G - PACKING,(FOR ROOF HEADLINING) | ||||
| 62653-0K390 |
GUN14#..IND |
2 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0K820B1 |
GUN142..24V..IND REAR SEAT-TUMBLE SEAT,LT.GRAY,TRIM2# |
1 | ||
| 63310-0KK60B0 |
GUN142..24V..IND LT. GRAY,TRIM2# |
1 | ||
| 63310-0KK80B0 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY),LT. GRAY,TRIM2# |
1 | ||
| 63310-0KK70B0 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY)&REAR SEAT-TUMBLE SEAT,LT. GRAY,TRIM2# |
1 | ||
| 63310-0KL00B0 |
GUN142..G,N LT. GRAY,TRIM2# |
1 | ||
| 63310-0KK90B0 |
GUN142..G,N REAR SEAT-TUMBLE SEAT,LT. GRAY,TRIM2# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-T0004B0 |
GUN14#..(24G,24V,28G,G,N)..IND LT.GRAY,TRIM2# |
4 | ||
| 63317A - RETAINER, ROOF HEADLINING | ||||
| 63317-0K190 |
GUN14#..(24V,24Z,28Z)..IND |
1 | ||
| 63317-0K110 |
GUN14#..(24G,28G,G,N)..IND |
1 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 63339-0D100B1 |
GUN14#..(24G,24V,28G,G,N)..IND LT.GRAY,TRIM2# |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-0K080 |
GUN14#..IND |
1 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-0K100 |
GUN14#..IND |
2 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-0K100 |
GUN14#..IND |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K220 |
GUN14#..IND |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K220 |
GUN14#..IND |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K220 |
GUN14#..IND |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K220 |
GUN14#..IND |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K220 |
GUN14#..IND |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K220 |
GUN14#..IND |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K220 |
GUN14#..IND |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K220 |
GUN14#..IND |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K220 |
GUN14#..IND |
9 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-0K070 |
GUN14#,TGN141..IND |
1 | ||
| 63342-0K220 |
GUN14#..IND |
1 | ||
| 63362 - SUPPORT, ROOF HEADLINING, NO.2 | ||||
| 63612-0K100 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY)&REAR SEAT-TUMBLE SEAT |
4 | ||
| 63612-0K100 |
GUN14#..(24V,24Z,28Z)..IND |
2 | ||
| 63612-0K100 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY) |
4 | ||
| 63362 - SUPPORT, ROOF HEADLINING, NO.2 | ||||
| 63612-0K100 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY)&REAR SEAT-TUMBLE SEAT |
4 | ||
| 63612-0K100 |
GUN14#..(24V,24Z,28Z)..IND |
2 | ||
| 63612-0K100 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY) |
4 | ||
| 63365A - PLATE, ROOF HEADLINING SET | ||||
| 63365-0K020 |
GUN14#..IND |
1 | ||
| 63366B - PLATE, ROOF HEADLINING SET, LH | ||||
| 63366-0K020 |
GUN14#..IND |
1 | ||
| 63377A - RETAINER, ROOF HEADLINING SUPPORT, NO.1 | ||||
| 63377-0K020 |
GUN14#..(24G,24V,28G,G,N)..IND |
1 | ||
| 63378A - RETAINER, ROOF HEADLINING SUPPORT, NO.2 | ||||
| 63378-0K020 |
GUN14#,TGN141..IND |
1 | ||
| 63383 - RETAINER, ROOF HEADLINING, REAR RH | ||||
| 63383-0K250 |
GUN14#..(24V,24Z,28Z)..IND |
1 | ||
| 63384 - RETAINER, ROOF HEADLINING, REAR LH | ||||
| 63384-0K020 |
GUN14#..(24V,24Z,28Z)..IND |
1 | ||
| 63385A - RETAINER, ROOF HEADLINING TRIM SIDE, RH | ||||
| 63385-0K020 |
GUN14#..(24V,24Z,28Z)..IND |
1 | ||
| 63386A - RETAINER, ROOF HEADLINING TRIM SIDE, LH | ||||
| 63386-0K020 |
GUN14#..(24V,24Z,28Z)..IND |
1 | ||
| 63389 - RETAINER, ROOF HEADLINING TRIM, CENTER | ||||
| 63389-0K040 |
GUN14#..(24V,24Z,28Z)..IND |
1 | ||
| 63389-0K020 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY)&REAR SEAT-TUMBLE SEAT |
1 | ||
| 63389-0K020 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY) |
1 | ||
| 63610C - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-0K050B0 |
GUN142..24V..IND LT.GRAY,TRIM2# |
2 | ||
| 63610-0K050B0 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY),LT.GRAY,TRIM2# |
4 | ||
| 63610-0K050B0 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY)&REAR SEAT-TUMBLE SEAT,LT.GRAY,TRIM2# |
4 | ||
| 63610C - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-0K050B0 |
GUN142..24V..IND LT.GRAY,TRIM2# |
2 | ||
| 63610-0K050B0 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY),LT.GRAY,TRIM2# |
4 | ||
| 63610-0K050B0 |
GUN142..G REAR AIR CONDITIONER-MANUAL(COOLER ONLY)&REAR SEAT-TUMBLE SEAT,LT.GRAY,TRIM2# |
4 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-0K070 |
GUN14#..(24G,24V,28G,G,N)..IND |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-0K060 |
GUN14#..(24G,24V,28G,G,N)..IND |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-0K110 |
GUN14#..(24G,24V,28G,G,N)..IND |
1 | ||
| 66423A - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-0K070 |
GUN14#..(24G,24V,28G,G,N)..IND |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-0K220 |
GUN14#..(24G,24V,28G,G,N)..IND |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-0K270 |
GUN14#..(24G,24V,28G,G,N)..IND |
1 | ||
| Common parts | ||||
| 90530-10007 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
