GUN142R-MXMMYX (2016)

Toyota Innova

Production Apr 2016 - Jan 2020
Engine 2GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

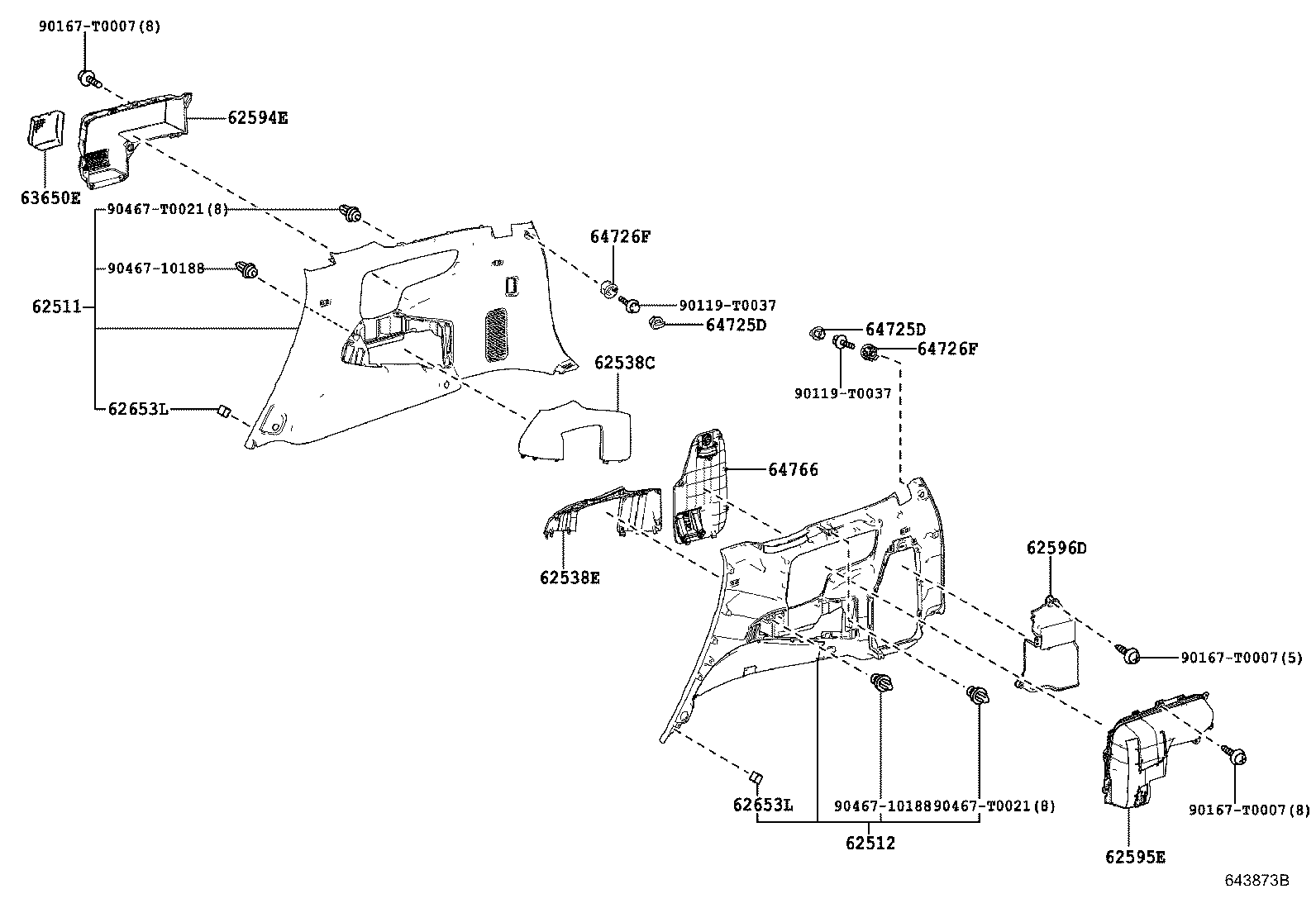

ILLUST NO. 2 OF 2(1511-1708)

Click highlighted areas on diagram

DECK SIDE TRIM

diagram 62511 62512 62538C 62538E 62594E 62595E 62596D 62653L 62653L 63650E 64725D 64725D 64726F 64726F 64766 90119T0037 90119T0037 90167T0007 90167T0007 90167T0007 9046710188 9046710188 90467T0021 90467T0021
Part # Description Qty Price
62511 - BOARD, QUARTER INSIDE TRIM, RH
62510-0K310C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62520-0K250C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
62538C - COVER, QUARTER TRIM, HOLE
79937-0K030C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
62538E - COVER, QUARTER TRIM, HOLE
79937-0K040C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
62594E - POCKET, QUARTER TRIM, RH
62594-0K190C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
62595E - POCKET, QUARTER TRIM, LH
62595-0K150C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
62596D - TRAY, QUARTER TRIM POCKET
62596-0K020C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
62653L - PACKING (FOR QUARTER INSIDE TRIM BOARD)
62653-0KA10

GUN14#..IND

 2
62653L - PACKING (FOR QUARTER INSIDE TRIM BOARD)
62653-0KA10

GUN14#..IND

 2
63650E - NET ASSY, AIR INTAKE
63650-0K650

GUN14#..(24V,24Z,28Z)..IND

 1
64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-0K030C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 2
64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-0K030C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 2
64726F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.2
64726-0K020C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 2
64726F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.2
64726-0K020C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 2
64766 - COVER SUB-ASSY, QUARTER TRIM JACK
64766-0K160C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
Common parts
90119-T0037
90167-T0007
90467-10188
90467-T0021

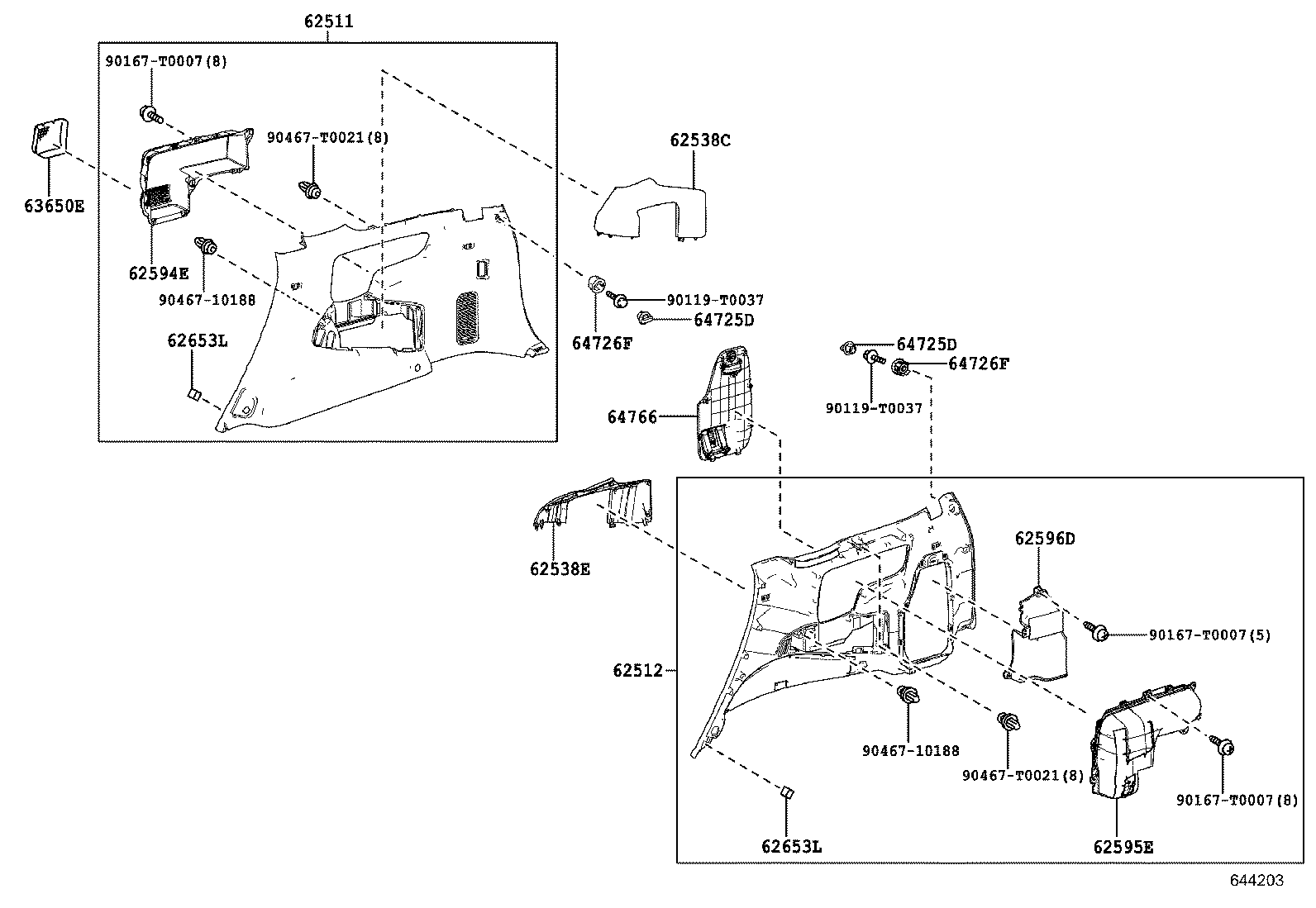

ILLUST NO. 2 OF 2(1708-1802)MA,VN ; (1708- )TGN141 ; (1708-)GUN14#,TGN140..IDNP,INDP,PHLP

Click highlighted areas on diagram

DECK SIDE TRIM

diagram 62511 62512 62538C 62538E 62594E 62595E 62596D 62653L 62653L 63650E 64725D 64725D 64726F 64726F 64766 90119T0037 90119T0037 90167T0007 90167T0007 90167T0007 9046710188 9046710188 90467T0021 90467T0021
Part # Description Qty Price
62511 - BOARD, QUARTER INSIDE TRIM, RH
62510-0K310C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62520-0K250C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
62538C - COVER, QUARTER TRIM, HOLE
79937-0K030C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
62538E - COVER, QUARTER TRIM, HOLE
79937-0K040C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
62594E - POCKET, QUARTER TRIM, RH
62594-0K190C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
62595E - POCKET, QUARTER TRIM, LH
62595-0K150C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
62596D - TRAY, QUARTER TRIM POCKET
62596-0K020C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
62653L - PACKING (FOR QUARTER INSIDE TRIM BOARD)
62653-0KA10

GUN14#..IND

 2
62653L - PACKING (FOR QUARTER INSIDE TRIM BOARD)
62653-0KA10

GUN14#..IND

 2
63650E - NET ASSY, AIR INTAKE
63650-0K650

GUN14#..(24V,24Z,28Z)..IND

 1
64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-0K030C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 2
64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-0K030C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 2
64726F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.2
64726-0K020C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 2
64726F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.2
64726-0K020C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 2
64766 - COVER SUB-ASSY, QUARTER TRIM JACK
64766-0K160C0

GUN14#..(24G,24V,28G,G,N)..IND

BLACK,TRIM2#

 1
Common parts
90119-T0037
90167-T0007
90467-10188
90467-T0021
