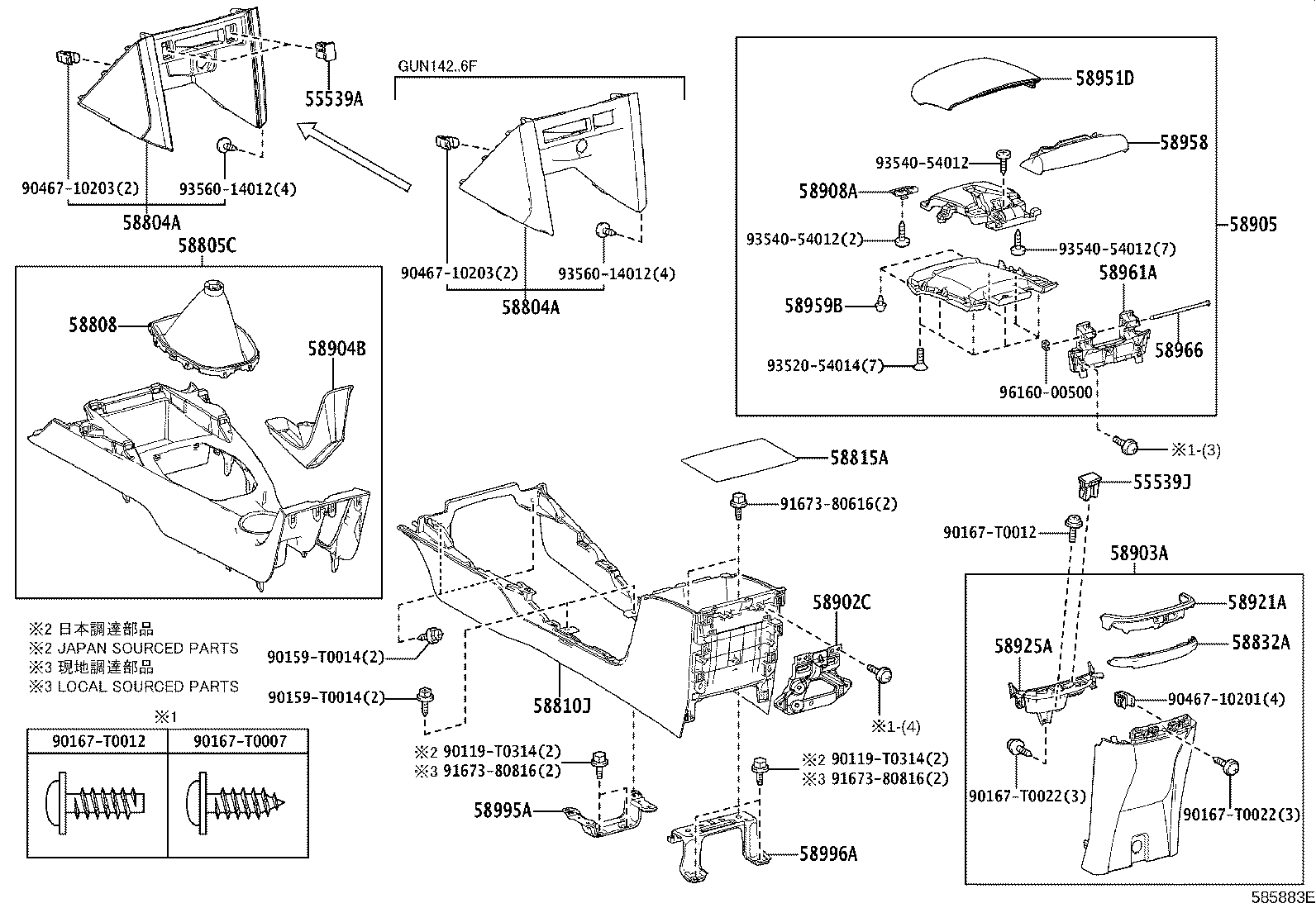

GUN142R-MXMMYX (2016)
Toyota Innova
(1604- )MTM..IND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-KK030C0 |
GUN14#..(5F,6FC)..(24G,24V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-KK030C0 |
GUN142..24V..IND AUDIO-WITHOUT & WITH(AUDIO LESS COVER),BLACK,TRIM2# |
1 | ||
| 55539-KK030C0 |
GUN142..G,N BLACK,TRIM2# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-0K120C0 |
GUN14#..(5F,6FC)..(24G,24V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-0K120C0 |
GUN14#..(5F,6FC)..(24G,24V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-KK110C0 |
TGN140..(PHLP,VNP)..5F;GUN142,TGN141..5F..(24,27,27SR) BLACK,TRIM2#,4# |
1 | ||
| 58805-KK190C0 |
GUN142,TGN141..(24V,27V)..IND BLACK,TRIM20 |
1 | ||
| 58805-KK190C0 |
GUN142,TGN141..(24V,27V)..IND BLACK,TRIM2# |
1 | ||
| 58805-KK190C1 |
GUN142,TGN141..(24V,27V)..IND BLACK/RED NO.55,TRIM20 |
1 | ||
| 58805-KK191C1 |
GUN142..24V..IND BLACK/RED NO.55,TRIM20 |
1 | ||
| 58805-KK171C0 |
GUN142..(24G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 58805-KK170C0 |
GUN142,TGN141..5F..(24G,27G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 58805-KK191C0 |
GUN142..24V..IND BLACK,TRIM20 |
1 | ||
| 58805-KK111C0 |
GUN142,TGN141..5F..(24,27SR) BLACK,TRIM2#,4# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-KK080C1 |
GUN142,TGN141..(24V,27V)..IND BLACK/RED NO.55,TRIM20 |
1 | ||
| 58808-KK080C0 |
GUN142,TGN141..(24V,27V)..IND BLACK,TRIM20 |
1 | ||
| 58808-KK011C0 |
GUN142,TGN141..5F..(24,27SR) BLACK,TRIM2#,4# |
1 | ||
| 58808-KK010C0 |
GUN142,TGN141..5F..(24G,27G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 58808-KK080C0 |
GUN142,TGN141..(24V,27V)..IND BLACK,TRIM2# |
1 | ||
| 58808-KK081C0 |
GUN142..24V..IND BLACK,TRIM20 |
1 | ||
| 58808-KK081C1 |
GUN142..24V..IND BLACK/RED NO.55,TRIM20 |
1 | ||
| 58808-KK011C0 |
GUN142..(24G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-KK010C0 |
GUN142,TGN141..5F..(24,27SR) BLACK,TRIM2#,4# |
1 | ||
| 58810-KK110C0 |
GUN142..(24G,24V,G,N)..IND BLACK,TRIM2# |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-KK010 |
GUN14#..IND |
1 | ||
| 58832A - GARNISH, CONSOLE UPPER PANEL, REAR | ||||
| 58832-KK090C0 |
GUN14#..(24G,24V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 58832-KK100C1 |
GUN142..24V..IND MLM INDIA SPEC EURO4,BLACK,TRIM2# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-KK020 |
GUN14#..IND |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-KK070C2 |
GUN14#..(24G,24V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 58903-KK080C2 |
GUN142..24V..IND MLM INDIA SPEC EURO4,BLACK,TRIM2# |
1 | ||
| 58904B - COVER SUB-ASSY, PARKING BRAKE HOLE | ||||
| 58904-KK010C1 |
GUN142,TGN141..(24V,27V)..IND BLACK,TRIM2# |
1 | ||
| 58904-KK010C2 |
GUN14#..(24V,28Z)..IND BLACK/RED NO.55,TRIM20 |
1 | ||
| 58904-KK010C1 |
GUN14#..(24G,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 58904-KK010C1 |
GUN142..24V..IND BLACK,TRIM20 |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-KK060C0 |
GUN142,TGN141..(24V,27V)..IND BLACK,TRIM2# |
1 | ||
| 58905-KK050C0 |
GUN14#..(24G,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 58905-KK060C1 |
GUN14#..(24V,28Z)..IND BLACK/RED,TRIM20 |
1 | ||
| 58905-KK060C2 |
GUN142..24V..IND BLACK/BEIGE,TRIM20 |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-33030 |
GUN14#..IND |
1 | ||
| 58921A - PANEL, REAR CONSOLE, UPPER | ||||
| 58921-KK040C0 |
GUN14#..(24G,24V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 58925A - POCKET, CONSOLE BOX, REAR | ||||
| 58925-KK020C0 |
GUN14#..(24G,24V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 58951D - DOOR, CONSOLE COMPARTMENT, OUTER | ||||
| 58951-KK050C0 |
GUN142,TGN141..(24V,27V)..IND BLACK,TRIM2# |
1 | ||
| 58951-KK050C1 |
GUN14#..(24V,28Z)..IND BLACK/RED,TRIM20 |
1 | ||
| 58951-KK060C0 |
GUN14#..(24G,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 58951-KK050C2 |
GUN142..24V..IND BLACK/BEIGE,TRIM20 |
1 | ||
| 58958 - COVER, CONSOLE COMPARTMENT DOOR MOULDING | ||||
| 58958-KK030C0 |
GUN14#..(24G,24V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
GUN14#..IND |
2 | ||
| 58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE | ||||
| 58961-KK020C0 |
GUN14#..(24G,24V,28G,G,N)..IND BLACK,TRIM2# |
1 | ||
| 58966 - SHAFT, BOX DOOR HINGE | ||||
| 58966-KK010 |
GUN14#..IND |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-KK020 |
GUN142..IND |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-KK020 |
GUN14#..IND |
1 | ||
| Common parts | ||||
| 90119-T0314 | ||||
| 90159-T0014 | ||||
| 90167-T0007 | ||||
| 90167-T0012 | ||||
| 90167-T0022 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93520-54014 | ||||
| 93540-54012 | ||||
| 93560-14012 | ||||
| 96160-00500 | ||||
