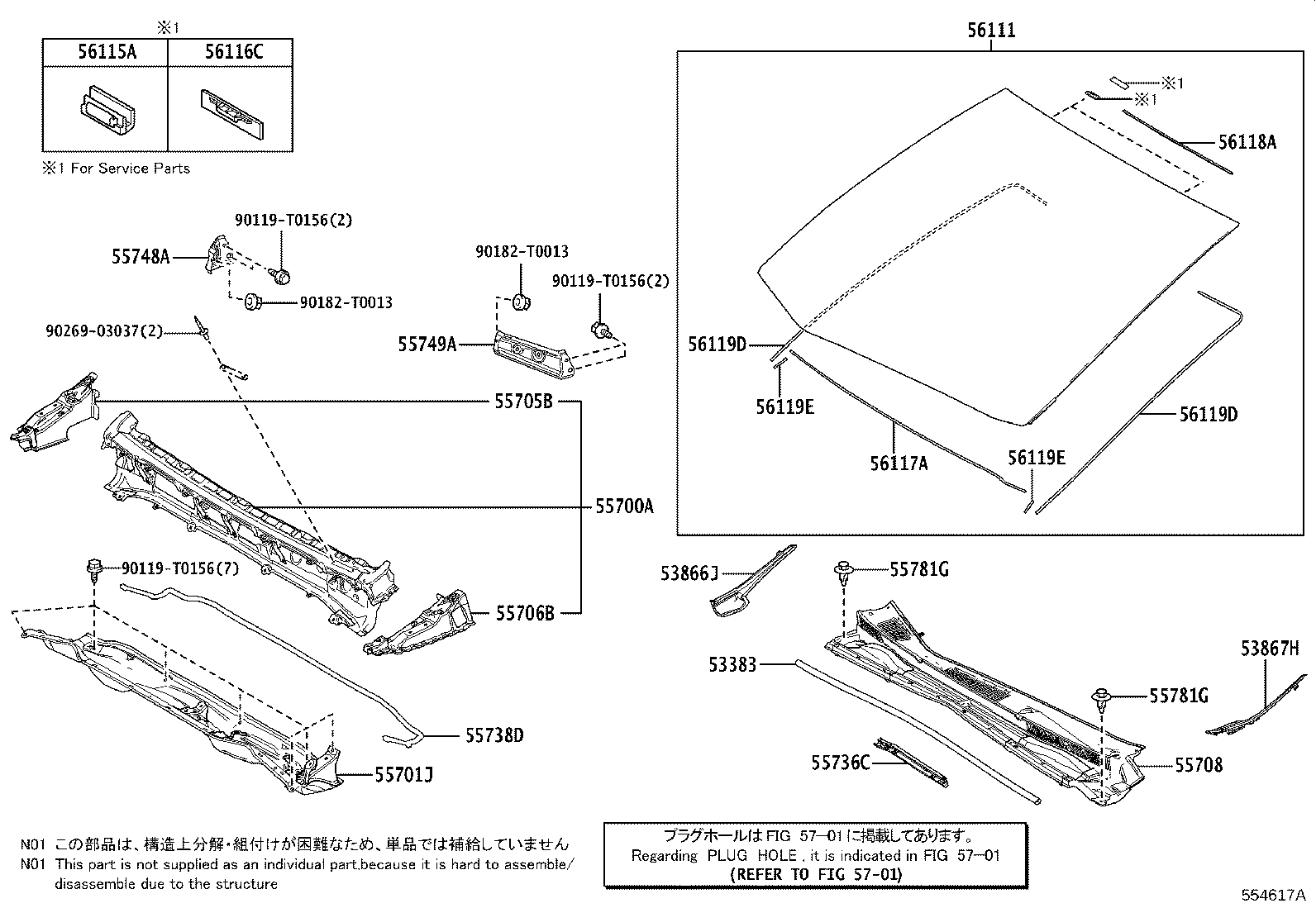

GUN142R-MXMMYX (2016)
Toyota Innova
(1511-2009)IDNP..6FC..20E,27 ; (1511-2009)5F..27,27G,27SR,28G..GCC,LA ; (1511-2009)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-0K070 |
GUN14#..IND |
1 | ||
| 53383-0K070 |
GUN14#..IND |
1 | ||
| 53383-0K070 |
GUN14#..IND |
1 | ||
| 53866J - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-0K040 |
GUN14#..IND |
1 | ||
| 53866-0K040 |
GUN14#..IND |
1 | ||
| 53866-0K040 |
GUN14#..IND |
1 | ||
| 53867H - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-0K040 |
GUN14#..IND |
1 | ||
| 53867-0K040 |
GUN14#..IND |
1 | ||
| 53867-0K040 |
GUN14#..IND |
1 | ||
| 55700A - PANEL ASSY, COWL TOP | ||||
| 55700-0K190 |
GUN14#..IND |
1 | ||
| 55700-0K190 |
GUN14#..IND |
1 | ||
| 55700-0K190 |
GUN14#..IND |
1 | ||
| 55701J - PANEL SUB-ASSY, COWL TOP, OUTER | ||||
| 55701-0K070 |
GUN14#..IND |
1 | ||
| 55701-0K070 |
GUN14#..IND |
1 | ||
| 55701-0K070 |
GUN14#..IND |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-0K090 |
GUN14#..IND |
1 | ||
| 55705-0K090 |
GUN14#..IND |
1 | ||
| 55705-0K090 |
GUN14#..IND |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-0K090 |
GUN14#..IND |
1 | ||
| 55706-0K090 |
GUN14#..IND |
1 | ||
| 55706-0K090 |
GUN14#..IND |
1 | ||
| 55708 - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-0K150 |
GUN14#..IND |
1 | ||
| 55708-0K150 |
GUN14#..IND |
1 | ||
| 55708-0K150 |
GUN14#..IND |
1 | ||
| 55736C - SEAL, WATER GUARD PLATE | ||||
| 55736-0K030 |
GUN14#..IND |
1 | ||
| 55736-0K030 |
GUN14#..IND |
1 | ||
| 55736-0K030 |
GUN14#..IND |
1 | ||
| 55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55738-0K040 |
GUN14#..IND |
1 | ||
| 55738-0K040 |
GUN14#..IND |
1 | ||
| 55738-0K040 |
GUN14#..IND |
1 | ||
| 55748A - BRACE, COWL TOP INNER TO PILLAR | ||||
| 55748-0K060 |
GUN14#..IND |
1 | ||
| 55748-0K060 |
GUN14#..IND |
1 | ||
| 55748-0K060 |
GUN14#..IND |
1 | ||
| 55749A - BRACE, COWL TOP INNER TO PILLAR, LH | ||||
| 55749-0K040 |
GUN14#..IND |
1 | ||
| 55749-0K040 |
GUN14#..IND |
1 | ||
| 55749-0K040 |
GUN14#..IND |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07215 |
GUN14#..IND |
2 | ||
| 90467-07215 |
GUN14#..IND |
2 | ||
| 90467-07215 |
GUN14#..IND |
2 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07215 |
GUN14#..IND |
2 | ||
| 90467-07215 |
GUN14#..IND |
2 | ||
| 90467-07215 |
GUN14#..IND |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-0K290 |
GUN14#..IND |
1 | ||
| 56101-0K290 |
GUN14#..IND |
1 | ||
| 56101-0K290 |
GUN14#..IND |
1 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-0K060 |
GUN14#..IND L=1296 |
1 | ||
| 56117-0K060 |
GUN14#..IND L=1296 |
1 | ||
| 56117-0K060 |
GUN14#..IND L=1296 |
1 | ||
| 56118A - DAM, WINDOW GLASS ADHESIVE, NO.2 | ||||
| 56118-0K060 |
GUN14#..IND L=574 |
1 | ||
| 56118-0K060 |
GUN14#..IND L=574 |
1 | ||
| 56118-0K060 |
GUN14#..IND L=574 |
1 | ||
| 56119D - DAM, WINDOW GLASS ADHESIVE, NO.3 | ||||
| 56119-0K020 |
GUN14#..IND L=1027 |
2 | ||
| 56119-0K020 |
GUN14#..IND L=1027 |
2 | ||
| 56119-0K020 |
GUN14#..IND L=1027 |
2 | ||
| 56119D - DAM, WINDOW GLASS ADHESIVE, NO.3 | ||||
| 56119-0K020 |
GUN14#..IND L=1027 |
2 | ||
| 56119-0K020 |
GUN14#..IND L=1027 |
2 | ||
| 56119-0K020 |
GUN14#..IND L=1027 |
2 | ||
| 56119E - DAM, WINDOW GLASS ADHESIVE, NO.4 | ||||
| 56119-0K040 |
GUN14#..IND L=45 |
2 | ||
| 56119-0K040 |
GUN14#..IND L=45 |
2 | ||
| 56119-0K040 |
GUN14#..IND L=45 |
2 | ||
| 56119E - DAM, WINDOW GLASS ADHESIVE, NO.4 | ||||
| 56119-0K040 |
GUN14#..IND L=45 |
2 | ||
| 56119-0K040 |
GUN14#..IND L=45 |
2 | ||
| 56119-0K040 |
GUN14#..IND L=45 |
2 | ||
| Common parts | ||||
| 90119-T0156 | ||||
| 90182-T0013 | ||||
| 90269-03037 | ||||
| Linked diagrams | ||||
| 5701 | ||||
(1511-2009)24,24G,24V,28V..SA,TH ; (1511-2009)RHD..IDNP..20,20G,20Q ; (1511- )RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-0K070 |
GUN14#..IND |
1 | ||
| 53383-0K070 |
GUN14#..IND |
1 | ||
| 53866J - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-0K040 |
GUN14#..IND |
1 | ||
| 53866-0K040 |
GUN14#..IND |
1 | ||
| 53867H - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-0K040 |
GUN14#..IND |
1 | ||
| 53867-0K040 |
GUN14#..IND |
1 | ||
| 55700A - PANEL ASSY, COWL TOP | ||||
| 55700-0K190 |
GUN14#..IND |
1 | ||
| 55700-0K190 |
GUN14#..IND |
1 | ||
| 55701J - PANEL SUB-ASSY, COWL TOP, OUTER | ||||
| 55701-0K070 |
GUN14#..IND |
1 | ||
| 55701-0K070 |
GUN14#..IND |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-0K090 |
GUN14#..IND |
1 | ||
| 55705-0K090 |
GUN14#..IND |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-0K090 |
GUN14#..IND |
1 | ||
| 55706-0K090 |
GUN14#..IND |
1 | ||
| 55708 - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-0K150 |
GUN14#..IND |
1 | ||
| 55708-0K150 |
GUN14#..IND |
1 | ||
| 55736C - SEAL, WATER GUARD PLATE | ||||
| 55736-0K030 |
GUN14#..IND |
1 | ||
| 55736-0K030 |
GUN14#..IND |
1 | ||
| 55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55738-0K040 |
GUN14#..IND |
1 | ||
| 55738-0K040 |
GUN14#..IND |
1 | ||
| 55748A - BRACE, COWL TOP INNER TO PILLAR | ||||
| 55748-0K060 |
GUN14#..IND |
1 | ||
| 55748-0K060 |
GUN14#..IND |
1 | ||
| 55749A - BRACE, COWL TOP INNER TO PILLAR, LH | ||||
| 55749-0K040 |
GUN14#..IND |
1 | ||
| 55749-0K040 |
GUN14#..IND |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07215 |
GUN14#..IND |
2 | ||
| 90467-07215 |
GUN14#..IND |
2 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07215 |
GUN14#..IND |
2 | ||
| 90467-07215 |
GUN14#..IND |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-0K290 |
GUN14#..IND |
1 | ||
| 56101-0K290 |
GUN14#..IND |
1 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-0K060 |
GUN14#..IND L=1296 |
1 | ||
| 56117-0K060 |
GUN14#..IND L=1296 |
1 | ||
| 56118A - DAM, WINDOW GLASS ADHESIVE, NO.2 | ||||
| 56118-0K060 |
GUN14#..IND L=574 |
1 | ||
| 56118-0K060 |
GUN14#..IND L=574 |
1 | ||
| 56119D - DAM, WINDOW GLASS ADHESIVE, NO.3 | ||||
| 56119-0K020 |
GUN14#..IND L=1027 |
2 | ||
| 56119-0K020 |
GUN14#..IND L=1027 |
2 | ||
| 56119D - DAM, WINDOW GLASS ADHESIVE, NO.3 | ||||
| 56119-0K020 |
GUN14#..IND L=1027 |
2 | ||
| 56119-0K020 |
GUN14#..IND L=1027 |
2 | ||
| 56119E - DAM, WINDOW GLASS ADHESIVE, NO.4 | ||||
| 56119-0K040 |
GUN14#..IND L=45 |
2 | ||
| 56119-0K040 |
GUN14#..IND L=45 |
2 | ||
| 56119E - DAM, WINDOW GLASS ADHESIVE, NO.4 | ||||
| 56119-0K040 |
GUN14#..IND L=45 |
2 | ||
| 56119-0K040 |
GUN14#..IND L=45 |
2 | ||
| Common parts | ||||
| 90119-T0156 | ||||
| 90178-T0007 | ||||
| 90182-T0013 | ||||
| 90269-03037 | ||||
| Linked diagrams | ||||
| 5701 | ||||
