GUN142R-MXMMYX (2016)
Toyota Innova

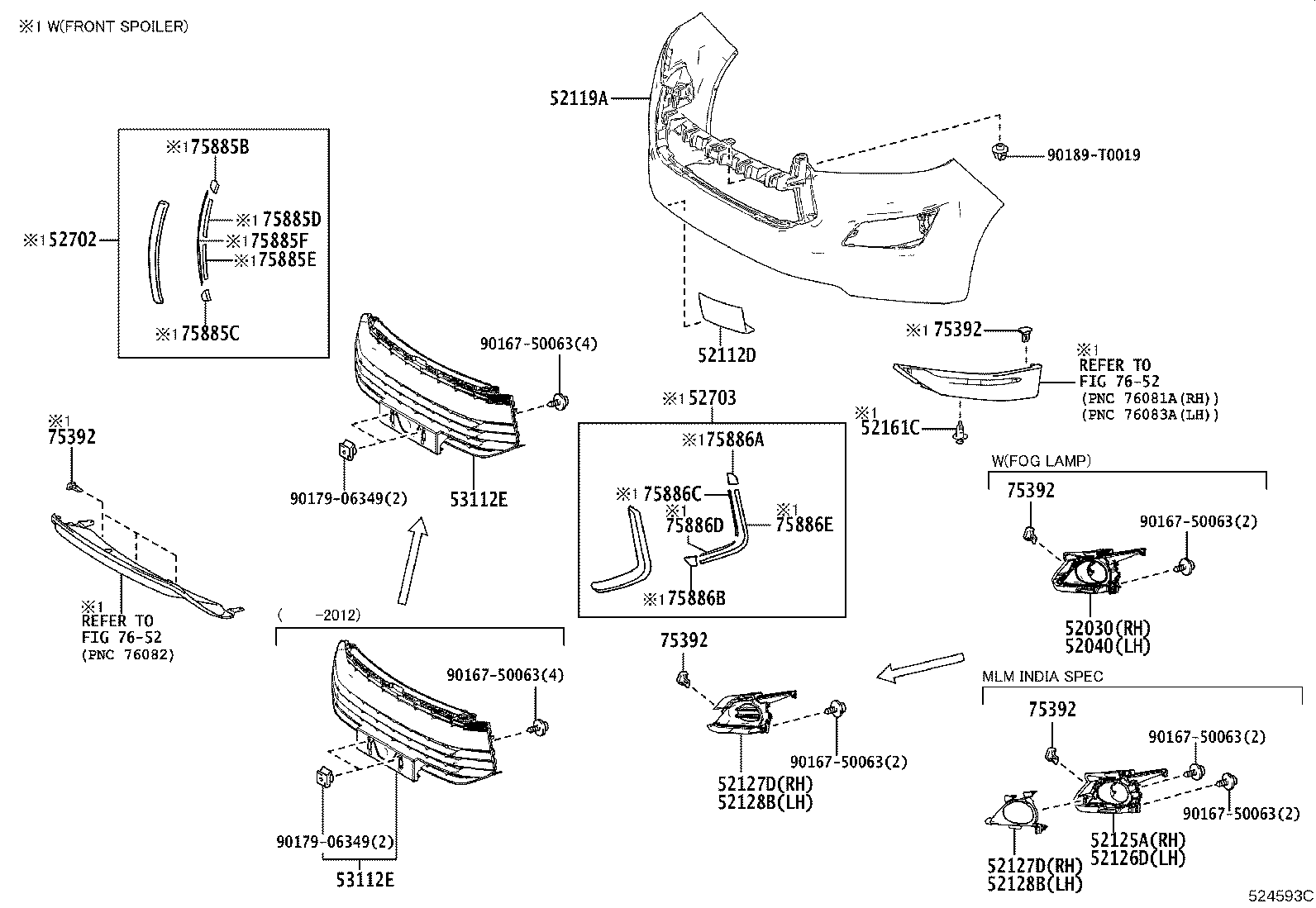

ILLUST NO. 2 OF 2(1604- )IND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-0K330 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 52112-0K330 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO4 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0M971 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND PAINT REQ.,MLM INDIA SPEC EURO5 |
1 | ||
| 52119-0M971 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND PAINT REQ.,MLM INDIA SPEC EURO4 |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-YP020 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO4 |
1 | ||
| 52125-YP020 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-YP020 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO4 |
1 | ||
| 52126-YP020 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-YP080 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 52127-YP080 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO4 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-YP080 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 52127-YP080 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO4 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-YP080 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 52128-YP080 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO4 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-YP080 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 52128-YP080 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO4 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
2 | ||
| 52161-0K040 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO4 |
2 | ||
| 52702 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH | ||||
| 52702-YP020 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 52703 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH | ||||
| 52703-YP020 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-0K250 |
GUN142,TGN141..(24V,27V)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 53112-0K250 |
GUN142,TGN141..(24V,27V)..IND MLM INDIA SPEC EURO4 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-0K250 |
GUN142,TGN141..(24V,27V)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 53112-0K250 |
GUN142,TGN141..(24V,27V)..IND MLM INDIA SPEC EURO4 |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GUN14#,TGN14# |
2 | ||
| 75392-0K010 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO4 |
12 | ||
| 75392-0K010 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
12 | ||
| 75392-35220 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO4 |
12 | ||
| 75392-0K010 |
TGN140..(MAP,PHLP)..5F;GUN142..(GCC,IND,SA)..DCR;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
2 | ||
| 75392-35220 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GUN14#,TGN14# |
2 | ||
| 75392-0K010 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO4 |
12 | ||
| 75392-0K010 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
12 | ||
| 75392-35220 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO4 |
12 | ||
| 75392-0K010 |
TGN140..(MAP,PHLP)..5F;GUN142..(GCC,IND,SA)..DCR;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
2 | ||
| 75392-35220 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GUN14#,TGN14# |
2 | ||
| 75392-0K010 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO4 |
12 | ||
| 75392-0K010 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
12 | ||
| 75392-35220 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO4 |
12 | ||
| 75392-0K010 |
TGN140..(MAP,PHLP)..5F;GUN142..(GCC,IND,SA)..DCR;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
2 | ||
| 75392-35220 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GUN14#,TGN14# |
2 | ||
| 75392-0K010 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO4 |
12 | ||
| 75392-0K010 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
12 | ||
| 75392-35220 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO4 |
12 | ||
| 75392-0K010 |
TGN140..(MAP,PHLP)..5F;GUN142..(GCC,IND,SA)..DCR;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
2 | ||
| 75392-35220 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
12 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GUN14#,TGN14# |
2 | ||
| 75392-0K010 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO4 |
12 | ||
| 75392-0K010 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
12 | ||
| 75392-35220 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO4 |
12 | ||
| 75392-0K010 |
TGN140..(MAP,PHLP)..5F;GUN142..(GCC,IND,SA)..DCR;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) |
2 | ||
| 75392-35220 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
12 | ||
| 75885B - TAPE, MOULDING, NO.1 | ||||
| 75885-YP090 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 75885C - TAPE, MOULDING, NO.2 | ||||
| 75885-YP110 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 75885D - TAPE, MOULDING, NO.3 | ||||
| 75885-YP130 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 75885E - TAPE, MOULDING, NO.4 | ||||
| 75885-YP140 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 75885F - TAPE, MOULDING, NO.5 | ||||
| 75885-YP150 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 75886A - TAPE, MOULDING, NO.1 | ||||
| 75885-YP100 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 75886B - TAPE, MOULDING, NO.2 | ||||
| 75885-YP120 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 75886C - TAPE, MOULDING, NO.3 | ||||
| 75885-YP140 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 75886D - TAPE, MOULDING, NO.4 | ||||
| 75885-YP130 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| 75886E - TAPE, MOULDING, NO.5 | ||||
| 75885-YP160 |
GUN14#,TGN141..(24V,27V,27Z,28Z)..IND MLM INDIA SPEC EURO5 |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90189-T0019 | ||||
| Linked diagrams | ||||
| 7652 | ||||
