GUN142R-MXMMYX (2016)

Toyota Innova

Production Apr 2016 - Jan 2020
Engine 2GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )IND ; (1604- )GEN..DCRL

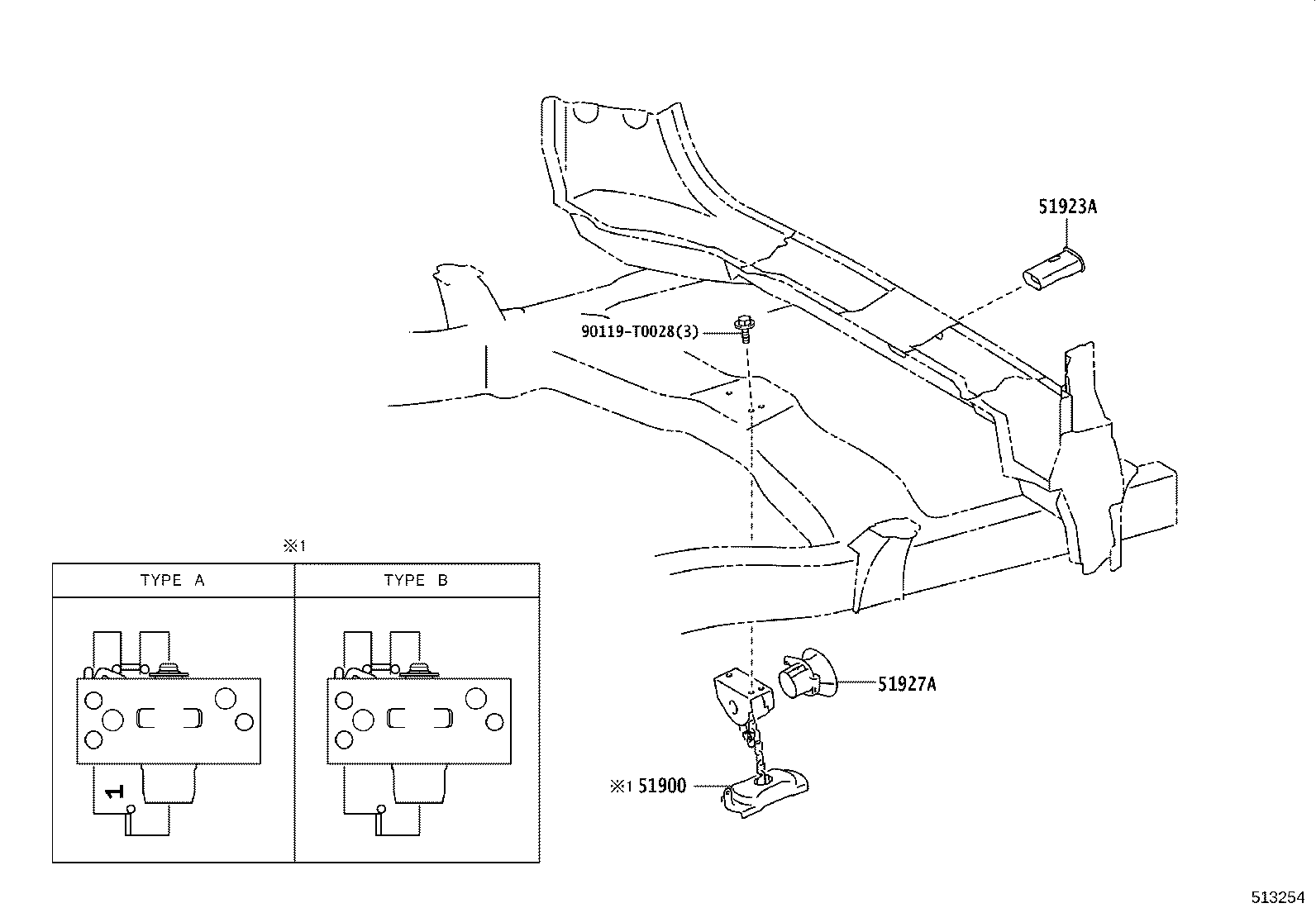

Click highlighted areas on diagram

diagram 51900 51923A 51927A 90119T0028
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-0K110

GUN14#,TGN141..IND

 1
51900-0K120

GUN14#..IND

TYPE B:REFER ILLUST.

 1
51900-0K111

GUN14#..IND

TYPE A:REFER ILLUST.

 1
51923A - GUIDE, SPARE WHELL CARRIER HANDLE
51927-KK020

GUN14#..IND

 1
51927A - GUIDE, SPARE WHEEL
51927-0K030

GUN14#..IND

 1
Common parts
90119-T0028
