GUN142R-MXMMYX (2016)
Toyota Innova

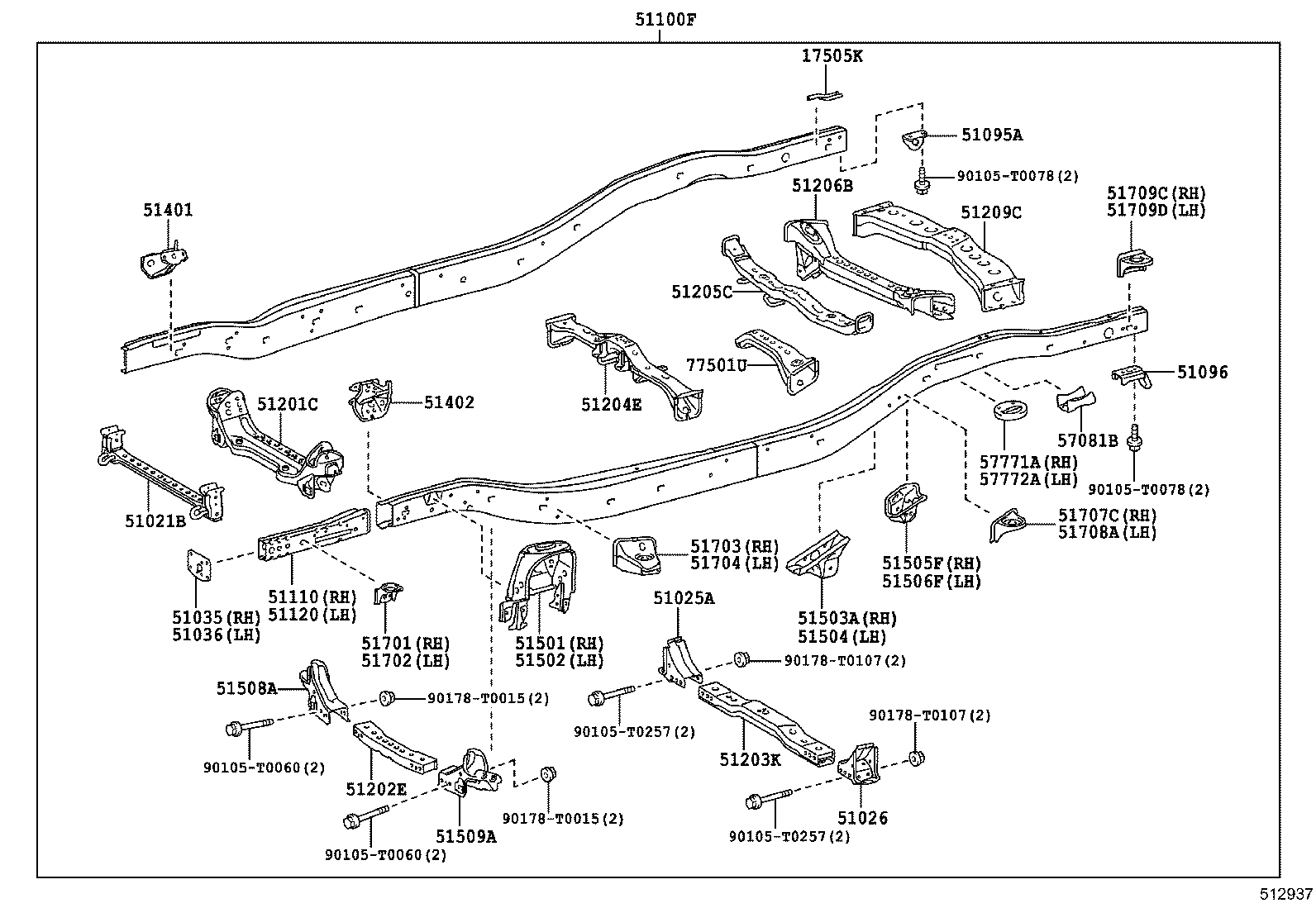

ILLUST NO. 1 OF 2(1608- )GUN143..IDNP..28E,28G,28V,N..PHL,TH ;(1708- )GUN143..GEN ; (1808-
FRAME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17505K - SUPPORT SUB-ASSY, EXHAUST PIPE | ||||
| 17505-0L020 |
1GDFTV,2GDFTV..GUN14#..IND |
1 | ||
| 17505-0L020 |
1GDFTV,2GDFTV..GUN14#..IND |
1 | ||
| 17505-0L020 |
1GDFTV,2GDFTV..GUN14#..IND |
1 | ||
| 51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY | ||||
| 51021-KK010 |
GUN143;TGN14#..INDP,PHLP;GUN142..GCC,IDN,IND,SA |
1 | ||
| 51021-KK010 |
GUN143;TGN14#..INDP,PHLP;GUN142..GCC,IDN,IND,SA |
1 | ||
| 51021-KK010 |
GUN143;TGN14#..INDP,PHLP;GUN142..GCC,IDN,IND,SA |
1 | ||
| 51021-KK020 |
GUN14#..IND |
1 | ||
| 51021-KK020 |
GUN14#..IND |
1 | ||
| 51021-KK020 |
GUN14#..IND |
1 | ||
| 51025A - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, RH | ||||
| 51025-KK020 |
GUN14#..IND |
1 | ||
| 51025-KK020 |
GUN14#..IND |
1 | ||
| 51025-KK020 |
GUN14#..IND |
1 | ||
| 51026 - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH | ||||
| 51026-KK020 |
GUN14#..IND |
1 | ||
| 51026-KK020 |
GUN14#..IND |
1 | ||
| 51026-KK020 |
GUN14#..IND |
1 | ||
| 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-KK010 |
GUN14#..IND |
1 | ||
| 51035-KK010 |
GUN14#..IND |
1 | ||
| 51035-KK010 |
GUN14#..IND |
1 | ||
| 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-KK010 |
GUN14#..IND |
1 | ||
| 51036-KK010 |
GUN14#..IND |
1 | ||
| 51036-KK010 |
GUN14#..IND |
1 | ||
| 51095A - HOOK SUB-ASSY, TRANSPORT, REAR RH | ||||
| 51095-0K010 |
GUN14#..IND |
1 | ||
| 51095-0K010 |
GUN14#..IND |
1 | ||
| 51095-0K010 |
GUN14#..IND |
1 | ||
| 51096 - HOOK SUB-ASSY, TRANSPORT, REAR LH | ||||
| 51096-0K010 |
GUN14#..IND |
1 | ||
| 51096-0K010 |
GUN14#..IND |
1 | ||
| 51096-0K010 |
GUN14#..IND |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-KK060 |
GUN14#..(5F,6FC)..IND |
1 | ||
| 51001-KK060 |
GUN14#..(5F,6FC)..IND |
1 | ||
| 51001-KK060 |
GUN14#..(5F,6FC)..IND |
1 | ||
| 51110 - EXTENSION ASSY, SIDE RAIL, RH | ||||
| 51110-KK904 |
GUN14#..IND |
1 | ||
| 51110-KK904 |
GUN14#..IND |
1 | ||
| 51110-KK904 |
GUN14#..IND |
1 | ||
| 51120 - EXTENSION ASSY, SIDE RAIL, LH | ||||
| 51122-KK904 |
GUN14#..IND |
1 | ||
| 51122-KK904 |
GUN14#..IND |
1 | ||
| 51122-KK904 |
GUN14#..IND |
1 | ||
| 51201C - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-KK010 |
GUN14#..IND |
1 | ||
| 51201-KK010 |
GUN14#..IND |
1 | ||
| 51201-KK010 |
GUN14#..IND |
1 | ||
| 51202E - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-0K010 |
GUN14#..IND |
1 | ||
| 51202-0K010 |
GUN14#..IND |
1 | ||
| 51202-0K010 |
GUN14#..IND |
1 | ||
| 51203K - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-KK060 |
GUN14#..(5F,6FC)..IND |
1 | ||
| 51203-KK060 |
GUN14#..(5F,6FC)..IND |
1 | ||
| 51203-KK060 |
GUN14#..(5F,6FC)..IND |
1 | ||
| 51204E - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-KK070 |
GUN14#..IND |
1 | ||
| 51204-KK070 |
GUN14#..IND |
1 | ||
| 51204-KK070 |
GUN14#..IND |
1 | ||
| 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-KK010 |
GUN14#..IND |
1 | ||
| 51205-KK010 |
GUN14#..IND |
1 | ||
| 51205-KK010 |
GUN14#..IND |
1 | ||
| 51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6 | ||||
| 51206-KK020 |
GUN14#..IND |
1 | ||
| 51206-KK020 |
GUN14#..IND |
1 | ||
| 51206-KK020 |
GUN14#..IND |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51209-KK010 |
GUN14#..IND |
1 | ||
| 51209-KK010 |
GUN14#..IND |
1 | ||
| 51209-KK010 |
GUN14#..IND |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-KK040 |
GUN14#..IND |
1 | ||
| 51401-KK040 |
GUN14#..IND |
1 | ||
| 51401-KK040 |
GUN14#..IND |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-KK040 |
GUN14#..IND |
1 | ||
| 51402-KK040 |
GUN14#..IND |
1 | ||
| 51402-KK040 |
GUN14#..IND |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-KK010 |
GUN14#..IND |
1 | ||
| 51501-KK010 |
GUN14#..IND |
1 | ||
| 51501-KK010 |
GUN14#..IND |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-KK010 |
GUN14#..IND |
1 | ||
| 51502-KK010 |
GUN14#..IND |
1 | ||
| 51502-KK010 |
GUN14#..IND |
1 | ||
| 51503A - BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH | ||||
| 51503-KK020 |
GUN14#..IND |
1 | ||
| 51503-KK020 |
GUN14#..IND |
1 | ||
| 51503-KK020 |
GUN14#..IND |
1 | ||
| 51504 - BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH | ||||
| 51504-KK020 |
GUN14#..IND |
1 | ||
| 51504-KK020 |
GUN14#..IND |
1 | ||
| 51504-KK020 |
GUN14#..IND |
1 | ||
| 51505F - SUPPORT SUB-ASSY, UPPER CONTROL ARM, RH | ||||
| 51505-KK010 |
GUN14#..IND |
1 | ||
| 51505-KK010 |
GUN14#..IND |
1 | ||
| 51505-KK010 |
GUN14#..IND |
1 | ||
| 51506F - SUPPORT SUB-ASSY, UPPER CONTROL ARM, LH | ||||
| 51506-KK010 |
GUN14#..IND |
1 | ||
| 51506-KK010 |
GUN14#..IND |
1 | ||
| 51506-KK010 |
GUN14#..IND |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-KK020 |
GUN14#..IND |
1 | ||
| 51508-KK020 |
GUN14#..IND |
1 | ||
| 51508-KK020 |
GUN14#..IND |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-KK020 |
GUN14#..IND |
1 | ||
| 51509-KK020 |
GUN14#..IND |
1 | ||
| 51509-KK020 |
GUN14#..IND |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-KK010 |
GUN14#..IND |
1 | ||
| 51701-KK010 |
GUN14#..IND |
1 | ||
| 51701-KK010 |
GUN14#..IND |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51701-KK010 |
GUN14#..IND |
1 | ||
| 51701-KK010 |
GUN14#..IND |
1 | ||
| 51701-KK010 |
GUN14#..IND |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-KK010 |
GUN14#..IND |
1 | ||
| 51703-KK010 |
GUN14#..IND |
1 | ||
| 51703-KK010 |
GUN14#..IND |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-KK010 |
GUN14#..IND |
1 | ||
| 51704-KK010 |
GUN14#..IND |
1 | ||
| 51704-KK010 |
GUN14#..IND |
1 | ||
| 51707C - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH | ||||
| 51707-KK010 |
GUN14#..IND |
1 | ||
| 51707-KK010 |
GUN14#..IND |
1 | ||
| 51707-KK010 |
GUN14#..IND |
1 | ||
| 51708A - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH | ||||
| 51708-KK010 |
GUN14#..IND |
1 | ||
| 51708-KK010 |
GUN14#..IND |
1 | ||
| 51708-KK010 |
GUN14#..IND |
1 | ||
| 51709C - BRACKET SUB-ASSY, CAB MOUNTING, NO.5 RH | ||||
| 51709-KK010 |
GUN14#..IND |
1 | ||
| 51709-KK010 |
GUN14#..IND |
1 | ||
| 51709-KK010 |
GUN14#..IND |
1 | ||
| 51709D - BRACKET SUB-ASSY, CAB MOUNTING, NO.5 LH | ||||
| 51709-KK010 |
GUN14#..IND |
1 | ||
| 51709-KK010 |
GUN14#..IND |
1 | ||
| 51709-KK010 |
GUN14#..IND |
1 | ||
| 57081B - BRACKET SUB-ASSY, REAR BUMPER MOUNTING | ||||
| 57081-KK010 |
GUN14#..IND |
2 | ||
| 57081-KK010 |
GUN14#..IND |
2 | ||
| 57081-KK010 |
GUN14#..IND |
2 | ||
| 57771A - PLATE, REAR SPRING, RH | ||||
| 57771-KK010 |
GUN14#..IND |
1 | ||
| 57771-KK010 |
GUN14#..IND |
1 | ||
| 57771-KK010 |
GUN14#..IND |
1 | ||
| 57772A - PLATE, REAR SPRING, LH | ||||
| 57771-KK010 |
GUN14#..IND |
1 | ||
| 57771-KK010 |
GUN14#..IND |
1 | ||
| 57771-KK010 |
GUN14#..IND |
1 | ||
| 77501U - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-KK040 |
GUN14#..IND |
1 | ||
| 77501-KK040 |
GUN14#..IND |
1 | ||
| 77501-KK040 |
GUN14#..IND |
1 | ||
| Common parts | ||||
| 90105-T0060 | ||||
| 90105-T0078 | ||||
| 90105-T0257 | ||||
| 90178-T0015 | ||||
| 90178-T0107 | ||||
ILLUST NO. 1 OF 2(1611- )6FC..20E,20G..MA ; (1709- )20V..MA; (2009- )PHLP..20 ; (2009-
FRAME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17505K - SUPPORT SUB-ASSY, EXHAUST PIPE | ||||
| 17505-0L020 |
1GDFTV,2GDFTV..GUN14#..IND |
1 | ||
| 17505-0L020 |
1GDFTV,2GDFTV..GUN14#..IND |
1 | ||
| 51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY | ||||
| 51021-KK010 |
GUN143;TGN14#..INDP,PHLP;GUN142..GCC,IDN,IND,SA |
1 | ||
| 51021-KK010 |
GUN143;TGN14#..INDP,PHLP;GUN142..GCC,IDN,IND,SA |
1 | ||
| 51021-KK020 |
GUN14#..IND |
1 | ||
| 51021-KK020 |
GUN14#..IND |
1 | ||
| 51025A - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, RH | ||||
| 51025-KK020 |
GUN14#..IND |
1 | ||
| 51025-KK020 |
GUN14#..IND |
1 | ||
| 51026 - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH | ||||
| 51026-KK020 |
GUN14#..IND |
1 | ||
| 51026-KK020 |
GUN14#..IND |
1 | ||
| 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-KK010 |
GUN14#..IND |
1 | ||
| 51035-KK010 |
GUN14#..IND |
1 | ||
| 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-KK010 |
GUN14#..IND |
1 | ||
| 51036-KK010 |
GUN14#..IND |
1 | ||
| 51095A - HOOK SUB-ASSY, TRANSPORT, REAR RH | ||||
| 51095-0K010 |
GUN14#..IND |
1 | ||
| 51095-0K010 |
GUN14#..IND |
1 | ||
| 51096 - HOOK SUB-ASSY, TRANSPORT, REAR LH | ||||
| 51096-0K010 |
GUN14#..IND |
1 | ||
| 51096-0K010 |
GUN14#..IND |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-KK060 |
GUN14#..(5F,6FC)..IND |
1 | ||
| 51001-KK060 |
GUN14#..(5F,6FC)..IND |
1 | ||
| 51110 - EXTENSION ASSY, SIDE RAIL, RH | ||||
| 51110-KK904 |
GUN14#..IND |
1 | ||
| 51110-KK904 |
GUN14#..IND |
1 | ||
| 51120 - EXTENSION ASSY, SIDE RAIL, LH | ||||
| 51122-KK904 |
GUN14#..IND |
1 | ||
| 51122-KK904 |
GUN14#..IND |
1 | ||
| 51201C - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-KK010 |
GUN14#..IND |
1 | ||
| 51201-KK010 |
GUN14#..IND |
1 | ||
| 51202E - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-0K010 |
GUN14#..IND |
1 | ||
| 51202-0K010 |
GUN14#..IND |
1 | ||
| 51203K - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-KK060 |
GUN14#..(5F,6FC)..IND |
1 | ||
| 51203-KK060 |
GUN14#..(5F,6FC)..IND |
1 | ||
| 51204E - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-KK070 |
GUN14#..IND |
1 | ||
| 51204-KK070 |
GUN14#..IND |
1 | ||
| 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-KK010 |
GUN14#..IND |
1 | ||
| 51205-KK010 |
GUN14#..IND |
1 | ||
| 51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6 | ||||
| 51206-KK020 |
GUN14#..IND |
1 | ||
| 51206-KK020 |
GUN14#..IND |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51209-KK010 |
GUN14#..IND |
1 | ||
| 51209-KK010 |
GUN14#..IND |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-KK040 |
GUN14#..IND |
1 | ||
| 51401-KK040 |
GUN14#..IND |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-KK040 |
GUN14#..IND |
1 | ||
| 51402-KK040 |
GUN14#..IND |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-KK010 |
GUN14#..IND |
1 | ||
| 51501-KK010 |
GUN14#..IND |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-KK010 |
GUN14#..IND |
1 | ||
| 51502-KK010 |
GUN14#..IND |
1 | ||
| 51503A - BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH | ||||
| 51503-KK020 |
GUN14#..IND |
1 | ||
| 51503-KK020 |
GUN14#..IND |
1 | ||
| 51504 - BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH | ||||
| 51504-KK020 |
GUN14#..IND |
1 | ||
| 51504-KK020 |
GUN14#..IND |
1 | ||
| 51505F - SUPPORT SUB-ASSY, UPPER CONTROL ARM, RH | ||||
| 51505-KK010 |
GUN14#..IND |
1 | ||
| 51505-KK010 |
GUN14#..IND |
1 | ||
| 51506F - SUPPORT SUB-ASSY, UPPER CONTROL ARM, LH | ||||
| 51506-KK010 |
GUN14#..IND |
1 | ||
| 51506-KK010 |
GUN14#..IND |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-KK020 |
GUN14#..IND |
1 | ||
| 51508-KK020 |
GUN14#..IND |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-KK020 |
GUN14#..IND |
1 | ||
| 51509-KK020 |
GUN14#..IND |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-KK010 |
GUN14#..IND |
1 | ||
| 51701-KK010 |
GUN14#..IND |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51701-KK010 |
GUN14#..IND |
1 | ||
| 51701-KK010 |
GUN14#..IND |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-KK010 |
GUN14#..IND |
1 | ||
| 51703-KK010 |
GUN14#..IND |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-KK010 |
GUN14#..IND |
1 | ||
| 51704-KK010 |
GUN14#..IND |
1 | ||
| 51707C - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH | ||||
| 51707-KK010 |
GUN14#..IND |
1 | ||
| 51707-KK010 |
GUN14#..IND |
1 | ||
| 51708A - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH | ||||
| 51708-KK010 |
GUN14#..IND |
1 | ||
| 51708-KK010 |
GUN14#..IND |
1 | ||
| 51709C - BRACKET SUB-ASSY, CAB MOUNTING, NO.5 RH | ||||
| 51709-KK010 |
GUN14#..IND |
1 | ||
| 51709-KK010 |
GUN14#..IND |
1 | ||
| 51709D - BRACKET SUB-ASSY, CAB MOUNTING, NO.5 LH | ||||
| 51709-KK010 |
GUN14#..IND |
1 | ||
| 51709-KK010 |
GUN14#..IND |
1 | ||
| 57081B - BRACKET SUB-ASSY, REAR BUMPER MOUNTING | ||||
| 57081-KK010 |
GUN14#..IND |
2 | ||
| 57081-KK010 |
GUN14#..IND |
2 | ||
| 57771A - PLATE, REAR SPRING, RH | ||||
| 57771-KK010 |
GUN14#..IND |
1 | ||
| 57771-KK010 |
GUN14#..IND |
1 | ||
| 57772A - PLATE, REAR SPRING, LH | ||||
| 57771-KK010 |
GUN14#..IND |
1 | ||
| 57771-KK010 |
GUN14#..IND |
1 | ||
| 77501U - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-KK040 |
GUN14#..IND |
1 | ||
| 77501-KK040 |
GUN14#..IND |
1 | ||
| Common parts | ||||
| 90105-T0060 | ||||
| 90105-T0078 | ||||
| 90105-T0257 | ||||
| 90178-T0015 | ||||
| 90178-T0107 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
