GUN142R-MXMMYX (2016)

Toyota Innova

Production Apr 2016 - Jan 2020
Engine 2GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1808- )GUN142..GEN..DCR ; (2010- )24G,24Z,27G,27Z,G..IND

Click highlighted areas on diagram

diagram 04371H 37100 37100A 37100B 37100C 37110D 37110E 37230 37230F 37401E 37401E 37401E 37401E 37401E 37401E 37401E 37401E 37401E 37401E 37401E 37401E 4101 9017920018
Part # Description Qty Price
04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
04371-0K110

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN142..(5F,6FC)..(GCC,IND,SA,TH)..DCR;GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 3
04371-0K110

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN142..(5F,6FC)..(GCC,IND,SA,TH)..DCR;GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 3
04371-0K110

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN142..(5F,6FC)..(GCC,IND,SA,TH)..DCR;GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 3
37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-T0084

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
90105-T0084

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
90105-T0084

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90178-T0024

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
90178-T0024

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
90178-T0024

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90201-T0003

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
90201-T0003

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
90201-T0003

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
37110D - NUT (FOR PROPELLER SHAFT)
90178-T0024

GUN142..TH..DCR;GUN143,TGN141..5F..GCC;GUN142..(5F,6FC)..(GCC,IND,SA);GUN143,TGN14#..(20,24,27G,27SR,27V,27Z,28G,28Z)..(GEN,IND,LA)

 4
90178-T0024

GUN142..TH..DCR;GUN143,TGN141..5F..GCC;GUN142..(5F,6FC)..(GCC,IND,SA);GUN143,TGN14#..(20,24,27G,27SR,27V,27Z,28G,28Z)..(GEN,IND,LA)

 4
90178-T0024

GUN142..TH..DCR;GUN143,TGN141..5F..GCC;GUN142..(5F,6FC)..(GCC,IND,SA);GUN143,TGN14#..(20,24,27G,27SR,27V,27Z,28G,28Z)..(GEN,IND,LA)

 4
37110E - WASHER (FOR PROPELLER SHAFT)
90201-T0003

GUN142..TH..DCR;GUN143,TGN141..5F..GCC;GUN142..(5F,6FC)..(GCC,IND,SA);GUN143,TGN14#..(20,24,27G,27SR,27V,27Z,28G,28Z)..(GEN,IND,LA)

 4
90201-T0003

GUN142..TH..DCR;GUN143,TGN141..5F..GCC;GUN142..(5F,6FC)..(GCC,IND,SA);GUN143,TGN14#..(20,24,27G,27SR,27V,27Z,28G,28Z)..(GEN,IND,LA)

 4
90201-T0003

GUN142..TH..DCR;GUN143,TGN141..5F..GCC;GUN142..(5F,6FC)..(GCC,IND,SA);GUN143,TGN14#..(20,24,27G,27SR,27V,27Z,28G,28Z)..(GEN,IND,LA)

 4
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-T0148

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 2
90119-T0148

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 2
90119-T0148

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 2
Common parts
90179-20018
Linked diagrams
4101

(1604- )5F,6FC..IND..DCR,HTWC ; (1709- )20V..MA ; (1711- )20..VN ; (2002-

Click highlighted areas on diagram

diagram 04371H 37100 37100A 37100B 37100C 37110A 37110D 37110E 37230 37230F 37401E 37401E 37401E 37401E 37401E 37401E 37401E 37401E 4101 9017920018
Part # Description Qty Price
04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
04371-0K110

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN142..(5F,6FC)..(GCC,IND,SA,TH)..DCR;GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 3
04371-0K110

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN142..(5F,6FC)..(GCC,IND,SA,TH)..DCR;GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 3
37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-T0084

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
90105-T0084

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90178-T0024

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
90178-T0024

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90201-T0003

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
90201-T0003

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
37110D - NUT (FOR PROPELLER SHAFT)
90178-T0024

GUN142..TH..DCR;GUN143,TGN141..5F..GCC;GUN142..(5F,6FC)..(GCC,IND,SA);GUN143,TGN14#..(20,24,27G,27SR,27V,27Z,28G,28Z)..(GEN,IND,LA)

 4
90178-T0024

GUN142..TH..DCR;GUN143,TGN141..5F..GCC;GUN142..(5F,6FC)..(GCC,IND,SA);GUN143,TGN14#..(20,24,27G,27SR,27V,27Z,28G,28Z)..(GEN,IND,LA)

 4
37110E - WASHER (FOR PROPELLER SHAFT)
90201-T0003

GUN142..TH..DCR;GUN143,TGN141..5F..GCC;GUN142..(5F,6FC)..(GCC,IND,SA);GUN143,TGN14#..(20,24,27G,27SR,27V,27Z,28G,28Z)..(GEN,IND,LA)

 4
90201-T0003

GUN142..TH..DCR;GUN143,TGN141..5F..GCC;GUN142..(5F,6FC)..(GCC,IND,SA);GUN143,TGN14#..(20,24,27G,27SR,27V,27Z,28G,28Z)..(GEN,IND,LA)

 4
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-T0148

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 2
90119-T0148

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 2
Common parts
90179-20018
Linked diagrams
4101

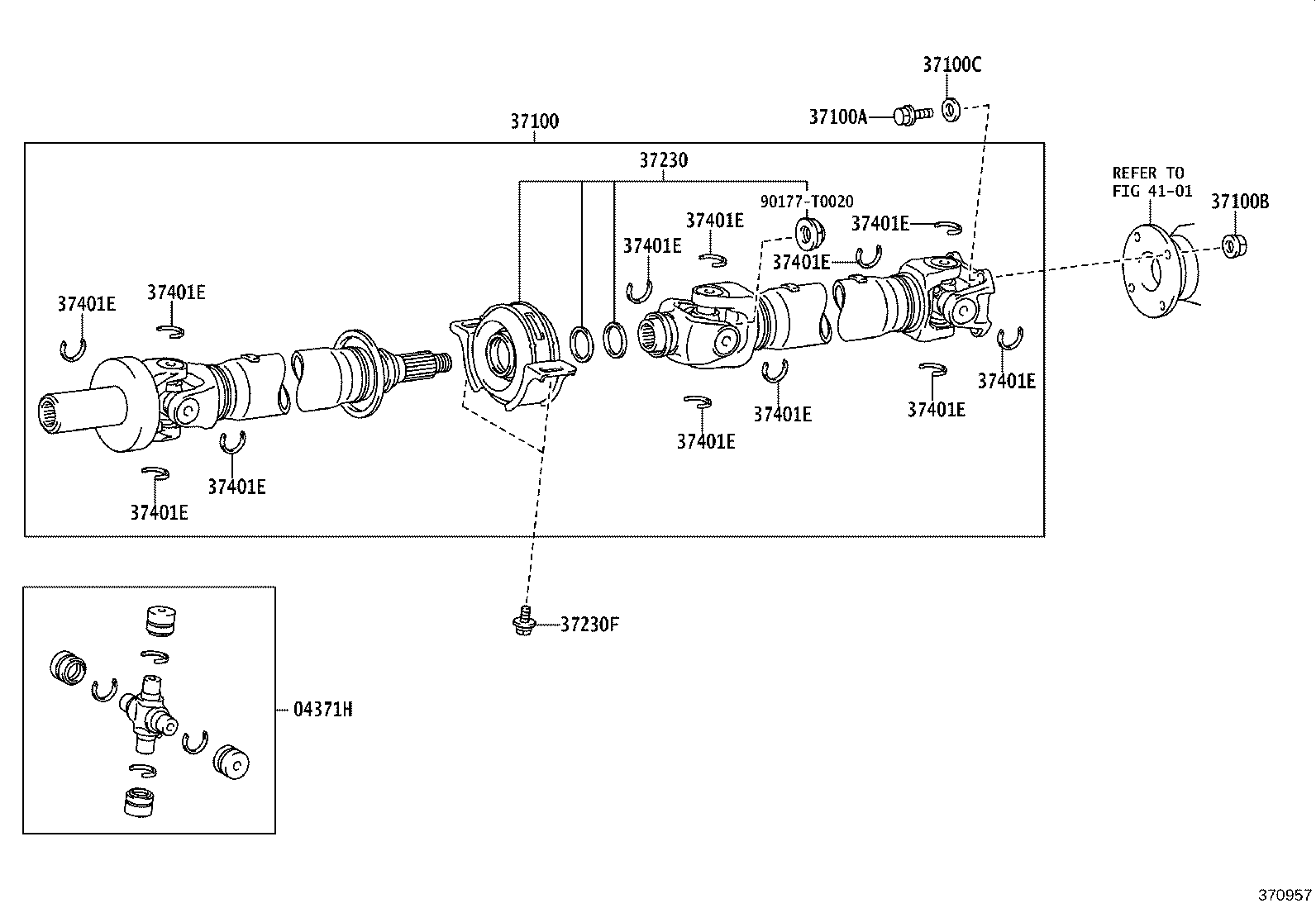

(1709-1912)6F ; (2002- )6F..24V ; (2009- )24

Click highlighted areas on diagram

diagram 04371H 37100 37100A 37100B 37100C 37230 37230F 37401E 37401E 37401E 37401E 37401E 37401E 37401E 37401E 37401E 37401E 37401E 37401E 4101 90177T0020
Part # Description Qty Price
04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
04371-0K110

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN142..(5F,6FC)..(GCC,IND,SA,TH)..DCR;GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 3
37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-T0084

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90178-T0024

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90201-T0003

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 4
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-T0148

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 2
Common parts
90177-T0020
Linked diagrams
4101
