GUN142R-MXMHXX (2020)
Toyota Innova

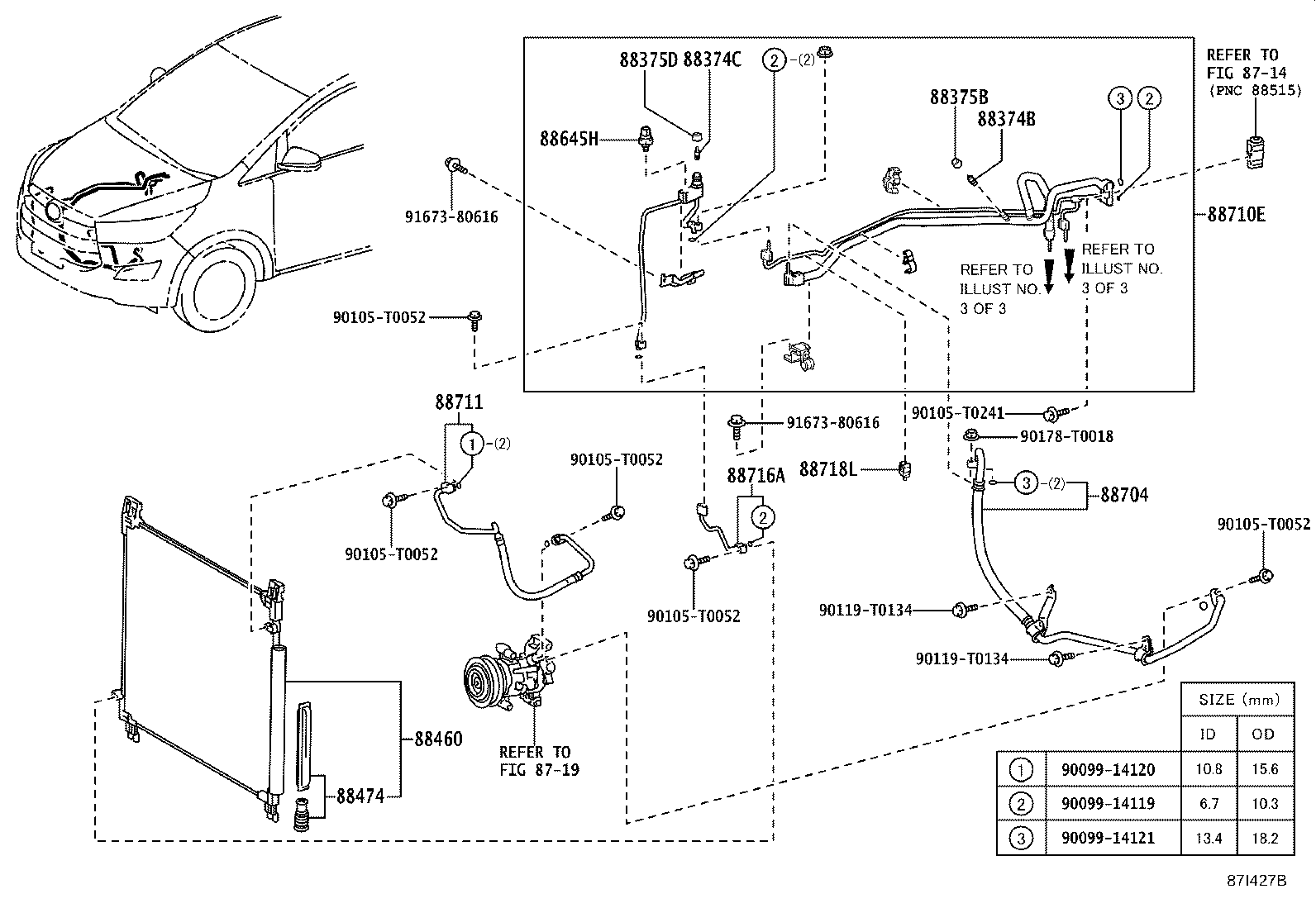

ILLUST NO. 2 OF 3(2011- )GUN142..5F,6FC..IND
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GUN142..G FRONT AIR CONDITIONER-WITHOUT&REAR AIR CONDITIONER-WITHOUT |
1 | ||
| 88374-30010 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..5F..(24G,27,27G)..GCC;GUN142..(6F,6FC)..(GCC,IND,SA,TH)..DCR;GUN14#,TGN141..5F..(24,27SR,28,28G,G)..(GCC,GEN,IND,LA)..(DCR,HTWC) |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GUN142..G FRONT AIR CONDITIONER-WITHOUT&REAR AIR CONDITIONER-WITHOUT |
1 | ||
| 88374-30010 |
GUN142..G REAR AIR CONDITIONER-WITHOUT |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..5F..(24G,27,27G)..GCC;GUN142..(6F,6FC)..(GCC,IND,SA,TH)..DCR;GUN14#,TGN141..5F..(24,27SR,28,28G,G)..(GCC,GEN,IND,LA)..(DCR,HTWC) |
1 | ||
| 88375-30290 |
GUN142..G FRONT AIR CONDITIONER-WITHOUT&REAR AIR CONDITIONER-WITHOUT |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
GUN142..G FRONT AIR CONDITIONER-WITHOUT&REAR AIR CONDITIONER-WITHOUT |
1 | ||
| 88375-30280 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN142..(6F,6FC)..(GCC,IND,SA)..DCR;GUN142,TGN141..5F..(24G,27,27G)..GCC;GUN143,TGN140..PHLP..6FC..(20E,20G,28E,28G,28V);GUN14#,TGN141..5F..(24,27SR,28,28G,G)..(GCC,GEN,IND,LA)..(DCR,HTWC) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K381 |
GUN142,TGN141..IND |
1 | ||
| 88460-0K381 |
GUN142..G FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12010 |
TGN140..RHD..(GEN,MA);GUN143,TGN141..5F..GCC;GUN143,TGN141..(24,27SR,28G,28Z)..(GEN,IND,LA);GUN142..(24,24G,24V,24Z,28V,G)..(GCC,IND,SA)..DCR |
1 | ||
| 88474-12010 |
GUN142..G FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-0K030 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(24,27SR,28,28G)..(GCC,GEN,LA);GUN142..(24,24G,24V,24Z,28V,G)..(GCC,IND,SA)..DCR;GUN143,TGN140..(INDP,PHLP)..6FC..(20E,20G,28E,28G,28V,28Z) |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K780 |
GUN142..IND |
1 | ||
| 88704-0K780 |
GUN142..G FRONT AIR CONDITIONER-WITHOUT&REAR AIR CONDITIONER-WITHOUT |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0KM20 |
GUN142..24 |
1 | ||
| 88710-0KB40 |
GUN142..G REAR AIR CONDITIONER-WITHOUT |
1 | ||
| 88710-0KV00 |
GUN142..(5F,6FC)..IND |
1 | ||
| 88710-0KV00 |
GUN142..G REAR AIR CONDITIONER-WITHOUT |
1 | ||
| 88710-0KU80 |
GUN142..G FRONT AIR CONDITIONER-WITHOUT&REAR AIR CONDITIONER-WITHOUT |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0KC00 |
GUN142..G FRONT AIR CONDITIONER-WITHOUT&REAR AIR CONDITIONER-WITHOUT |
1 | ||
| 88711-0KC00 |
GUN142..IND |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-0KR00 |
GUN142,TGN141..IND |
1 | ||
| 88716-0KR00 |
GUN142..G FRONT AIR CONDITIONER-WITHOUT&REAR AIR CONDITIONER-WITHOUT |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-0KB80 |
GUN142..IND |
1 | ||
| 88718-0KB80 |
GUN142..G FRONT AIR CONDITIONER-WITHOUT&REAR AIR CONDITIONER-WITHOUT |
1 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-T0052 | ||||
| 90105-T0241 | ||||
| 90119-T0134 | ||||
| 90178-T0018 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
