GUN142R-MDTMYT (2015)

Toyota Innova

Production Nov 2015 - Jul 2017
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )GUN14#..RHD

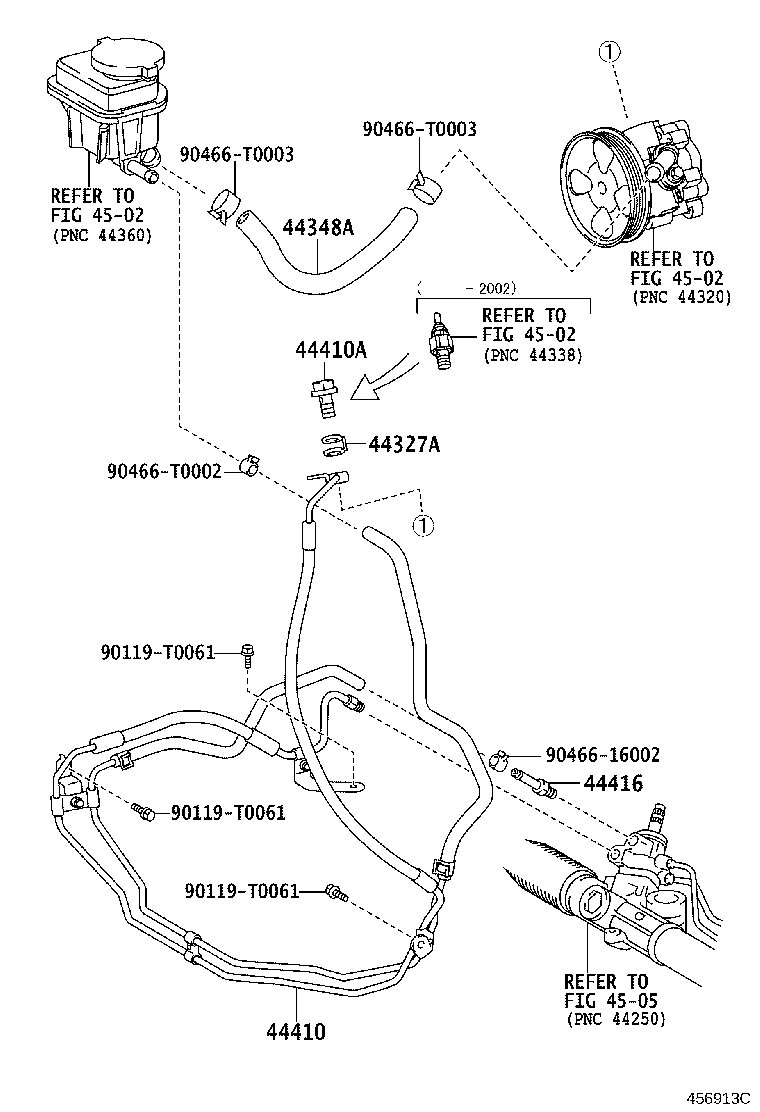

Click highlighted areas on diagram

diagram 44327A 44348A 44410 44410A 44416 4502 4502 4502 4505 90119T0061 90119T0061 90119T0061 9046616002 90466T0002 90466T0003 90466T0003
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
44327-30030

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-0K100

GUN14#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-0K200

GUN14#..IND,SA;GUN142..TH..DCR

 1
44410-0K200

GUN143..TH;GUN142..RHD..(GEN,IDN)

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-0K040

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
44416-0K040

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
Common parts
90119-T0061
90466-16002
90466-T0002
90466-T0003
Linked diagrams
4502
4505
