GUN142R-MDTMYD (2015)

Toyota Innova

Production Nov 2015 - Sep 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )1GDFTV,2GDFTV

Click highlighted areas on diagram

W/O(PRESSURIZED FUEL FILTER)

diagram 11176 2202 2202 2202 2202 2202 2202 2302 23282H 23284C 23286C 23286C 23670 23670A 23679 23695 23699A 23760 23760A 23770 23780 90105T0272 90119T0134 90119T0260 90178T0019 90209T0001 90466T0039 90466T0039 90466T0040 90466T0040 90466T0040 90466T0040 90466T0040 91551F0870 9613241000 9613241000
Part # Description Qty Price
11176 - SEAT, INJECTION NOZZLE
11176-0E010

2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)

 4
23282H - HOSE, FUEL, NO.4
23282-0E010

1GDFTV..GUN143..PHLP;1GDFTV,2GDFTV..GUN14#..GCC,GEN,IDN,SA,TH

 1
23282-0E011

1GDFTV,2GDFTV..GUN14#..IDNP,PHLP

MARK=WHITE

 1
23282-0E012

1GDFTV..GUN143..6FC..GCC;1GDFTV,2GDFTV..GUN14#..IDNP..(24G,24Q,24V,28E,28G,28V,N)..(GEN,IDN,PHL,TH)

MARK=PINK

 1
23284C - HOSE, FUEL, NO.5
23284-0E010

2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)

 1
23286C - HOSE, FUEL, NO.6
23286-0E010

1GDFTV..GUN143..PHLP;1GDFTV,2GDFTV..GUN14#..GCC,GEN,IDN,SA,TH

 1
23286-0E011

1GDFTV,2GDFTV..GUN14#..IDNP

 1
23286C - HOSE, FUEL, NO.6
23286-0E010

1GDFTV..GUN143..PHLP;1GDFTV,2GDFTV..GUN14#..GCC,GEN,IDN,SA,TH

 1
23286-0E011

1GDFTV,2GDFTV..GUN14#..IDNP

 1
23670 - INJECTOR ASSY
23670-09430

2GDFTV..GUN142..IDNP

 4
23670A - RING, O(FOR INJECTOR ASSY)
96721-19017

2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)

 4
23679 - SCREW, INJECTOR FOLLOW
90401-T0007

2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)

 4
23695 - CLAMP, NOZZLE HOLDER, NO.1
23695-11010

1GDFTV,2GDFTV..GUN14#..IDNP

(J)

 4
23695-0E010

2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)

(L)

 4
23699A - SEAT, NOZZLE HOLDER CLAMP
23699-0E010

2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)

 4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23760-0E011

1GDFTV,2GDFTV..GUN14#..IDNP

 1
23760-0E010

1GDFTV..GUN143..PHLP;1GDFTV,2GDFTV..GUN14#..GCC,GEN,IDN,SA,TH

 1
23760A - GASKET
90430-T0017

2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)

 4
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770-0E010

1GDFTV..GUN143..PHLP;1GDFTV,2GDFTV..GUN14#..GCC,GEN,IDN,SA,TH

 1
23770-0E011

1GDFTV,2GDFTV..GUN14#..IDNP

 1
Common parts
90105-T0272
90119-T0134
90119-T0260
90178-T0019
90209-T0001
90466-T0039
90466-T0040
91551-F0870
96132-41000
Linked diagrams
2202
2302

(1511- )1GDFTV..IND ; (1511- )2GDFTV..IND,TH..DCRL ; (1511- )2GDFTV..5F,6F

Click highlighted areas on diagram

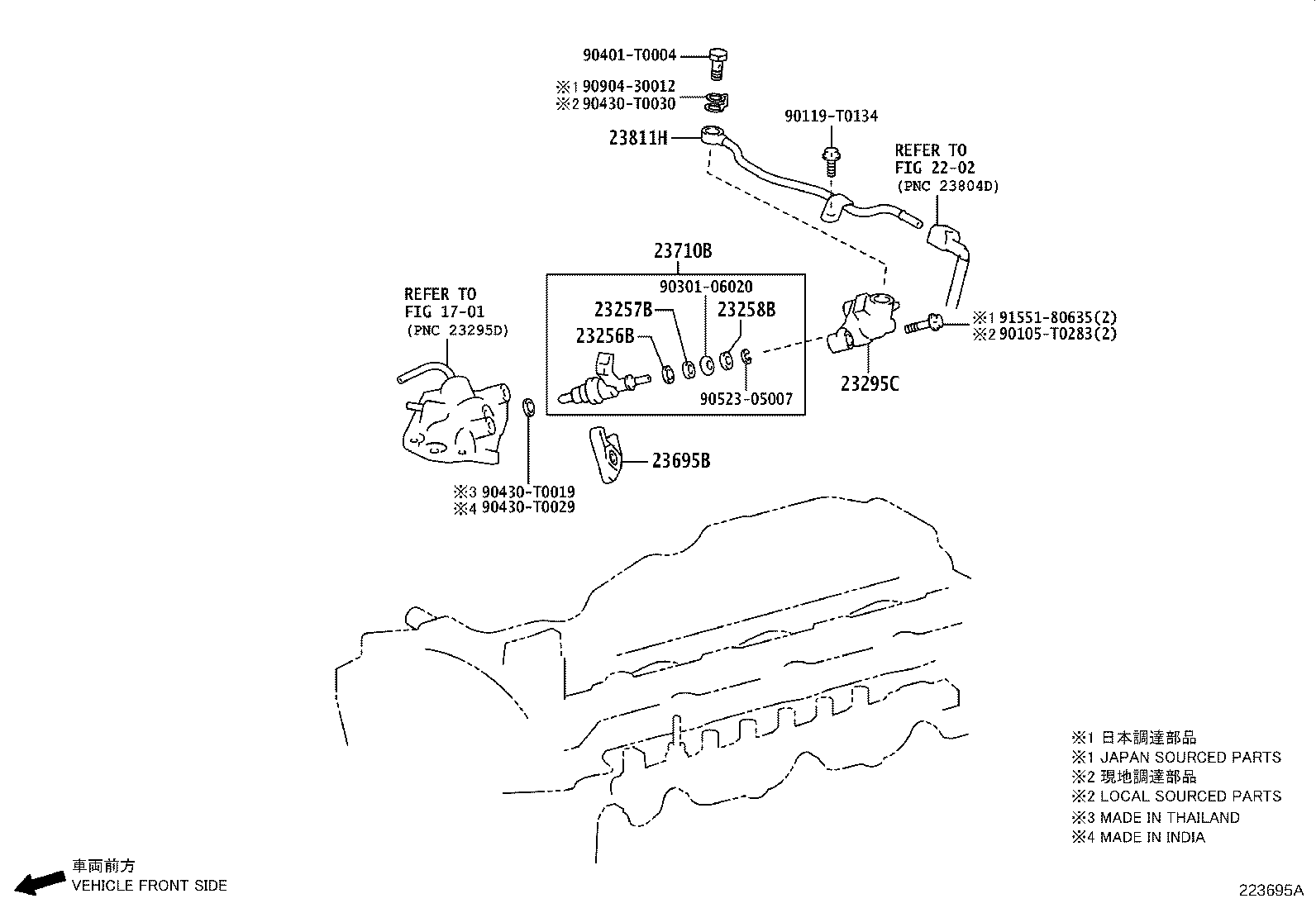

W(FUEL ADDITIONAL INJECTOR)

diagram 1701 2202 23256B 23257B 23258B 23295C 23695B 23710B 23811H 90105T0283 90119T0134 9030106020 90401T0004 90430T0019 90430T0029 90430T0030 9052305007 9090430012 9155180635
Part # Description Qty Price
Common parts
90105-T0283
90119-T0134
90301-06020
90401-T0004
90430-T0019
90430-T0029
90430-T0030
90523-05007
90904-30012
91551-80635
Linked diagrams
1701
2202
