GUN142R-MDTHYD (2015)
Toyota Innova

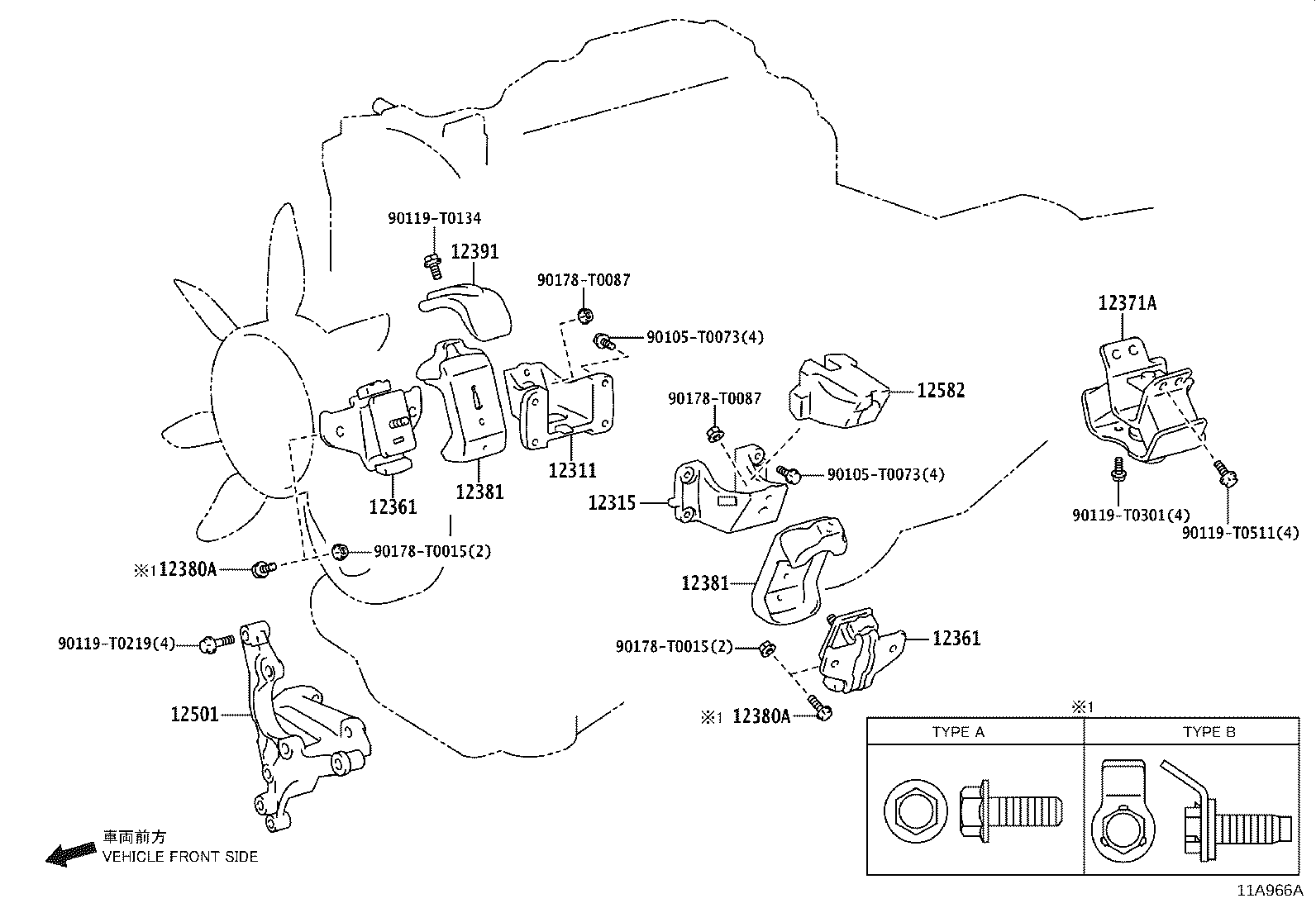

(1511- )2GDFTV..6FC..24 ; (1511- )1GDFTV,2GDFTV..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-0E020 |
2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH) |
1 | ||
| 12311-0E020 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-0E010 |
2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH) |
1 | ||
| 12315-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-0L020 |
1GDFTV,2GDFTV..GUN14# |
2 | ||
| 12361-0L021 |
1GDFTV,2GDFTV..GUN14#..IDNP |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-0L020 |
1GDFTV,2GDFTV..GUN14# |
2 | ||
| 12361-0L021 |
1GDFTV,2GDFTV..GUN14#..IDNP |
2 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-0L200 |
1GDFTV..GUN143..(INDP,PHLP)..6FC;2GDFTV..GUN142..6FC..(24,24G,24V,24Z,28V)..(GCC,IND,SA,TH) |
1 | ||
| 12371-0L200 |
1GDFTV..GUN143..IDNP..6FC;2GDFTV..GUN142..6FC..(GEN,IDN) |
1 | ||
| 12380A - BOLT(FOR ENGINE MOUNTING INSURATOR) | ||||
| 90105-T0174 |
2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH) TYPE A:REFER ILLUST. |
4 | ||
| 90910-03003 |
2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH) TYPE B:REFER ILLUST. |
4 | ||
| 90910-03003 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) TYPE B:REFER ILLUST. |
4 | ||
| 90105-T0174 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) TYPE A:REFER ILLUST. |
4 | ||
| 12380A - BOLT(FOR ENGINE MOUNTING INSURATOR) | ||||
| 90105-T0174 |
2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH) TYPE A:REFER ILLUST. |
4 | ||
| 90910-03003 |
2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH) TYPE B:REFER ILLUST. |
4 | ||
| 90910-03003 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) TYPE B:REFER ILLUST. |
4 | ||
| 90105-T0174 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) TYPE A:REFER ILLUST. |
4 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-0L080 |
1GDFTV,2GDFTV..GUN14# |
2 | ||
| 12381-0L081 |
1GDFTV,2GDFTV..GUN14#..IDNP |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-0L080 |
1GDFTV,2GDFTV..GUN14# |
2 | ||
| 12381-0L081 |
1GDFTV,2GDFTV..GUN14#..IDNP |
2 | ||
| 12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH | ||||
| 12391-0L030 |
1GDFTV,2GDFTV..GUN14#..IDNP |
1 | ||
| 12501 - BRACKET SUB-ASSY, ALTERNATOR | ||||
| 12501-0E011 |
1GDFTV,2GDFTV..GUN14#..IDNP |
1 | ||
| 12501-0E010 |
1GDFTV..GUN143..PHLP;1GDFTV,2GDFTV..GUN14#..GCC,GEN,IDN,SA,TH |
1 | ||
| 12582 - INSULATOR, CYLINDER BLOCK, NO.2 | ||||
| 12582-0E010 |
2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH) |
1 | ||
| 12582-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) |
1 | ||
| Common parts | ||||
| 90105-T0073 | ||||
| 90119-T0134 | ||||
| 90119-T0219 | ||||
| 90119-T0301 | ||||
| 90119-T0511 | ||||
| 90178-T0015 | ||||
| 90178-T0087 | ||||

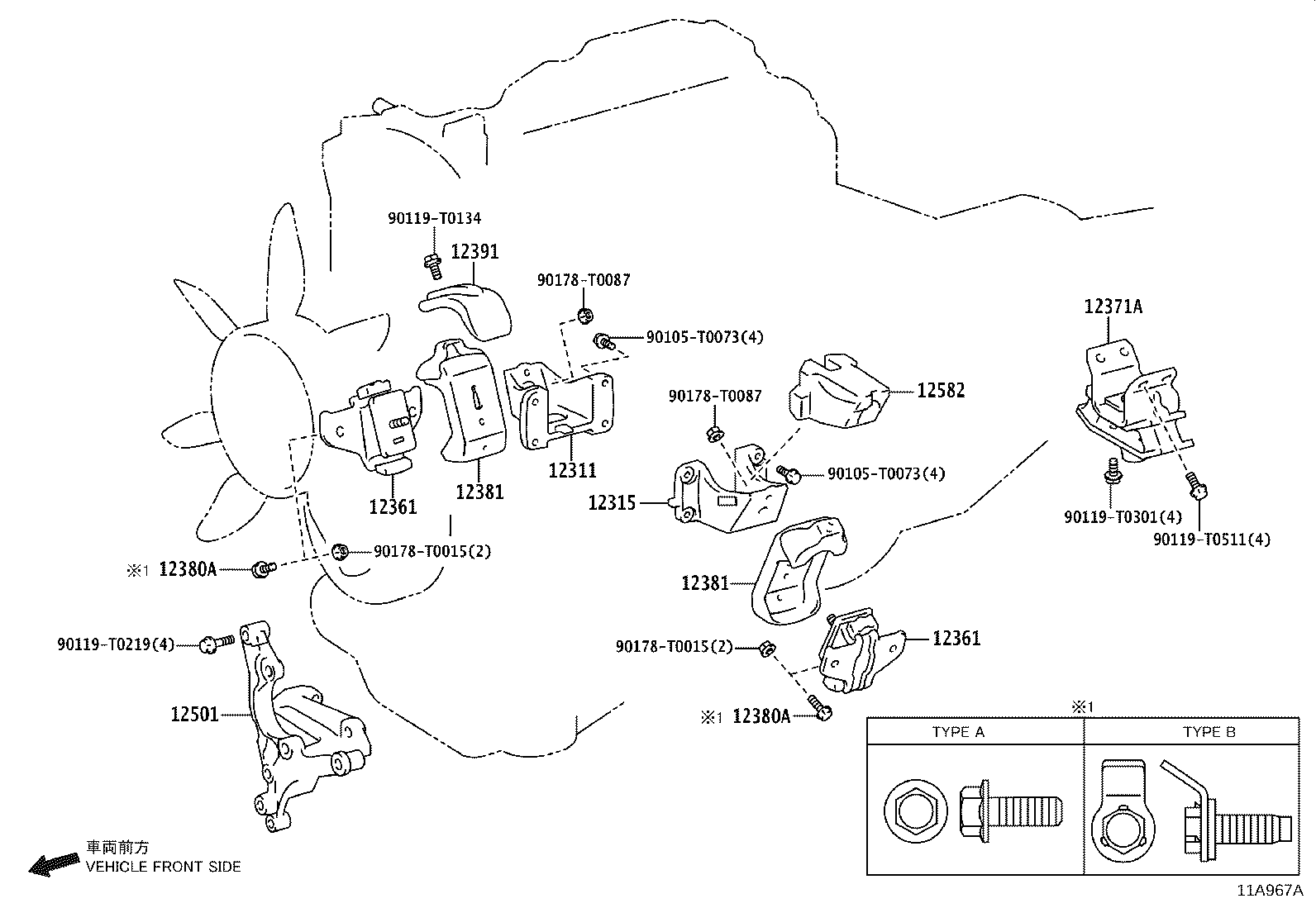

(1511- )1GDFTV,2GDFTV..6FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-0E020 |
2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH) |
1 | ||
| 12311-0E020 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-0E010 |
2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH) |
1 | ||
| 12315-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-0L020 |
1GDFTV,2GDFTV..GUN14# |
2 | ||
| 12361-0L021 |
1GDFTV,2GDFTV..GUN14#..IDNP |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-0L020 |
1GDFTV,2GDFTV..GUN14# |
2 | ||
| 12361-0L021 |
1GDFTV,2GDFTV..GUN14#..IDNP |
2 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-0L200 |
1GDFTV..GUN143..(INDP,PHLP)..6FC;2GDFTV..GUN142..6FC..(24,24G,24V,24Z,28V)..(GCC,IND,SA,TH) |
1 | ||
| 12371-0L200 |
1GDFTV..GUN143..IDNP..6FC;2GDFTV..GUN142..6FC..(GEN,IDN) |
1 | ||
| 12380A - BOLT(FOR ENGINE MOUNTING INSURATOR) | ||||
| 90105-T0174 |
2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH) TYPE A:REFER ILLUST. |
4 | ||
| 90910-03003 |
2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH) TYPE B:REFER ILLUST. |
4 | ||
| 90910-03003 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) TYPE B:REFER ILLUST. |
4 | ||
| 90105-T0174 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) TYPE A:REFER ILLUST. |
4 | ||
| 12380A - BOLT(FOR ENGINE MOUNTING INSURATOR) | ||||
| 90105-T0174 |
2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH) TYPE A:REFER ILLUST. |
4 | ||
| 90910-03003 |
2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH) TYPE B:REFER ILLUST. |
4 | ||
| 90910-03003 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) TYPE B:REFER ILLUST. |
4 | ||
| 90105-T0174 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) TYPE A:REFER ILLUST. |
4 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-0L080 |
1GDFTV,2GDFTV..GUN14# |
2 | ||
| 12381-0L081 |
1GDFTV,2GDFTV..GUN14#..IDNP |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-0L080 |
1GDFTV,2GDFTV..GUN14# |
2 | ||
| 12381-0L081 |
1GDFTV,2GDFTV..GUN14#..IDNP |
2 | ||
| 12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH | ||||
| 12391-0L030 |
1GDFTV,2GDFTV..GUN14#..IDNP |
1 | ||
| 12501 - BRACKET SUB-ASSY, ALTERNATOR | ||||
| 12501-0E011 |
1GDFTV,2GDFTV..GUN14#..IDNP |
1 | ||
| 12501-0E010 |
1GDFTV..GUN143..PHLP;1GDFTV,2GDFTV..GUN14#..GCC,GEN,IDN,SA,TH |
1 | ||
| 12582 - INSULATOR, CYLINDER BLOCK, NO.2 | ||||
| 12582-0E010 |
2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH) |
1 | ||
| 12582-0E010 |
1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N) |
1 | ||
| Common parts | ||||
| 90105-T0073 | ||||
| 90119-T0134 | ||||
| 90119-T0219 | ||||
| 90119-T0301 | ||||
| 90119-T0511 | ||||
| 90178-T0015 | ||||
| 90178-T0087 | ||||
