GUN142R-MDMHYD (2015)

Toyota Innova

Production Nov 2015 - Sep 2020
Engine 2GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

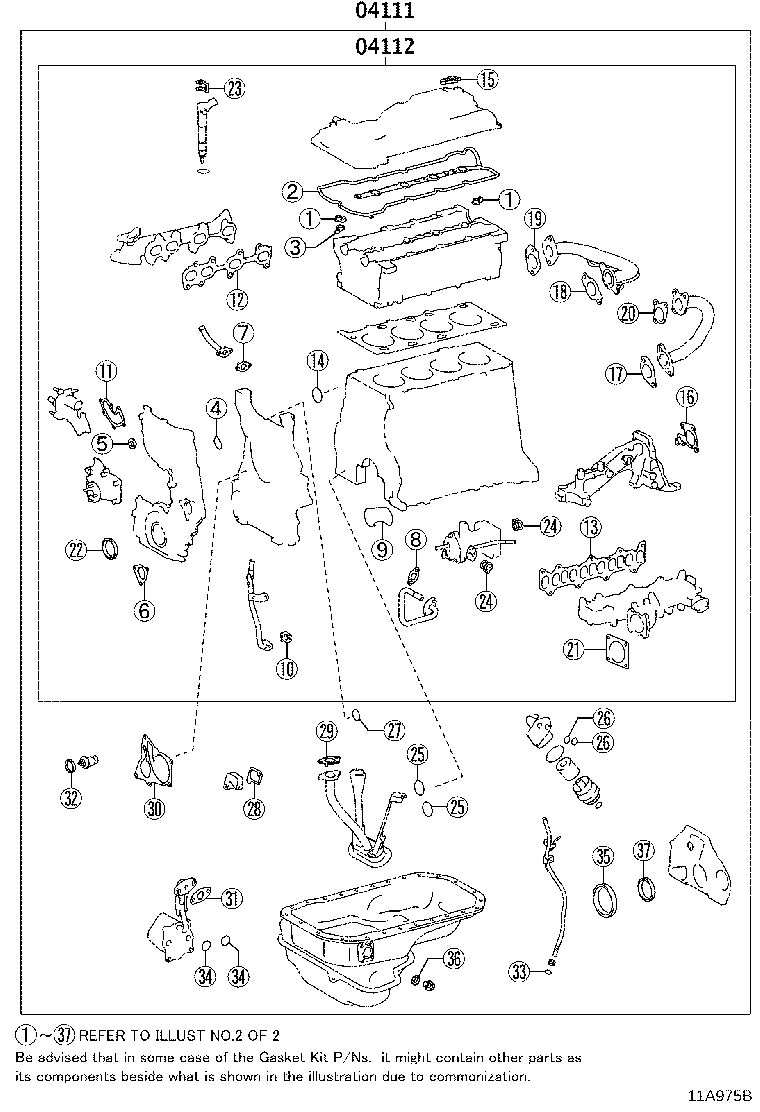

ILLUST NO. 1 OF 2(1511- )2GDFTV..24V..GEN..DCR ; (1511- )2GDFTV..GCC,IDN,SA..DCR

Click highlighted areas on diagram

TYPE B

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-0E030

2GDFTV..GUN142..IDN;2GDFTV..GUN142..28V

TYPE B:REFER ILLUST.

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-0E030

2GDFTV..GUN142..IDN;2GDFTV..GUN142..28V

TYPE B:REFER ILLUST.

 1

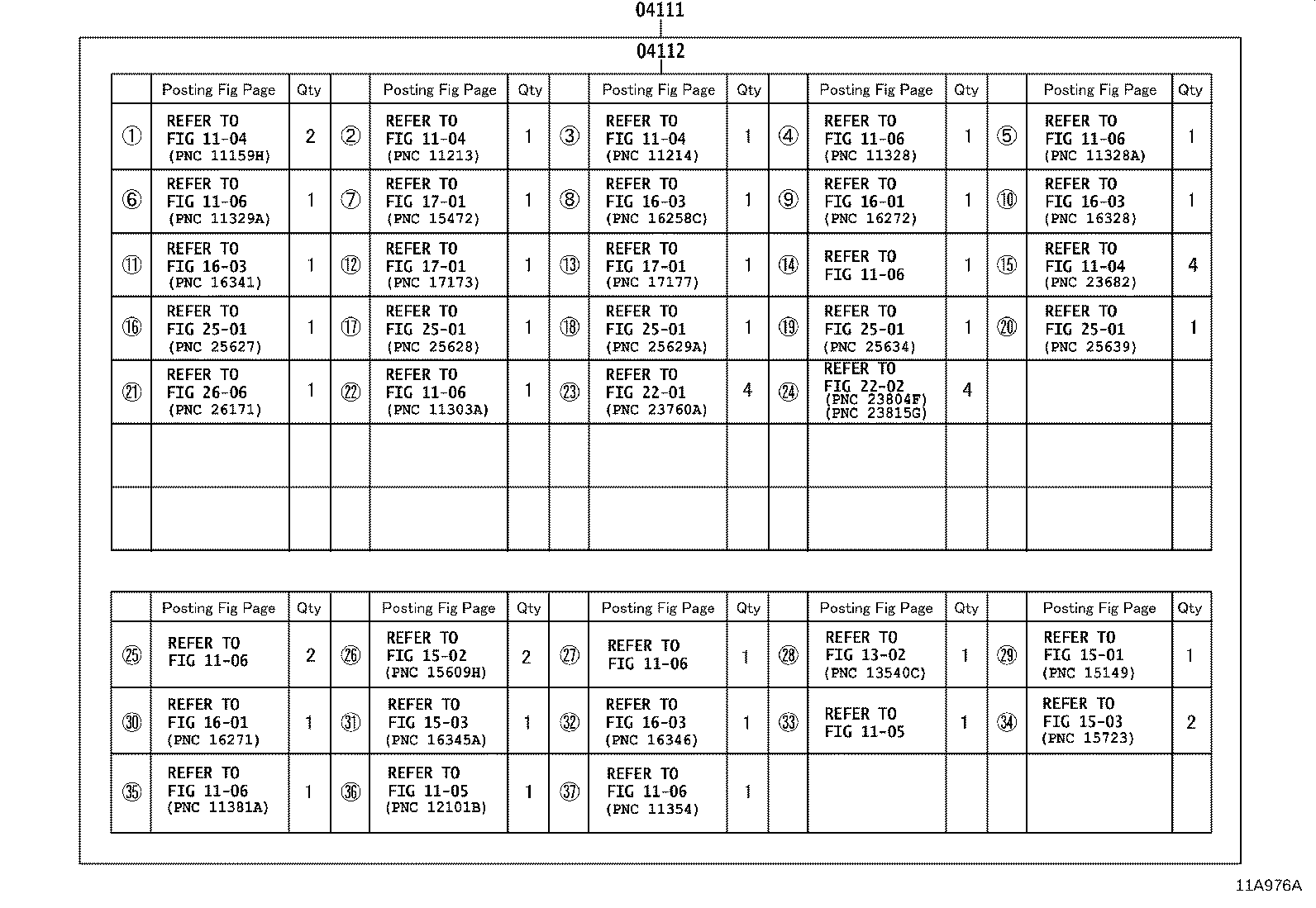

ILLUST NO. 2 OF 2(1511- )2GDFTV..24V..GEN..DCR ; (1511- )2GDFTV..GCC,IDN,SA..DCR

Click highlighted areas on diagram

TYPE B

diagram 04111 04112 1104 1104 1104 1104 1105 1105 1106 1106 1106 1106 1106 1106 1106 1106 1106 1302 1501 1502 1503 1503 1601 1601 1603 1603 1603 1603 1701 1701 1701 2201 2202 2501 2501 2501 2501 2501 2606
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-0E030

2GDFTV..GUN142..IDN;2GDFTV..GUN142..28V

TYPE B:REFER ILLUST.

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-0E030

2GDFTV..GUN142..IDN;2GDFTV..GUN142..28V

TYPE B:REFER ILLUST.

 1
Linked diagrams
1104
1105
1106
1302
1501
1502
1503
1601
1603
1701
2201
2202
2501
2606
