GUN142L-MDTLYV (2015)
Toyota Innova
(1511- )20E..VN ; (1511- )LHD..20,20G,20V; (1511- )GUN14#,TGN141..LHD..GC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-KK040 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53201-KK040 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53202-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 53384-0K040 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 53384-0K040 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
2 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53203-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-KK020 |
TGN141..5F..27G..GCC;GUN142,TGN140..GCC,GEN,IND,SA;GUN143,TGN141..(27G,27SR,27V,27Z,28G,28Z)..(IND,LA) |
1 | ||
| 53205-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-KK040 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53208-KK040 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53218D - EXTENSION, HOOD LOCK BRACE | ||||
| 53218-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53218-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER | ||||
| 53257-35030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53257-35030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH | ||||
| 53268-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53268-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH | ||||
| 53269-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53269-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53275 - BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH | ||||
| 53275-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53275-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53276 - BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH | ||||
| 53276-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53276-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53279 - BRACKET, HOOD LOCK SUPPORT BRACE, UPPER | ||||
| 53279-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53279-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-KK010 |
GUN143..IDNP..(PHL,TH);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 53293-KK160 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-KK010 |
GUN143..IDNP..(PHL,TH);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 53293-KK160 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-KK160 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 53294-KK010 |
GUN143..IDNP..(PHL,TH);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-KK160 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 53294-KK010 |
GUN143..IDNP..(PHL,TH);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-KK210 |
GUN142..GCC |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-KK010 |
GUN142..GCC;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53704B - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53704-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53707F - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH | ||||
| 53707-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53707-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53708C - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH | ||||
| 53708-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53708-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53713-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53714-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53715E - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-0K030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53715-0K030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53716E - EXTENSION, FRONT FENDER APRON, REAR LH | ||||
| 53716-0K030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53716-0K030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53717-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53717-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53718-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53731H - PATCH, FRONT FENDER APRON, RH | ||||
| 53731-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53731-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53732B - PATCH, FRONT FENDER APRON, LH | ||||
| 53732-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53732-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53735F - SEAL, FRONT FENDER APRON, UPPER RH | ||||
| 53735-KK030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53735-KK030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53736L - SEAL, FRONT FENDER APRON, UPPER LH | ||||
| 53735-KK030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53735-KK030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53741B - PLATE, FENDER APRON REINFORCE, RH | ||||
| 53741-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53741-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53742B - PLATE, FENDER APRON REINFORCE, LH | ||||
| 53742-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53742-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53743B - REINFORCEMENT, FRONT FENDER APRON, FRONT RH | ||||
| 53743-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53743-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53744B - REINFORCEMENT, FRONT FENDER APRON, FRONT LH | ||||
| 53744-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53744-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53885H - SEAL, FENDER APRON MUDGUARD, RH | ||||
| 53885-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53885-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53886B - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53885-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53885-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-KK020 |
GUN142..6FC..GCC |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-KK070 |
GUN142,TGN141..LHD..(24,27SR) |
1 | ||
| 55210A - CLIP | ||||
| 90467-T0004A0 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) IVORY |
2 | ||
| 90467-T0004A0 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) IVORY |
2 | ||
| 55210C - CLIP | ||||
| 90467-T0032 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
7 | ||
| 90467-T0032 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
7 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-KK010 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 55223C - CLIP | ||||
| 90467-T0032 |
GUN142..GEN,IDN;GUN143..IDNP..(PHL,TH);TGN140..RHD..IDNP..(20E,20Q,20V);TGN14#..IDNP..6FC..(20G,27)..(GCC,PHL);GUN143,TGN141..6FC..(27G,27SRV,28,28G,28V)..(GCC,LA) |
2 | ||
| 90467-T0032 |
GUN142..GCC,SA;TGN141..5F..27G..GCC |
2 | ||
| 57161C - MEMBER, FRONT CROSS | ||||
| 57161-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 57161-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 57225 - BRACE, FRONT MOUNTING BRACKET, RH | ||||
| 57225-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 57225-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 57226 - BRACE, FRONT MOUNTING BRACKET, LH | ||||
| 57226-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 57226-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90269-03037 | ||||
| 90467-08228 | ||||
| 90467-T0042 | ||||
| 90541-T0006 | ||||
(1511- )TGN140..RHD ; (1511- )5F..24V,N..IND..DCR ; (1511- )24,24G,24Z,27G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-KK040 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53201-KK040 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53202-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 53384-0K040 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 53384-0K040 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
2 | ||

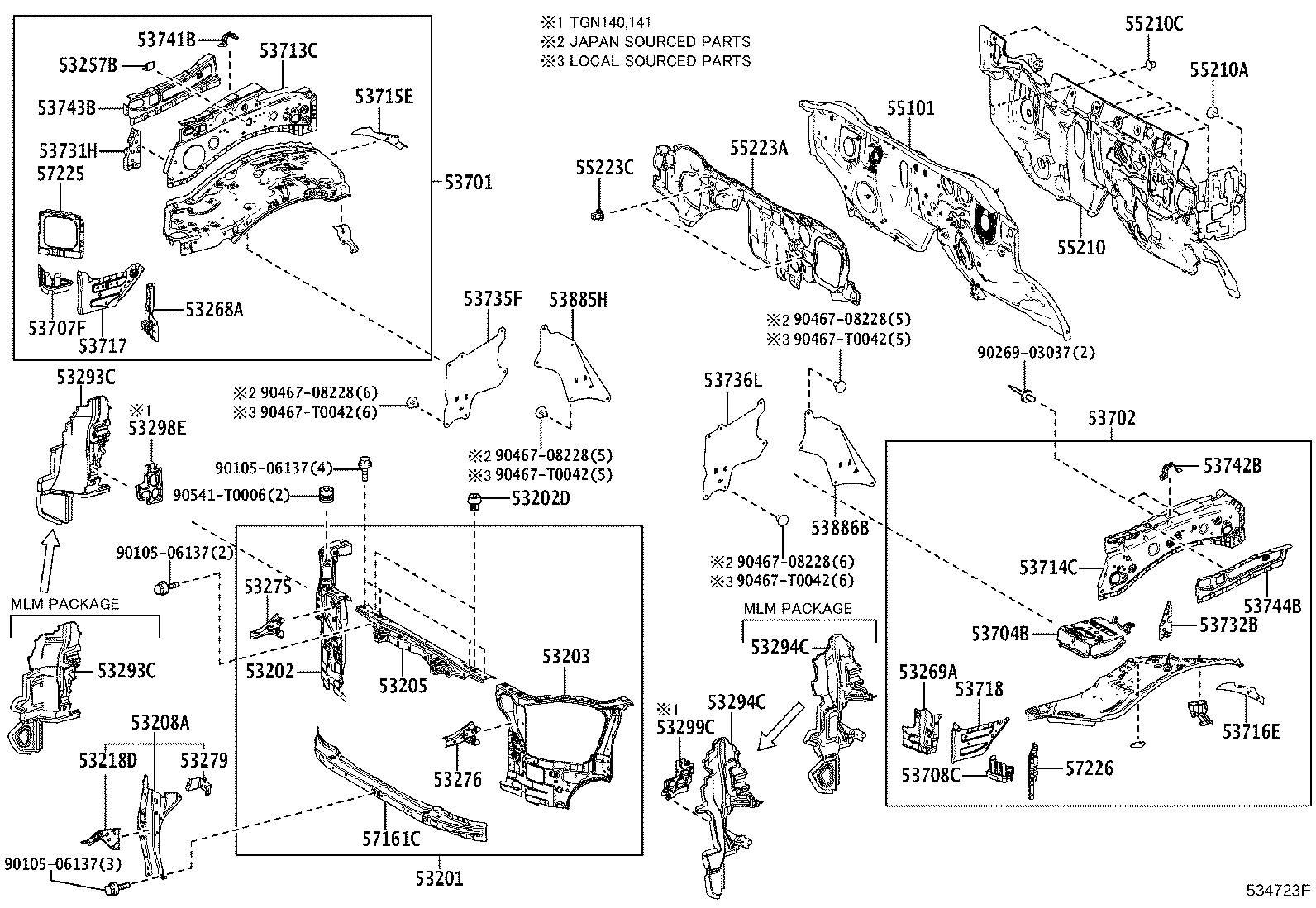

| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53203-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-KK020 |
TGN141..5F..27G..GCC;GUN142,TGN140..GCC,GEN,IND,SA;GUN143,TGN141..(27G,27SR,27V,27Z,28G,28Z)..(IND,LA) |
1 | ||
| 53205-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-KK040 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53208-KK040 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53218D - EXTENSION, HOOD LOCK BRACE | ||||
| 53218-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53218-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER | ||||
| 53257-35030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53257-35030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH | ||||
| 53268-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53268-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH | ||||
| 53269-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53269-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53275 - BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH | ||||
| 53275-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53275-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53276 - BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH | ||||
| 53276-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53276-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53279 - BRACKET, HOOD LOCK SUPPORT BRACE, UPPER | ||||
| 53279-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53279-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-KK010 |
GUN143..IDNP..(PHL,TH);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 53293-KK160 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-KK010 |
GUN143..IDNP..(PHL,TH);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 53293-KK160 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-KK160 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 53294-KK010 |
GUN143..IDNP..(PHL,TH);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-KK160 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 53294-KK010 |
GUN143..IDNP..(PHL,TH);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-KK210 |
GUN142..GCC |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-KK010 |
GUN142..GCC;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53704B - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53704-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53707F - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH | ||||
| 53707-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53707-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53708C - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH | ||||
| 53708-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53708-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53713-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53714-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53715E - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-0K030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53715-0K030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53716E - EXTENSION, FRONT FENDER APRON, REAR LH | ||||
| 53716-0K030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53716-0K030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53717-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53717-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53718-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53731H - PATCH, FRONT FENDER APRON, RH | ||||
| 53731-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53731-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53732B - PATCH, FRONT FENDER APRON, LH | ||||
| 53732-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53732-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53735F - SEAL, FRONT FENDER APRON, UPPER RH | ||||
| 53735-KK030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53735-KK030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53736L - SEAL, FRONT FENDER APRON, UPPER LH | ||||
| 53735-KK030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53735-KK030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53741B - PLATE, FENDER APRON REINFORCE, RH | ||||
| 53741-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53741-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53742B - PLATE, FENDER APRON REINFORCE, LH | ||||
| 53742-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53742-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53743B - REINFORCEMENT, FRONT FENDER APRON, FRONT RH | ||||
| 53743-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53743-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53744B - REINFORCEMENT, FRONT FENDER APRON, FRONT LH | ||||
| 53744-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53744-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53885H - SEAL, FENDER APRON MUDGUARD, RH | ||||
| 53885-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53885-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53886B - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53885-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53885-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-KK020 |
GUN142..6FC..GCC |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-KK070 |
GUN142,TGN141..LHD..(24,27SR) |
1 | ||
| 55210A - CLIP | ||||
| 90467-T0004A0 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) IVORY |
2 | ||
| 90467-T0004A0 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) IVORY |
2 | ||
| 55210C - CLIP | ||||
| 90467-T0032 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
7 | ||
| 90467-T0032 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
7 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-KK010 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 55223C - CLIP | ||||
| 90467-T0032 |
GUN142..GEN,IDN;GUN143..IDNP..(PHL,TH);TGN140..RHD..IDNP..(20E,20Q,20V);TGN14#..IDNP..6FC..(20G,27)..(GCC,PHL);GUN143,TGN141..6FC..(27G,27SRV,28,28G,28V)..(GCC,LA) |
2 | ||
| 90467-T0032 |
GUN142..GCC,SA;TGN141..5F..27G..GCC |
2 | ||
| 57161C - MEMBER, FRONT CROSS | ||||
| 57161-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 57161-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 57225 - BRACE, FRONT MOUNTING BRACKET, RH | ||||
| 57225-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 57225-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 57226 - BRACE, FRONT MOUNTING BRACKET, LH | ||||
| 57226-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 57226-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90269-03037 | ||||
| 90467-08228 | ||||
| 90467-T0042 | ||||
| 90541-T0006 | ||||
(1511- )5F..DCRL ; (1511- )5F..IDN..DCR ;(1511- )6FC..20E,20V..MA ; (1511
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-KK040 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53201-KK040 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53201-KK040 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53201-KK040 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53202-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53202-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53202-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 53384-0K040 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 53384-0K040 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 53384-0K040 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
2 | ||
| 53384-0K040 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
2 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53203-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53203-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53203-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-KK020 |
TGN141..5F..27G..GCC;GUN142,TGN140..GCC,GEN,IND,SA;GUN143,TGN141..(27G,27SR,27V,27Z,28G,28Z)..(IND,LA) |
1 | ||
| 53205-KK020 |
TGN141..5F..27G..GCC;GUN142,TGN140..GCC,GEN,IND,SA;GUN143,TGN141..(27G,27SR,27V,27Z,28G,28Z)..(IND,LA) |
1 | ||
| 53205-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53205-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-KK040 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53208-KK040 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53208-KK040 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53208-KK040 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53218D - EXTENSION, HOOD LOCK BRACE | ||||
| 53218-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53218-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53218-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53218-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER | ||||
| 53257-35030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53257-35030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53257-35030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53257-35030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH | ||||
| 53268-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53268-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53268-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53268-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH | ||||
| 53269-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53269-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53269-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53269-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53275 - BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH | ||||
| 53275-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53275-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53275-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53275-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53276 - BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH | ||||
| 53276-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53276-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53276-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53276-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53279 - BRACKET, HOOD LOCK SUPPORT BRACE, UPPER | ||||
| 53279-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53279-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53279-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53279-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-KK010 |
GUN143..IDNP..(PHL,TH);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 53293-KK010 |
GUN143..IDNP..(PHL,TH);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 53293-KK160 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 53293-KK160 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-KK010 |
GUN143..IDNP..(PHL,TH);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 53293-KK010 |
GUN143..IDNP..(PHL,TH);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 53293-KK160 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 53293-KK160 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-KK160 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 53294-KK160 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 53294-KK010 |
GUN143..IDNP..(PHL,TH);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 53294-KK010 |
GUN143..IDNP..(PHL,TH);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-KK160 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 53294-KK160 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 53294-KK010 |
GUN143..IDNP..(PHL,TH);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 53294-KK010 |
GUN143..IDNP..(PHL,TH);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-KK210 |
GUN142..GCC |
1 | ||
| 53701-KK210 |
GUN142..GCC |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-KK010 |
GUN142..GCC;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53702-KK010 |
GUN142..GCC;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53704B - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53704-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53704-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53704-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53707F - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH | ||||
| 53707-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53707-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53707-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53707-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53708C - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH | ||||
| 53708-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53708-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53708-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53708-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53713-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53713-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53713-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53714-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53714-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53714-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53715E - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-0K030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53715-0K030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53715-0K030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53715-0K030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53716E - EXTENSION, FRONT FENDER APRON, REAR LH | ||||
| 53716-0K030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53716-0K030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53716-0K030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53716-0K030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53717-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53717-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53717-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53717-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53718-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53718-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53718-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53731H - PATCH, FRONT FENDER APRON, RH | ||||
| 53731-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53731-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53731-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53731-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53732B - PATCH, FRONT FENDER APRON, LH | ||||
| 53732-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53732-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53732-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53732-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53735F - SEAL, FRONT FENDER APRON, UPPER RH | ||||
| 53735-KK030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53735-KK030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53735-KK030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53735-KK030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53736L - SEAL, FRONT FENDER APRON, UPPER LH | ||||
| 53735-KK030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53735-KK030 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53735-KK030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53735-KK030 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53741B - PLATE, FENDER APRON REINFORCE, RH | ||||
| 53741-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53741-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53741-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53741-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53742B - PLATE, FENDER APRON REINFORCE, LH | ||||
| 53742-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53742-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53742-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53742-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53743B - REINFORCEMENT, FRONT FENDER APRON, FRONT RH | ||||
| 53743-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53743-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53743-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53743-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53744B - REINFORCEMENT, FRONT FENDER APRON, FRONT LH | ||||
| 53744-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53744-KK020 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53744-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53744-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53885H - SEAL, FENDER APRON MUDGUARD, RH | ||||
| 53885-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53885-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53885-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53885-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53886B - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53885-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53885-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53885-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 53885-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-KK020 |
GUN142..6FC..GCC |
1 | ||
| 55101-KK020 |
GUN142..6FC..GCC |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-KK070 |
GUN142,TGN141..LHD..(24,27SR) |
1 | ||
| 55210-KK070 |
GUN142,TGN141..LHD..(24,27SR) |
1 | ||
| 55210A - CLIP | ||||
| 90467-T0004A0 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) IVORY |
2 | ||
| 90467-T0004A0 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) IVORY |
2 | ||
| 90467-T0004A0 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) IVORY |
2 | ||
| 90467-T0004A0 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) IVORY |
2 | ||
| 55210C - CLIP | ||||
| 90467-T0032 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
7 | ||
| 90467-T0032 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
7 | ||
| 90467-T0032 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
7 | ||
| 90467-T0032 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
7 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-KK010 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 55223-KK010 |
GUN142..GCC;TGN141..5F..27G..GCC |
1 | ||
| 55223C - CLIP | ||||
| 90467-T0032 |
GUN142..GEN,IDN;GUN143..IDNP..(PHL,TH);TGN140..RHD..IDNP..(20E,20Q,20V);TGN14#..IDNP..6FC..(20G,27)..(GCC,PHL);GUN143,TGN141..6FC..(27G,27SRV,28,28G,28V)..(GCC,LA) |
2 | ||
| 90467-T0032 |
GUN142..GEN,IDN;GUN143..IDNP..(PHL,TH);TGN140..RHD..IDNP..(20E,20Q,20V);TGN14#..IDNP..6FC..(20G,27)..(GCC,PHL);GUN143,TGN141..6FC..(27G,27SRV,28,28G,28V)..(GCC,LA) |
2 | ||
| 90467-T0032 |
GUN142..GCC,SA;TGN141..5F..27G..GCC |
2 | ||
| 90467-T0032 |
GUN142..GCC,SA;TGN141..5F..27G..GCC |
2 | ||
| 57161C - MEMBER, FRONT CROSS | ||||
| 57161-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 57161-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 57161-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 57161-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 57225 - BRACE, FRONT MOUNTING BRACKET, RH | ||||
| 57225-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 57225-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 57225-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 57225-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 57226 - BRACE, FRONT MOUNTING BRACKET, LH | ||||
| 57226-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 57226-KK010 |
GUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR) |
1 | ||
| 57226-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 57226-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90269-03037 | ||||
| 90467-08228 | ||||
| 90467-T0042 | ||||
| 90541-T0006 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
