Toyota Innova GUN142 VACUUM PIPING

GUN142L-MDTLYV (2015)

Toyota Innova

Production Nov 2015 - Jul 2018

Engine 2GDFTV

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1511- )2GDFTV..GCC,GEN,IDN,MA,SA

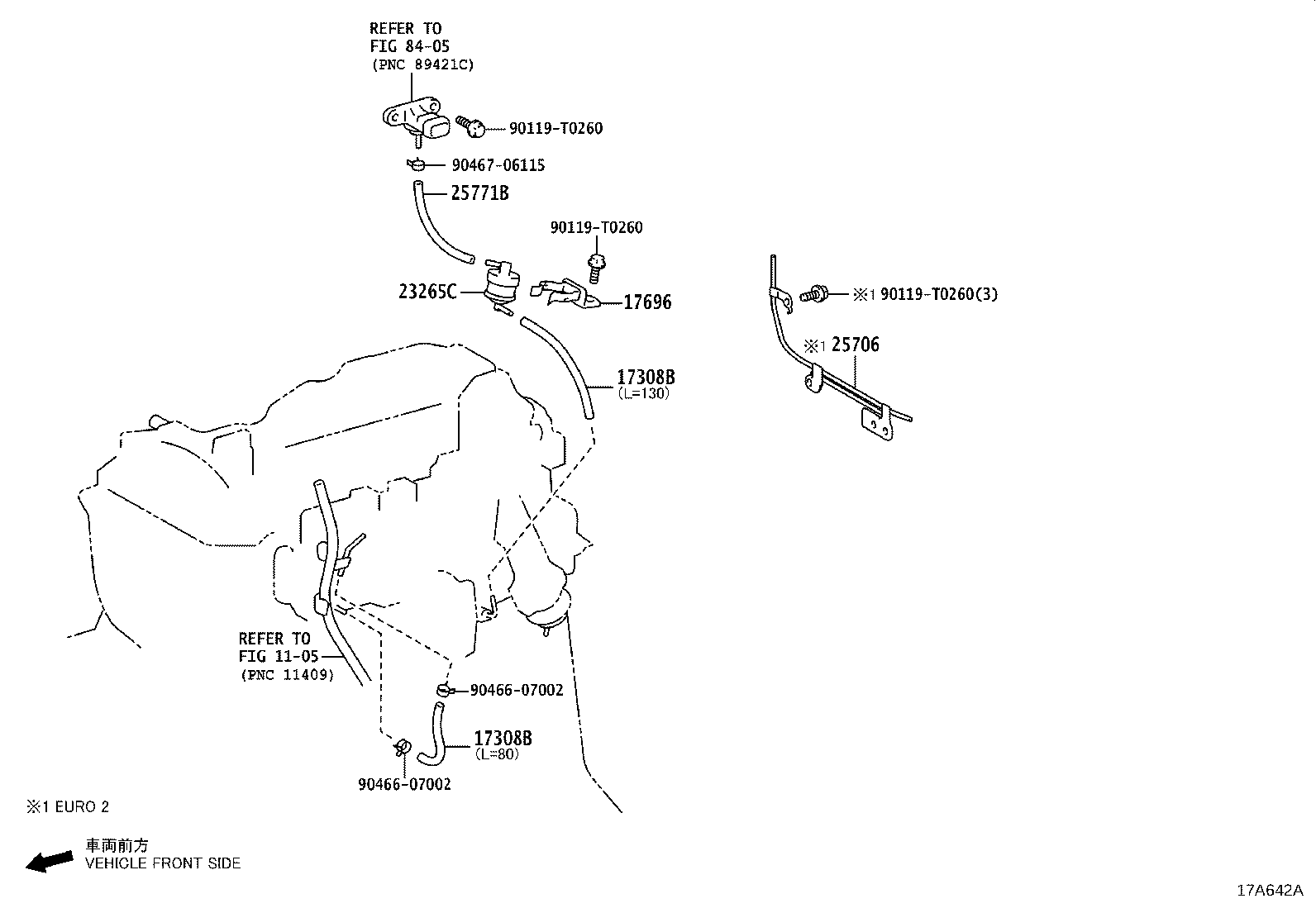

Click highlighted areas on diagram

EURO 0&2

Part #	Description	Period	Qty
17308B - HOSE SUB-ASSY, VACUUM
90999-92002	2GDFTV..GUN142..GCC,SA L=90	11/2015 - 08/2017	2
90999-92002	2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH) L=80,L=130	11/2015 - 08/2020	1
90999-92002	1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) L=80,L=130	11/2015 - 12/2999	1
17308B - HOSE SUB-ASSY, VACUUM
90999-92002	2GDFTV..GUN142..GCC,SA L=90	11/2015 - 08/2017	2
90999-92002	2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH) L=80,L=130	11/2015 - 08/2020	1
90999-92002	1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) L=80,L=130	11/2015 - 12/2999	1
17696 - BRACKET, GAS FILTER
17696-0E010	2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)	11/2015 - 08/2020	1
17696-0E010	1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N)	11/2015 - 12/2999	1
23265C - FILTER, GAS
90917-11044	1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	1
90917-11044	2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)	11/2015 - 08/2020	1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-0E010	2GDFTV..GUN142..IDN;1GDFTV..GUN143..6FC..(GCC,TH)	11/2015 - 08/2020	1
25706-0E010	1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N)	11/2015 - 12/2999	1
25771B - HOSE, VACCUM TRANSMITTING, NO.2
25771-0E020	2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)	11/2015 - 08/2020	1
25771-0E020	1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	1
Common parts
90119-T0260
90466-07002
90467-06115
Linked diagrams
1105
8405

ILLUST NO. 1 OF 2(1511- )1GDFTV ; (1511- )2GDFTV..GCC,IDN..DCR ; (1511- )2GDFTV..24V..GEN..

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-T0260
90178-T0007
90466-T0022
90466-T0039
96132-41000
Linked diagrams
1104
8401

ILLUST NO. 2 OF 2(1511- )1GDFTV ; (1511- )2GDFTV..LHD..DCR; (1511- )2GDFTV..RHD..IDNP,INDP

Click highlighted areas on diagram

Part #	Description	Period	Qty
17308B - HOSE SUB-ASSY, VACUUM
90999-92002	2GDFTV..GUN142..GCC,SA L=90	11/2015 - 08/2017	2
90999-92002	2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH) L=80,L=130	11/2015 - 08/2020	1
90999-92002	1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) L=80,L=130	11/2015 - 12/2999	1
17308B - HOSE SUB-ASSY, VACUUM
90999-92002	2GDFTV..GUN142..GCC,SA L=90	11/2015 - 08/2017	2
90999-92002	2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH) L=80,L=130	11/2015 - 08/2020	1
90999-92002	1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) L=80,L=130	11/2015 - 12/2999	1
17308B - HOSE SUB-ASSY, VACUUM
90999-92002	2GDFTV..GUN142..GCC,SA L=90	11/2015 - 08/2017	2
90999-92002	2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH) L=80,L=130	11/2015 - 08/2020	1
90999-92002	1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) L=80,L=130	11/2015 - 12/2999	1
17308B - HOSE SUB-ASSY, VACUUM
90999-92002	2GDFTV..GUN142..GCC,SA L=90	11/2015 - 08/2017	2
90999-92002	2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH) L=80,L=130	11/2015 - 08/2020	1
90999-92002	1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) L=80,L=130	11/2015 - 12/2999	1
17308B - HOSE SUB-ASSY, VACUUM
90999-92002	2GDFTV..GUN142..GCC,SA L=90	11/2015 - 08/2017	2
90999-92002	2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH) L=80,L=130	11/2015 - 08/2020	1
90999-92002	1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) L=80,L=130	11/2015 - 12/2999	1
17308B - HOSE SUB-ASSY, VACUUM
90999-92002	2GDFTV..GUN142..GCC,SA L=90	11/2015 - 08/2017	2
90999-92002	2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH) L=80,L=130	11/2015 - 08/2020	1
90999-92002	1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) L=80,L=130	11/2015 - 12/2999	1
17696 - BRACKET, GAS FILTER
17696-0E010	2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)	11/2015 - 08/2020	1
17696-0E010	1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N)	11/2015 - 12/2999	1
23265C - FILTER, GAS
90917-11044	1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	1
90917-11044	2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)	11/2015 - 08/2020	1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-0E010	2GDFTV..GUN142..IDN;1GDFTV..GUN143..6FC..(GCC,TH)	11/2015 - 08/2020	1
25706-0E010	1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N)	11/2015 - 12/2999	1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-0E010	2GDFTV..GUN142..GCC,SA	11/2015 - 08/2017	1
25761B - HOSE, VACCUM TRANSMITTING, NO.1
25761-0E010	2GDFTV..GUN142..GCC,SA	11/2015 - 08/2017	1
25771B - HOSE, VACCUM TRANSMITTING, NO.2
25771-0E020	2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)	11/2015 - 08/2020	1
25771-0E020	1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	1
25781A - HOSE, VACUUM TRANSMITTING, NO.3
25781-0E010	2GDFTV..GUN142..GCC,SA	11/2015 - 08/2017	1
25804 - VALVE SET, VACUUM CONTROL
25804-11010	2GDFTV..GUN142..GCC,SA NO.1	11/2015 - 08/2017	1
25804 - VALVE SET, VACUUM CONTROL
25804-11010	2GDFTV..GUN142..GCC,SA NO.1	11/2015 - 08/2017	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-30070	2GDFTV..GUN142..GCC,SA MARK=AISIN	11/2015 - 08/2017	1
Common parts
90119-T0260
90466-07002
90467-06115
Linked diagrams
1105
1905
8405
