GUN142L-MDTHYV (2017)

Toyota Innova

Production Aug 2017 - Jul 2018
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO.11 OF14(1709- )6F

Click highlighted areas on diagram

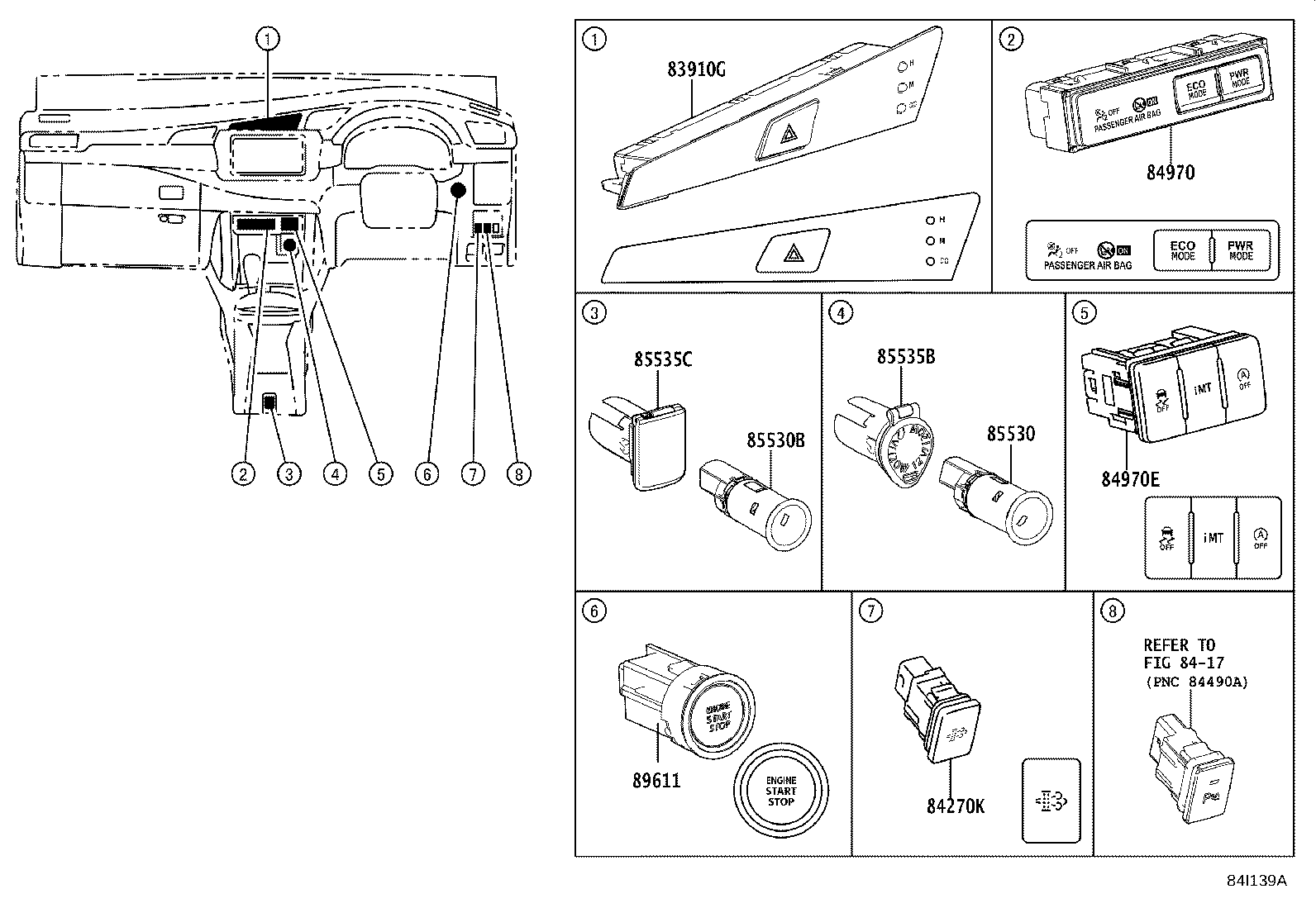

INSTRUMENT PANEL

diagram 83910G 8417 84270K 84970 84970E 85530 85530B 85535B 85535C 89611
Part # Description Qty Price
83910G - CLOCK ASSY
83910-0K060

GUN143,TGN140..RHD..(GEN,IND,MA);GUN142..(24,24G,24V,24Z,G)..(IND,SA,TH)..DCR

 1
83910-0K130

GUN143,TGN141..5F..(GCC,GEN);GUN143,TGN140..PHLP..(20G,28G,28V);GUN142,TGN141..LHD..(24,24G,27SR,28V)

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-0K070

GUN14#,TGN14#..IDNP

 1
85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1
85530-0K070

GUN14#,TGN14#..IDNP

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-0K110C0

TGN140..RHD..IDNP;TGN140..IDNP..20G..PHL;GUN14#,TGN141..IDNP..(24,24G,24Q,24V,27,27G,27SR,27SRV,28,28G,28V)

BLACK,TRIM2#,4#

 1
85535C - COVER, POWER OUTLET SOCKET, REAR
85535-0K170

GUN14#,TGN14#..IDNP

 1
Linked diagrams
8417
