YN92L-CRMDS3 (1988)
Toyota Hilux 2wd
(8808- )LN9#,RN90,YN9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55545A - COVER, FUSE BOX OPENING | ||||
| 55545-8910203 |
LN8#,90,RN8#,90,YN8#,92 GRAY,TRIM1# |
1 | ||
| 55545-8910206 |
LN8#,90,RN8#,90,YN8#,92 BROWN,TRIM4# |
1 | ||
| 55545-89102J0 |
LN8#,90,RN125,8#,90,YN8#,9# MEDIUM BLUE,TRIM8# |
1 | ||
| 55545-89102E0 |
LN8#,90,RN125,8#,90,YN8#,92 BROWN,TRIM4# |
1 | ||
| 55545-8910204 |
LN8#,90,RN8#,90,YN8#,92 BLUE,TRIM8# |
1 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-0505104 |
LN8#,90,RN8#,90,YN8#,92 BLUE,TRIM8# |
2 | ||
| 90467-05051E0 |
LN8#,90,RN125,8#,90,YN8#,92 BROWN,TRIM4# |
2 | ||
| 90467-0505106 |
LN8#,90,RN8#,90,YN8#,92 BROWN,TRIM4# |
2 | ||
| 90467-0505103 |
LN8#,90,RN8#,90,YN8#,92 GRAY,TRIM1# |
2 | ||
| 90467-05051J0 |
LN8#,90,RN125,8#,90,YN8#,9# MEDIUM BLUE,TRIM8# |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-0505104 |
LN8#,90,RN8#,90,YN8#,92 BLUE,TRIM8# |
2 | ||
| 90467-05051E0 |
LN8#,90,RN125,8#,90,YN8#,92 BROWN,TRIM4# |
2 | ||
| 90467-0505106 |
LN8#,90,RN8#,90,YN8#,92 BROWN,TRIM4# |
2 | ||
| 90467-0505103 |
LN8#,90,RN8#,90,YN8#,92 GRAY,TRIM1# |
2 | ||
| 90467-05051J0 |
LN8#,90,RN125,8#,90,YN8#,9# MEDIUM BLUE,TRIM8# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-8911903 |
LN85,90,RN8#,YN8#,92..LHD GRAY,TRIM1# |
1 | ||
| 62111-8911904 |
LN85,90,RN8#,YN8#,92..LHD BLUE,TRIM8# |
1 | ||
| 62111-8911906 |
LN85,90,RN8#,YN8#,92..LHD BROWN,TRIM4# |
1 | ||
| 62111-89119E0 |
LN81,85,86,90,RN125,8#,YN8#,92..LHD BROWN,TRIM4# |
1 | ||
| 62111-89119J0 |
LN81,85,86,90,RN125,8#,90,YN8#,92..LHD MEDIUM BLUE,TRIM8# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-8911703 |
LN85,90,RN8#,YN8#,92..LHD GRAY,TRIM1# |
1 | ||
| 62112-8911706 |
LN85,90,RN8#,YN8#,92..LHD BROWN,TRIM4# |
1 | ||
| 62112-8911704 |
LN85,90,RN8#,YN8#,92..LHD BLUE,TRIM8# |
1 | ||
| 62112-89117J0 |
LN81,85,86,90,RN125,8#,90,YN8#,92..LHD MEDIUM BLUE,TRIM8# |
1 | ||
| 62112-89117E0 |
LN81,85,86,90,RN125,8#,YN8#,92..LHD BROWN,TRIM4# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-8911303 |
LN8#,90,RN8#,90,YN8#,92..T1 GRAY,TRIM1# |
1 | ||
| 62313-8911304 |
LN8#,90,RN8#,90,YN8#,92..T1 BLUE,TRIM8# |
1 | ||
| 62313-8911306 |
LN8#,90,RN8#,90,YN8#,92..T1 BROWN,TRIM4# |
1 | ||
| 62313-89113J0 |
LN8#,90,RN8#,90,YN8#,92..T1 MEDIUM BLUE,TRIM8# |
1 | ||
| 62313-89113E0 |
LN8#,90,RN8#,90,YN8#,92..T1 BROWN,TRIM4# |
1 | ||
| 62313-8911604 |
LN8#,90,RN8#,90,YN8#,92..T1 BLUE,TRIM8# |
1 | ||
| 62313-8911603 |
LN8#,90,RN8#,90,YN8#,92..T1 GRAY,TRIM1# |
1 | ||
| 62313-89116E0 |
LN8#,90,RN8#,90,YN8#,92..T1 BROWN,TRIM4# |
1 | ||
| 62313-8911606 |
LN8#,90,RN8#,90,YN8#,92..T1 BROWN,TRIM4# |
1 | ||
| 62313-89116J0 |
LN8#,90,RN8#,90,YN8#,9#..T1 MEDIUM BLUE,TRIM8# |
1 | ||
| 62313-89113B0 |
LN8#,90,RN8#,90,YN8#,92..T1 MEDIUM GRAY,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-8911304 |
LN8#,90,RN8#,90,YN8#,92..T1 BLUE,TRIM8# |
1 | ||
| 62313-89113B0 |
LN8#,90,RN8#,90,YN8#,92..T1 MEDIUM GRAY,TRIM1# |
1 | ||
| 62313-89113J0 |
LN8#,90,RN8#,90,YN8#,92..T1 MEDIUM BLUE,TRIM8# |
1 | ||
| 62313-8911303 |
LN8#,90,RN8#,90,YN8#,92..T1 GRAY,TRIM1# |
1 | ||
| 62313-8911306 |
LN8#,90,RN8#,90,YN8#,92..T1 BROWN,TRIM4# |
1 | ||
| 62313-8911603 |
LN8#,90,RN8#,90,YN8#,92..T1 GRAY,TRIM1# |
1 | ||
| 62313-8911604 |
LN8#,90,RN8#,90,YN8#,92..T1 BLUE,TRIM8# |
1 | ||
| 62313-89113E0 |
LN8#,90,RN8#,90,YN8#,92..T1 BROWN,TRIM4# |
1 | ||
| 62313-89116E0 |
LN8#,90,RN8#,90,YN8#,92..T1 BROWN,TRIM4# |
1 | ||
| 62313-8911606 |
LN8#,90,RN8#,90,YN8#,92..T1 BROWN,TRIM4# |
1 | ||
| 62313-89116J0 |
LN8#,90,RN8#,90,YN8#,9#..T1 MEDIUM BLUE,TRIM8# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62511-8913506 |
LN90,YN92..GEN W(FRONT SEAT BELT),BROWN,TRIM4# |
1 | ||
| 62511-8913504 |
LN90,YN92..GEN W(FRONT SEAT BELT),BLUE,TRIM8# |
1 | ||
| 62511-8914206 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 62511-8913606 |
LN90,YN92..GEN W(FRONT & REAR SEAT BELT),BROWN,TRIM4# |
1 | ||
| 62511-8913604 |
LN90,YN92..GEN W(FRONT & REAR SEAT BELT),BLUE,TRIM8# |
1 | ||
| 62511-8914204 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 62511-8913603 |
LN90,RN90,YN92..ARL,GEN,V W(FRONT & REAR SEAT BELT),GRAY,TRIM1# |
1 | ||
| 62511-8914203 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 62511-8913503 |
LN90,YN92..GEN W(FRONT SEAT BELT),GRAY,TRIM1# |
1 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62512-8913606 |
LN90,YN92..GEN W(FRONT & REAR SEAT BELT),BROWN,TRIM4# |
1 | ||
| 62512-8913506 |
LN90,YN92..GEN W(FRONT SEAT BELT),BROWN,TRIM4# |
1 | ||
| 62512-8913504 |
LN90,YN92..GEN W(FRONT SEAT BELT),BLUE,TRIM8# |
1 | ||
| 62512-8914204 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 62512-8914206 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 62512-8913503 |
LN90,YN92..GEN W(FRONT SEAT BELT),GRAY,TRIM1# |
1 | ||
| 62512-8913603 |
LN90,RN90,YN92..ARL,GEN,V W(FRONT & REAR SEAT BELT),GRAY,TRIM1# |
1 | ||
| 62512-8914203 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 62512-8913604 |
LN90,YN92..GEN W(FRONT & REAR SEAT BELT),BLUE,TRIM8# |
1 | ||
| 62538C - COVER, QUARTER TRIM, HOLE | ||||
| 62538-8910206 |
LN90,YN92..GEN BROWN,TRIM4# |
2 | ||
| 62538-8910203 |
LN90,YN92..GEN GRAY,TRIM1# |
2 | ||
| 62538-8910204 |
LN90,YN92..GEN BLUE,TRIM8# |
2 | ||
| 62545A - SILENCER, QUARTER TRIM | ||||
| 62545-89101 |
LN9#,RN90,YN9# |
2 | ||
| 62545A - SILENCER, QUARTER TRIM | ||||
| 62545-89101 |
LN9#,RN90,YN9# |
2 | ||
| 62594E - POCKET, QUARTER TRIM, RH | ||||
| 62594-8910206 |
LN90,RN90,YN92 BROWN,TRIM4# |
1 | ||
| 62594-8910203 |
LN90,RN90,YN9# GRAY,TRIM1# |
1 | ||
| 62594-8910204 |
LN90,RN90,YN9# BLUE,TRIM8# |
1 | ||
| 62595E - POCKET, QUARTER TRIM, LH | ||||
| 62594-8910203 |
LN90,RN90,YN9# GRAY,TRIM1# |
1 | ||
| 62594-8910206 |
LN90,RN90,YN92 BROWN,TRIM4# |
1 | ||
| 62594-8910204 |
LN90,RN90,YN9# BLUE,TRIM8# |
1 | ||
| 62605Q - LID SUB-ASSY, QUARTER TRIM, RH | ||||
| 62605-8910103 |
LN90,RN90,YN9# GRAY,TRIM1# |
1 | ||
| 62605-8910104 |
LN90,RN90,YN9# BLUE,TRIM8# |
1 | ||
| 62605-8910106 |
LN90,RN90,YN92 BROWN,TRIM4# |
1 | ||
| 62606A - LID SUB-ASSY, QUARTER TRIM, LH | ||||
| 62605-8910104 |
LN90,RN90,YN9# BLUE,TRIM8# |
1 | ||
| 62605-8910106 |
LN90,RN90,YN92 BROWN,TRIM4# |
1 | ||
| 62605-8910103 |
LN90,RN90,YN9# GRAY,TRIM1# |
1 | ||
| 64261C - GARNISH, BACK PANEL, UPPER | ||||
| 64261-8910206 |
LN90,RN90,YN92 BROWN,TRIM4# |
1 | ||
| 64261-89102J0 |
LN90,RN90,YN92 BLUE,TRIM8# |
1 | ||
| 64261-8910204 |
LN90,RN90,YN92 BLUE,TRIM8# |
1 | ||
| 64261-8910203 |
LN90,RN90,YN92 GRAY,TRIM1# |
1 | ||
| 64261D - PLUG, HOLE(FOR BACK PANEL GARNISH) | ||||
| 90950-0162106 |
LN90,RN90,YN92 BROWN,TRIM4# |
2 | ||
| 90950-01621J0 |
LN90,RN90,YN92 BLUE,TRIM8# |
2 | ||
| 90950-0162104 |
LN90,RN90,YN92 BLUE,TRIM8# |
2 | ||
| 90950-0162103 |
LN90,RN90,YN92 GRAY,TRIM1# |
2 | ||
| 64262A - GARNISH, BACK PANEL, LOWER | ||||
| 64262-8910106 |
LN90,RN90,YN92..ARL,GEN BROWN,TRIM4# |
1 | ||
| 64262-8910103 |
LN90,RN90,YN92..ARL,GEN,V GRAY,TRIM1# |
1 | ||
| 64262-89101R9 |
RN90,YN92 BLUE,TRIM8# |
1 | ||
| 64262-8910104 |
LN90,RN90,YN92..ARL,GEN,V BLUE,TRIM8# |
1 | ||
| 64262-8910104 |
LN90,RN90,YN92..ARL,GEN BLUE,TRIM8# |
1 | ||
| 64271C - TRIM, BACK PANEL | ||||
| 64270-8910903 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 64270-8910904 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 64270-8910906 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 64270-8911006 |
LN90,YN92..GEN BROWN,TRIM4# |
1 | ||
| 64270-35010J0 |
RN90,YN92..DLX BLUE,TRIM8# |
1 | ||
| 64270-35010B0 |
RN90,YN92..DLX GRAY,TRIM1# |
1 | ||
| 64270-8911004 |
LN90,YN92..GEN BLUE,TRIM8# |
1 | ||
| 64270-8911003 |
LN90,YN92..GEN GRAY,TRIM1# |
1 | ||
| 64270-35010B1 |
RN90,YN92..DLX GRAY,TRIM1# |
1 | ||
| 64270-35010J1 |
RN90,YN92..DLX BLUE,TRIM8# |
1 | ||
| 64981 - STOPPER, WASHER TANK COVER | ||||
| 64981-16021 |
LN90,RN90,YN9# |
2 | ||
| 64982 - KNOB, COVER | ||||
| 64982-16020B0 |
LN90,RN125,90,YN9# GRAY,TRIM1# |
2 | ||
| 64982-1602050 |
LN90,RN125,90,YN92 BROWN,TRIM4# |
2 | ||
| 64982-1602053 |
LN90,RN125,90,YN92 MEDIUM GRAY,TRIM1# |
2 | ||
| 64982-16020J0 |
LN90,RN125,90,YN9# BLUE,TRIM8# |
2 | ||
| 64982-1602059 |
LN90,RN125,90,YN92 BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 67771-30090 | ||||
| 67771-89104 | ||||
| 90152-60046 | ||||
| 90159-40072 | ||||
| 90468-04046 | ||||
| 90468-04134 | ||||
| 90468-05047 | ||||
| 91651-60614 | ||||
| 93568-14512 | ||||

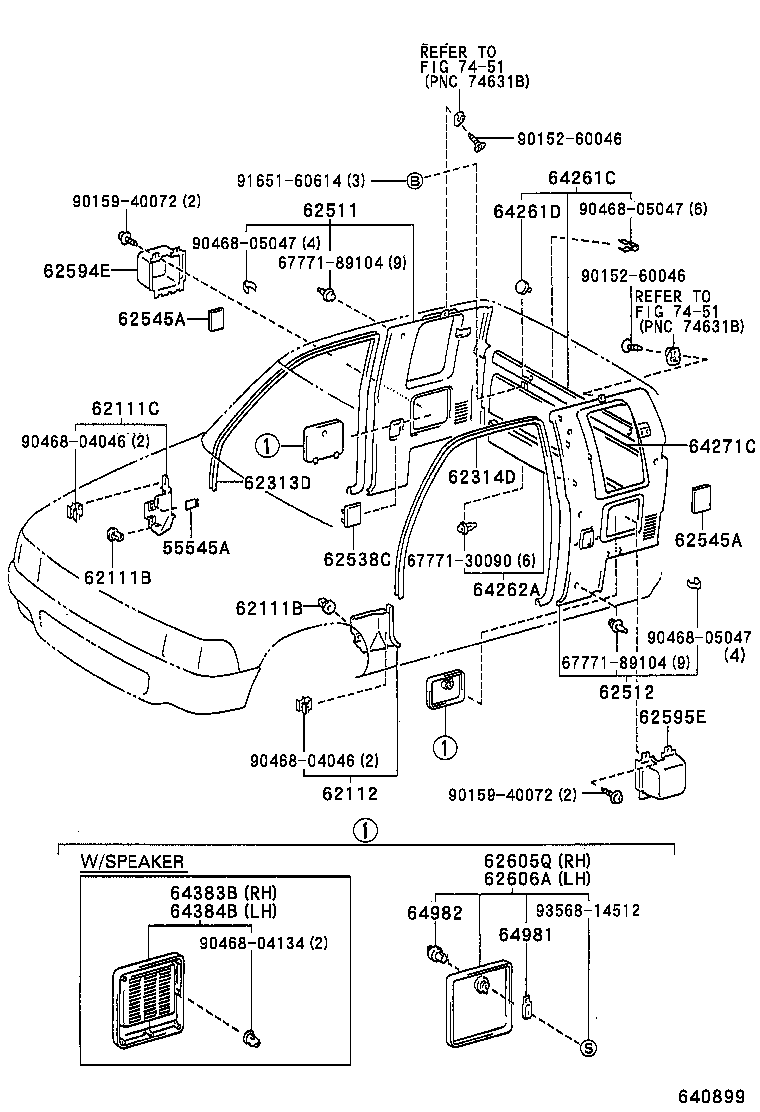

| Linked diagrams | ||||
| 7451 | ||||
