YN90R-CRMSST (1994)

Toyota Hilux 2wd

Production Jan 1994 - Apr 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808-0106)MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 9046816012 9412041000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-35120

LN80,85,86,90,RN85,90,YN80,85,87,9#..RHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14030

LN8#,90,RN125,8#,90,YN8#,9#..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

LN8#,90,RN125,8#,90,YN8#,92..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LN8#,90,RN125,8#,90,YN8#,9#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LN8#,90,RN125,8#,90,YN8#,9#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

LN8#,90,RN125,8#,90,YN8#,9#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

LN8#,90,RN125,8#,90,YN8#,9#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51060

LN80,85,86,90,RN85,90,YN80,85,87,9#..RHD..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

LN80,85,86,90,RN85,90,YN80,85,87,9#..RHD..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

LN8#,90,RN125,8#,90,YN8#,92..MTM

L=29.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

LN8#,90,RN125,8#,90,YN8#,9#..MTM

 1
Common parts
90468-16012
94120-41000
94512-01000

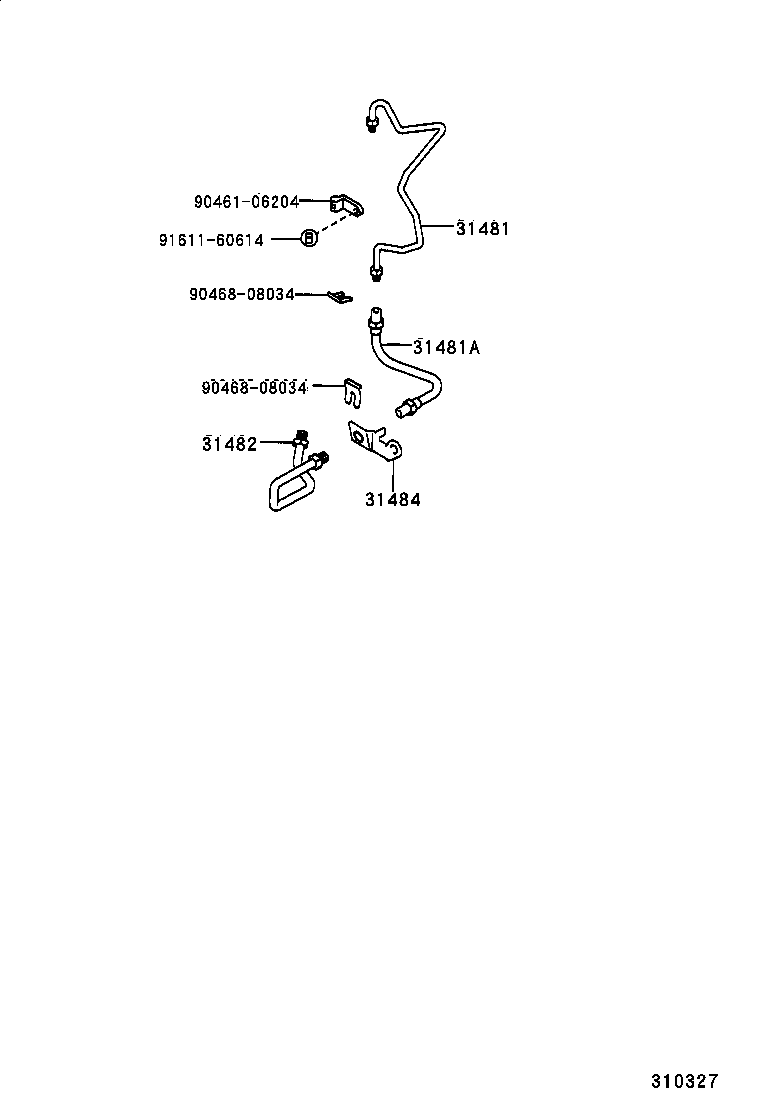

ILLUST NO. 2 OF 2(8808-9909)RN85,90..RHD..5F

Click highlighted areas on diagram

diagram 31481 31481A 31482 31484 9046106204 9046808034 9046808034 9161160614
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-35290

LN80,85,86,9#..RHD..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96814-50260

RN85..V;LN8#,90,RN80..MTM

 1
90931-01032

RN125;RN85,90..RHD..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-35150

LN8#,9#..MTM

 1
31482-35100

RN8#,90..MTM

 1
31482-35261

YN8#,9#

 1
31482-35260

YN8#,9#

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-35090

RN8#,90..MTM

 1
31484-35121

LN8#,9#..MTM

 1
Common parts
90461-06204
90468-08034
91611-60614

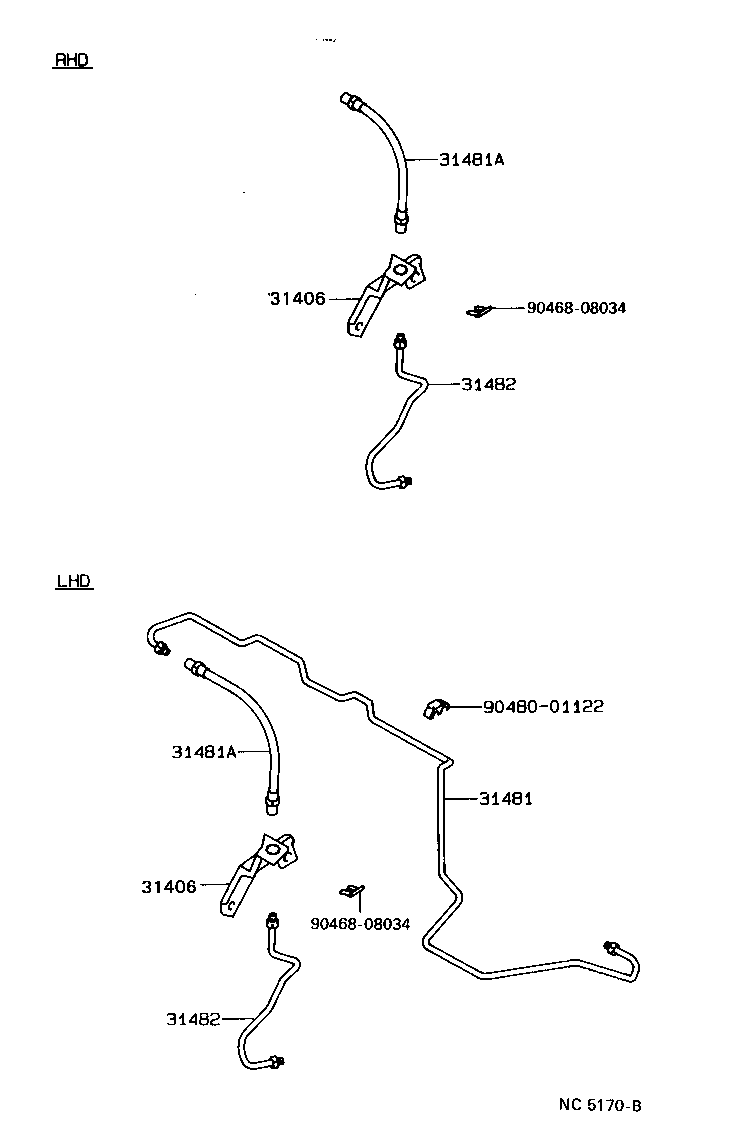

ILLUST NO. 2 OF 2(8808-9909)YN8#,9#

Click highlighted areas on diagram

diagram 31406 31406 31481 31481A 31481A 31482 31482 9046808034 9046808034 9048001122
Part # Description Qty Price
31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-35010

YN8#,9#

 1
31406-35011

YN8#,9#

 1
31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-35010

YN8#,9#

 1
31406-35011

YN8#,9#

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-35290

LN80,85,86,9#..RHD..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96814-50260

RN85..V;LN8#,90,RN80..MTM

 1
90931-01032

RN125;RN85,90..RHD..5F

 1
31481A - HOSE, CLUTCH, NO.1
96814-50260

RN85..V;LN8#,90,RN80..MTM

 1
90931-01032

RN125;RN85,90..RHD..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-35150

LN8#,9#..MTM

 1
31482-35100

RN8#,90..MTM

 1
31482-35261

YN8#,9#

 1
31482-35260

YN8#,9#

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-35150

LN8#,9#..MTM

 1
31482-35100

RN8#,90..MTM

 1
31482-35261

YN8#,9#

 1
31482-35260

YN8#,9#

 1
Common parts
90468-08034
90480-01122

ILLUST NO. 2 OF 2(8808-0106)LN8#,9#..MTM

Click highlighted areas on diagram

diagram 31481 31481 31481A 31481A 31482 31482 31484 31484 9046808034 9046808034 9094901460
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-35290

LN80,85,86,9#..RHD..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-35290

LN80,85,86,9#..RHD..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96814-50260

RN85..V;LN8#,90,RN80..MTM

 1
90931-01032

RN125;RN85,90..RHD..5F

 1
31481A - HOSE, CLUTCH, NO.1
96814-50260

RN85..V;LN8#,90,RN80..MTM

 1
90931-01032

RN125;RN85,90..RHD..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-35150

LN8#,9#..MTM

 1
31482-35100

RN8#,90..MTM

 1
31482-35261

YN8#,9#

 1
31482-35260

YN8#,9#

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-35150

LN8#,9#..MTM

 1
31482-35100

RN8#,90..MTM

 1
31482-35261

YN8#,9#

 1
31482-35260

YN8#,9#

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-35090

RN8#,90..MTM

 1
31484-35121

LN8#,9#..MTM

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-35090

RN8#,90..MTM

 1
31484-35121

LN8#,9#..MTM

 1
Common parts
90468-08034
90949-01460
