YN87R-TRMRS3 (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )4Y

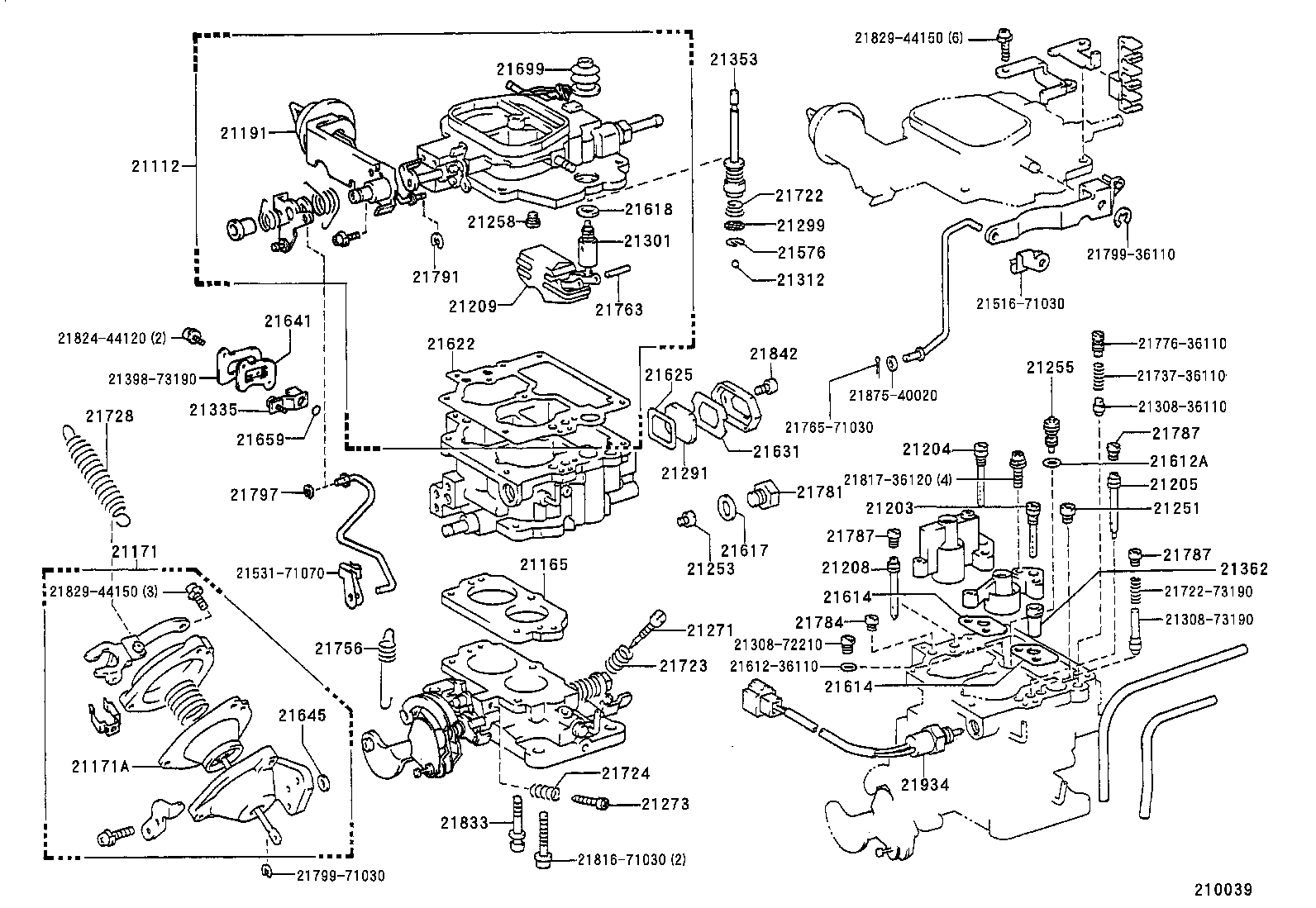

Click highlighted areas on diagram

diagram 21112 21165 21171 21171A 21191 21203 21204 21205 21208 21209 21251 21253 21255 21258 21271 21273 21291 21299 21301 2130836110 2130872210 2130873190 21312 21335 21353 21362 2139873190 2151671030 2153171070 21576 2161236110 21612A 21614 21614 21617 21618 21622 21625 21631 21641 21645 21659 21699 21722 2172273190 21723 21724 21728 2173736110 21756 21763 2176571030 2177636110 21781 21784 21787 21787 21787 21791 21797 2179936110 2179971030 2181671030 2181736120 2182444120 2182944150 2182944150 21833 21842 2187540020 21934
Part # Description Qty Price
21112 - HORN, AIR
21012-73360

4Y..YN87,92

 1
21165 - INSULATOR
21106-73150

3Y,4Y..YN81,86,87,92

 1
21171 - CHAMBER, DIAPHRAGM
21171-73210

4Y..YN87,92

 1
21171A - DIAPHRAGM(FOR DIDPHRAGM CHAMBER)
21173-71030

2Y,3Y,4Y..YN8#,9#

 1
21191 - OPENER
21039-72280

2Y,4Y..YN80,85,87,92..GEN,TH

 1
21203 - BLEEDER SUB-ASSY, 1ST MAIN AIR
21203-72210

2Y,3Y,4Y..YN8#,92..GEN,TH,V

 1
21204 - BLEEDER SUB-ASSY, 2ND MAIN AIR
21204-73190

2Y,3Y,4Y..YN8#,9#

 1
21205 - JET SUB-ASSY, SLOW
21205-73220

3Y,4Y..YN81,86,87,92

 1
21208 - JET SUB-ASSY, STEP
21205-73190

2Y,3Y,4Y..YN8#,92

 1
21209 - FLOAT SUB-ASSY
21209-73110

2Y,3Y,4Y..YN8#,9#

 1
21251 - JET, 1ST MAIN
21251-72210

2Y,3Y,4Y..YN8#,92..GEN,TH,V

 1
21253 - JET, 2ND MAIN
21253-73140

2Y,3Y,4Y..YN8#,92..GEN,TH,V

 1
21255 - JET, POWER
21302-71030

3Y,4Y..YN81,86,87,92

 1
21258 - JET, SLOW
21249-73220

3Y,4Y..YN81,86,87,92

 1
21271 - SCREW, IDLE ADJUSTING
21271-72280

2Y,4Y..YN80,85,87,92..GEN,TH

 1
21273 - SCREW, THROTTLE ADJUSTING
21272-72250

2Y,3Y,4Y..YN8#,9#

 1
21291 - GLASS, LEVEL GAGE
21291-36120

2Y,3Y,4Y..YN8#,9#

 1
21299 - NET, PUMP FILTER
21299-31030

2Y,3Y,4Y..YN8#,9#

 1
21301 - VALVE SUB-ASSY, NEEDLE
21301-71030

2Y,3Y,4Y..YN8#,9#

 1
21312 - BALL, STEEL
21312-40020

2Y,3Y,4Y..YN8#,9#

 1
21335 - VALVE, THERMOSTATIC
21038-71030

2Y,3Y,4Y..YN8#,9#

 1
21353 - PLUNGER, PUMP
21305-71030

2Y,3Y,4Y..YN8#,9#

 1
21362 - SLEEVE, 1ST MAIN WELL
21362-71030

2Y,3Y,4Y..YN8#,92..GEN,TH,V

 1
21576 - CLIP, PUMP STRAINER
21576-31030

2Y,3Y,4Y..YN8#,9#

 1
21612A - GASKET, POWER JET
21612-31100

2Y,3Y,4Y..YN8#,9#

 1
21614 - GASKET, VENTURI
21614-71030

2Y,3Y,4Y..YN8#,92

 2
21614 - GASKET, VENTURI
21614-71030

2Y,3Y,4Y..YN8#,92

 2
21617 - GASKET, MAIN PASSAGE PLUG
21633-44150

2Y,3Y,4Y..YN8#,9#

 1
21618 - GASKET, NEEDLE VALVE SEAT
21637-71030

2Y,3Y,4Y..YN8#,9#

 1
21622 - GASKET, AIR HORN
21622-73190

2Y,3Y,4Y..YN8#,92

 1
21625 - GASKET, LEVEL GAGE
21625-36120

2Y,3Y,4Y..YN8#,9#

 1
21631 - GASKET, MAIN GUIDE
21631-36120

2Y,3Y,4Y..YN8#,9#

 1
21641 - GASKET(FOR THERMOSTATIC VALVE COVER)
21626-73190

2Y,3Y,4Y..YN8#,92

 1
21645 - GASKET, DIAPHRAGM, CAP
21638-71030

2Y,3Y,4Y..YN8#,9#

 1
21659 - RING, O(FOR THERMOSTATIC VALVE)
21655-31100

2Y,3Y,4Y..YN8#,9#

 1
21699 - BOOT(FOR PUMP PLUNGER)
21656-71030

2Y,3Y,4Y..YN8#,9#

 1
21722 - SPRING, PUMP DAMPING
21735-71030

2Y,3Y,4Y..YN8#,9#

 1
21723 - SPRING, IDLE ADJUSTING
21723-30030

2Y,3Y,4Y..YN8#,9#

 1
21724 - SPRING, THROTTLE ADJUSTING
21723-71030

2Y,3Y,4Y..YN8#,9#

 1
21728 - SPRING, THROTTLE VALVE RETURN
21728-73190

2Y,3Y,4Y..YN8#,9#

 1
21756 - SPRING, BACK(FOR THROTTLE SHAFT)
21727-73190

2Y,3Y,4Y..YN8#,9#

 1
21763 - PIN, FLOAT LEVER
21768-73110

2Y,3Y,4Y..YN8#,9#

 1
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21776-44310

2Y,3Y,4Y..YN8#,9#

 1
21784 - PLUG, SLOW PASSAGE
21249-73190

2Y,3Y,4Y..YN8#,92

 1
21787 - PLUG, PUMP JET
21776-73190

2Y,3Y,4Y..YN8#,9#

 3
21787 - PLUG, PUMP JET
21776-73190

2Y,3Y,4Y..YN8#,9#

 3
21787 - PLUG, PUMP JET
21776-73190

2Y,3Y,4Y..YN8#,9#

 3
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21797-44050

2Y,3Y,4Y..YN8#,9#

 1
21797 - RING, SNAP, NO.4(FOR CARBURETOR LINK)
21797-44050

2Y,4Y..YN80,85,87,9#..GEN,TH

 1
21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21804-73150

3Y,4Y..YN81,86,87,92

 1
21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21832-36120

2Y,3Y,4Y..YN8#,9#

 2
21934 - SOLENOID, THROTTLE VALVE
21391-72280

2Y,4Y..YN80,85,87,92..GEN,TH

 1
Common parts
21308-36110
21308-72210
21308-73190
21398-73190
21516-71030
21531-71070
21612-36110
21722-73190
21737-36110
21765-71030
21776-36110
21799-36110
21799-71030
21816-71030
21817-36120
21824-44120
21829-44150
21875-40020
