YN87L-TRMRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1991
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9108)4Y

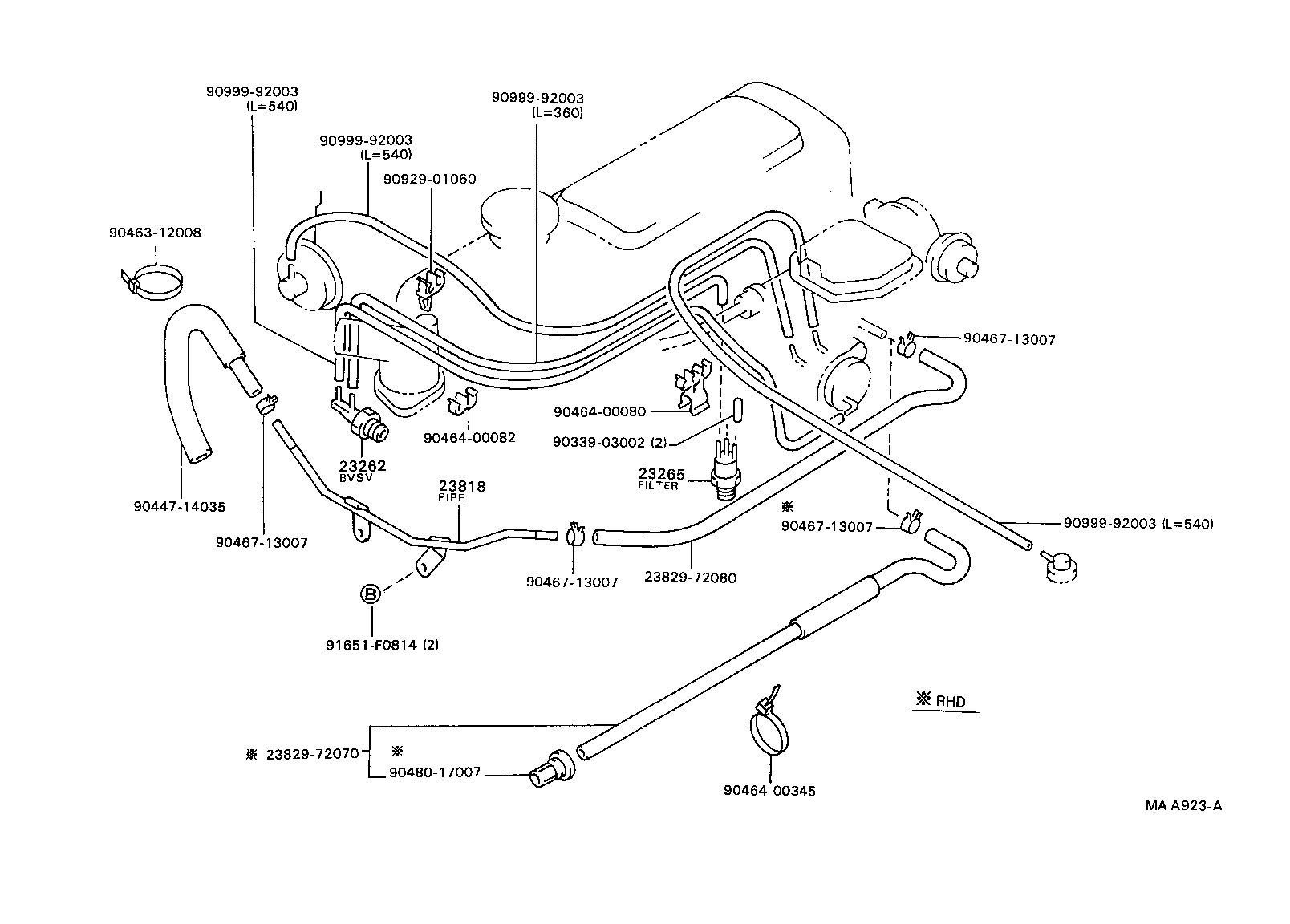

Click highlighted areas on diagram

diagram 23262 23265 23818 2382972070 2382972080 9033903002 9044714035 9046312008 9046400080 9046400082 9046400345 9046713007 9046713007 9046713007 9046713007 9048017007 9092901060 9099992003 9099992003 9099992003 9099992003 91651F0814
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05044

4Y..YN87,92;2Y,3Y..YN81,85,86..ARL,V

 1
23265 - FILTER, GAS, NO.1
90917-11024

4Y..YN87,92;2Y,3Y..YN81,85,86..ARL,V

 1
90917-11027

4Y..YN87,92;2Y,3Y..YN81,85,86..ARL,V

 1
23818 - PIPE, FUEL VAPOR FEED
23818-71011

2Y,3Y,4Y..YN8#,92..LHD

 1
Common parts
23829-72070
23829-72080
90339-03002
90447-14035
90463-12008
90464-00080
90464-00082
90464-00345
90467-13007
90480-17007
90929-01060
90999-92003
91651-F0814
