YN86L-PRKRSV (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1990
Engine 3Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9010)2Y,3Y,4Y..GEN,TH,V

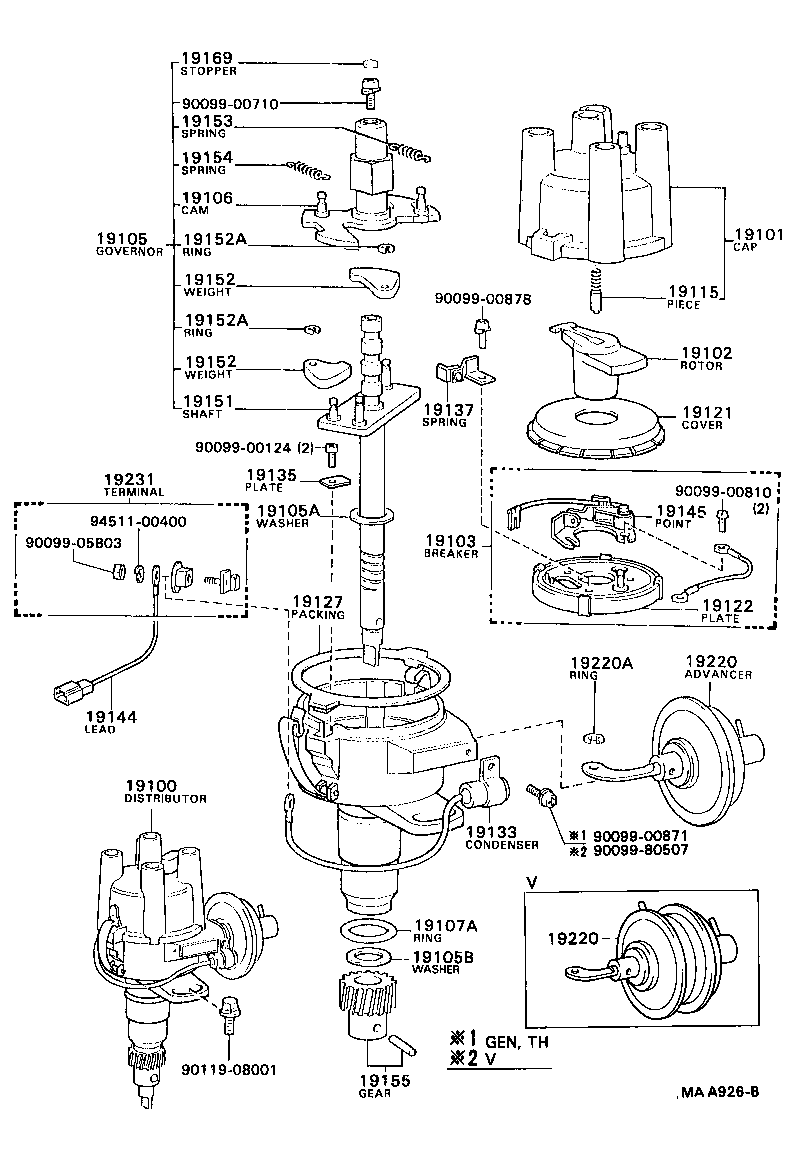

Click highlighted areas on diagram

diagram 19100 19101 19102 19103 19105 19105A 19105B 19106 19107A 19115 19121 19122 19127 19133 19135 19137 19144 19145 19151 19152 19152 19152A 19152A 19153 19154 19155 19169 19220 19220 19220A 19231 9009900124 9009900710 9009900810 9009900871 9009900878 9009905803 9009980507 9011908001 9451100400
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-73050

3Y..YN81,86

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-71020

2Y,3Y,4Y..YN8#,92..GEN,TH,V

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-26151

3Y..YN81,86

 1
19103 - BREAKER SUB-ASSY, DISTRIBUTOR
19103-26211

2Y,3Y,4Y..YN8#,92..GEN,TH,V

 1
19105 - GOVERNOR SUB-ASSY
19105-71011

2Y,3Y..YN80,81,85,86..GEN,TH,V

 1
19105A - WASHER(FOR GOVERNOR SHAFT THRUST)
90099-01386

2Y,3Y,4Y..YN8#,92..GEN,TH,V

T=2.7

 1
90099-01385

2Y,3Y,4Y..YN8#,92..GEN,TH,V

T=2.5

 1
90099-01387

2Y,3Y,4Y..YN8#,92..GEN,TH,V

T=2.9

 1
90099-01412

2Y,3Y,4Y..YN8#,92..GEN,TH,V

T=2.3

 1
19105B - WASHER, NO.2(FOR GOVERNOR SHAFT THRUST)
90099-01429

2Y,3Y,4Y..YN8#,92

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

2Y,3Y,4Y..YN8#,92

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

2Y,3Y,4Y..YN8#,92..GEN,TH,V

 1
19121 - COVER, DUST PROOF
19121-38030

2Y,3Y,4Y..YN8#,92..GEN,TH,V

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-26211

2Y,3Y,4Y..YN8#,92..GEN,TH,V

 1
19127 - PACKING, DUST PROOF
19127-15010

2Y,3Y,4Y..YN8#,92..GEN,TH,V

 1
19133 - CONDENSER, DISTRIBUTOR
90099-52070

3Y..YN81,86

 1
19135 - PLATE, HOLDER
90099-02198

2Y,3Y,4Y..YN8#,92..GEN,TH,V

 2
19137 - SPRING SUB-ASSY, DAMPER
19137-33012

2Y,3Y,4Y..YN8#,92..GEN,TH,V

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-34180

2Y,3Y,4Y..YN8#,92..GEN,V

 1
19145 - POINT, DISTRIBUTOR
19145-26060

2Y,3Y,4Y..YN8#,92..GEN,TH,V

 1
19151 - SHAFT, GOVERNOR
19151-71020

2Y,3Y,4Y..YN8#,92..GEN,TH,V

 1
19152 - WEIGHT, GOVERNOR
19152-63010

2Y,3Y,4Y..YN8#,9#

 2
19152 - WEIGHT, GOVERNOR
19152-63010

2Y,3Y,4Y..YN8#,9#

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122

2Y,3Y,4Y..YN8#,9#

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122

2Y,3Y,4Y..YN8#,9#

 2
19153 - SPRING, GOVERNOR, A
19153-71012

2Y,3Y..YN80,81,85,86..GEN,TH,V

 1
19154 - SPRING, GOVERNOR, B
19153-71012

2Y,3Y..YN80,81,85,86..GEN,TH,V

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-71011

2Y,3Y,4Y..YN8#,92..GEN,TH,V

 1
19169 - STOPPER, CAM GREASE
19169-63011

2Y,3Y..YN80,81,85,86

 2
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-73050

3Y..YN81,86

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-73050

3Y..YN81,86

 1
19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
90099-07109

2Y,3Y,4Y..YN8#,92..GEN,TH,V

 1
19231 - TERMINAL, DISTRIBUTOR
19231-24140

2Y,3Y,4Y..YN8#,92..GEN,TH,V

 1
Common parts
90099-00124
90099-00710
90099-00810
90099-00871
90099-00878
90099-05803
90099-80507
90119-08001
94511-00400
