YN85R-TRMRST (1993)

Toyota Hilux 2wd

Production Mar 1993 - Apr 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9401-9504)2Y..TH

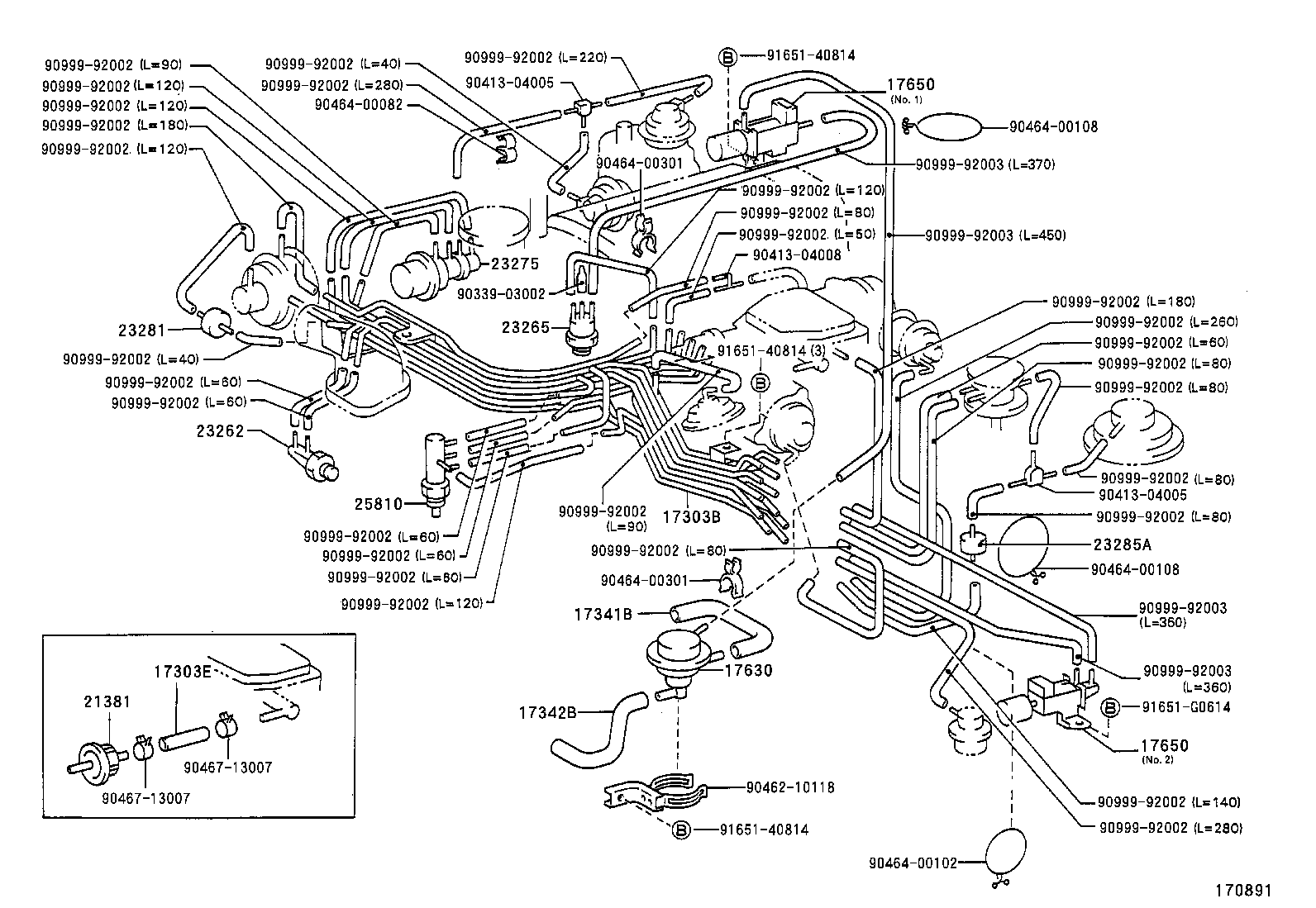

Click highlighted areas on diagram

diagram 17303B 17303E 17341B 17342B 17630 17650 17650 21381 23262 23265 23275 23281 23285A 25810 9033903002 9041304005 9041304005 9041304008 9046210118 9046400082 9046400102 9046400108 9046400108 9046400301 9046400301 9046713007 9046713007 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9099992003 9165140814 9165140814 9165140814 91651G0614
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-73080

2Y..YN80,85,90..TH

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-72020

2Y..YN80,85,90..TH

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01041

2Y..YN80,85,90..TH

 1
Common parts
90339-03002
90413-04005
90413-04008
90462-10118
90464-00082
90464-00102
90464-00108
90464-00301
90467-13007
90999-92002
90999-92003
91651-40814
91651-G0614
