YN85R-PRKRS (1988)
Toyota Hilux 2wd
ILLUST NO. 1 OF 2(8808- )LN8#,9#,RN125,8#,90,YN8#,9#
CONDENSER & RECEIVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-89115 |
LN8#,90,RN8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 88460-89115 |
YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92 |
1 | ||
| 88460-35130 |
RN85..ARL,V;RN85..LHD..GEN;LN8#,90,RN80,90,YN8#,9# |
1 | ||
| 88460-89115 |
RN85..ARL,V;RN85..LHD..GEN;LN8#,90,RN80,90,YN8#,92 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-89120 |
LN8#,90,RN8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 88688-89120 |
YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92 |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-89121 |
LN8#,90,RN8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 88688-89121 |
YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-16040 |
YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92 |
1 | ||
| 88471-16040 |
RN85..ARL,V;RN85..LHD..GEN;LN8#,90,RN125,80,90,YN8#,92 |
1 | ||
| 88471-50010 |
RN85..LHD;LN8#,90,RN80,90,YN8#,92..GEN,TH,V |
1 | ||
| 88471-16040 |
LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89110 |
LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 88472-89110 |
YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92 |
1 | ||
| 88472-89110 |
LN8#,90,RN125,8#,90,YN8#,92 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-89163 |
LN8#,90,RN8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 88716-89163 |
YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92 |
1 | ||
| 88716-89163 |
RN85..ARL,V;RN85..LHD..GEN;LN8#,90,RN80,90,YN8#,92 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 53381-89104 |
YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92 |
1 | ||
| 53381-89104 |
LN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
LN8#,90,RN125,8#..GEN,V |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
LN8#,90,RN125,8#..GEN,V |
2 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-89118 |
RN8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 88578-89118 |
YN85..GEN;RN8#,90,YN80,81,86,87,92 |
1 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 88578-89119 |
LN8#,90,RN125,8#,YN8#,92..GEN,V |
1 | ||
| 88578-89119 |
RN85..LHD;LN8#,90,RN125,80,90,YN8#,9#..GEN,TH,V |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89122 |
YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92 LH |
1 | ||
| 88578-89123 |
YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92 RH |
1 | ||
| 88578-89123 |
RN85..ARL,V;RN85..LHD..GEN;LN8#,90,RN80,90,YN8#,9# RH |
1 | ||
| 88578-89123 |
LN8#,90,RN8#,90,YN8#,92 RH |
1 | ||
| 88578-89122 |
RN85..ARL,V;RN85..LHD..GEN;LN8#,90,RN80,90,YN8#,9# LH |
1 | ||
| 88578-89122 |
LN8#,90,RN8#,90,YN8#,92 LH |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89122 |
YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92 LH |
1 | ||
| 88578-89123 |
YN85..GEN;LN8#,90,RN8#,90,YN80,81,86,87,92 RH |
1 | ||
| 88578-89123 |
RN85..ARL,V;RN85..LHD..GEN;LN8#,90,RN80,90,YN8#,9# RH |
1 | ||
| 88578-89123 |
LN8#,90,RN8#,90,YN8#,92 RH |
1 | ||
| 88578-89122 |
RN85..ARL,V;RN85..LHD..GEN;LN8#,90,RN80,90,YN8#,9# LH |
1 | ||
| 88578-89122 |
LN8#,90,RN8#,90,YN8#,92 LH |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89115 |
RN85..V;LN80,85,90,RN80,90 LH |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89115 |
RN85..V;LN80,85,90,RN80,90 LH |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88467-95704 | ||||
| 88695-89102 | ||||
| 90091-20609 | ||||
| 90099-32128 | ||||
| 90119-06336 | ||||
| 90119-08671 | ||||
| 90119-20609 | ||||
| 90179-06026 | ||||
| 90179-06032 | ||||
| 91651-41020 | ||||
| 91651-F0625 | ||||
| 91656-F0616 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 5353 | ||||

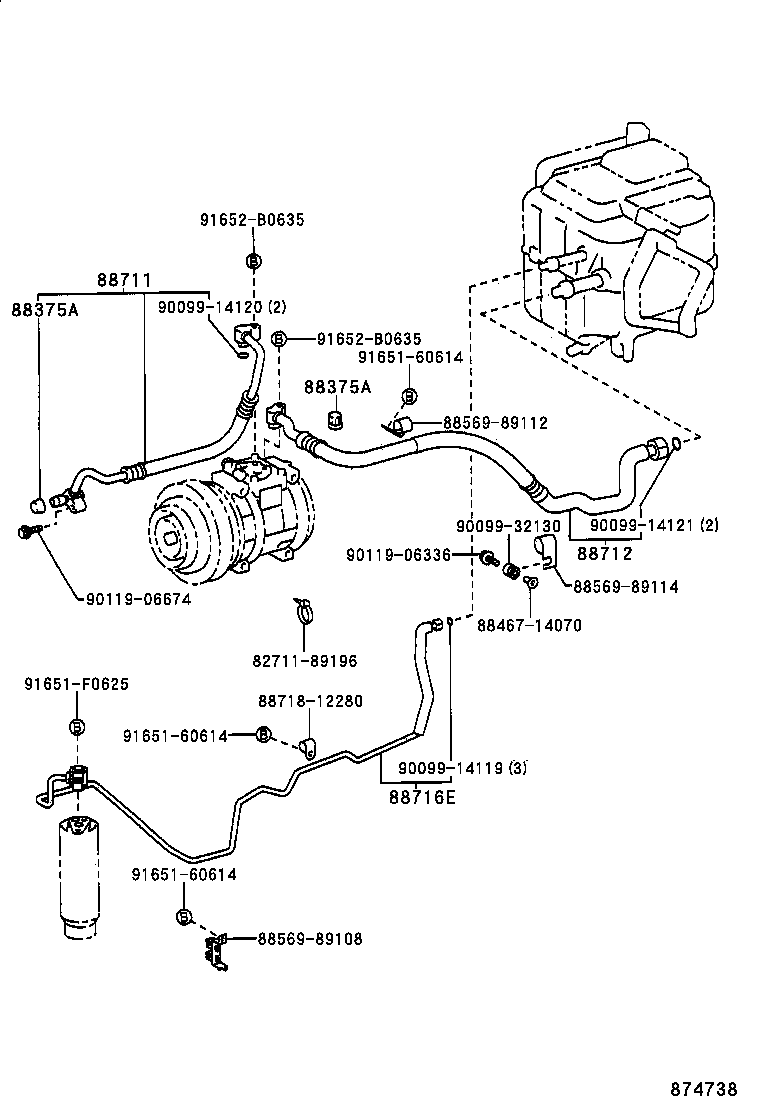

ILLUST NO. 2 OF 2(9401- )LN80,85..RHD..GEN
HOSE & PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-89145 |
YN8#,92..GEN,V |
1 | ||
| 88711-89142 |
LN80,85,90..RHD..MTM |
1 | ||
| 88711-89145 |
YN8#,92..GEN,TH,V |
1 | ||
| 88711-35310 |
YN8#,9# |
1 | ||
| 88711-35090 |
YN8#,92 |
1 | ||
| 88711-35100 |
LN80,85,86,90..RHD..MTM |
1 | ||
| 88711-35320 |
LN86..5F..ARL;LN80,85,90..RHD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-89139 |
YN85,87,92..RHD..(ARL,GEN) |
1 | ||
| 88712-89139 |
YN80,85,87,92..RHD |
1 | ||
| 88712-35130 |
YN80,85..RHD |
1 | ||
| 88712-35330 |
YN80,85,90..RHD |
1 | ||
| 88712-89139 |
YN85,87,92..RHD..GEN |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89159 |
YN85,87,92..RHD..GEN |
1 | ||
| 88716-89159 |
YN80,85,87,92..RHD..(GEN,TH) |
1 | ||
| 88716-89167 |
LN80,85,90..RHD..(GEN,TH) |
1 | ||
| Common parts | ||||
| 82711-89196 | ||||
| 88467-14070 | ||||
| 88569-89108 | ||||
| 88569-89112 | ||||
| 88569-89114 | ||||
| 88718-12280 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90119-06674 | ||||
| 91651-60614 | ||||
| 91651-F0625 | ||||
| 91652-B0635 | ||||
ILLUST NO. 2 OF 2(8808- )YN80,85,87,9#..RHD..GEN,TH
HOSE & PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-89145 |
YN8#,92..GEN,V |
1 | ||
| 88711-89142 |
LN80,85,90..RHD..MTM |
1 | ||
| 88711-89145 |
YN8#,92..GEN,TH,V |
1 | ||
| 88711-35310 |
YN8#,9# |
1 | ||
| 88711-35090 |
YN8#,92 |
1 | ||
| 88711-35100 |
LN80,85,86,90..RHD..MTM |
1 | ||
| 88711-35320 |
LN86..5F..ARL;LN80,85,90..RHD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-89139 |
YN85,87,92..RHD..(ARL,GEN) |
1 | ||
| 88712-89139 |
YN80,85,87,92..RHD |
1 | ||
| 88712-35130 |
YN80,85..RHD |
1 | ||
| 88712-35330 |
YN80,85,90..RHD |
1 | ||
| 88712-89139 |
YN85,87,92..RHD..GEN |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89159 |
YN85,87,92..RHD..GEN |
1 | ||
| 88716-89159 |
YN80,85,87,92..RHD..(GEN,TH) |
1 | ||
| 88716-89167 |
LN80,85,90..RHD..(GEN,TH) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-89114 |
YN85,87,92..RHD..GEN |
1 | ||
| 88717-89114 |
YN80,85,87,92..RHD..(GEN,TH) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-89113 |
RN85,90,YN85,87,92..RHD..(ARL,GEN) |
1 | ||
| 88717-89113 |
YN85..RHD..GEN;RN85,90,YN87,92..RHD |
1 | ||
| 88717-89113 |
YN85,87,92..RHD;RN85,90,YN80..ARL,TH |
1 | ||
| Common parts | ||||
| 88569-22090 | ||||
| 88569-89108 | ||||
| 88688-89138 | ||||
| 88718-32160 | ||||
| 88718-89115 | ||||
| 90119-06159 | ||||
| 90119-06336 | ||||
| 90119-06674 | ||||
| 91651-60614 | ||||
| 91651-B0835 | ||||
| 91651-F0625 | ||||
| 91651-G0814 | ||||
| 91651-G0845 | ||||
| 91652-B0635 | ||||
| 91652-G0610 | ||||
| 91656-F0616 | ||||

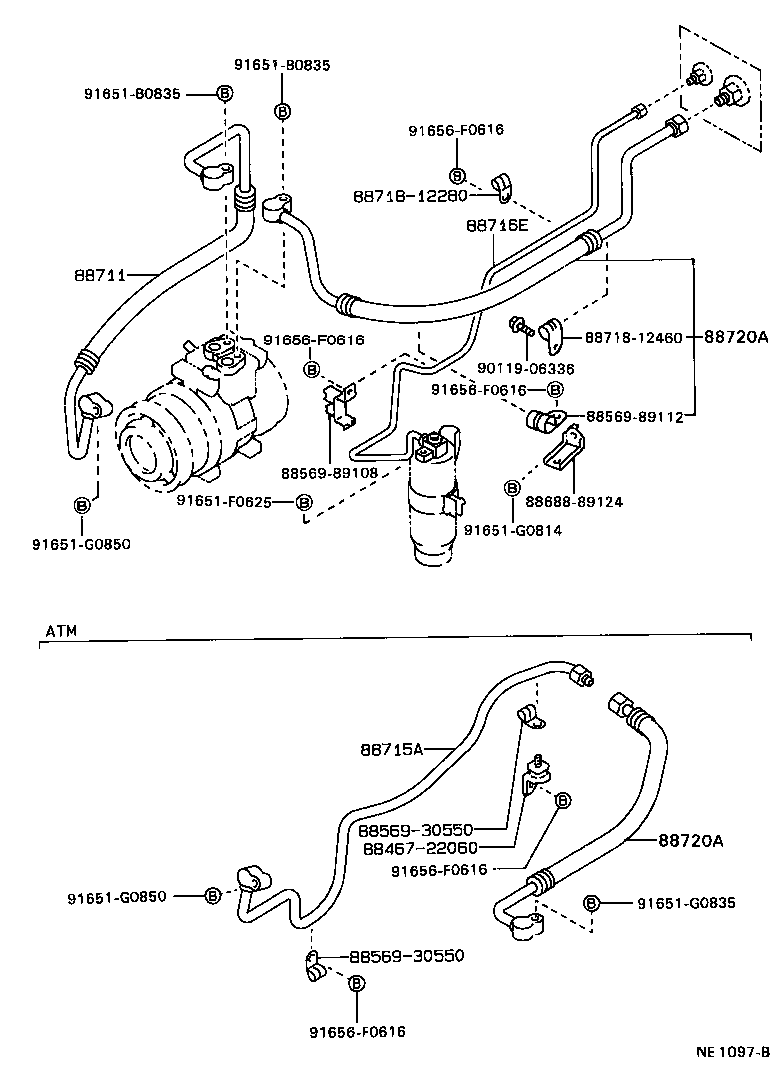

ILLUST NO. 2 OF 2(8808-9401)LN80,85..RHD..GEN
HOSE & PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-89145 |
YN8#,92..GEN,V |
1 | ||
| 88711-89142 |
LN80,85,90..RHD..MTM |
1 | ||
| 88711-89145 |
YN8#,92..GEN,TH,V |
1 | ||
| 88711-35310 |
YN8#,9# |
1 | ||
| 88711-35090 |
YN8#,92 |
1 | ||
| 88711-35100 |
LN80,85,86,90..RHD..MTM |
1 | ||
| 88711-35320 |
LN86..5F..ARL;LN80,85,90..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89159 |
YN85,87,92..RHD..GEN |
1 | ||
| 88716-89159 |
YN80,85,87,92..RHD..(GEN,TH) |
1 | ||
| 88716-89167 |
LN80,85,90..RHD..(GEN,TH) |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-35100 |
LN80,85..RHD..GEN |
1 | ||
| 88720-89125 |
LN80,85..RHD..MTM..GEN |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-35100 |
LN80,85..RHD..GEN |
1 | ||
| 88720-89125 |
LN80,85..RHD..MTM..GEN |
1 | ||
| Common parts | ||||
| 88467-22060 | ||||
| 88569-30550 | ||||
| 88569-89108 | ||||
| 88569-89112 | ||||
| 88688-89124 | ||||
| 88718-12280 | ||||
| 88718-12460 | ||||
| 90119-06336 | ||||
| 91651-B0835 | ||||
| 91651-F0625 | ||||
| 91651-G0814 | ||||
| 91651-G0835 | ||||
| 91651-G0850 | ||||
| 91656-F0616 | ||||
