YN85R-PRKRS (1988)
Toyota Hilux 2wd
Production
Aug 1988
-
Aug 1997
Engine
2Y
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )LN80,85,86..RHD..ARL,GEN

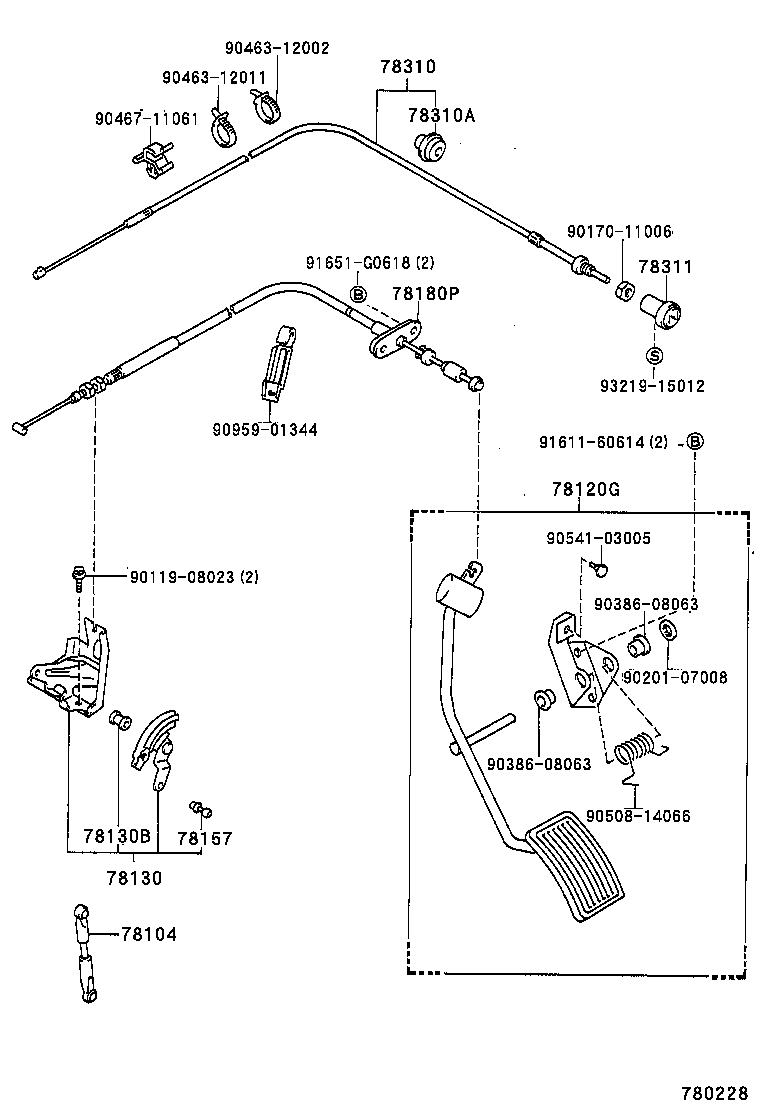

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-89106 |
YN8#,9# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-89145 |
YN80,85,87,92..RHD |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-89155 |
YN80,85,87,92..RHD |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-89105 |
LN80,85,86,90..ARL,GEN,TH |
1 | ||
| Common parts | ||||
| 89288-35010 | ||||
| 90116-08039 | ||||
| 90119-08808 | ||||
| 90170-11006 | ||||
| 90179-08150 | ||||
| 90201-07008 | ||||
| 90386-08063 | ||||
| 90386-10138 | ||||
| 90508-23075 | ||||
| 90541-03005 | ||||
| 90959-01342 | ||||
| 91611-60614 | ||||
| 91611-G0814 | ||||
| 91612-60814 | ||||
| 91652-60630 | ||||
| 94142-61000 | ||||
| 95381-02518 | ||||
(8808- )YN85,87,92..RHD..GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-89106 |
YN8#,9# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-89145 |
YN80,85,87,92..RHD |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78130-35030 |
YN80,85,87,92..GEN,TH |
1 | ||
| 78130B - BUSH, ACCELERATOR BELLCRANK | ||||
| 90386-08003 |
YN8#,92 |
2 | ||
| 78157 - BALL, ACCELERATOR JOINT | ||||
| 78157-10010 |
YN8#,92 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-89155 |
YN80,85,87,92..RHD |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-89115 |
YN80,85,87,92..RHD..(GEN,TH) |
1 | ||
| 78310A - GROMMET, CHOKE CABLE | ||||
| 90480-21005 |
YN80,85,87,92..GEN,TH |
1 | ||
| 78311 - KNOB, CHOKE CONTROL CABLE | ||||
| 78311-89103 |
YN80,85,87,92..GEN,TH |
1 | ||
| Common parts | ||||
| 90119-08023 | ||||
| 90170-11006 | ||||
| 90201-07008 | ||||
| 90386-08063 | ||||
| 90463-12002 | ||||
| 90463-12011 | ||||
| 90467-11061 | ||||
| 90508-14066 | ||||
| 90541-03005 | ||||
| 90959-01344 | ||||
| 91611-60614 | ||||
| 91651-G0618 | ||||
| 93219-15012 | ||||
