YN85R-PRKRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1997
Engine 2Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )2Y,3Y,4Y

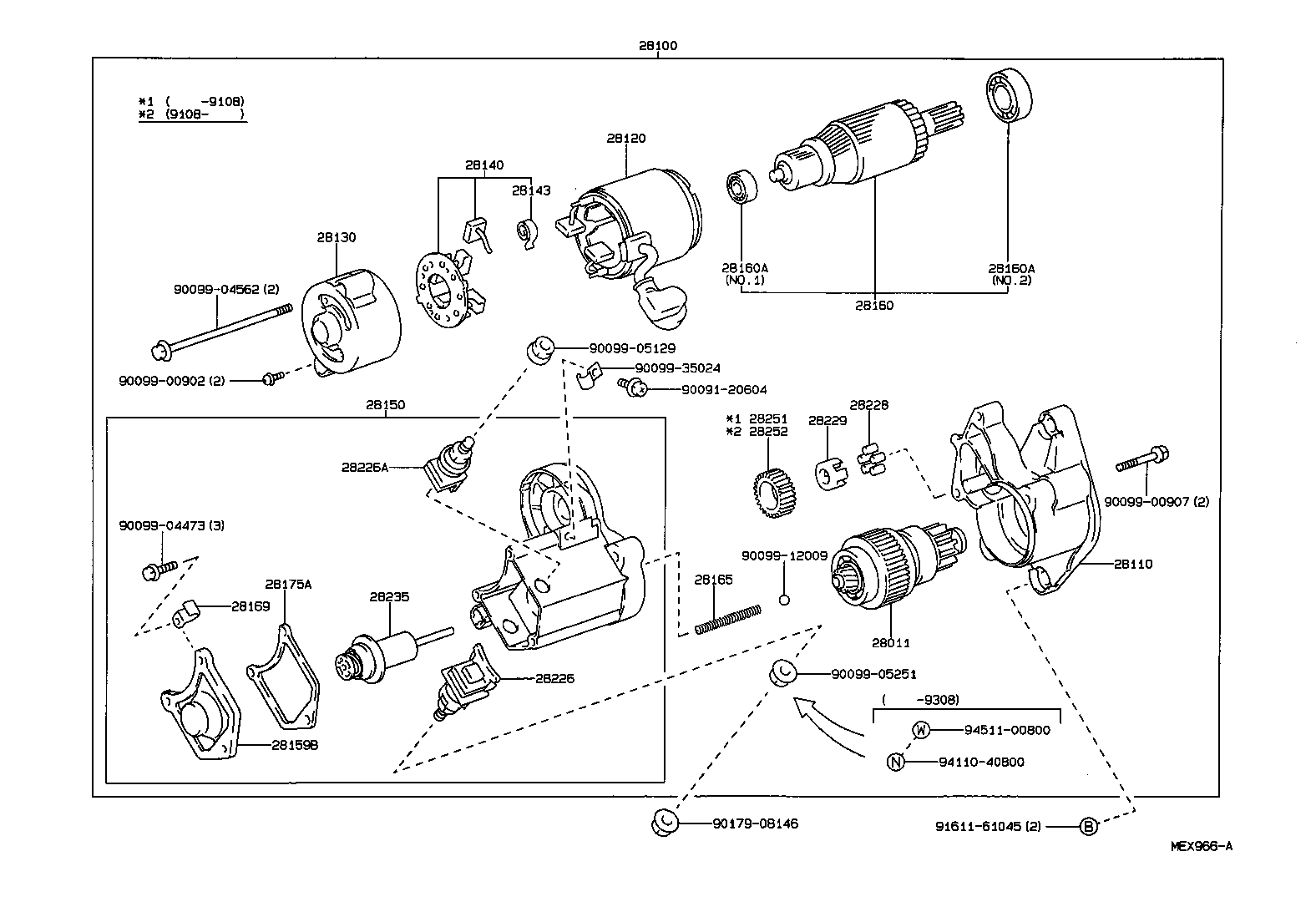

Click highlighted areas on diagram

12V 1.0KW

diagram 28011 28100 28110 28120 28130 28140 28143 28150 28159B 28160 28160A 28160A 28165 28169 28175A 28226 28226A 28228 28229 28235 28251 28252 9009120604 9009900902 9009900907 9009904473 9009904562 9009905129 9009905251 9009912009 9009935024 9017908146 9161161045 9411040800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92

 1
28100 - STARTER ASSY
28100-72010

2Y,3Y..YN80,81,85,86

12V 1.0KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-72010

2Y,3Y,4Y..YN8#,9#

 1
28120 - YOKE ASSY, STARTER
28120-26071

2Y,3Y,4Y..YN8#,92

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-72010

2Y,3Y,4Y..YN8#,9#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-26070

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92

 1
28143 - SPRING, STARTER BRUSH
90099-17112

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-34080

22R,2Y,3Y..RN125,8#,90,YN80,81,85,86

 1
28150-34080

2Y,3Y..YN80,81,85,86

 1
28159B - COVER, MAGNET SWITCH
28159-10040

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92

 1
28159-10040

22R#,2Y,3Y..RN8#,90,YN8#,90

 1
28160 - ARMATURE ASSY, STARTER
28160-26070

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92

 1
28160A - BEARING, STARTER ARMATURE
28253-45020

22R#,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

NO.1

 1
90099-10113

22R#,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

NO.2

 1
28160A - BEARING, STARTER ARMATURE
28253-45020

22R#,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

NO.1

 1
90099-10113

22R#,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

NO.2

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040

22R..RN85,90;22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,80,YN8#,92..MTM

 1
28169 - CLAMP, STARTER MOTOR LEAD WIRE
28169-10040

22R#,2Y,3Y..RN125,8#,90,YN80,81,85,86,90

 1
28175A - GASKET, MAGNET SWITCH COVER
28175-10040

22R..RN85,90;22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,80,YN8#,92..MTM

 1
28226 - STARTER KIT, BATTERY TERMINAL
28226-72080

22R,2Y,3Y..RN125,8#,90,YN80,81,85,86

 1
28226A - STARTER KIT, MOTOR TERMINAL
28226-72010

22R..RN85,90;22R,2L,3L,2Y,3Y..LN8#,90,RN125,80,YN80,81,85,86..MTM

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040

22R..RN85,90;22R#,2L,3L,2Y,3Y,4Y..LN8#,9#,RN125,8#,YN8#,9#..MTM

 5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040

22R..RN85,90;22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,80,YN8#,92..MTM

 1
28235 - PLUNGER, MAGNET SWITCH
28235-35080

22R..RN85,90;22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,80,YN8#,92..MTM

 1
28251 - PINION, STARTER DRIVE
28254-45020

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92

 1
Common parts
90091-20604
90099-00902
90099-00907
90099-04473
90099-04562
90099-05129
90099-05251
90099-12009
90099-35024
90179-08146
91611-61045
94110-40800
94511-00800
