YN85R-PRKRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1997
Engine 2Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

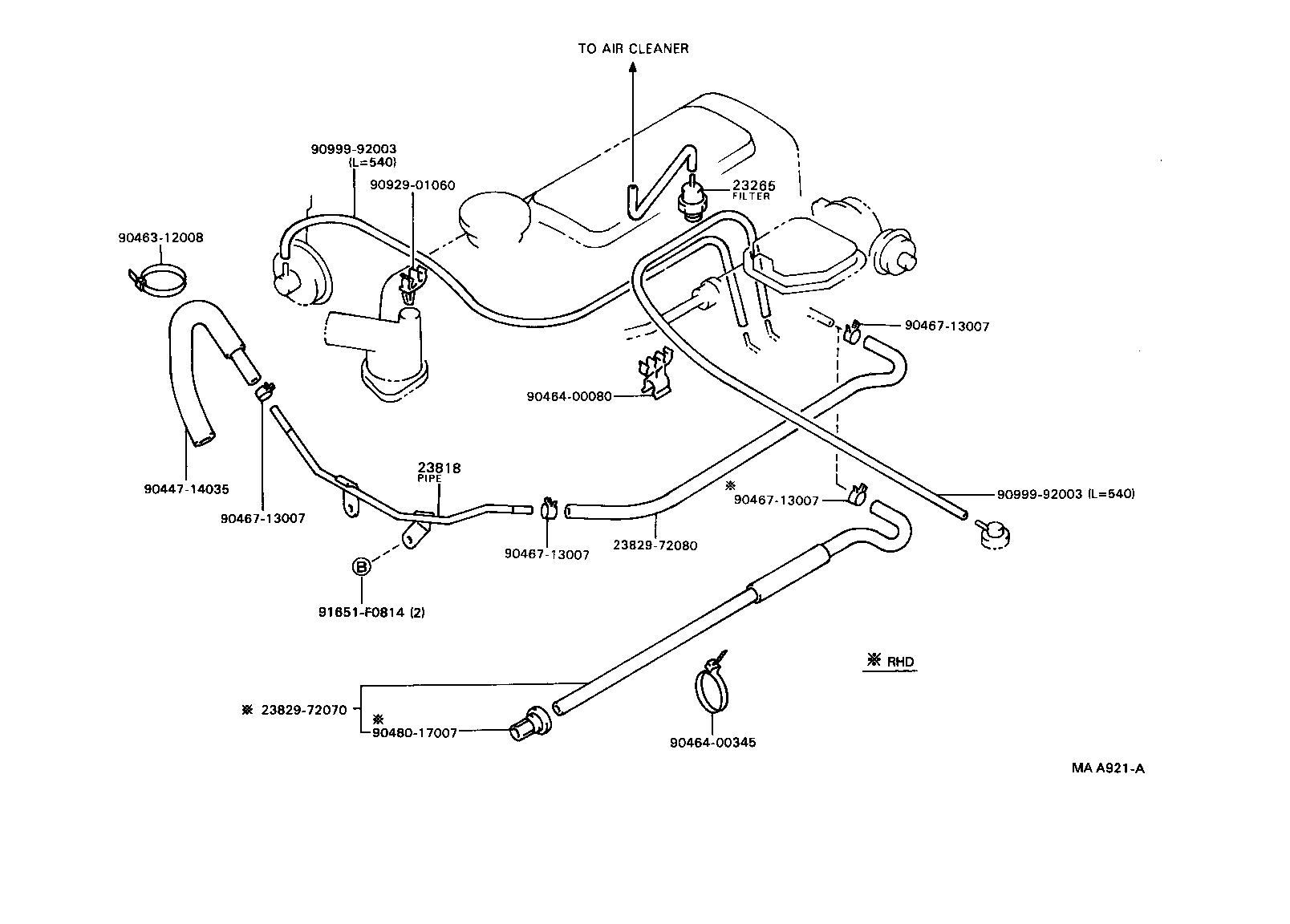

(8808-9108)2Y..GEN,TH

Click highlighted areas on diagram

diagram 23265 23818 2382972070 2382972080 9044714035 9046312008 9046400080 9046400345 9046713007 9046713007 9046713007 9046713007 9048017007 9092901060 9099992003 9099992003 91651F0814
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11022

2Y..YN85..RHD..GEN

 1
Common parts
23829-72070
23829-72080
90447-14035
90463-12008
90464-00080
90464-00345
90467-13007
90480-17007
90929-01060
90999-92003
91651-F0814

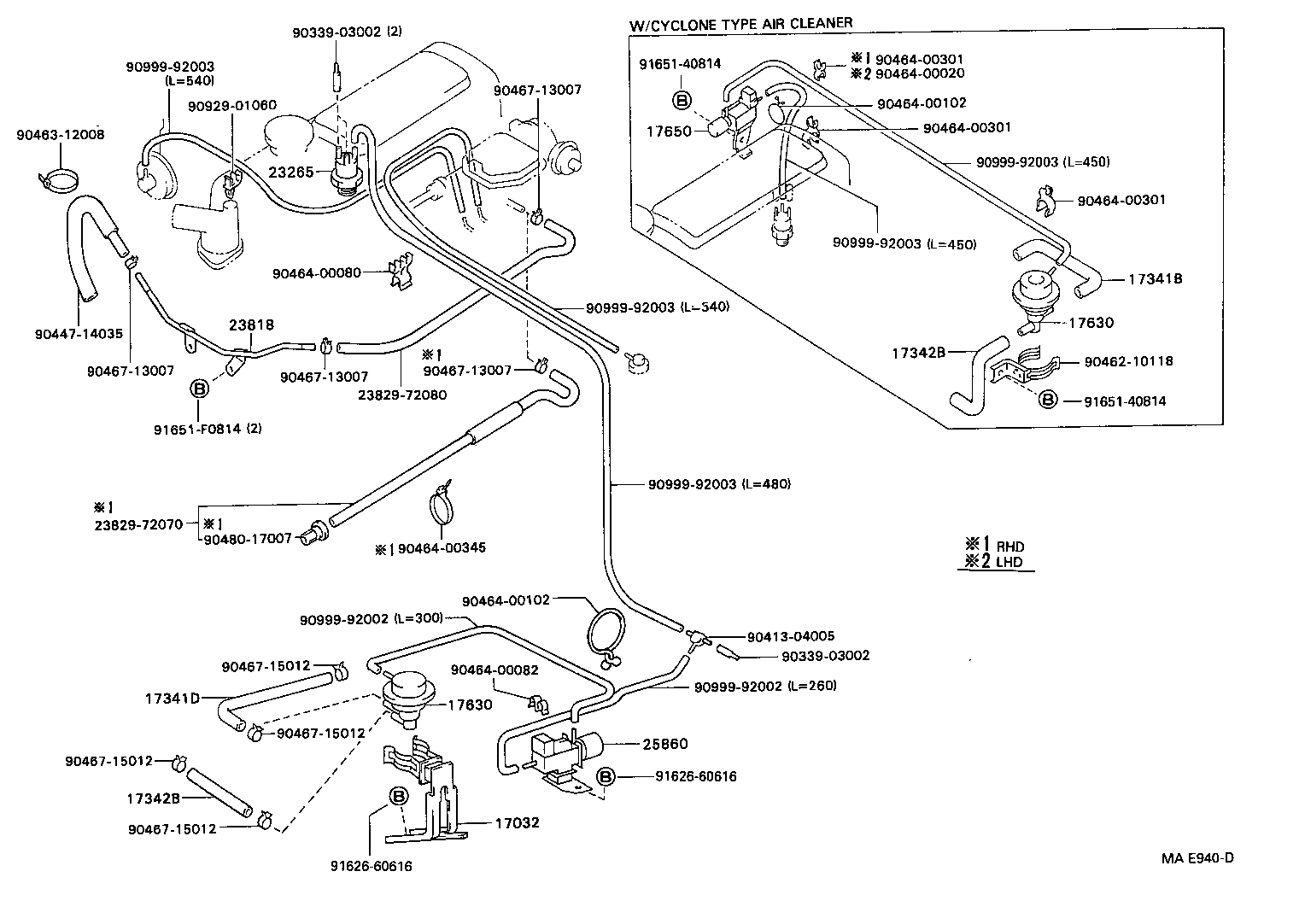

(9108-9401)2Y..GEN,TH ; (9401- )2Y..YN80,85..GEN

Click highlighted areas on diagram

diagram 17032 17341B 17341D 17342B 17342B 17630 17630 17650 23265 23818 2382972070 2382972080 25860 9033903002 9033903002 9041304005 9044714035 9046210118 9046312008 9046400020 9046400080 9046400082 9046400102 9046400102 9046400301 9046400301 9046400301 9046400345 9046713007 9046713007 9046713007 9046713007 9046715012 9046715012 9046715012 9046715012 9048017007 9092901060 9099992002 9099992002 9099992003 9099992003 9099992003 9099992003 9099992003 9162660616 9162660616 9165140814 9165140814 91651F0814
Part # Description Qty Price
17032 - BRACKET SUB-ASSY, AIR VALVE
17032-73010

2Y,4Y..YN80,85,92..GEN,TH

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-73060

2Y,4Y..YN80,85,92..GEN,TH

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
90445-16040

2Y,4Y..YN80,85,92..GEN,TH

 1
17342-73030

2Y,4Y..YN80,85,92..GEN,TH

W(CYCLONE AIR CLEANER)

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
90445-16040

2Y,4Y..YN80,85,92..GEN,TH

 1
17342-73030

2Y,4Y..YN80,85,92..GEN,TH

W(CYCLONE AIR CLEANER)

 1
17630 - VALVE ASSY, AIR CONTROL
17300-73011

2Y,4Y..YN80,85,92..GEN,TH

 1
17300-73020

2Y,4Y..YN80,85,92..GEN,TH

W(CYCLONE AIR CLEANER)

 1
17630 - VALVE ASSY, AIR CONTROL
17300-73011

2Y,4Y..YN80,85,92..GEN,TH

 1
17300-73020

2Y,4Y..YN80,85,92..GEN,TH

W(CYCLONE AIR CLEANER)

 1
23265 - FILTER, GAS, NO.1
90917-11022

2Y..YN85..RHD..GEN

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-73040

2Y,4Y..YN80,85,92..GEN,TH

 1
Common parts
23829-72070
23829-72080
90339-03002
90413-04005
90447-14035
90462-10118
90463-12008
90464-00020
90464-00080
90464-00082
90464-00102
90464-00301
90464-00345
90467-13007
90467-15012
90480-17007
90929-01060
90999-92002
90999-92003
91626-60616
91651-40814
91651-F0814
