YN85R-PRKRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1997
Engine 2Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

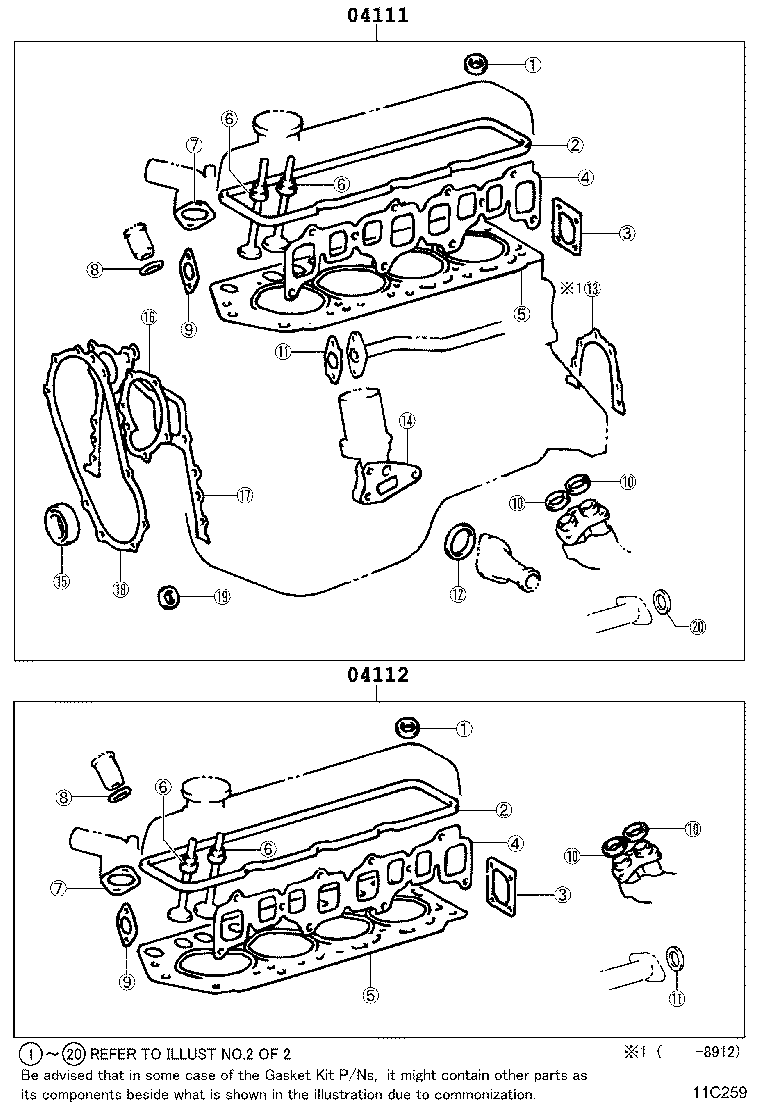

ILLUST NO. 1 OF 2(8808-9106)2Y..GEN,TH

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-72013

2Y..YN80,85

 1
04111-72016

2Y..YN80,85,90

 1
04111-72015

2Y..YN80,85..4F;2Y..YN85..5F..CBU

 1
04111-72014

2Y..YN80,85..4F;2Y..YN85..5F..CBU

 1
04111-72015

2Y..YN80,85

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-72014

2Y..YN80,85..4F;2Y..YN85..5F..CBU

 1
04112-72013

2Y..YN80,85

 1
04112-72015

2Y..YN80,85..4F;2Y..YN85..5F..CBU

 1
04112-72015

2Y..YN80,85

 1
04112-72016

2Y..YN80,85,90

 1

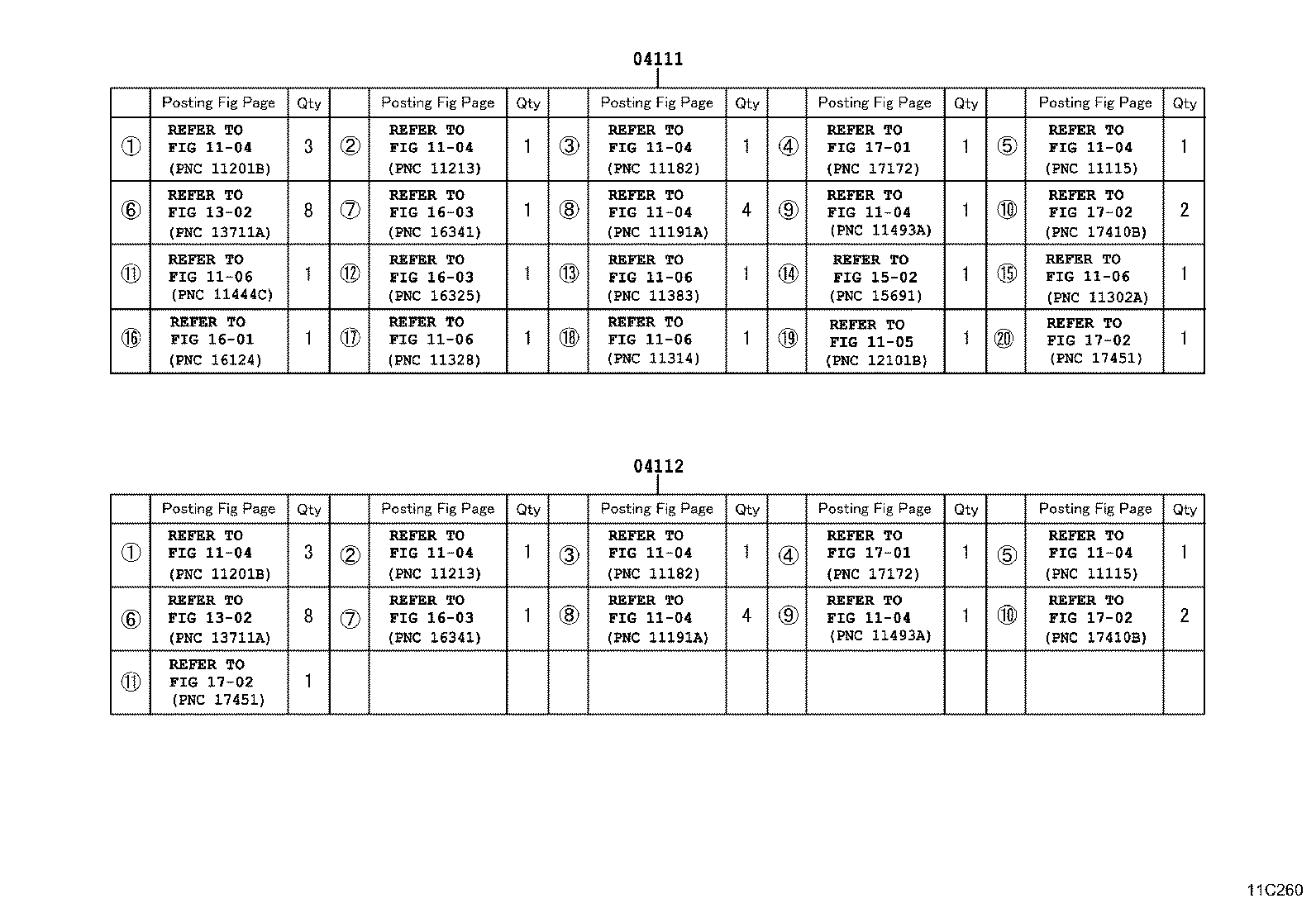

ILLUST NO. 2 OF 2(8808-9106)2Y..GEN,TH

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1105 1106 1106 1106 1106 1106 1302 1302 1502 1601 1603 1603 1603 1701 1701 1702 1702 1702 1702
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-72013

2Y..YN80,85

 1
04111-72016

2Y..YN80,85,90

 1
04111-72015

2Y..YN80,85..4F;2Y..YN85..5F..CBU

 1
04111-72014

2Y..YN80,85..4F;2Y..YN85..5F..CBU

 1
04111-72015

2Y..YN80,85

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-72014

2Y..YN80,85..4F;2Y..YN85..5F..CBU

 1
04112-72013

2Y..YN80,85

 1
04112-72015

2Y..YN80,85..4F;2Y..YN85..5F..CBU

 1
04112-72015

2Y..YN80,85

 1
04112-72016

2Y..YN80,85,90

 1
Linked diagrams
1104
1105
1106
1302
1502
1601
1603
1701
1702

ILLUST NO. 1 OF 2(9106-9511)2Y..GEN,TH

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-72013

2Y..YN80,85

 1
04111-72016

2Y..YN80,85,90

 1
04111-72015

2Y..YN80,85..4F;2Y..YN85..5F..CBU

 1
04111-72014

2Y..YN80,85..4F;2Y..YN85..5F..CBU

 1
04111-72015

2Y..YN80,85

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-72014

2Y..YN80,85..4F;2Y..YN85..5F..CBU

 1
04112-72013

2Y..YN80,85

 1
04112-72015

2Y..YN80,85..4F;2Y..YN85..5F..CBU

 1
04112-72015

2Y..YN80,85

 1
04112-72016

2Y..YN80,85,90

 1

ILLUST NO. 2 OF 2(9106-9511)2Y..GEN,TH

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1105 1106 1106 1106 1106 1106 1302 1302 1502 1601 1603 1603 1603 1701 1701 1702 1702 1702 1702
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-72013

2Y..YN80,85

 1
04111-72016

2Y..YN80,85,90

 1
04111-72015

2Y..YN80,85..4F;2Y..YN85..5F..CBU

 1
04111-72014

2Y..YN80,85..4F;2Y..YN85..5F..CBU

 1
04111-72015

2Y..YN80,85

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-72014

2Y..YN80,85..4F;2Y..YN85..5F..CBU

 1
04112-72013

2Y..YN80,85

 1
04112-72015

2Y..YN80,85..4F;2Y..YN85..5F..CBU

 1
04112-72015

2Y..YN80,85

 1
04112-72016

2Y..YN80,85,90

 1
Linked diagrams
1104
1105
1106
1302
1502
1601
1603
1701
1702
